This detailed description refers to the Consul type 0.42 SN BE scissor lift with a 4560 mm runway length, flush-mount (in-ground sunk) design, featuring an integrated auxiliary lift, making it an ideal choice for modern workshops. The equipment is excellently suited for lifting vehicles with a gross weight of 3,500 kg, while the main lift has a load capacity of 4,200 kg.
Consul scissor lifts guarantee reliability, precision, and a long service life, which is supported by compliance with strict European standards (DIN EN 1493, CE).
This model is a standout piece in the Consul C-Line series, which, thanks to its flush-mount design (BE – Bodeneinbau), requires minimal space on the workshop floor when not in use.
Platforms: Made from special cold-formed profile steel, guaranteeing maximum stability and durability even under heavy loads.
Control: An electro-hydraulic control system ensures smooth and precise lifting/lowering processes.
Hydraulic System: A Master/Slave hydraulic system ensures even load distribution and synchronized operation.
Installation: Flush-mount (BE) design, which creates an optimal working environment.
Pneumatic Release: Pneumatic release activated by a push-button during lowering for ease of operation.
Safety Switches: Compliant with CE directives, featuring a separate lockable main switch.
Acoustic Protection: Equipped with a foot protection function to increase user safety.
Mechanical Locking: A 17-stage mechanical locking system ensures safe holding at the desired height.
Bearing: Split, 20 mm thick fixed and extendable bearing (hot-dip galvanized as standard), which excellently resists wear. Wheel alignment calibration optionally available.
Drive-over Flaps: The runways feature drive-over flaps (drive-over design), facilitating vehicle positioning.
Integrated Auxiliary Lift (Wheel Free Lift): Equipped with an integrated auxiliary lift extendable on both sides, which assists with wheel and running gear work with a load capacity of 3,500 kg and an approximate lifting height of 450 mm.
Elastomer Adapters: 40 mm elastomer adapters are included in the standard equipment.
Lifting Pad Rail: Integrated rail for separately available lifting pads.
Protection and Approvals: IP 54 protection class, 230 V socket, GS certification, DIN EN 1493 and CE approval.
The following table details the critical parameters of the Consul 0.42 SN BE – 4560mm lift:
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 735100 | |
| Manufacturer Number (HAN) | 500439 | |
| Category | Scissor Lifts | |
| Rated Capacity (Main Lift) | 4.200 kg | |
| Lifting Height (Main Lift) | ca. 1.850 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | approx. 2,260 mm | |
| Installation length | ca. 5.530 mm | |
| Power supply | 400 V / 50 Hz | Three-phase |
| Drive Power | 5.5 kW | |
| Fuse Protection | 20 A slow blow | |
| Runway width | ca. 650 mm | |
| Runway length | ca. 4,560 mm | |
| Drive-over height | ca. 50 mm (SN version) | |
| Auxiliary Lift Capacity | 3,500 kg | |
| Auxiliary Lift Lifting Height | ca. 450 mm | |
| Auxiliary lift length | ca. 1,440 – 1,940 mm | Extendable range |
| Auxiliary lift raising time | 15 seconds | |
| Auxiliary lift width | ca. 670 mm |
A BE (Bodeneinbau) version means that the lift's hydraulic unit and main structural elements are installed below the floor level. This solution is extremely aesthetic and space-saving, as vehicles can easily drive over the lift when it is fully lowered. The minimum drive-over height (approx. 50 mm) ensures that most vehicles can drive onto it without issue.
The 3,500 kg capacity integrated auxiliary lift is a key function for modern service centers. This system enables complete wheel unloading, which is essential for precise wheel alignments, brake jobs, or running gear maintenance. The auxiliary lift can be extended on both sides (from 1,440 mm to 1,940 mm), adapting flexibly to different axle distances. Its lifting time is only 15 seconds, resulting in significant time savings.
The reliable electro-hydraulic system ensures fast (approx. 35 sec) and controlled lifting of the 4,200 kg main load. The safety chain function is taken over by a 17-stage mechanical locking system, which automatically activates in every lifting position, guaranteeing vehicle support even during a power failure. A separate lockable main switch, compliant with CE requirements, adds another level to the safety protocols.
Numerous accessories are available for the product, which further enhance functionality:
Hot-dip Galvanized Auxiliary Lift (Surcharge): Recommended especially in highly corrosive environments.

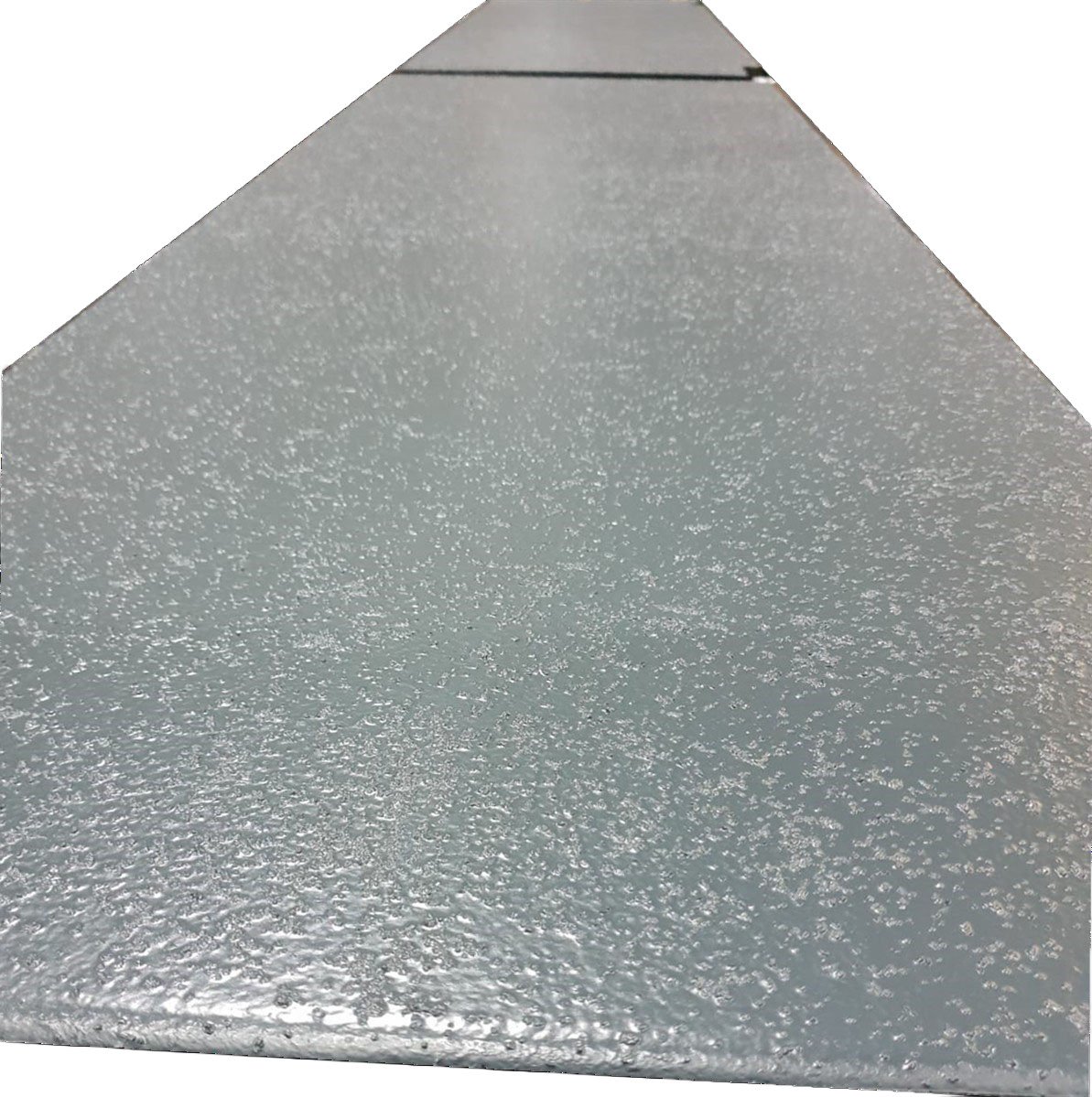

Anti-slip Coating: An anti-slip coating can be ordered for the surface of the runways, which cannot be retrofitted.

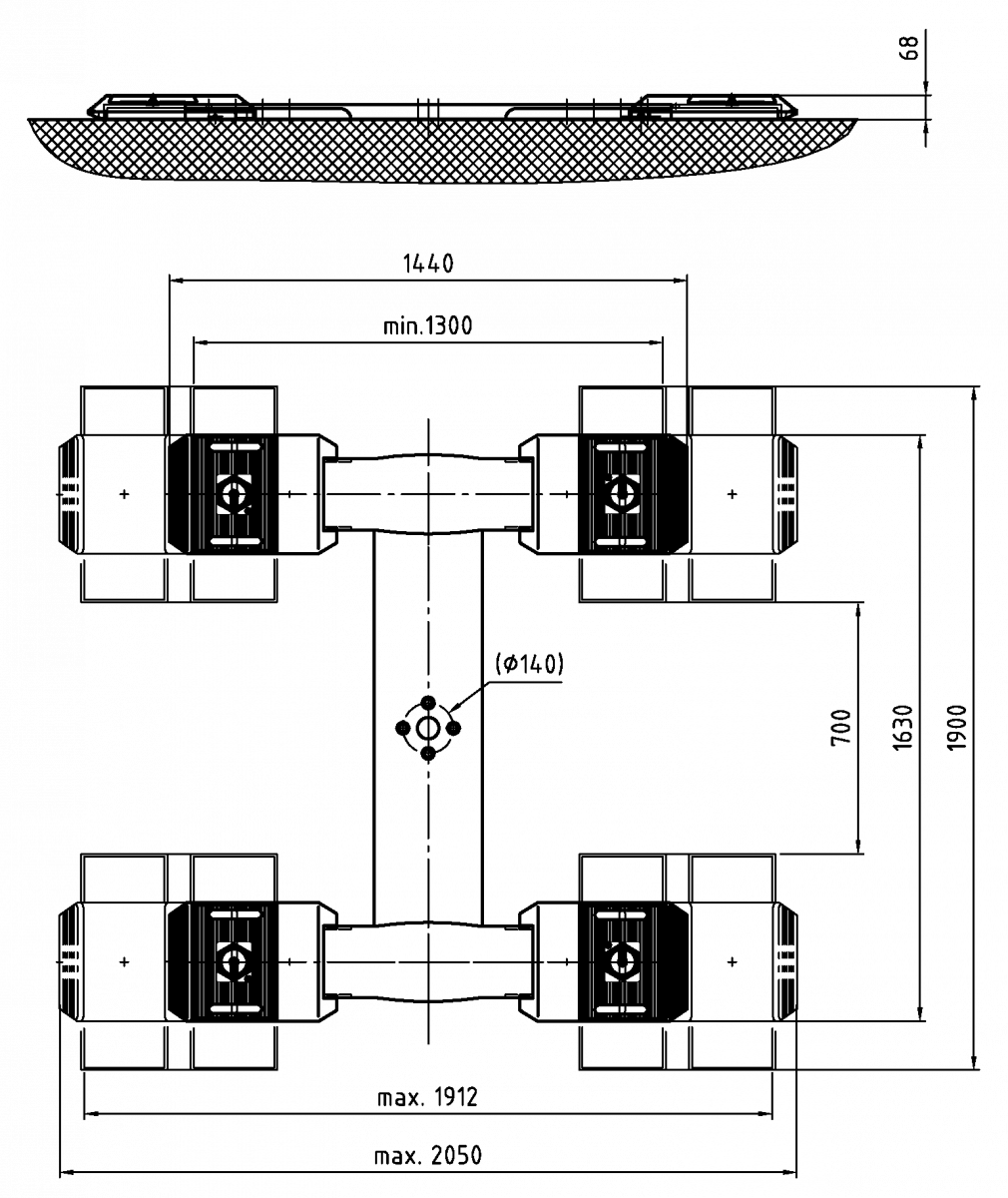

For Pit Frame Lifts: Special adapters and lift bridges are available for frame-based vehicles (max. 3,000 kg).

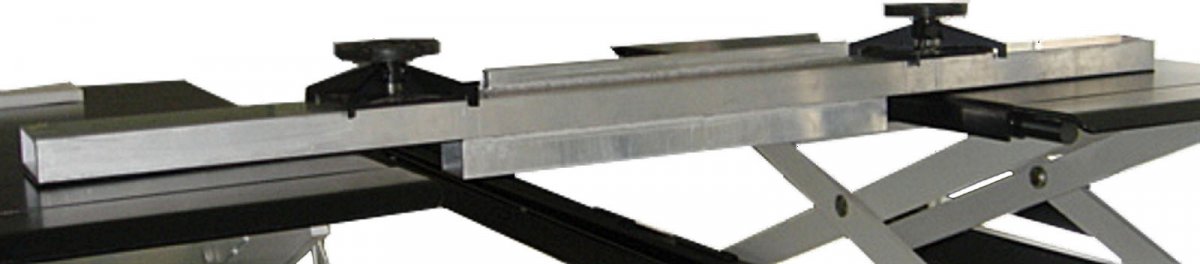

Leveling Set: 50 mm high leveling set for 650 mm wide runways.
Control Panel Position Right (at extra charge): Customization of the control unit position.
Fixing Materials: Fixing kit belonging to the 0.35/0.40 series (with 28 pcs M16 anchor bolts).
Illumination: Factory lighting options not mountable afterwards (LED lamps).
Elastomer Adapters: Adapters of different sizes (e.g., 250 x 150 x 20 mm) for the accessory lift.
The Consul 0.42 SN BE scissor lift is the ideal choice for professional workshops seeking a high-performance, reliable, and space-saving lifting solution.
