The Consul 1-Column Premium EL® 1.17 LV lift is an outstanding product in the Consul Werkstattausrüstung range, developed specifically for workshops requiring high reliability and compact space requirements. This model is an ideal solution for servicing vehicles with a maximum total weight of up to 1700 kg. The robust design and premium quality components guarantee a long service life and safe operation.
This single-column lift features a special, hot-rolled profile column, which is not sheet metal construction, thus providing exceptional stability and load capacity. The vehicle support carriage runs on six rollers, ensuring smooth and precise lifting/lowering movement.
The Consul EL® 1.17 LV lift incorporates several design solutions that enhance user comfort and safety:
Robust Column Design: Special, hot-rolled profile column that guarantees structural integrity and eliminates weaknesses inherent in sheet metal construction.
Roller Guidance: The load-bearing carriage is guided by six precision rollers, ensuring even load distribution and minimal friction during the lift.
Safety System: A combination of bronze load-bearing and safety nut ensures maximum safety.
Mechanical Locking: The retractable load nut features a mechanical locking function, providing an additional layer of safety.
Acoustic Foot Protection: Built-in acoustic protection guards the operator's feet against accidental injury during lowering.
User Comfort: The Softline push-button control design protects against operational errors, allowing for intuitive and safe handling.
Full Coverage: The interior of the column is completely covered, which protects the internal mechanics from contamination and improves the aesthetic appearance.
Main Switch: Features a separate main switch that can be locked as required, compliant with CE directives.
Special Support Saddle: A special frame structure designed specifically to accommodate lift trolleys.
Drive: Driven by a quiet motor, which is equipped with thermal protection to prevent overloading.
Protection: IP 54 rated electrical system.
The following table details the critical technical parameters of the Consul 1-Column Premium EL® 1.17 LV lift:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 654905 | |
| Manufacturer Number (HAN) | 9425 | |
| Category | Logistics Vehicles | |
| Rated load capacity | 1.700 kg | Maximum permitted vehicle weight. |
| Lifting height | approx. 1.880 mm | Optimal working height. |
| Lifting Time (loaded) | approx. 45 seconds | Fast and efficient lifting cycle. |
| Set-up width | approx. 3.250 mm | Required space horizontally. |
| Installation length | ca. 2.290 mm | Required space longitudinally. |
| Installation Height | approx. 2,905 mm | The total height of the structure. |
| Drive-up height | 23 mm | Extremely low approach height for easy setup. |
| Power supply | 400 V / 50 Hz | Three-phase mains connection. |
| Drive Power | 3.0 kW | Powerful motor for reliable operation. |
| Fuse Protection | 25 A slow-blow | Adequate protection against mains fluctuations. |
The Consul EL® 1.17 LV lift complies with the strictest European safety and quality requirements, ensuring long-term, trouble-free operation:
Protection Class: IP 54 (Protected against dust ingress, protected against splashing water).
Socket Outlet: A 230 V socket outlet is available on the unit.
Approvals: Has GS mark, complies with standard DIN EN 1493, and features CE marking.
For maximum flexibility and optimal maintenance, the following accessories are available (ordered separately):

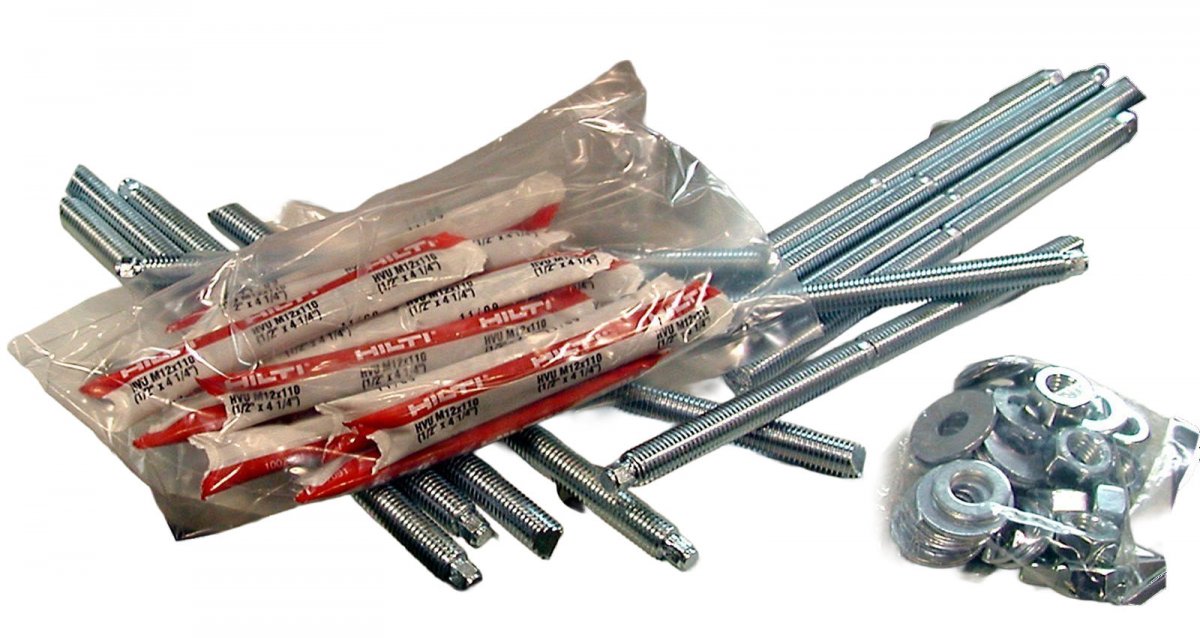

Fixing Material (Consul Fixing material): With 6 M16 anchor bolts and threaded rods, specifically for types 1.15 and 1.25 (though relevant for understanding fixing methods for the 1.17 LV as well).

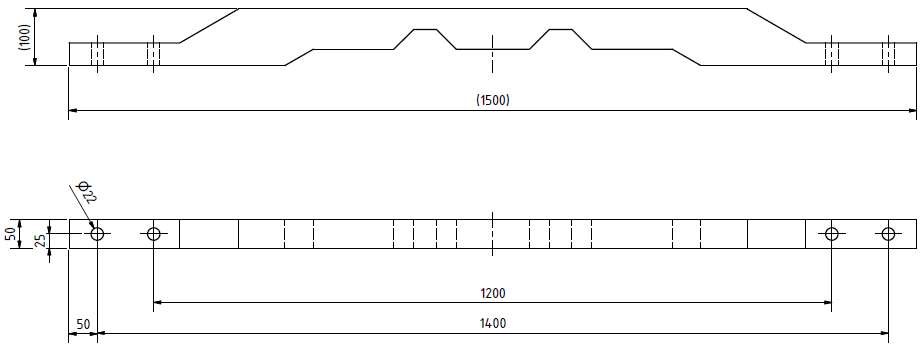

Base plate fixing bars (Consul Base plate fixing bars): Reinforcing elements recommended for concrete floors 150-210 mm thick for types 1.15 BRM and 1.25.

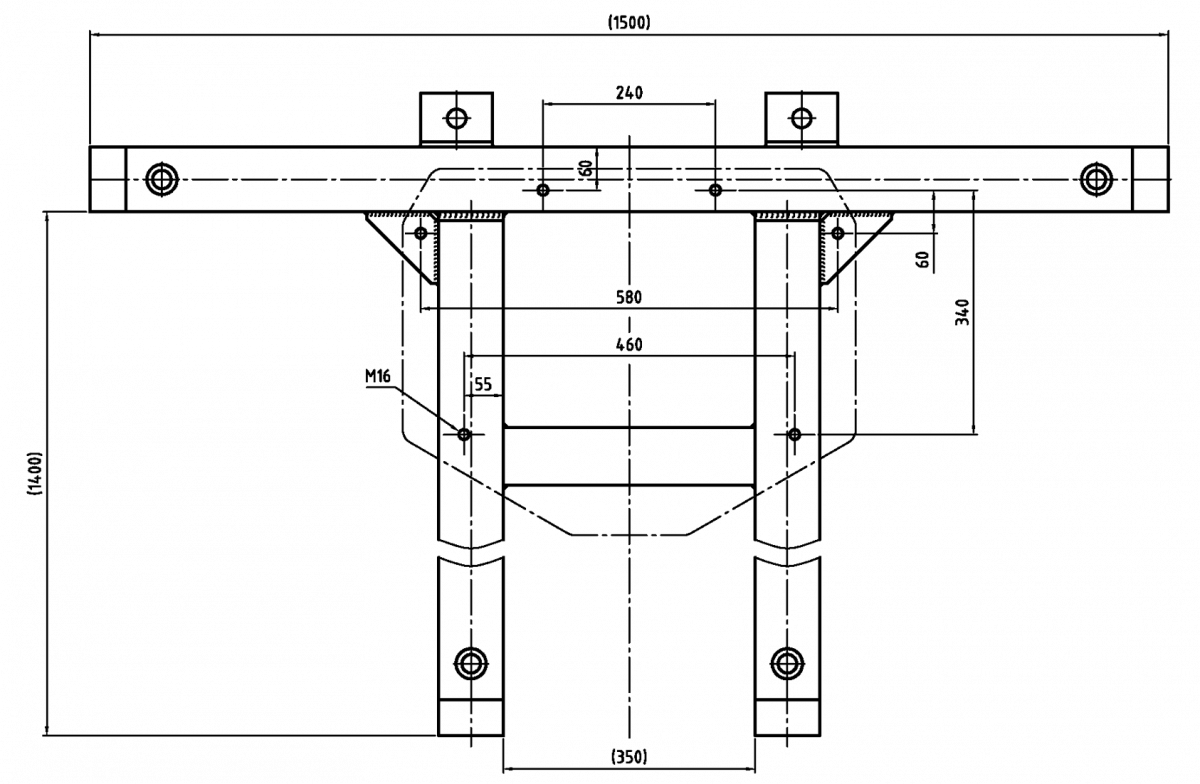

Self supporting Base frame (Consul Base frame, self supporting): Allows the lift to be installed in locations where the floor is not suitable for direct anchoring. This frame increases the lifting height by approximately +50 mm.
Special Painting (Consul Special painting): Can be painted in a custom color matching the workshop's corporate identity by specifying the RAL color code.
Spindle oil (Consul Spindle oil in 1L-container): Special spindle oil for lubricating the lift's screw/nut systems, supplied in a 1-liter container.
A detailed Brochure (Brochure) is also available in PDF format, containing further information on the C-Line 1.17 LV series.
The Consul 1-column Premium EL® 1.17 LV lift is the ideal choice for professionals seeking a reliable, space-saving, and safe lifting device for daily service work.
