The Consul 2-Post Lift Premium EL® 2.35 model belongs to the Consul C-Line premium category, specifically tailored for the demands of modern workshops. This professional two-post lift without a base frame (posts can be mounted directly onto the floor) offers an ideal solution for lifting smaller vehicles, such as the Smart Fortwo BR453, as well as long-wheelbase medium-sized commercial vehicles, for example, the VW T6. Reliability, precise control, and safe operation are guaranteed in accordance with the highest industrial standards.
The Premium EL® 2.35 series is designed with durability and user-friendly design in mind. The structure incorporates several features that optimize workflows and increase safety:
Special Rolled Column Profiles: The lift posts are made of specially rolled profiles, ensuring excellent rigidity and a long service life even under heavy loads.
Installation Orientation: The posts are installed perpendicular to the vehicle's lifting direction, providing optimal access to the vehicle.
Precise Carriage Guidance: The load-bearing carriages are guided by six (6) rollers, resulting in an extremely smooth and stable lifting/lowering movement.
Safety Mechanisms:
Load Screw and Safety Nut: A combination of a bronze load screw and a cast light metal safety nut ensures the secure retention of the load.
Broken Nut Lift-Locking: Special function that prevents unwanted lowering even in the event of a broken safety nut.
Acoustic Foot Protection: An audible alarm warns of hazardous zones, increasing personal safety.

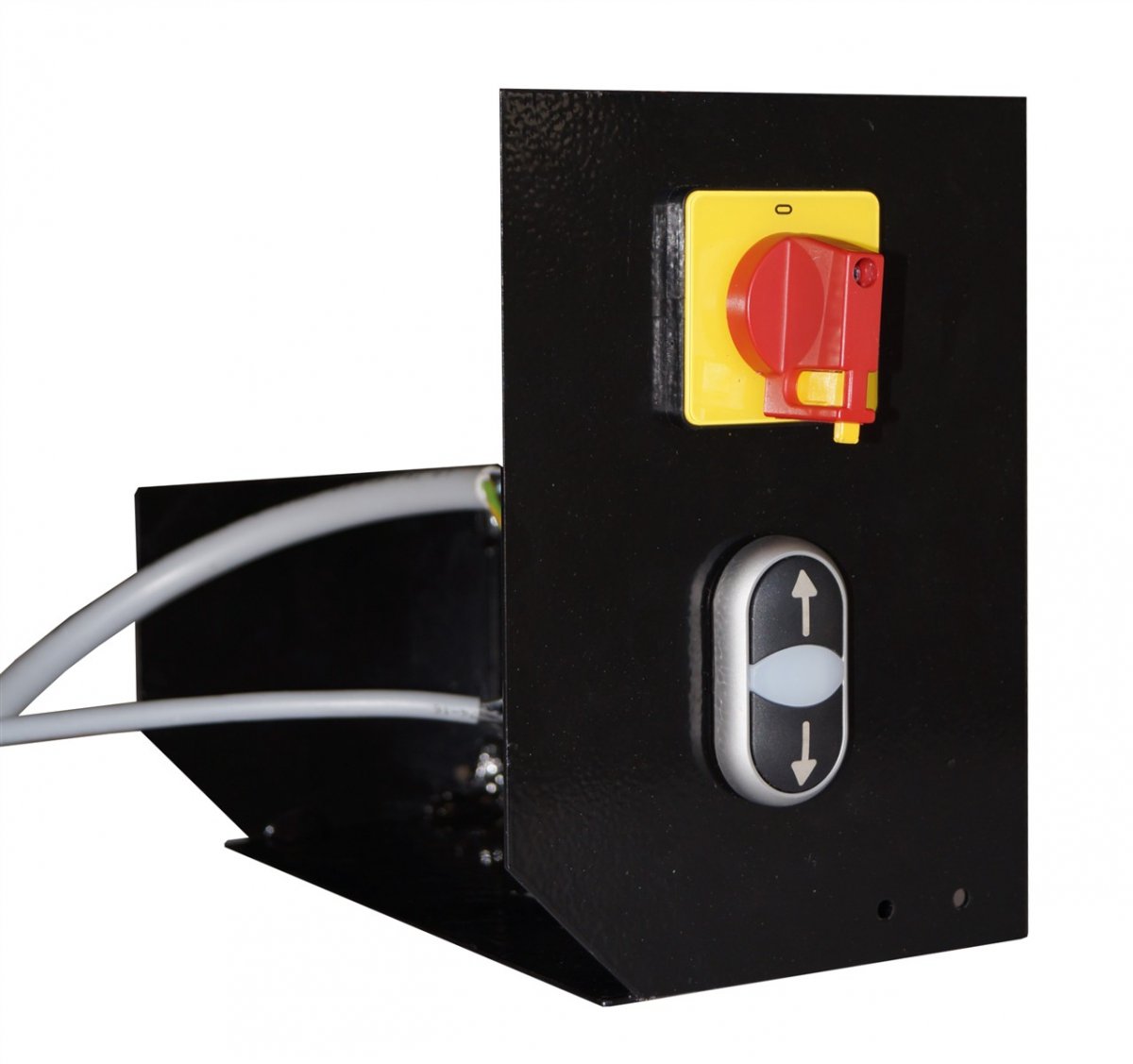

Control Panel:
Softline Push-Button Control: Modern, ergonomic push-button control unit featuring a computer-controlled leveling system for perfect horizontal positioning.
Main Switch: Lockable main switch located directly on the column for quick and safe power disconnection.
Full Column Cladding: The inner part of the column is completely covered, protecting the hydraulic and electrical components from contamination and external influences.
Adjustable Arms and Extensions:
Padded Door Impact Buffer: Protects the vehicle door from damage.
Adjustable Pickup Plate: The pick-up plate is adjustable by approx. 25 mm, ensuring flexible adaptation.
Arm Locking System: The arms are easily adjustable and can be locked in 300 mm increments, ensuring stable support.
The performance and dimensions of the Consul Premium EL® 2.35 lift can be found in the following table:
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 3,500 kg | Ideal for small and medium-sized vehicles. |
| Lifting height | approx. 2,005 mm* | *Maximum height achievable only with optional accessories. |
| Lifting/Lowering Time | approx. 35 seconds | Fast and efficient workflow. |
| Lowest Free Height | approx. 85 mm** | **The lowest pick-up height achievable under optimal floor conditions. |
| Long arm extension range | approx. 650 – 1,300 mm | 3-piece design. |
| Set-up width | approx. 3.400 mm | External dimension. |
| Installation Height | ca. 2.560 mm | Standard installation height. |
| Clearance between columns | approx. 2.830 mm | Internal distance. |
| Drive-through width | ca. 2.520 mm | The width available for the vehicle. |
| Power supply | 400 V / 50 Hz | Three-phase mains supply required. |
| Drive Power | 2 x 3.0 kW | Total 6.0 kW motor power. |
| Fuse Protection | 20 A slow blow | Appropriate circuit protection. |
| Protection class | IP 54 | Dust and splash protection. |
| Specifications | GS-approved, DIN EN 1493, CE-approved | European safety and quality standards. |
| SKU | 540500 | |
| HAN | 421577 |
To maximize flexibility, the Consul two-post lift offers numerous optional accessories:
Self-supporting Base Frame (Optional): Although the base model is frameless, it is possible to install a self-supporting base frame, which can be particularly useful on floors where anchoring is not ideal.
Second Control Unit (Optional):
Factory Installed: The factory installation of the second control box is available for an additional charge.
For Slave Column: A second control box specifically for the slave column is available for Consul 2.35 – 2.45 Premium models, allowing control from both sides of the lift.

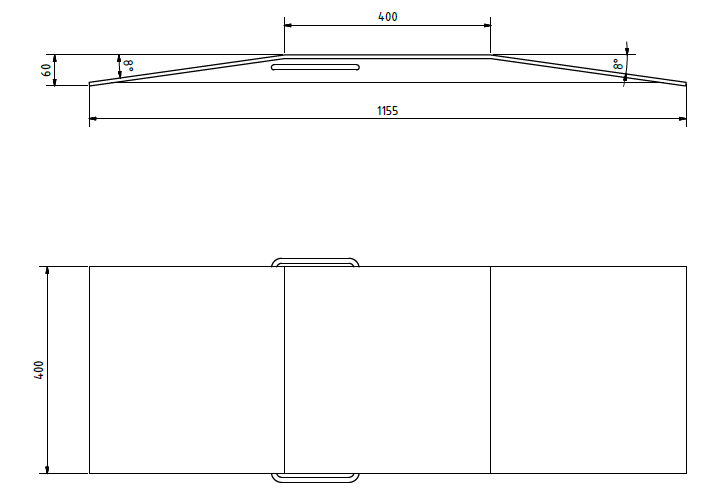

Drive-on Ramps (Optional): 1 set = 4 ramps, facilitates vehicle drive-on, especially for low-profile vehicles.
Lifting Supports with Turntables: Set of 4 supports with Ø 100 mm diameter, usable instead of Ø 130 mm ones, enabling precise positioning with turntables.
Fixing Materials: Fixing set for Consul 2-post lifts with 3,500 kg capacity, containing 12 M12 anchor bolts, threaded rods, and support plates.
Spacers: Available in different sizes (e.g., 100 mm and 12 mm sets), which can be used for Consul pivot arm lifts up to 4 tons.
Limit Switches:
Hanging Limit Switch with Light Barrier: An additional layer of safety against overloading or over-lifting.
Manual Hanging Limit Switch: Manually operable limit switch.
The Consul two-post lift Premium EL® 2.35 complies with the strictest European safety requirements:
DIN EN 1493: The European standard for lifting equipment.
CE approval: Complies with all applicable EU directives.
GS approval: The „Geprüfte Sicherheit” (Tested Safety) mark guarantees product safety.
IP 54 Protection: Provides protection against dust ingress and against splashing water from all directions.
This model is the ideal choice for professionals looking for a reliable, high-capacity lift without a base frame, capable of operating with minimal floor height (under optimal floor conditions).
Further detailed information, installation plans, and brochures (in PDF format) are available on the product page.
