This detailed product description is for the VARIO Swing Arm Chassis belonging to the Consul 2-Cylinder In-Ground Lift presents it, which is specifically designed for lift systems with a load capacity of 3500 kg. This high-quality chassis offers an ideal solution for workshops, providing flexibility and reliability for servicing the most diverse vehicles, from the compact Smart ForTwo to the long-wheelbase T5 models.
The VARIO swing arm chassis is optimized for use with Consul C-Line and Z-Line in-ground lifts and is ideally suited for the 2.35 MKS Optima type lifts. The design emphasizes versatility and precise positioning, made possible by the solid structure and easy-to-handle accessories.
Main design features:
Slidable Support Beams (Slidable Beams): Allow for optimal adjustment of the support arms for different wheelbases and track widths.
Arm Locking Device (Arm Locking Device): Ensures stable and secure locking of the swing arms in the desired position for safe lifting.
3-Piece, Double-Extendable Swing Arms: Provide maximum flexibility for under-vehicle access and reaching various lift points.
Lifting Table with Hard Rubber Profile Pad: Protects the vehicle underbody from damage while providing stable support.
Adjustable Height with Threaded Spindle: Provides fine-tuning capability, with an approximately 30 mm stroke, for perfect contact.
Installation Materials: Necessary mounting elements for the running rails are included.
Quality Assurance: It has GS certification, complies with the DIN EN 1493 standard, and bears the CE marking, guaranteeing adherence to the highest safety and quality requirements.
The Consul VARIO swing arm chassis offers precise engineering solutions for professional workshop use. The table below summarizes the key specifications:
| Characteristic | Value | Note |
|---|---|---|
| Nominal Load Capacity | 3,500 kg | Maximum safe load capacity. |
| Lifting Height | ca. 2.055 mm | The maximum lifting height of the vehicle. |
| Lower Level Height | approx. 85 – 115 mm | The minimum distance from the floor achievable in the lowered position. |
| Long Arm Extension Range | approx. 620 – 1,315 mm | The full extension range of the rocker arms. |
| Distance Between Columns | 1.380 mm | The internal distance between the hydraulic units when lowered. |
| Compatibility | 2.35 MKS Optima | Recommended specifically for this type. |
| Vehicle Compatibility | From Smart ForTwo to T5 Long | Wide applicability. |
| SKU (Item Number) | 429001 | |
| HAN (Factory Code) | 9753 | |
| Category | Two-cylinder Lowering Lifts |
One of the biggest advantages of the VARIO system is its exceptional adaptability. The three-part, double-extension rocker arms make it possible for service technicians to place the support elements precisely on the reinforced points of the vehicle chassis, regardless of whether it is a small passenger car or a longer commercial vehicle.
A extendable beams ensure that the arms lock into the optimal angle during lifting, minimizing point stress on the vehicle chassis. The screw-spindle height adjustment (approx. 30 mm stroke) is critically important for achieving a perfect fit, especially on uneven floor conditions or for vehicles with special chassis geometry.
Consul products prioritize safety. This rocker arm lift also holds the most important industry certifications:
GS approval: The product complies with German safety regulations.
DIN EN 1493: Complies with the strict safety standard for European lifting equipment.
CE certification: Ensures product conformity with all relevant European directives.
A arm locking device guarantees that the arms cannot move unintentionally during lifting and lowering, which is critical for work performed at heights.
For maximum efficiency, Consul offers a range of accessories compatible with this swivel arm chassis (for Consul swivel arm lifts with a capacity up to 4 tons):

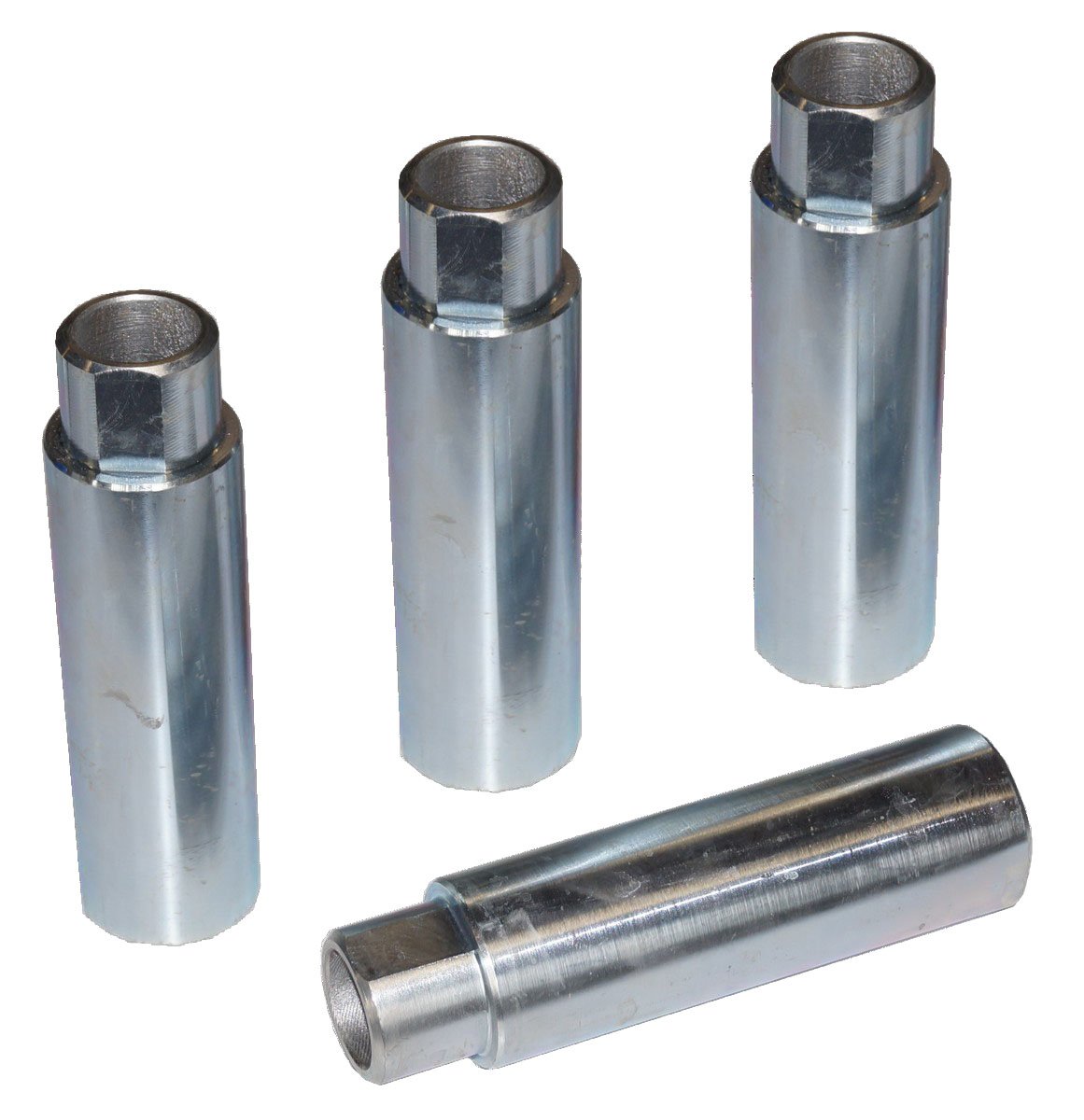

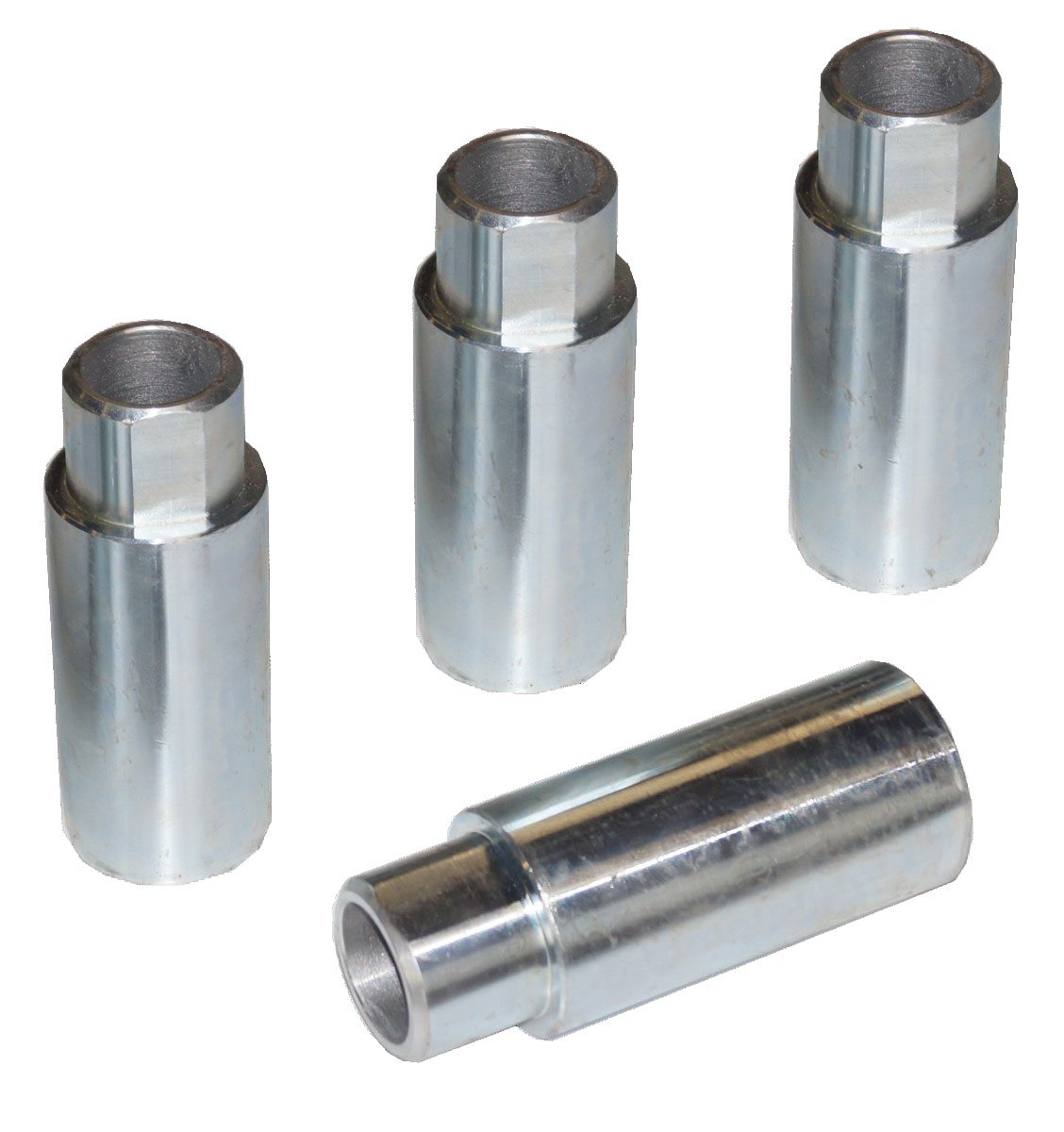

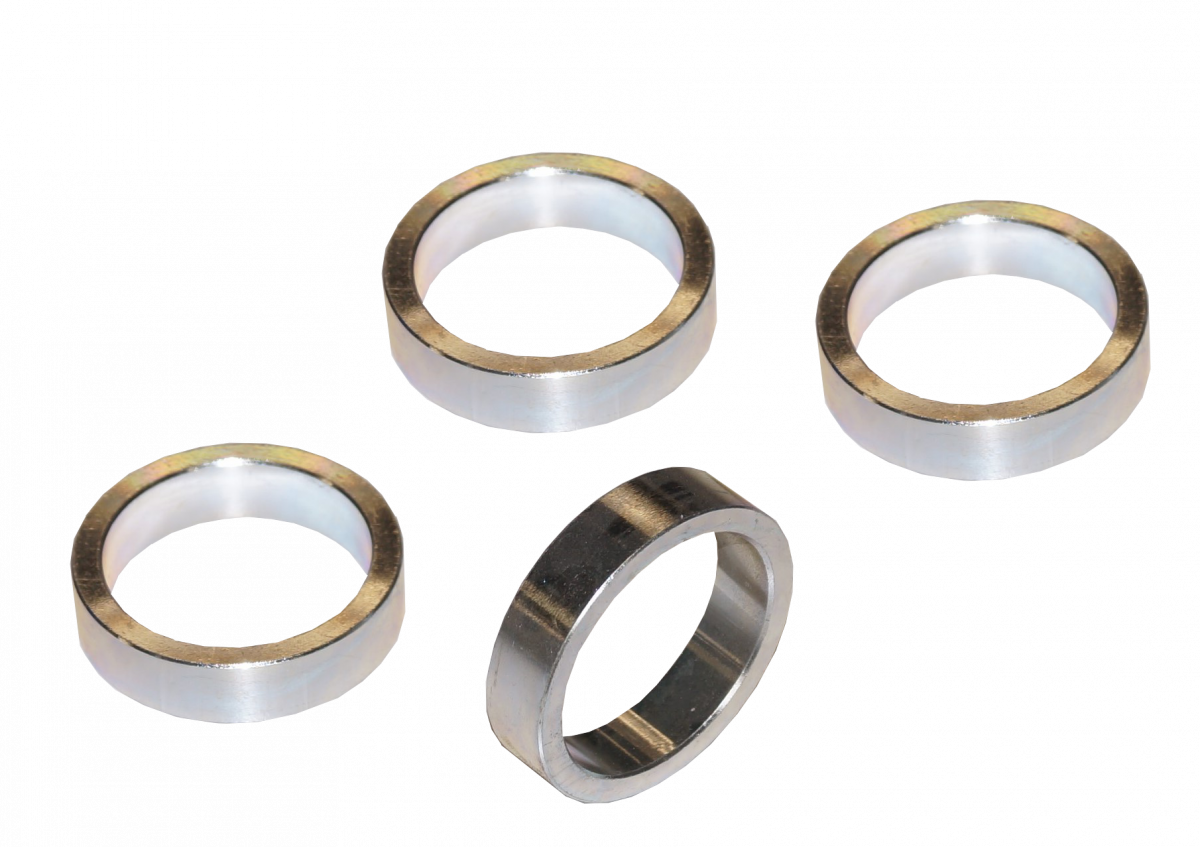

Consul Spacers: Available in various sizes (12 mm, 35 mm, 50 mm, 100 mm, 150 mm, 200 mm), these allow for fine-tuning the height of the lifting cups for different chassis heights. These kits (generally containing 4 pieces) are essential for precise and stable support.
Consul Pick up support up to 4 t: An accessory specifically recommended for off-road vehicles and commercial vehicles (1 kit = 2 pieces), ensuring proper seating when lifting higher chassis vehicles.
These accessories further enhance the versatility of the VARIO system, enabling the workshop to lift virtually any type of vehicle safely and efficiently.
Detailed technical documentation is available for the product:
This Consul VARIO swivel arm chassis is a combination of reliability, precision, and wide compatibility, making it an indispensable tool for every modern vehicle service.
