This product description is for the Consul 2-Post In-ground Multi-joint Swivel Arm Chassis (Two-cylinder, in-ground installation, multi-jointed, swivel arm chassis) detailed presentation, developed for maximum flexibility and versatile pickup options. This high-quality chassis offers an ideal solution for workshops handling a wide range of vehicles, from smaller passenger cars (e.g., Smart, VW) to long-wheelbase (up to 4,325 mm) commercial vehicles (e.g., Crafter / Sprinter).
The product belongs to the Twin Ram Inground Lifts It belongs to the (Two-cylinder, in-ground installation lifts) category, and its robust design guarantees safe and efficient operation.
This special chassis with double tiltable, swivel arms provides exceptional maneuverability, maximizing access to the vehicle underbody and flexibility in lifting points.
Double Tiltable Swivel Arms: The design allows for optimal positioning of the arms for the most diverse vehicle geometries, including models with low-slung or special chassis constructions.
High Capacity: With a nominal load capacity of 5,500 kg, it reliably handles medium-sized commercial vehicles as well.
Flexible Lifting Range: The long extension range of the arms (approx. from 795 mm to 1,790 mm) ensures that almost all types of vehicles can be securely fastened.
Compatibility: Specially suitable for systems with a 2.55 MKK design (likely a specific lift chassis dimension).
During the design, emphasis was placed on durability, ease of handling, and compliance with strict safety regulations.
Arm Locking Device: For safe operation, the arms are equipped with a locking mechanism, preventing accidental movement during lifting.
Four-part, Triple Extendable Arms: The construction of the arms makes them extremely versatile, enabling fine-tuning for the specific vehicle.
Lifting Table with Hard Rubber Profile: The lifting surface is equipped with a hard rubber profile that protects the vehicle chassis from damage while providing stable support.
Fine Adjustment with Threaded Spindle: The height of the lifting table can be adjusted using a threaded spindle with a stroke of approx. 25 mm, allowing for precise leveling.
Installation Materials: The delivery package includes the necessary installation materials for the professional installation of the chassis.
Certifications: The product has GS certification, complies with the DIN EN 1493 standard, and is CE marked, guaranteeing compliance with international safety and quality standards.
The following table summarizes the critical technical parameters of the Consul 2-piston in-ground multi-joint swivel arm chassis:
| Characteristic | Value | Note |
|---|---|---|
| SKU (Item Number) | 572768 | The product identifier for inventory management. |
| HAN (Factory Number) | 475383 | Manufacturer identifier. |
| Category | Twin Ram Inground Lifts | Two-cylinder, pit-installable lifts. |
| Rated load capacity | 5,500 kg | Maximum safe load capacity. |
| Lifting height | approx. 2,185 mm | The maximum lifting height. |
| Chassis height (Bottom clearance) | ca. 120 mm | Depth below floor level. |
| Arm extension range | approx. 795 – 1,790 mm | Variability of the total length of the arms. |
| Distance between columns | 2,500 mm | Internal distance between the two main columns. |
To achieve maximum functionality, several optional accessories are available for the system, which can increase the flexibility of the lift for different vehicle types.
Various spacers and special pickup elements are available in connection with the product, which optimize the placement of the vehicle chassis:

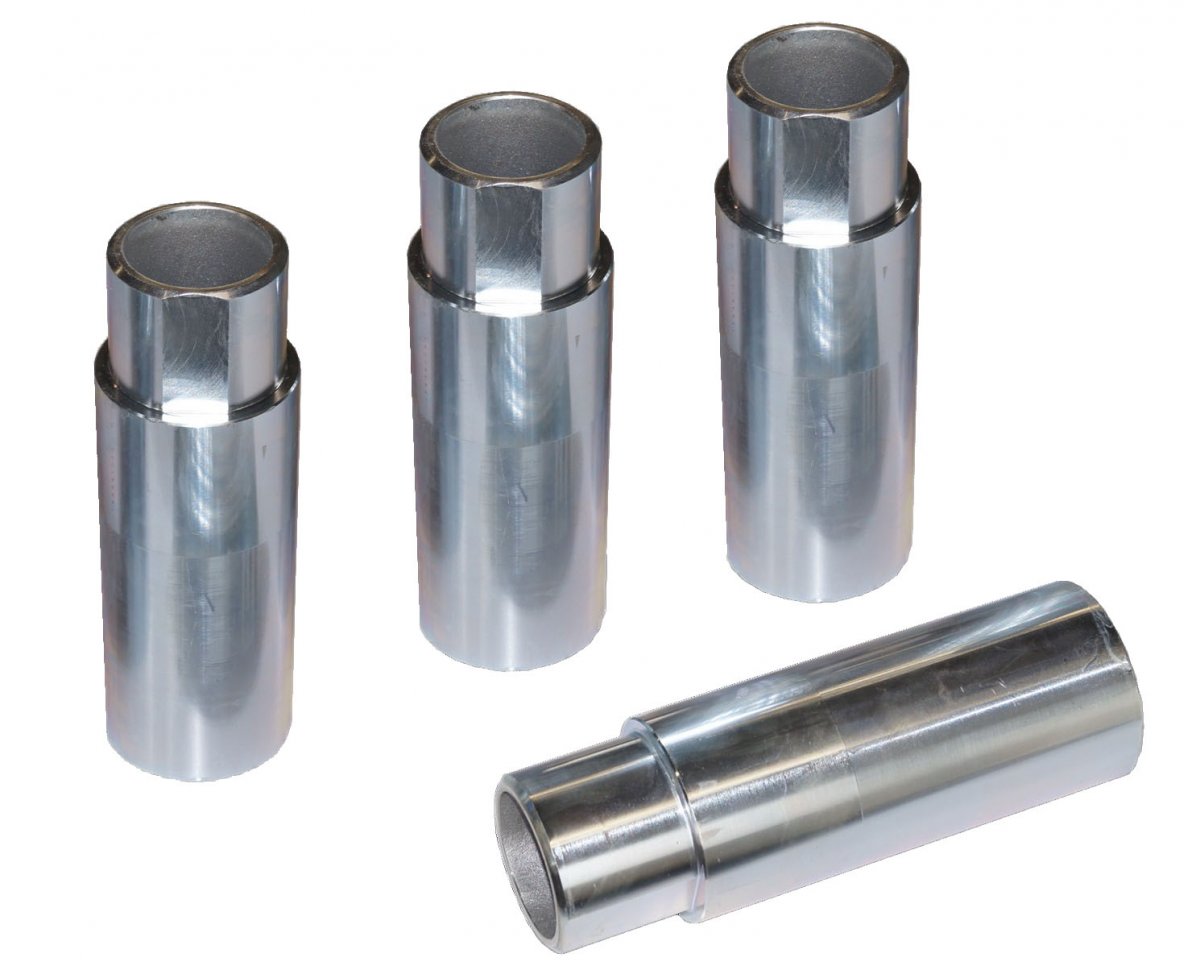

Consul Spacers 100 mm: 1 set = 4 pcs. For Consul swivel arm lifts with a load capacity exceeding 4,500 kg.

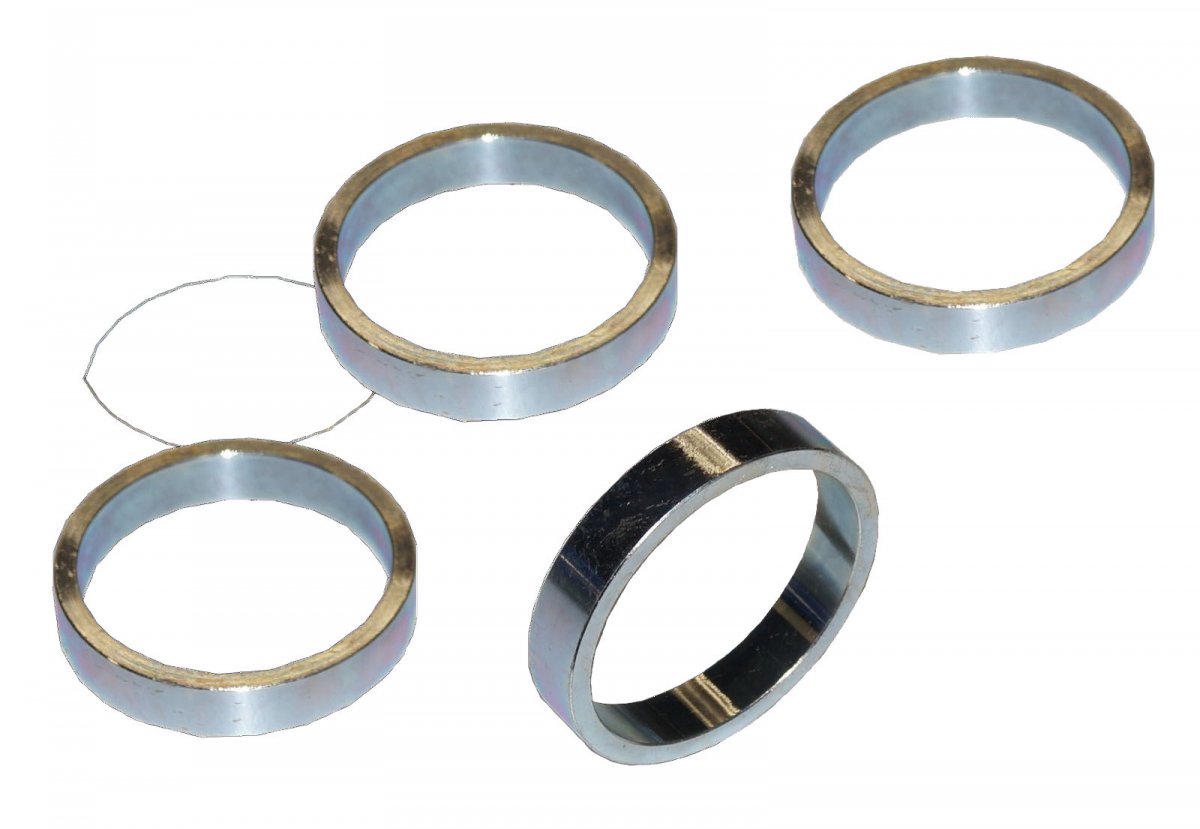

Consul Spacers 12 mm: 1 set = 4 pcs. Specifically for finer adjustments.

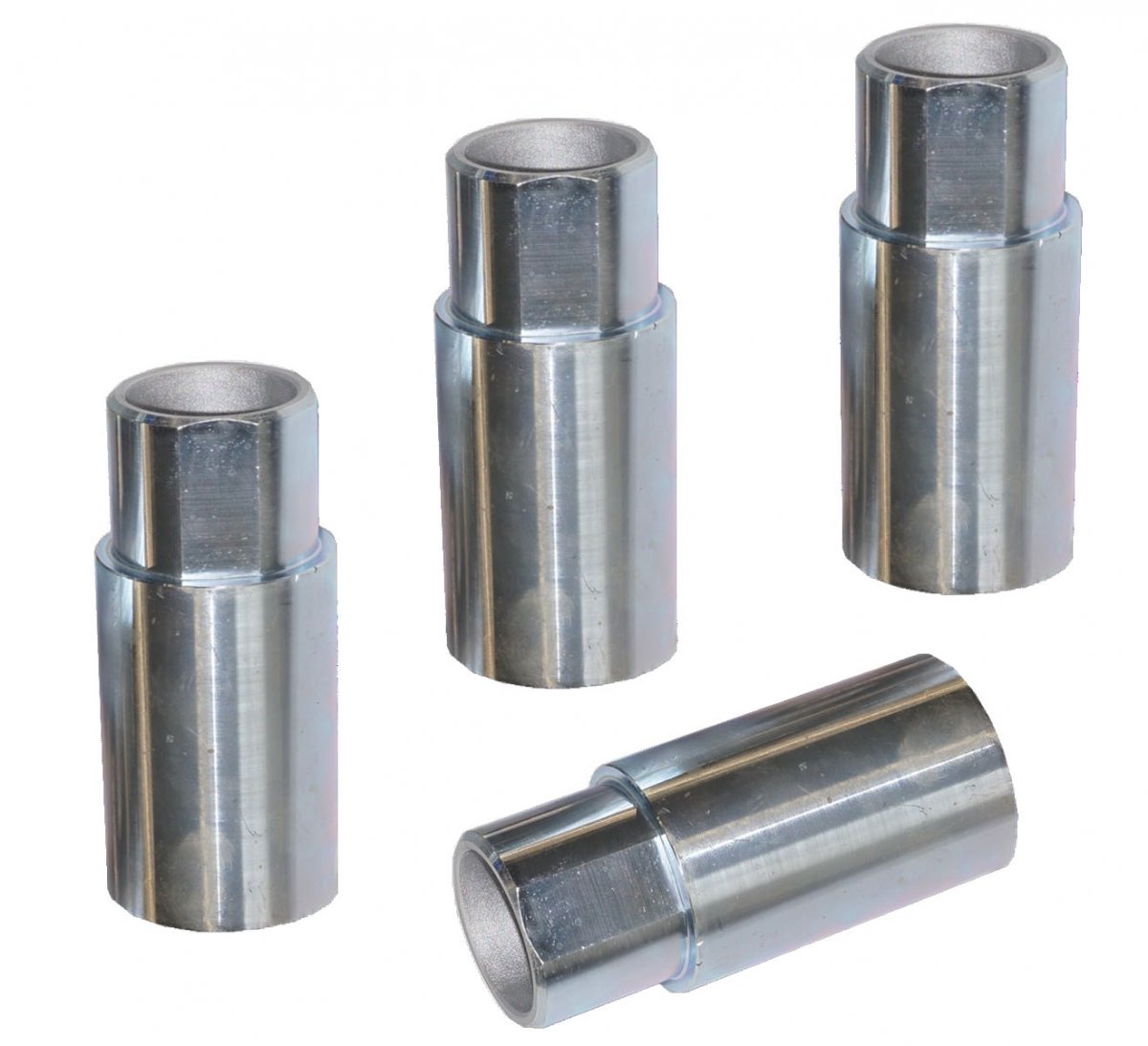

Consul Spacers 150 mm: 1 set = 4 pcs. For bridging larger gaps.
Consul Spacers 200 mm: 1 set = 4 pcs.
Consul Spacers 50 mm: 1 set = 4 pcs.
Consul Pickup Support from 4.5 t: Pickup adapters recommended specifically for SUVs and caravans (Caravan lifts) (1 set = 2 pcs).
Detailed documentation is also available for the product for professional installation and operation:
Brochure: A detailed brochure is available in PDF format, containing further visual and technical information.
Installation Manual (Installation Manual): Available for professional installation.
This Consul chassis is a combination of precision engineering and user-friendly design, significantly increasing the efficiency and safety of workshops during vehicle lifting and servicing.
