The Consul Double Scissor Lift 0.35 SDE-T is a high-quality, electrically driven, ultra-low profile lifting device specifically designed for workshop maintenance and repair tasks. This model offers an ideal solution for both floor-mounted and recessed (in-ground) installations, providing flexibility for workshop layouts.
The Consul 0.35 SDE-T combines reliability, safety, and precise hydraulic operation, ensuring the efficient and safe lifting of vehicles up to a load capacity of 3500 kg.
This double scissor lift incorporates several design features that enhance the user experience and safety during daily use:
Ultra-Low Profile Design: The lift's extremely low installation height (approx. 125 mm ramp height) minimizes driving-on difficulties, making it ideal for floor installation.
Anti-slip Platforms: The running surfaces are made of durable, non-slip tread plate (checker plate). Optionally Also available in hot-dip galvanized finish for enhanced corrosion protection.
Hydraulic Synchronization: The synchronization of the running gear is based on the follower principle, which guarantees the perfect simultaneous movement of the running gears even under load.
Double Hydraulic System: Each scissor arm contains dual hydraulic cylinders, which means that no external compressed air supply is needed for operation. This results in simpler installation and maintenance.
Safety Features:
Safety Alarm: During lowering, an audible warning signal sounds in the foot space.
Dead-man control: For safe operation.
Overload protection and emergency lowering device built-in.
Extendable Platforms: The platforms are equipped with two fold-away wings and two continuously adjustable extension elements, allowing for optimal support of vehicles with different wheelbases.
No Mechanical Connection: There is no mechanical connection between the running gears, which simplifies installation and reduces the chance of component failure.
Easy Maintenance: Every pivot point is equipped with greaseable screws for long service life and smooth operation.
Corrosion Protection: The base frame is hot-dip galvanized, and the drive-on ramps are also galvanized.
Installation Flexibility: Recessed (inground) installation is possible without accessory parts.
Standards and Protection: It has an IP54 degree of protection, a GS certificate, and is DIN EN 1493 and CE approved.
Accessories: The scope of delivery includes 4 pcs of 40 mm elastomer adapters.
Note: Lifting/lowering times may vary depending on the load.
The precise technical parameters of the Consul 0.35 SDE-T lift ensure professional performance:
| Characteristic | Value | Note |
|---|---|---|
| SKU | 727404 | |
| HAN | 483863 | |
| Category | Compact Scissor Lifts | |
| Rated load capacity | 3,500 kg | |
| Lifting height | approx. 2,000 mm | |
| Lifting time under load | approx. 45 seconds | |
| Ramp approach height | ca. 125 mm | Ideal for floor installation |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 2.2 kW | |
| Fuse Protection | with 16 A slow blow fuse | |
| Runway width | ca. 650 mm | |
| Runway length | approx. 1.935 – 2.415 mm | Adjustable with extension elements |
For maximum flexibility and to meet special requirements, Consul offers several accessories for this lift:
Hot-dip Galvanized Platforms: Platforms are also available in hot-dip galvanized finish for increased weather and corrosion resistance at an additional cost.
Base Frame (Hot-dip Galvanized): A base frame usable for recessed installation, which allows installation even without accessory parts.

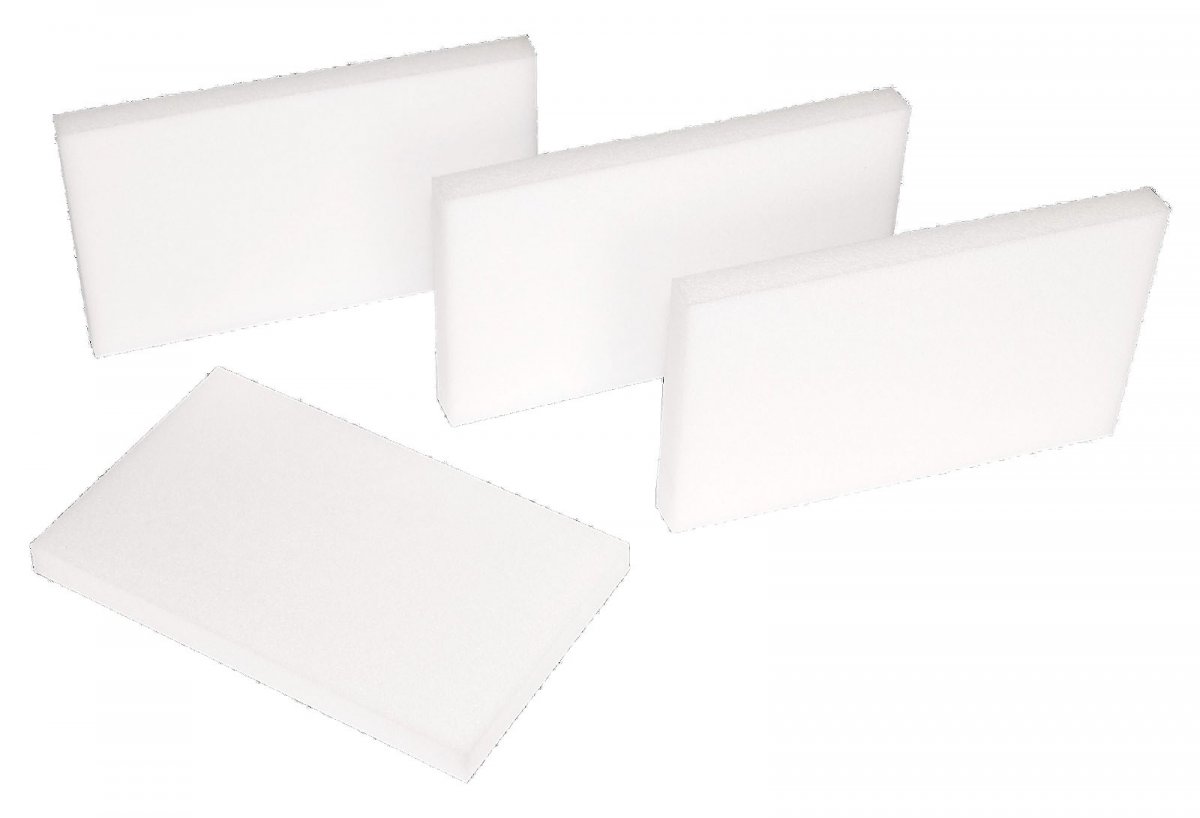

Elastomer Adapters: Elastomer adapters of different heights (20 mm, 40 mm, 60 mm, 90 mm) are available (in size 250 x 150 mm), which are ideal for lifts equipped with an integrated assistance lift. The delivery package contains 4 pcs of 40 mm adapters.
Hydraulic Oil: Hydraulic oil of type HLP 22 is available in a 5-liter container, suitable for all hydraulically driven Consul lifts.
Hose Extension (2,000 mm): Hose extension available for new lift orders, which increases the hose length by 2000 mm per unit.

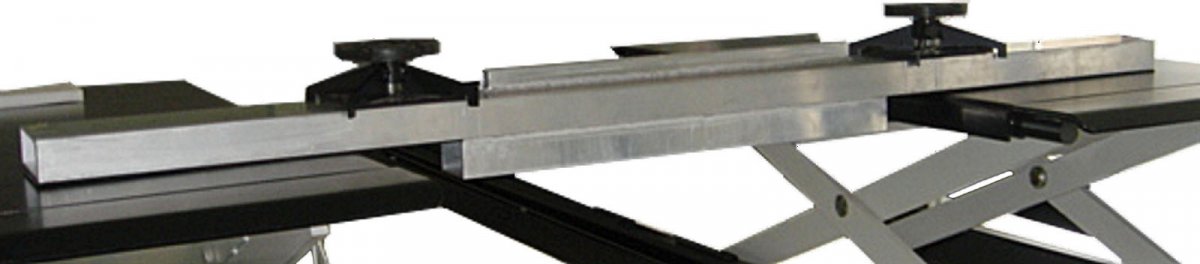

Frame Vehicle Lift Jack: Optional adapter set (with 2 movable adapters and threaded spindle, up to 3,000 kg), usable for the 4.45 series as well as for double scissor, scissor, 2-piston, and 4-piston recessed lifts. The lift type must be specified when ordering.

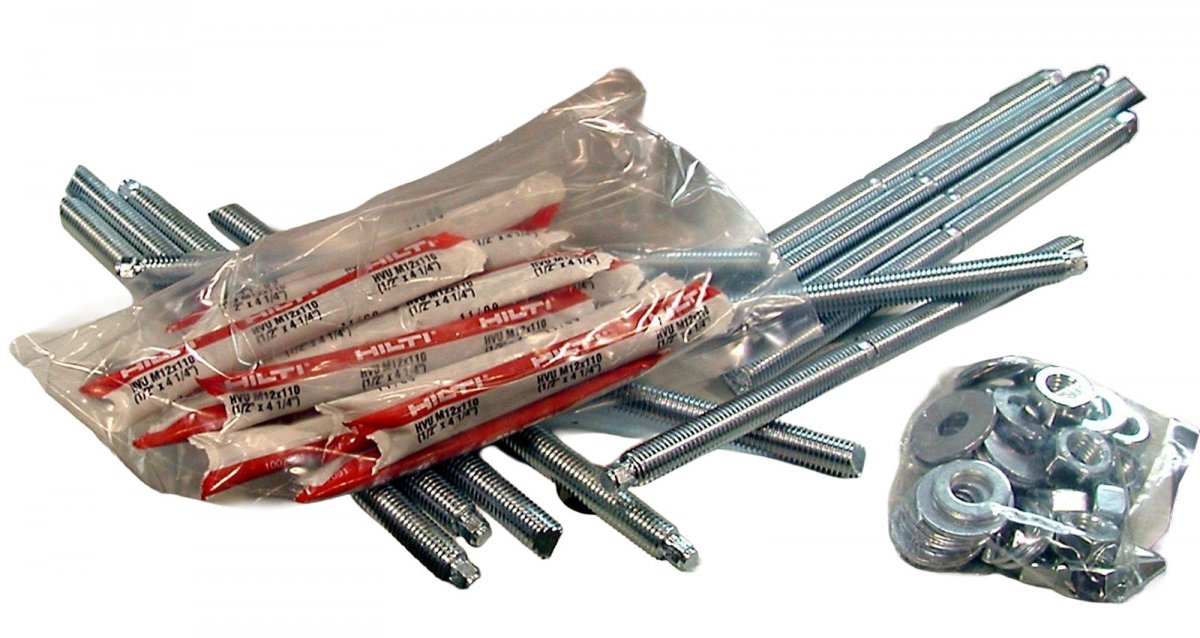

Fixing Materials: Fastening set containing 4 M12 anchor bolts and screws for the professional securing of Consul lifts.
The Consul Double Scissor Lift 0.35 SDE-T is the ideal choice for workshops looking for a reliable, space-saving, and safe lifting solution for daily service work. Detailed technical specifications and a robust construction guarantee long-term, trouble-free operation.
