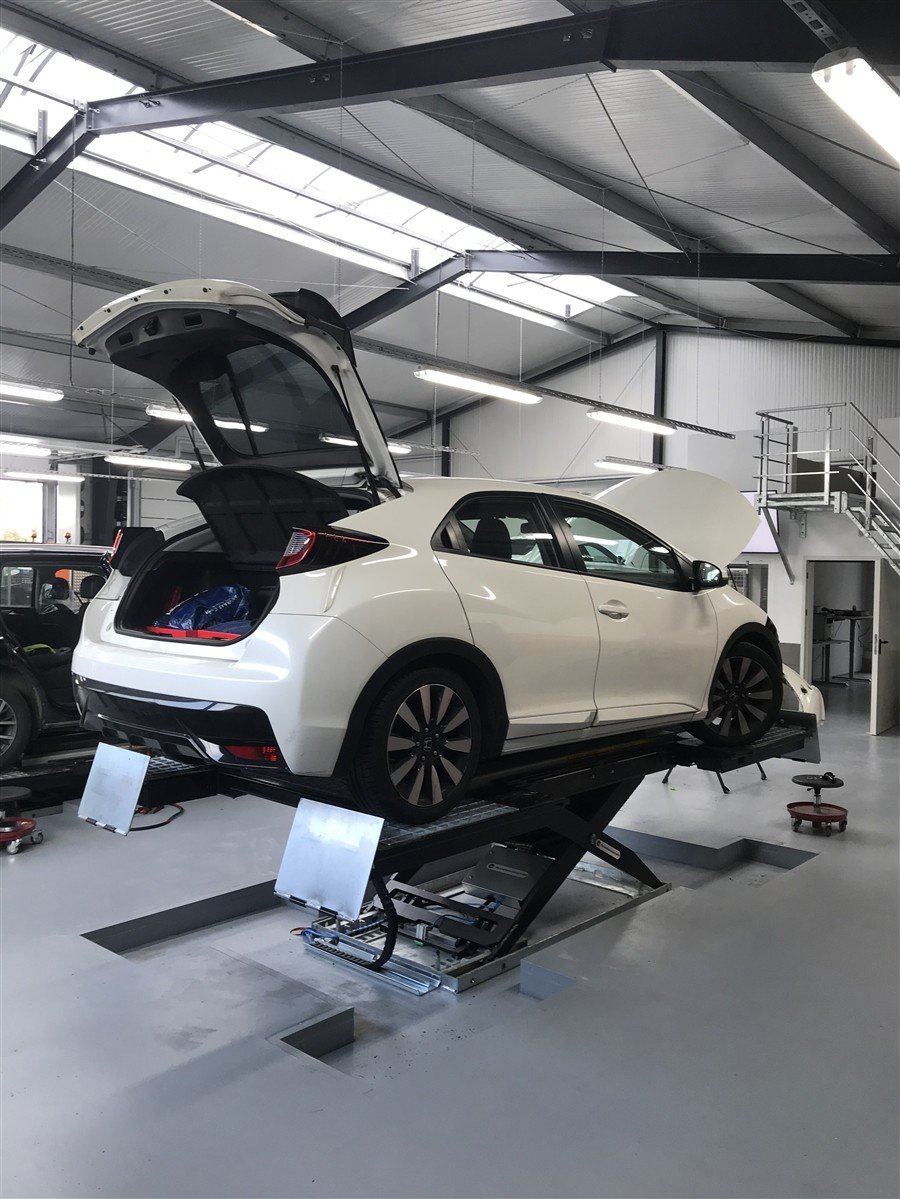

The Consul PneuLift® 0.35 F BE is a professional, compact design, pneumatically driven scissor lift table, specifically developed for the needs of body repair and paint shops. This model combines reliability, robust design, and flexible installation options, all without electrical power.
The PneuLift® 0.35 F BE is the ideal choice for workshops where fast, safe, and flexible vehicle lifting is crucial, especially in environments where the installation of an electrical network is limited or undesirable.
Pneumatic Drive – Without Electrical Power:
Its main advantage is the fully pneumatic operation. This eliminates the maintenance requirements and potential electrical faults associated with electric drives, making it ideal for use in explosive or wet environments.
Handling and Control:
Control via Manual Lever Valve: Handling is simple and intuitive, done via a manual lever valve that provides precise control over the lifting and lowering processes.
Robust Construction: Manufactured using high-quality components, guaranteeing a long service life and high stability.
Safety Features:
Safety is a top priority with Consul products. This lift table features several built-in safety mechanisms:
Anti-Slip Platform: The surface of the ramps features a grid design, which ensures optimal grip for the wheels during lifting.
Bushed Bearings and Screws: Critical moving parts are fitted with bushings, which reduce wear and increase reliability.
Rollback Protection: It has built-in rollback protection both front and rear.
Self-Locking Locking System: Safe securing is ensured by a self-locking ratchet system.
Automatic Latch Release: The locking mechanism releases automatically, facilitating lowering while adhering to safety regulations.
CE-Stop (BE version): The in-ground version is equipped with a CE-compliant stopping function to achieve the maximum level of workplace protection.
Installation Flexibility:

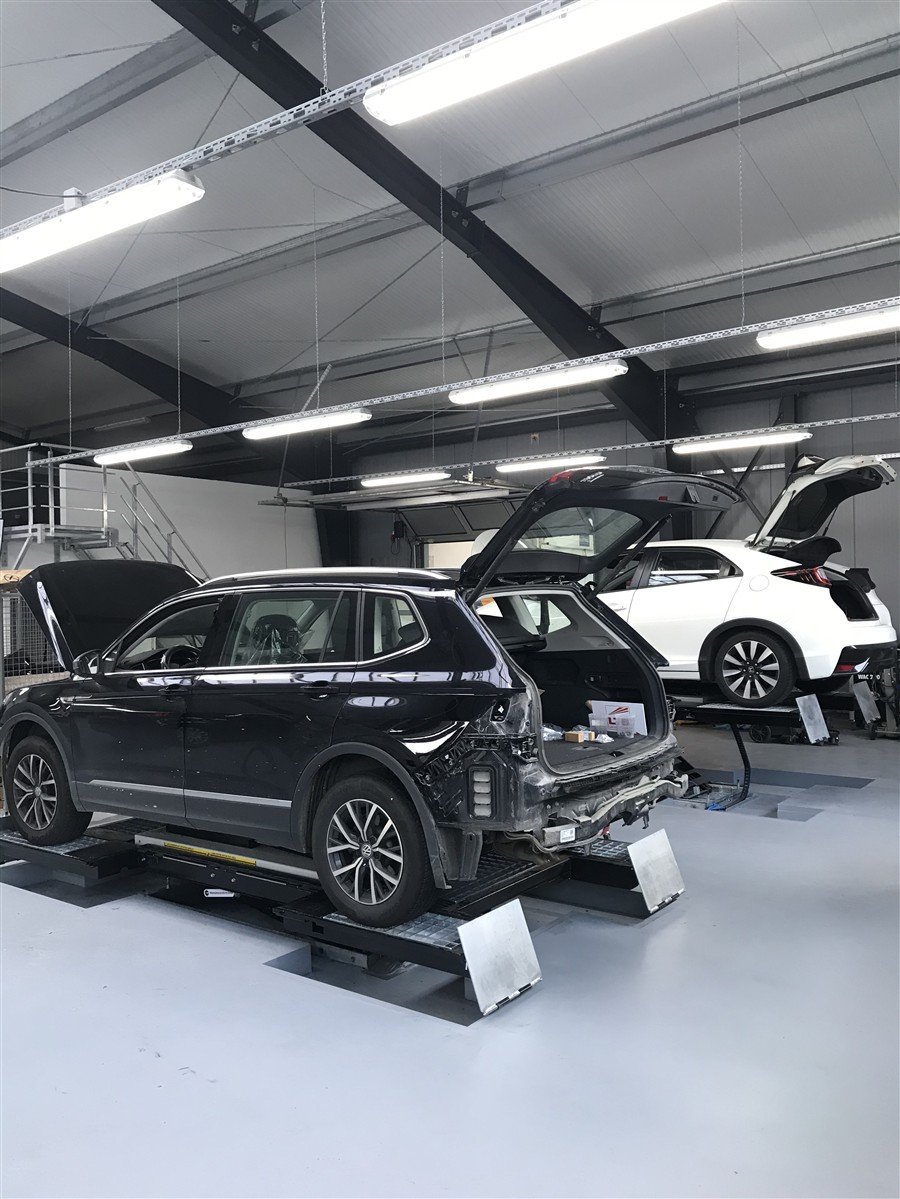

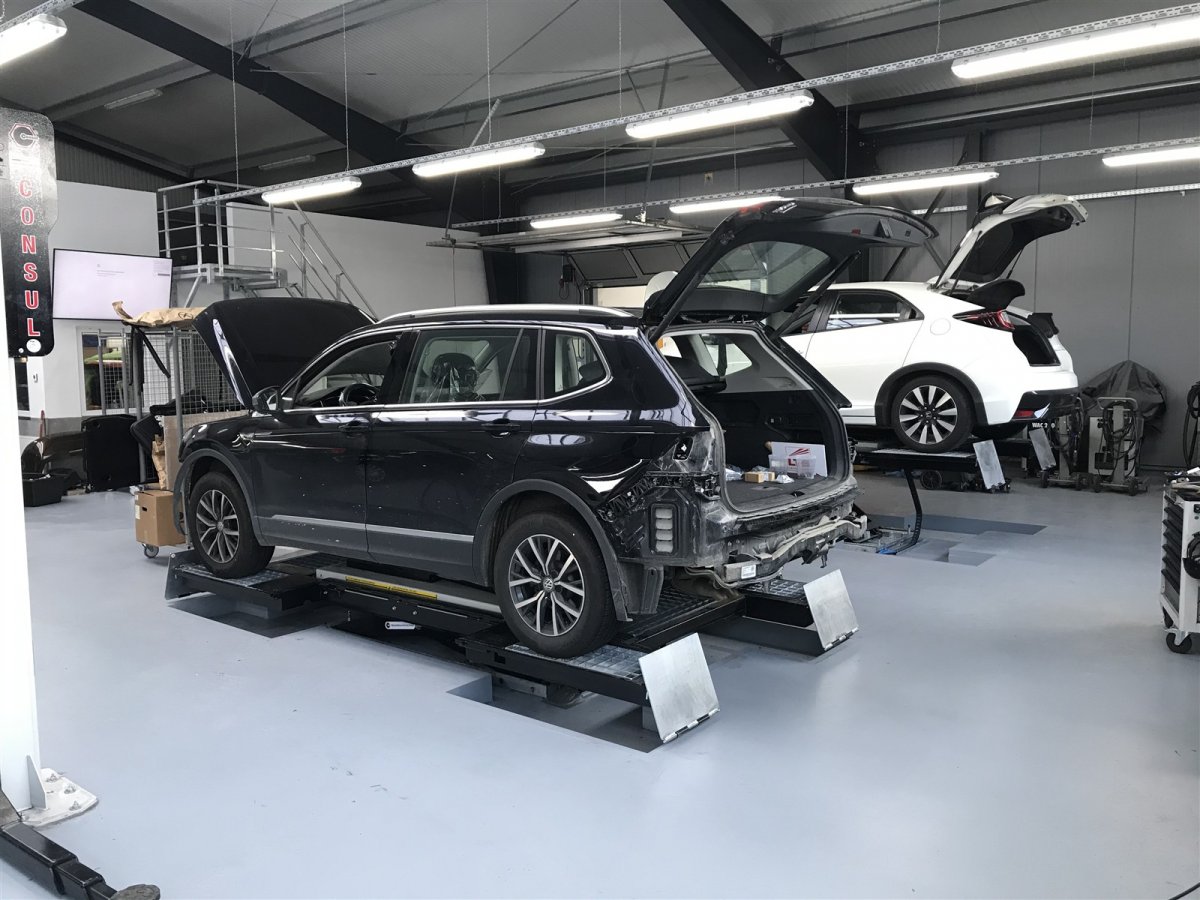

This model BE (Begehbare/Inground) available as a version, which means it can be recessed into the floor, thus providing a completely flush surface when not in use. Optionally BA (Bodenaufbau/On-floor) is also available as a version, which is mounted on the floor.
Aesthetics and Design:
The stand has a durable coating, in standard colors: RAL 9005 (jet black) and RAL 7035 (light grey).
The precise specifications of the Consul PneuLift® 0.35 F BE ensure compatibility with most passenger cars and light commercial vehicles.
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 730960 | |
| Manufacturer Number (HAN) | 500454 | |
| Category | Pneumatic Jack Stands | |
| Nominal Load Capacity | 3,500 kg | 3.5 tons |
| Lifting Height | ca. 1.160 mm | |
| Ramp Width | ca. 1.980 mm | |
| Ramp Length | ca. 3.700 mm | |
| Installation Length (with approach ramp) | approx. 4,384 mm | |
| Air Supply (Max.) | 8 bar | Pressure required for operation |
| Design | BE (Begehbare/Inground) | In-ground design |
| Color | RAL 9005 and RAL 7035 |
Detailed documentation is available for the product for professional installation and long-term maintenance:
Product Brochure: Detailed description of functions and advantages.
Installation plan (Installation plan): Precise drawings and instructions for professional installation.
Video demonstrations (in German and English) of the Consul PneuLift® 0.35 series are also available, visually demonstrating the operation and advantages of the lift.
For maximum flexibility and workshop integration, a number of accessories are available (without claiming completeness):
Consul Cover plate: 1-meter long cover plate for covering the air connection cables, including fastening materials.
Consul Control unit ex ante: Standalone control unit options.
Consul Fixing material: With 4 M12 anchor bolts and other fastening elements for stable installation.
Consul Foundation frame for surrounding grating: H-shaped foundation frame, open at the front, for covering the surrounding grating.
Consul Foundation frame full pit grating: Galvanized, full pit foundation frame, closed on the sides and front with grating, available in different sizes.
The Consul PneuLift® 0.35 F BE is a reliable, high-load, and safe lifting device, ideal for modern, high-traffic workshops and paint shops.
