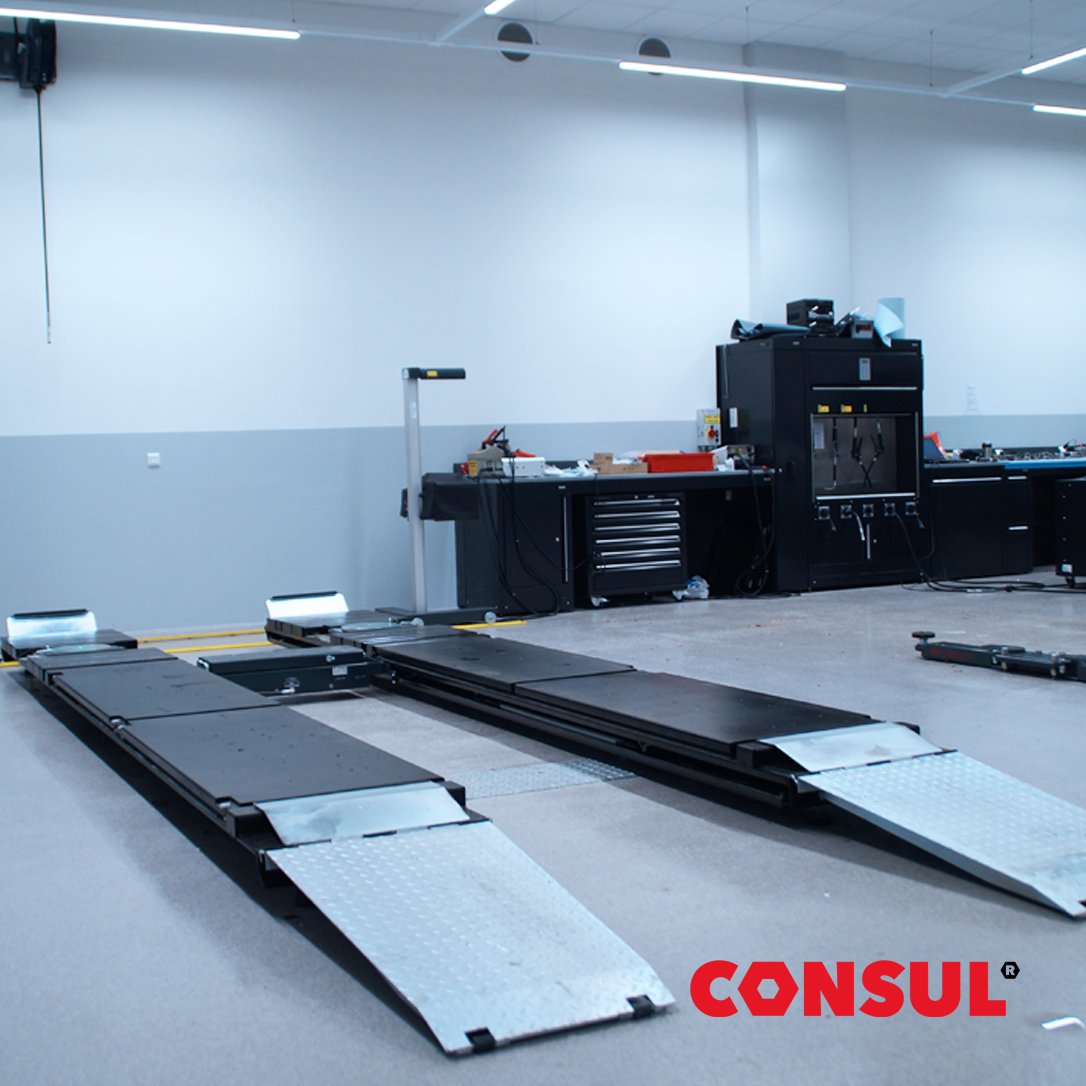

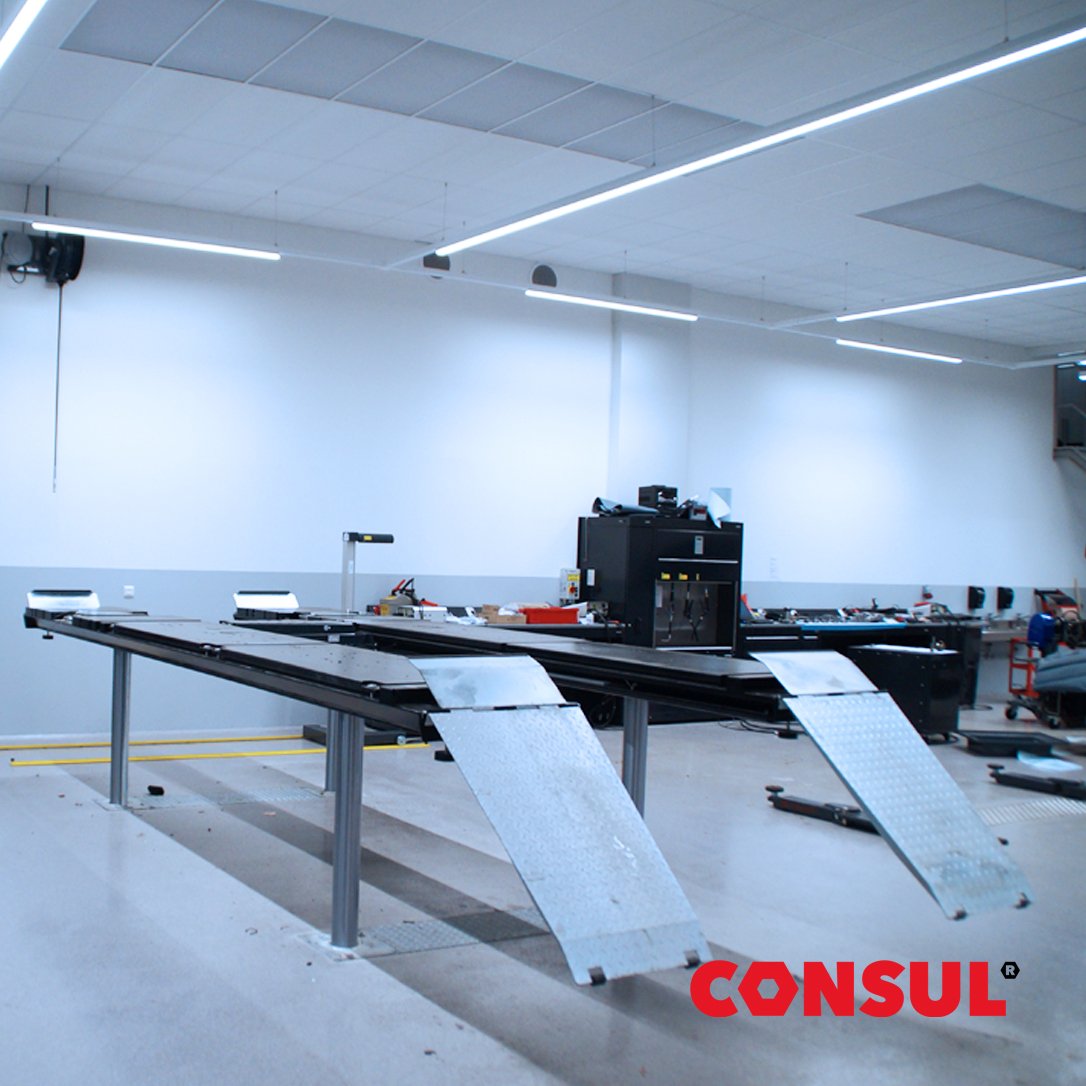

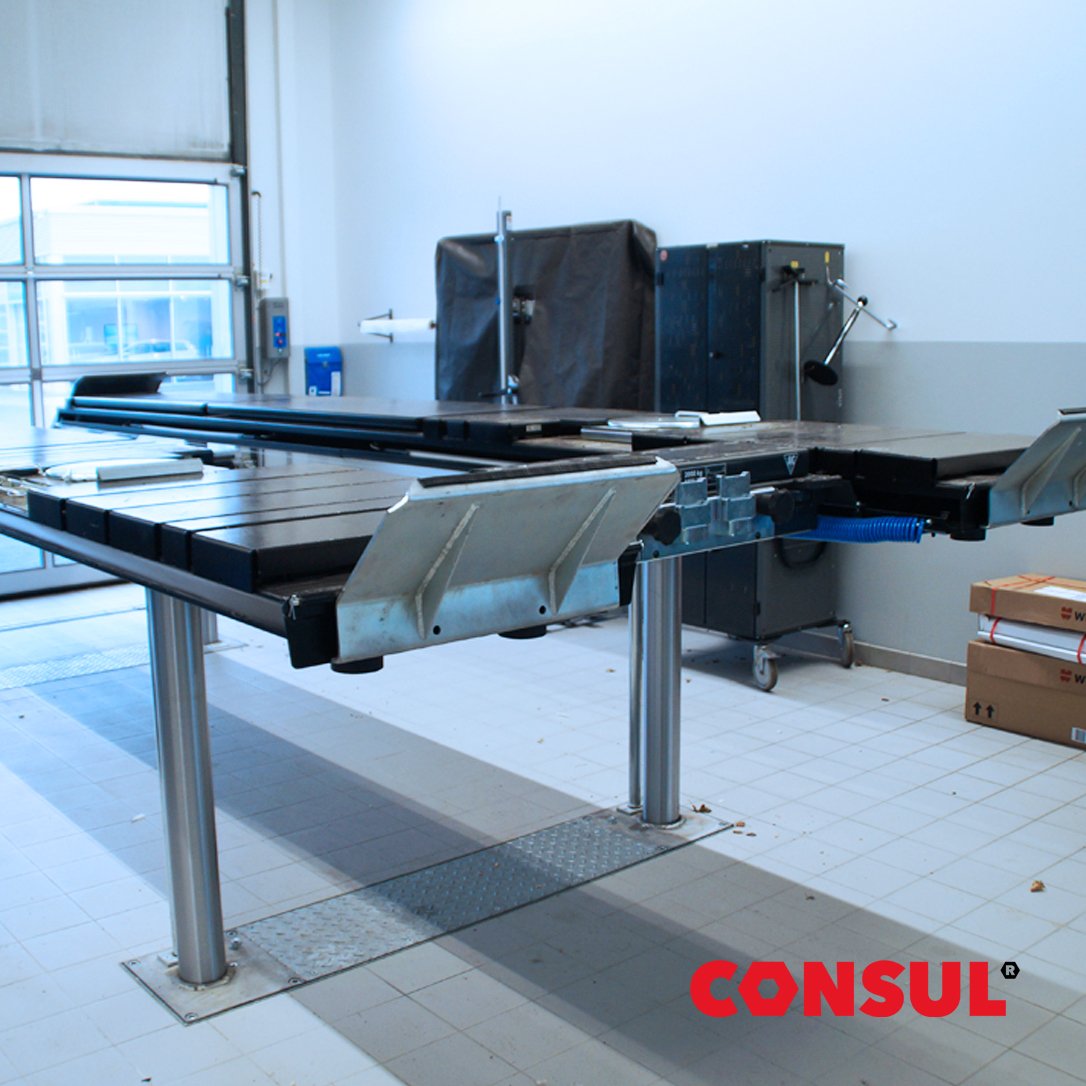

The Consul 4-Piston In-Ground Lift 4.55 MK Quadro is a high-tech, in-ground (unterflur) four-cylinder lifting system, specifically designed for lifting vehicles, performing repair work, and for wheel alignment. This model is excellently suited for workshops that require high load capacity, precise operation, and a space-saving solution.
This lifting system features two integrated cassettes, enabling safe and stable lifting of vehicles up to a total weight of 5,500 kg. The hydraulic system and synchronization solutions guarantee reliable and accurate positioning during every lifting phase.
The 4.55 MK Quadro model combines efficiency and durability with modern workshop requirements:
Robust Construction: Two integrated cassettes are made with a hot-dip galvanized steel profile frame, ensuring excellent corrosion protection and a long service life.
Precision Hydraulics: Chrome-plated guide rails and hydraulic pistons ensure a smooth and reliable lifting/lowering process.
Electro-Hydraulic Drive: A powerful and reliable drive system for fast work execution.
Advanced Synchronization:
The synchronization of individual lifting units is achieved mechanically using a cross yoke.
The synchronization between the lifting units is monitored by a computerized control system, which guarantees exceptional accuracy.
Safety Features: Electrical control with a stop valve and acoustic foot protection for maximum personal safety.
Long Approach Ramps: Long approach ramps made from reinforced special profiles ensure easy and safe vehicle access.
Integrated Jacking Beam Accommodation: A rail integrated into the ramp accommodates jacking beams, thereby increasing operational flexibility.
Cassette Cover: The cassette cover is completely hot-dip galvanized, resistant to environmental influences.
The equipment complies with the strictest industrial standards:
Protection Class: IP54
Approvals: GS approval, DIN EN 1493, CE approval.
The following table details the critical parameters of the Consul 4-Piston In-Ground Lift 4.55 MK Quadro:
| Parameter | Value | Note |
|---|---|---|
| Part Number (HAN) | 9566 | |
| Item Number (SKU) | 524967 | |
| Category | Four-Cylinder In-Ground Lifts | |
| Nominal Load Capacity | 5,500 kg | |
| Lifting Height | ca. 2.070 mm | |
| Lifting Time (loaded) | approx. 40 seconds | |
| Power supply | 400 V / 50 Hz | |
| Drive Power | 6.0 kW | |
| Safety Protection | 16 A lassú kioldású | |
| Oil quantity | 2 x 10 liters | Two separate hydraulic circuits |
| Runway Width | ca. 630 mm | |
| Runway Length | ca. 5.230 mm | |
| Distance Between Columns | 1,500 / 3,000 mm | |
| Recessed Height / Rest Height | ca. 130 mm | Minimum installation depth |
This in-ground lift is the ideal choice:
Sliding Workshop Bays: The long, stable runways and compatibility with optional sliding bay kits enable precise geometric measurements and adjustments.
General Repair Work: The 2,070 mm lifting height provides comfortable working conditions for assembly tasks under the vehicle.
Handling Larger Vehicles: With a load capacity of 5.5 tons, it is suitable for lifting smaller commercial vehicles in addition to passenger cars.
Space-Saving Workshops: Since it can be fully built into the floor, the workshop floor surface remains clear when the lift is not in use, increasing maneuverability space.
Detailed technical and installation documentation is available for the product:
Product Brochure: Detailed overview of features and benefits.
Installation Plan: Precise guidelines for professional installation, which is essential for safe operation.
The Consul 4.55 MK Quadro lift is the perfect synthesis of reliability, high-level safety, and modern workshop technology.
