A Consul HD FLEX® 2.35 EV The two-post lift was designed to meet the most modern workshop requirements, with a special focus on servicing electric vehicles (EV). This heavy-duty lift provides excellent access to vehicle underbodies and batteries, thanks to its uniquely designed, angled support arm ends. The omission of traditional hydraulic systems and steel cables guarantees reliable, maintenance-reduced operation.
This model is the ideal choice for all workshops preparing for the technology of the future, while still efficiently handling vehicles equipped with traditional internal combustion engines.
The HD FLEX® 2.35 EV lift includes several design elements that increase safety, efficiency, and usability:
Optimized Access for EVs: The specially designed Angled support arm ends significantly improve access to the batteries and underbody of electric vehicles, where conventional lifts often encounter obstacles.
Cable- and Hose-Free Design: No hydraulic hoses and no steel cable. This minimizes the risk of wear-related malfunctions and reduces maintenance requirements.
Robust Columns: The high-quality posts are made from certified special rolled profiles, without rigid connections, which ensures flexibility and durability.
Precise Synchronization: Softline pushbutton control with electronic synchronization ensures a smooth and precise lifting/lowering process.
Secure Fixing: The Automatic swivel arm lock automatically engages from a height of 300 mm, guaranteeing vehicle stability.
Könnyű Kezelhetőség: A 6-way roller-bearing pallet truck assists with positioning.
Pneumatic Connection: Quick-release coupling for compressed air connection on both sides, increasing flexibility in the workshop.
Safety Features: A lockable main switch (CE-compliant) on the control column and a safety alarm audible in the footwell during lowering provide enhanced protection.
Engine Protection: The motors are equipped with thermal protection to prevent overloading.
The table below details the critical technical parameters of the Consul HD FLEX® 2.35 EV lift:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 731554 | |
| Manufacturer Number (HAN) | 502835 | |
| Category | 2-Column Lifts | |
| Rated load capacity | 3,500 kg | |
| Lifting height | approx. 1,960 mm | |
| Lifting/Lowering Time | approx. 23 seconds | |
| Lowest Free Height | approx. 85 mm | |
| Long arm extension range | approx. 610 – 1,390 mm | 3-part design |
| Set-up width | approx. 3.400 mm | |
| Installation Height | approx. 4,065 mm | |
| Distance between columns | approx. 2.830 mm | |
| Drive-through width | ca. 2.520 mm | |
| Power supply | 400 V / 50 Hz | Three-phase |
| Drive Power | 2 x 2.2 kW | |
| Fuse Protection | 16 A lassú kioldású |
The HD FLEX® 2.35 EV lift is manufactured according to the highest quality requirements:
Hydraulic System: High-pressure hydraulic drive with 2 high-pressure cylinders.
Operation: Vehicle lowering/parking is possible with a pressureless hydraulic system resting option, which enables precise work execution.
Protective gear: Flexible Door stops springy and Complete column interior coverage for the protection of cables and structure.
Universal Applicability: Excellent usability for both electric and traditional internal combustion engine vehicles.
For maximum flexibility, the lift can be expanded with several accessories (the list is not exhaustive, only those mentioned in the text):
Self-supporting base frame (Self-supporting base frame): Optionally orderable if the lift cannot be fixed to the floor.

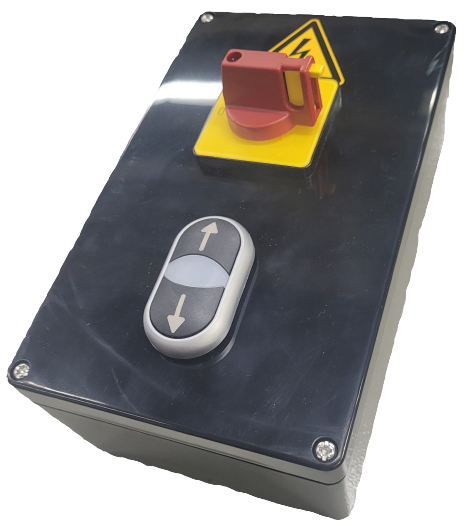

Second Control Unit (Consul 2nd control box for slave column HD): Enables control on the slave column with Softline push-button control and air connection.
Ex Works Installation Surcharge (Consul 2nd control box surcharge for ex works installation): Factory installation of the second control unit is available for an extra charge.

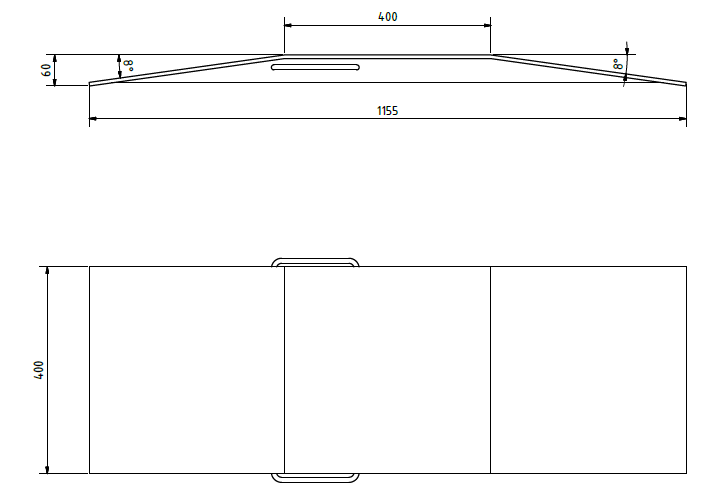

Drive-on Ramps (Consul Drive-on ramps): 1 set = 4 pcs.
Pick-up Supports with Turn Tables (Consul Pick up supports with turn tables): 4 supports with Ø 100 mm diameter (instead of the standard Ø 130 mm).
Fixing Material (Consul Fixing material up to 3.500 kg): Fixing kit for lifts up to 3,500 kg capacity (12 pcs M12 anchor bolts, threaded rods, and washers).
Diagnostic Software (Consul ConSoft diagnostic software): Maintenance and diagnostic software for 2-post lifts.
Ceiling Limit Switch with Light Barrier (Consul Ceiling limit switch with light barrier): Safety limit switch.
Manual Ceiling Limit Switch (Consul Ceiling limit switch manual): Manually operable limit switch.
Spacers (Consul Spacers 100 mm / 12 mm): Spacers of different sizes (1 set = 4 pcs) for articulated arm lifts.
A detailed Technical Data Sheet (Brochure) available in PDF format, in both German and English, containing further information on installation and use.
The Consul HD FLEX® 2.35 EV lift is the perfect fusion of reliability, advanced technology, and future-oriented servicing.
