This detailed description presents the specifications and features of the swivel arm chassis (Swivel arm chassis) belonging to the Consul 2-cylinder, inground lift, specifically designed for lifting passenger cars and light commercial vehicles (e.g., T5 length), with a maximum load capacity of 3500 kg. This chassis is ideal for 2.35 MKK type systems.
This high-quality, inground lift system provides the highest level of safety and flexibility during workshop operations. Consul's engineering precision guarantees a long service life and reliable operation.
This swivel arm chassis is excellently suited for serving modern vehicle fleets, especially for models with wider wheelbases and longer lengths.
Flexible Arms: The three-part, double-extension swivel arms provide exceptional flexibility for optimal positioning for various vehicle dimensions.
Fine Adjustment: The arms are adjusted with a threaded spindle, which allows for precise height correction with an approximate stroke of 25 mm to accurately support the vehicle's underbody.
Ideal Compatibility: Design optimized specifically for the 2.35 MKK system (likely a specific installation dimension or standard).
Compact Design: Being an inground system, it remains flush with the floor when not in use, maximizing workshop space utilization and worksurface safety.
The table below summarizes the critical technical parameters of the product, which are essential for professional installation and operation.
| Characteristic | Value | Note |
|---|---|---|
| Nominal Load Capacity | 3 | For passenger cars and light commercial vehicles. |
| Lifting Height | ca. 2055 mm | Maximum lifting height measured from floor level. |
| Bottom Clearance (Bottom Clearance) | approx. 85 – 115 mm | The minimum distance between the floor and the lift structure in the rest position. |
| Long Arm Extension Range | approx. 640 – 1340 mm | The full extension range of the arms, which can be adjusted to the vehicle's wheelbase. |
| Column distance (Column distance) | 2300 mm | The distance between the centers of the two lifting cylinders. |
| Weight (approx.) | 450 kg | The approximate weight of the structural elements of the chassis. |
| SKU | 433441 | The product identifier for inventory management. |
| HAN | 9760 | Manufacturer's part number. |
| Category | Twin Ram Inground Lifts |
For maximum efficiency and adaptation to special vehicles, Consul offers a range of accessories compatible with this tilting arm lift (up to 3.5 tons capacity):
In cases of uneven chassis levels of different vehicles or specific lifting points, the use of spacers is essential for safe and stable support. These accessories include 4 pieces in 1 set.

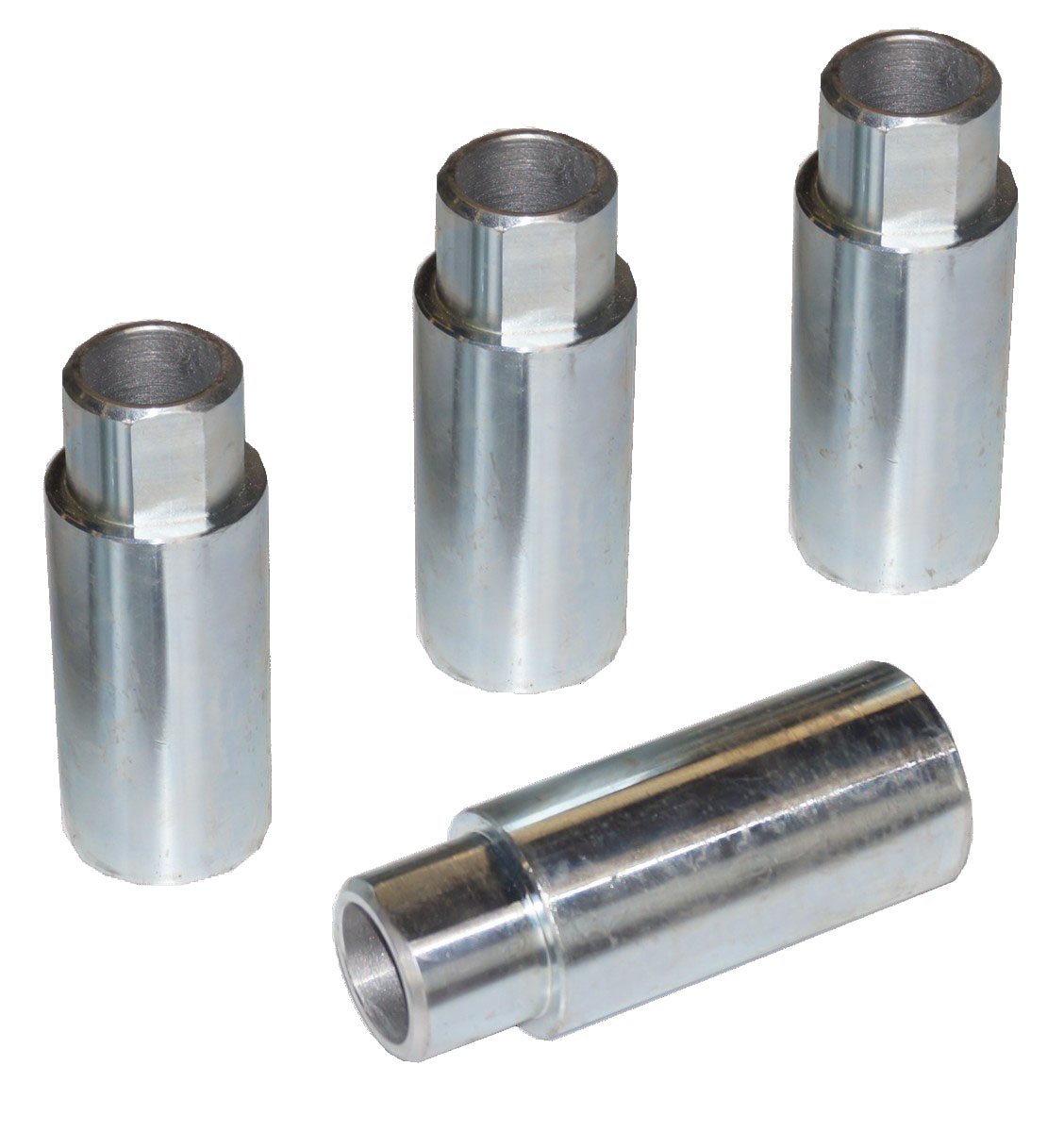

Consul Spacer 100 mm: Ideal for larger corrections.

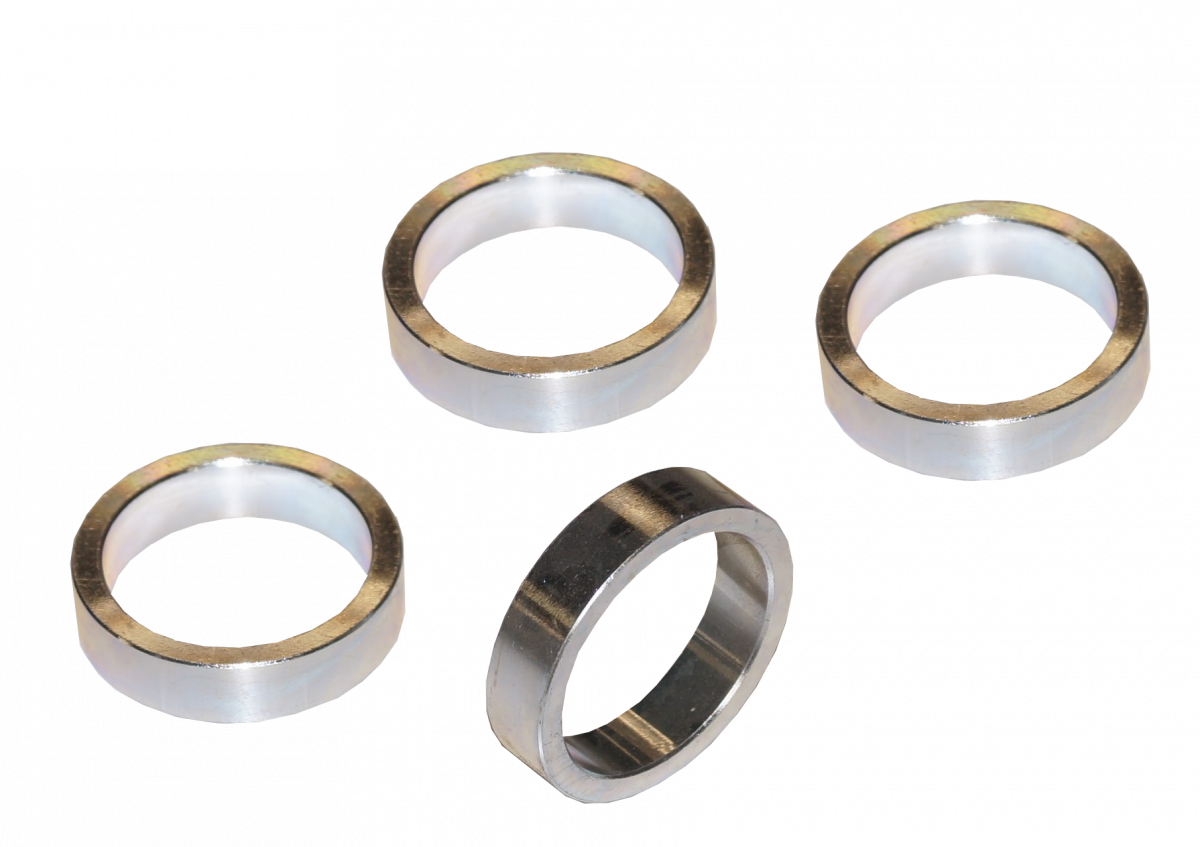

Consul Spacer 12 mm: For fine-tuning.

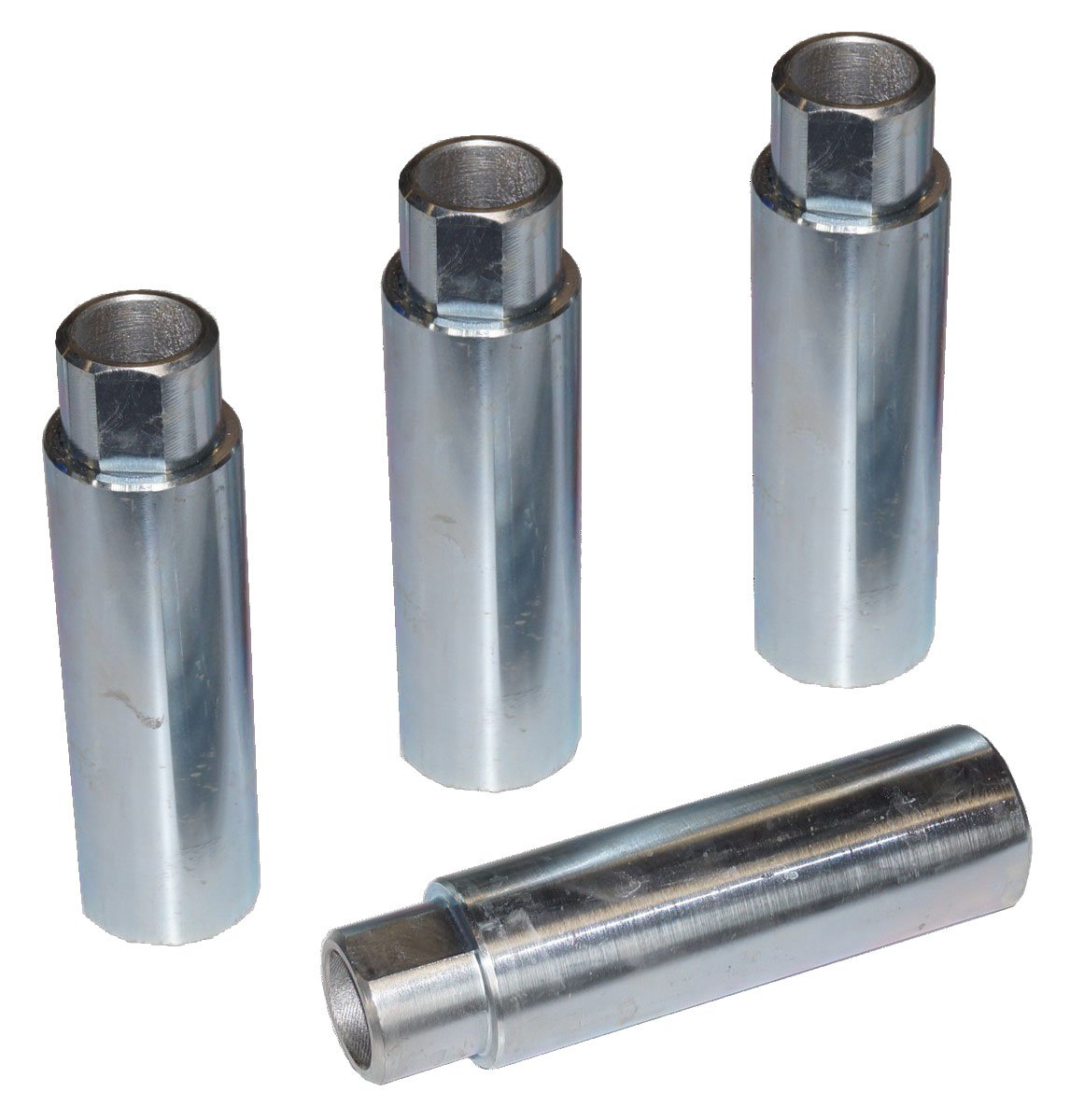

Consul Spacer 150 mm: For higher lifting points.
Consul Spacer 200 mm: For maximum height correction.
Consul Spacer 35 mm: For medium correction needs.
Consul Spacer 50 mm: For general use.
Detailed documentation is available for the product to facilitate installation and maintenance:
This Consul 2-cylinder tilting arm lift offers the perfect combination of reliability, precise adjustment capability, and high load capacity for modern automotive workshops.
