A Consul Premium EL® 2.35 EV This two-post lift was developed specifically tailored to the needs of modern vehicle fleets, especially electric vehicles (EVs). The specially designed angled support arm ends ensure optimal access to the batteries and underbody, significantly facilitating the servicing and maintenance of electric vehicles. This lift combines reliability, precise control, and excellent ergonomics, making it the ideal choice for any professional workshop.
This model represents the premium category of the Consul C-Line and Z-Line series, featuring outstanding technical solutions:
EV Compatibility: The angled support arm ends make it possible to pick up vehicles even at hard-to-reach points, which is critically important due to the large battery packs of EVs.
Excellent Accessibility: Significantly improved access to the batteries and underbody of electric vehicles thanks to the special arm design.
Universal Applicability: Its design allows it to be used universally for both electric and conventional internal combustion engine vehicles.
Precise Control: The Softline push-button control, equipped with a computer-controlled leveling system, ensures exceptional precision during lifting and lowering.
Safety and Durability: The robust construction and advanced safety functions guarantee a long service life and maximum workplace safety.
Durability and ease of handling were the main considerations during the design of the Consul EL® 2.35 EV lift:
Column design: Special rolled section columns ensure high rigidity.
Installation Orientation: The installation of the posts is rectangular relative to the drive-on direction (Installation rectangular to drive-on direction).
Carriage Guide: The load-bearing carriage is guided by 6 rollers, which results in smooth and stable movement.
Safety System: Combination of bronze load nut and cast alloy safety nut (Bronze load nut / cast alloy safety nut).
Lifting-Locking: Broken nut raise lock-down features for enhanced safety.
Noise Protection: Acoustic foot protection for operator comfort.
Maintenance: Oil dispenser for supporting lubrication.
Control Unit: Lockable main switch directly on the post.
Arms: Adjustable pick up plate (approx. 30 mm) and Cushioning door stop (Cushioning door stop, adjustable pick up plate).
Full Enclosure: Complete covering of the post interior parts (Complete covering of post interior).
The table below details the critical technical parameters of the Consul Premium EL® 2.35 EV lift:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 731547 | |
| Manufacturer Number (HAN) | 502835 | |
| Category | Two-Post Lifts | |
| Rated load capacity | 3,500 kg | |
| Lifting height | ca. 2.005 mm | |
| Lifting/Lowering Time | approx. 35 seconds | |
| Clearance height (bottom) | approx. 85 mm | ( ) |
| Arm extension range | approx. 610 – 1,390 mm | 3-piece design |
| Set-up width | approx. 3.400 mm | |
| Installation Height | ca. 2.560 mm | |
| Distance between columns | approx. 2.830 mm | |
| Drive-through width | ca. 2.520 mm | |
| Power supply | 400 V / 50 Hz | Three-phase |
| Drive Power | 2 x 3.0 kW | |
| Fuse Protection | 20 A slow blow | |
| Protection class | IP 54 | |
| Specifications | GS approval, DIN EN 1493, CE approval |
For more flexible installation and even wider range of use, several optional accessories are available:
Self-supporting Base Frame (Optional): It is possible to order a self-standing base frame, which reduces the floor reinforcement requirements.

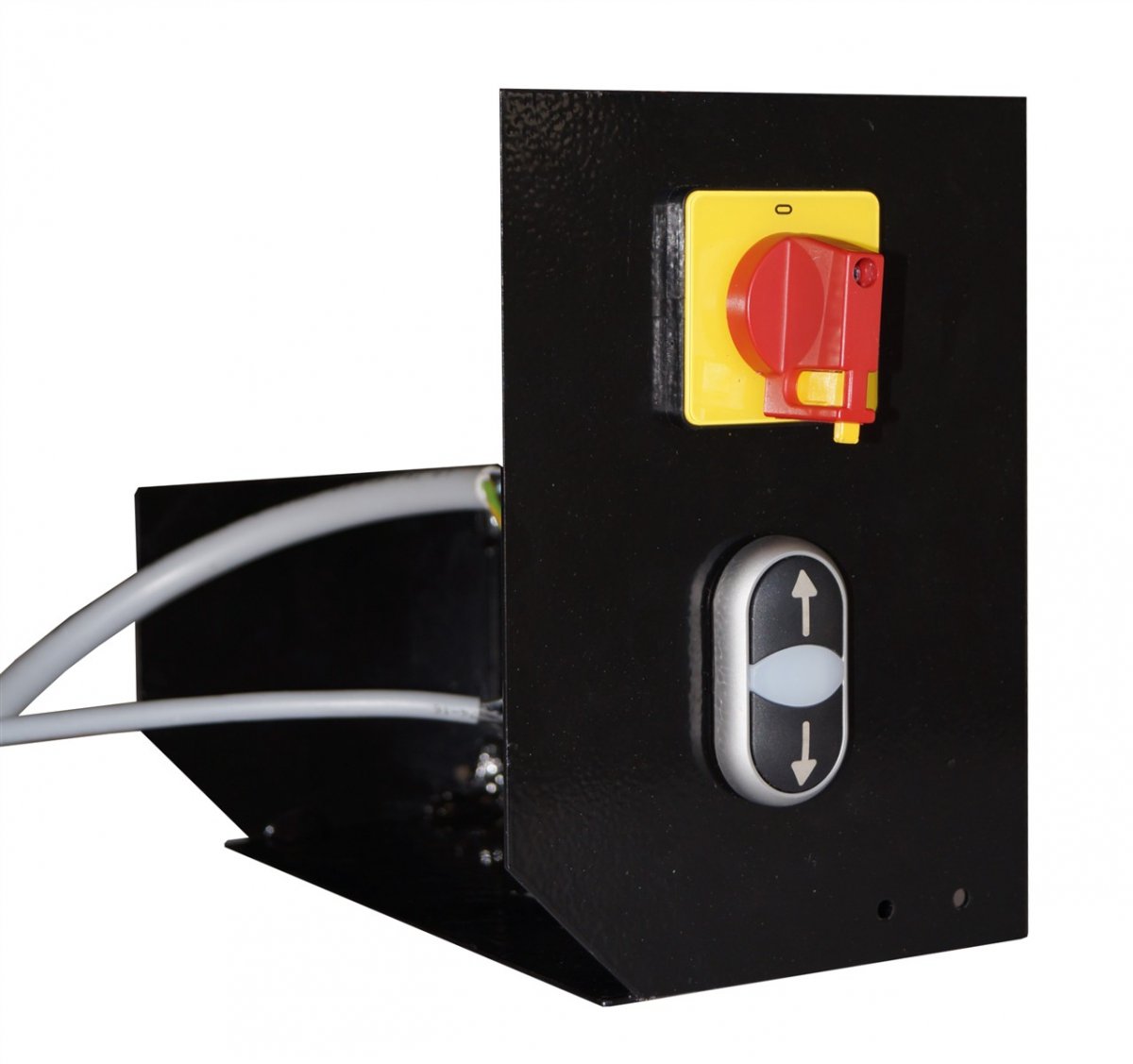

Second Control Unit (Optional): A separate control unit (2nd control box) can be ordered, which increases workshop flexibility.
Separately orderable accessory: Surcharge for factory installation for the 2nd control unit.
Separately orderable accessory: 2nd control unit for the „slave” column for Consul 2.35 – 2.45 Premium models.

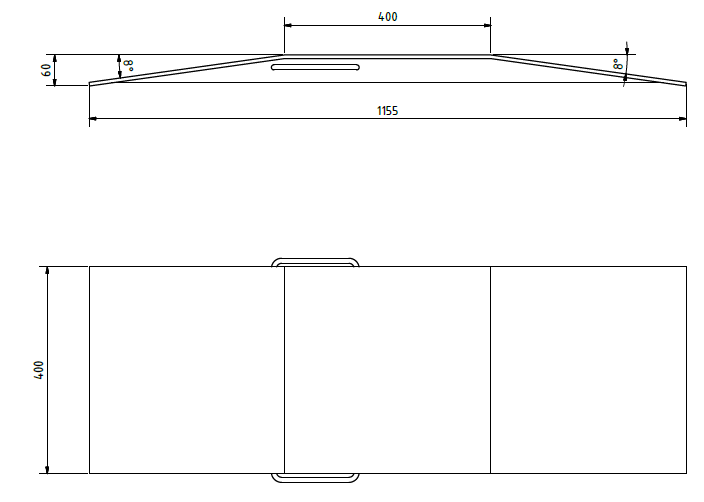

Drive-on Ramps: Drive-on ramps (1 set = 4 pcs) for easier vehicle loading.
Lifting Support with Swivel Plates: Set of 4 supports with Ø 100 mm diameter (instead of the standard Ø 130 mm).
Fixing Materials: Fixing set for 3,500 kg capacity Consul 2-post lifts (12 pcs M12 anchor bolts, threaded rods, and plates).
Diagnostic Software: Consul ConSoft diagnostic software for 2-post lifts for maintenance and diagnostic purposes.
Limit Switches: Ceiling limit switch with light beam or manual pull switch.
Spacers: 100 mm spacers for Consul swivel arm lifts.
The Consul EL® 2.35 EV lift complies with the strictest European safety and quality requirements:
Safety Standards: DIN EN 1493 and CE approval.
Environmental Protection: IP 54 protection class.
Detailed technical information, installation drawings, and brochures (in Hungarian and English) are available on the product page (PDF and video references).
This premium lift represents the Consul quality and engineering response to the challenges of electric mobility, ensuring efficient and safe work for workshops.
