A Consul Compact Hydraulic Lift, PneuLift® 0.30 M An extremely flexibly usable, pneumatically driven lifting device developed specifically for the requirements of modern body repair and paint shops. This model combines reliability, robust design, and excellent ergonomics while eliminating the potential limitations associated with electric drives.
The PneuLift® 0.30 M offers an ideal solution for tasks where vehicles need to be lifted quickly and safely for work around the wheel suspension, braking system, or chassis, without the need for an external power source.
This compact lift was born in the spirit of efficiency and safety, featuring several design elements that facilitate daily workshop operations:
Pneumatic Drive: The lift operates entirely on compressed air, thus eliminating the need for an electrical connection for operation. This increases flexibility in workshop layout and reduces the risk of electrical failures.
Robust Construction: Thanks to the use of high-quality components, the lift has an extremely stable and durable structure, guaranteeing a long service life even under intensive use.
Compact Base Frame with Support Arms: The base frame is equipped with support arms that allow the vehicle to be picked up at the wheel suspension points, ensuring a complete wheel-free lift.
Manual Arm Locking Mechanism: For safe operation, the lifting arms can be manually locked.
Bearing and Bushing Structure: The bearings and bolts are sequentially equipped with bushings, which minimizes friction and increases mechanical reliability.
Self-Locking Locking System: The lift's safety locking system features a self-locking mechanism, providing passive safety.
Automatic Lock Release: The safety system automatically releases when the lift is lowered, simplifying the workflow.
Variations: In addition to the basic model, it is also available in sunk (BE) and mobile (M) versions, allowing it to be adapted to specific workshop needs.
The precise and detailed specifications of the Consul PneuLift® 0.30 M lift ensure professional performance:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 707190 | |
| Manufacturer Number (HAN) | 500451 | |
| Category | Pneumatic Scissors Lift Tables | |
| Rated load capacity | 3,000 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting height | ca. 935 mm | The optimal height required for performing the work. |
| Drive-up height | ca. 110 mm | Extremely low approach height for easy setup. |
| Length dimension (Support Arms) | ca. 1.675 mm | The length of the vehicle support surface. |
| Width dimension (Support Arms) | ca. 1.185 mm | The width of the vehicle support surface. |
| Maximum Air Supply | 8 bar | Required pressure for pneumatic operation. |
The PneuLift® 0.30 M can be ideally integrated into the following areas:
Body Repair: Ideal for access to body elements, especially during machining of the underbody and lower parts.
Brake & Undercarriage Service: Wheel-free lifting enables quick and convenient replacement or repair of brakes, shock absorbers, and other undercarriage components.
General Maintenance: Due to its flexibility, it is excellently suited for routine inspections and minor repairs where setting up an electrical connection is difficult.
Consul offers several accessories for the PneuLift® 0.30 M lift to enhance functionality and aesthetics:
Consul Cover Plate: 1-meter long cover panel, serving for the aesthetic and safe covering of air connection cables, along with fixing materials.

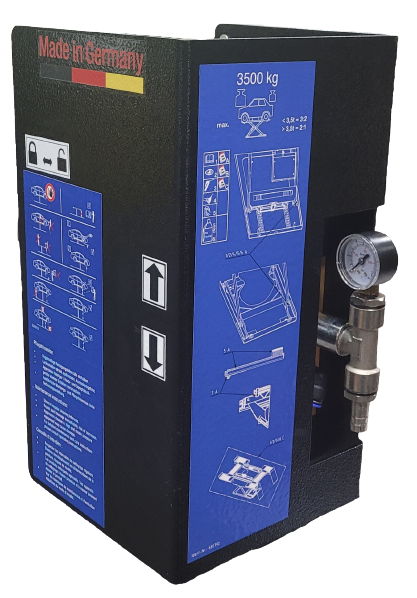

Consul Control Unit Ex Ante: Separate control unit that allows for remote or more convenient control of the lift.
Consul Special Painting (RAL color code required): The lift can be painted based on a custom RAL color code, ensuring the unit perfectly matches the workshop's image.
Note: The product is also available in recessed (BE) and mobile (M) versions, which have different installation and mobility parameters.
Detailed technical and installation documentation is available for the product in PDF format:
Brochure: Detailed product information.
Installation Plan: Precise guide for optimal and safe installation.
The Consul PneuLift® 0.30 M is a reliable, pneumatically based lifting solution that significantly increases the efficiency and safety level of workshops.
