The Consul 2-Post Inground Lift 2.35 MK Optima is an excellent quality, two-cylinder, recessible (inground) ram lift, specifically tailored to the needs of modern workshops. This model offers an ideal solution for lifting passenger vehicles, with maximum load capacity and precise operation.
Product Identifiers:
SKU: 659920
HAN: 9562
Category: Two-Cylinder Recessible Lifts (Twin Ram Inground Lifts)
The 2.35 MK Optima lift is perfectly suited for lifting vehicles whose total weight does not exceed 3,500 kg. The system includes a two-cylinder lifting unit with an integrated cassette and hard-chrome plated guide pistons.

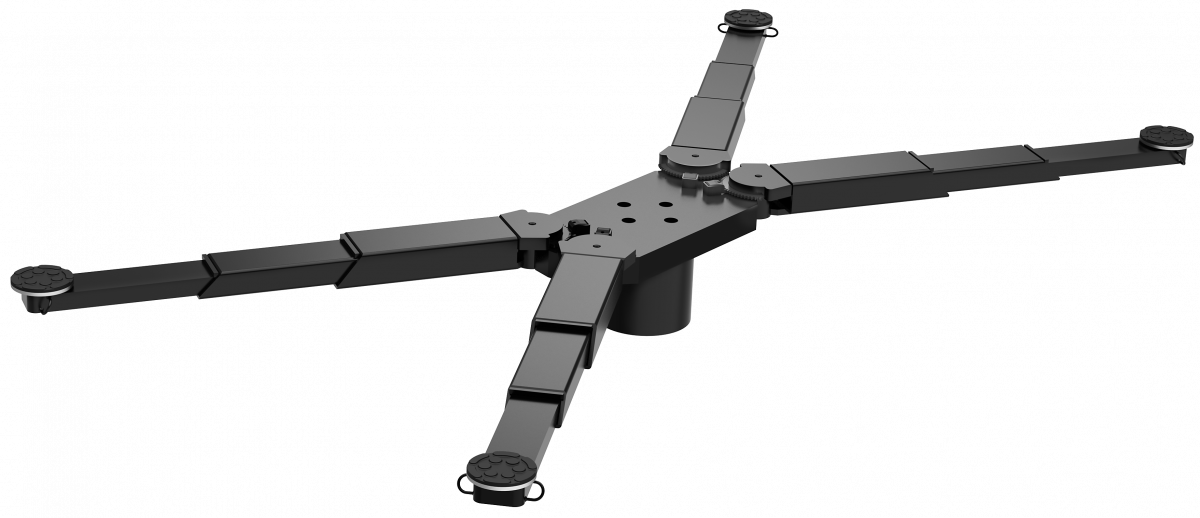

Important note: This lifting unit is always installed together with a corresponding chassis frame, which ensures stability and proper operating conditions.
Consul's engineering solutions guarantee a long service life and safe operation:
Installation Cassette: Features a galvanized steel frame, which provides excellent corrosion protection in an in-ground environment.
Guide pistons: Made with a hard-chrome plated surface, which minimizes friction and increases service life.

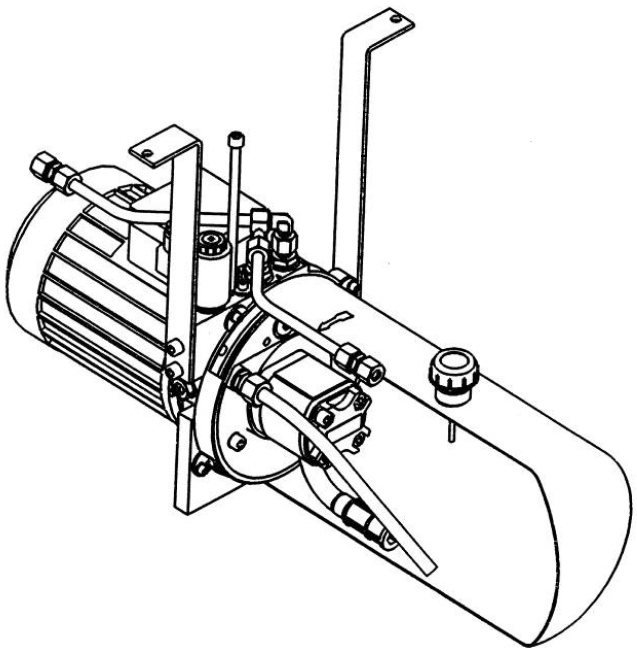

Drive System: Electro-hydraulic drive, which is located externally from the lifting unit, thus facilitating maintenance.
Mechanical synchronization: The synchronization of operation is ensured by a yoke, which also functions as a safety device.
Electronic Control: Equipped with a built-in stop valve for precise positioning and safety.
Connection Stub: A DN 100 size KG pipe connection stub is available for cassette ventilation and connection to the supply line network.
Cassette Cover: Fully galvanized design.
Safety and Certifications: The lift IP54 protection class, with GS certification it has, complies with EN 1493 standard, and provides CE marked is equipped with.
The table below details the critical technical parameters of the 2.35 MK Optima lift:
| Parameter | Value | Note |
|---|---|---|
| Rated load capacity | 3,500 kg | Maximum Load Capacity |
| Lifting height | ca. 1.990 mm | Measured from floor level |
| Lifting Time (loaded) | approx. 35 seconds | Total lifting cycle time |
| Power supply | 400 V / 50 Hz | Three-phase network connection |
| Drive Power | 3.3 kW | Electric motor performance |
| Electrical Supply Voltage | 400 / 50 V / Hz | Voltage and frequency specification |
| Fuse Protection | 16 A slow-blow fuse | Recommended fuse size |
| Oil quantity | approx. 10 liters | Hydraulic fluid capacity |
| Distance between columns | 1.380 mm | Center distance between the two lifting cylinders |
| Piston diameter | 110 mm | Hydraulic cylinder diameter |
| Operating pressure | 150 bar | Hydraulic system operating pressure |
Detailed documentation is available for the product for professional installation and operation:
Catalogue (Brochure): Detailed overview of the C-Line 2-Pillar In-Ground Lift product family.
Foundation plan: Precise guidance for proper ground preparation and cassette installation.
To maximize workshop requirements, several accessories are available:

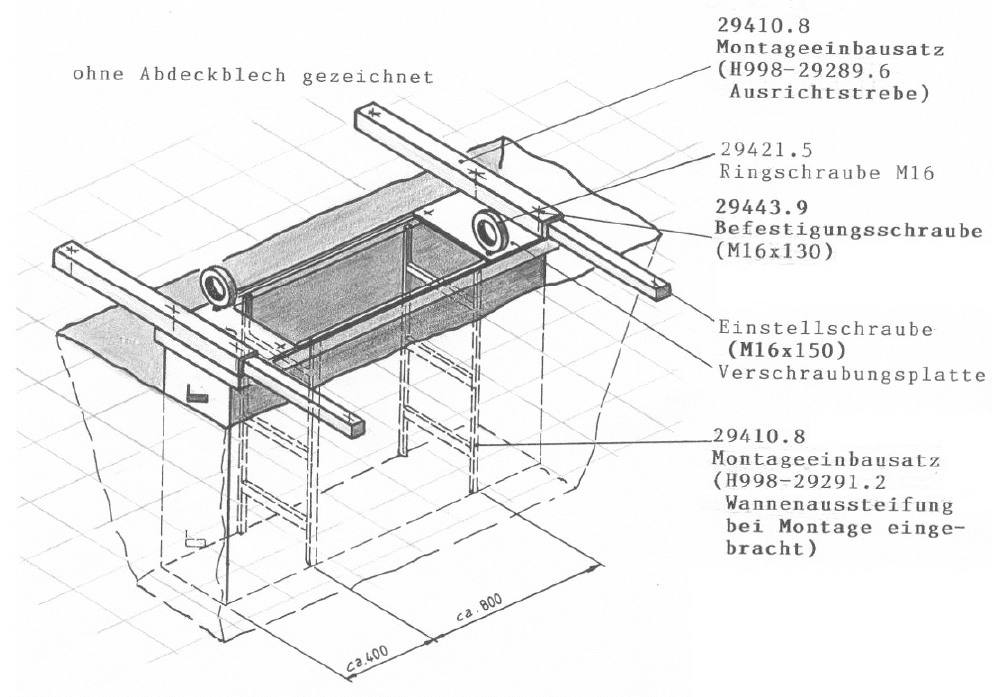

Consul Installation Cassette ex ante 1,380 mm: An external cassette for accommodating the retractable lifting unit, with a piston distance of 1380 mm.
Consul Hydraulic Oil in 5-liter packaging: HLP 22 type hydraulic oil, suitable for all Consul hydraulic drive lifts. The required quantity depends on the type of lift.
Surcharge: Drive unit inside cassette: It is possible to place the drive unit (power pack) and wall control inside the installation cassette, which provides a space-saving solution.
Consul Installation Kit: Necessary accessory components for professional installation.
Consul Control Unit according to OEM industrial standard: Special control unit that can be ordered according to OEM (manufacturer) specifications (OEM designation required at the time of order).
Consul optional lifting unit for externally manufactured cassettes: Optional lifting unit that can also be used for non-Consul manufactured cassettes with a piston distance of 1300 mm or 1380 mm.
This Consul 2-Stempel Unterflur-Hebebühne 2.35 MK Optima model offers a combination of reliability, high safety, and flexible installation for professional vehicle service centers.
