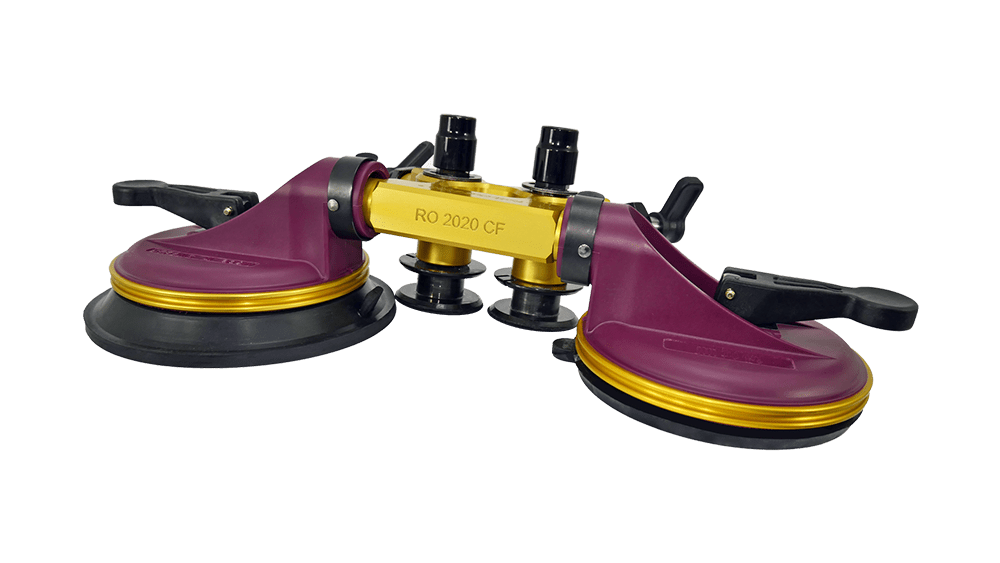

Winch CF with suction cups | 120 mm & 150 mm

Winch CF with suction cups | 120 mm & 150 mm spindle

Product ID: 848088

This detailed product description introduces the high-quality, dual-drum winch manufactured by Wielander + Schill, which is specifically designed for the Roll Out 2020 CF windscreen removal system. Equipped with the „Constant Friction” (CF) function, this tool guarantees optimal control and safe operation even during the most complex windscreen replacements.

Comprehensive Product Description

The winch with part number 848088 is designed for professional auto repair shops and bodywork specialists where the precise and damage-free removal of windscreens is crucial. The main feature of the device is the dual-drum design and the integrated „Constant Friction” (CF) function. This function ensures that the tension of the cutting wire remains constant throughout the entire cutting process, minimizing the possibility of user error and maximizing cutting efficiency, especially with thick or hard-to-reach adhesives.

The package includes two different sizes of high-adhesion suction cups (120 mm and 150 mm diameter), providing flexibility in handling windscreens of various sizes and curvatures. The suction cups are made of high-quality rubber, ensuring a firm and reliable attachment to the vehicle body or the windscreen itself (with accessories).

The robust construction of the winch, made from a combination of metal, plastic, rubber, and other synthetic elements, guarantees a long service life and high resistance under workshop conditions. Despite its compact dimensions (380 x 190 x 100 mm) and optimal weight (1.720 kg), it allows for easy handling and storage.

This winch is an indispensable accessory for the Roll Out 2020 CF system, which represents the pinnacle of Wielander + Schill windscreen removal solutions.

Key Features and Advantages

• Constant Friction (CF) Technology: The constant friction ensures optimal tension of the cutting wire, resulting in a smooth and clean cut, reducing the risk of damage to the windscreen or the vehicle body.

• Dual Suction Cup Sizing: The set includes suction cups with diameters of 120 mm and 150 mm, enabling the secure mounting of windscreens of different sizes and shapes.

• Robust Construction: The combination of metal and durable plastic components ensures the tool's longevity even under intensive industrial use.

• Compatibility: Specifically optimized for the Roll Out 2020 CF windscreen removal system.

• Ergonomic Design: The dimensions and weight of the device support efficient and fatigue-free operation.

Technical Data

The table below summarizes the most important technical parameters of the Winch CF with suction cups product:

Recommended Accessories (Zubehör)

For maximum efficiency and performance of special repair tasks, the use of the following accessories is recommended, which are closely related to the windshield removal process:

1. Corner Extender | 245 mm

• Part number: 848081

• Description: Optimizes the cutting angle, ideal for large or especially heavy windshields. Requires two suction cups for use (see below).

2. Suction cup for corner extender

• Part number: 848056

• Description: This suction cup is used to fasten the corner extender (848081) to the windshield.

3. Kevlar Cord CF (Kevlar Cord CF | PU: 25 m)

• Part number: 848085

• Description: Special Kevlar cord designed for use with the Roll Out 2020 CF system. The 25 m package ensures the necessary quantity for the operations.

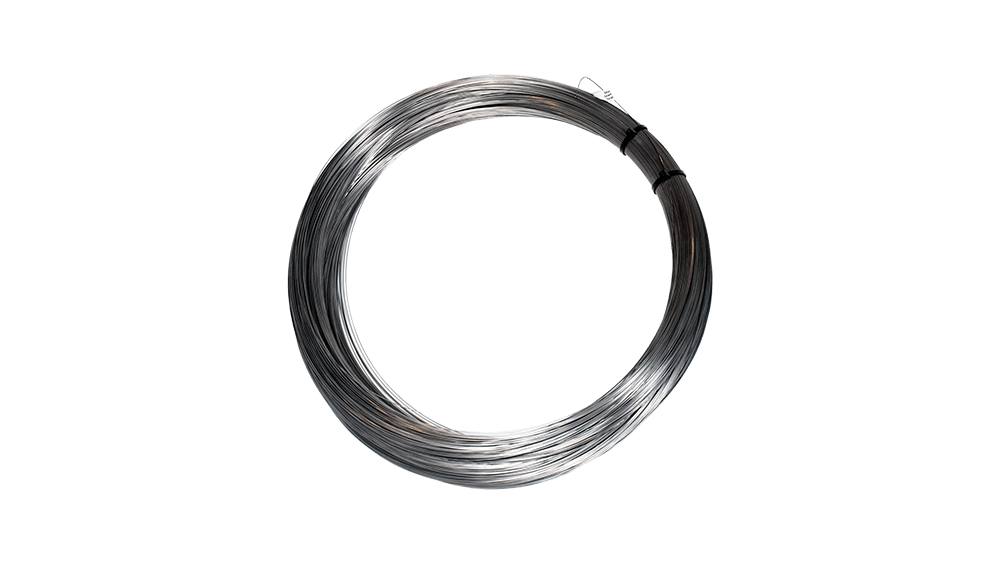

4. Cutting wire (Cutting wire | 0.75 mm × 1500 m)

• Part number: 842015

• Description: Special cutting wire made for the Roll Out 2000 windshield removal system. The 1500 m spool is sufficient for removing approximately 250 windshields.

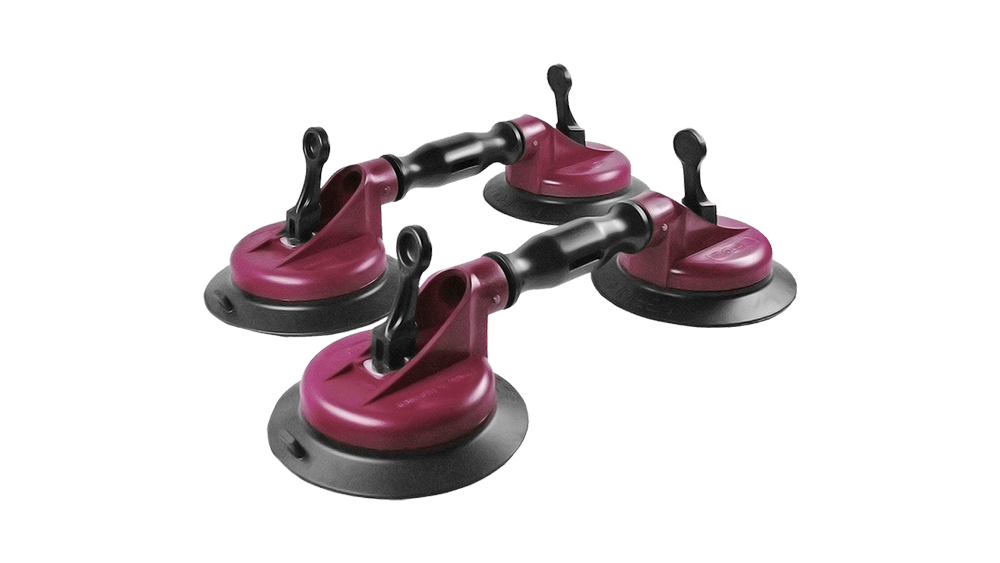

5. Suction lifter | Ø 150 mm | 2-piece set

• Part number: 848023

• Description: Articulated suction lifter with powerful vacuum and 150 mm rubber cups, ideal for transporting and installing curved automotive front windshields. The movable suction cups and extension holes make it perfectly suitable for strongly curved surfaces. The large rubber cups ensure excellent quality, shape retention, and optimal adaptation under vacuum. Ergonomically designed tilting levers for perfect power transmission. The release tab on the rubber cup facilitates removal.

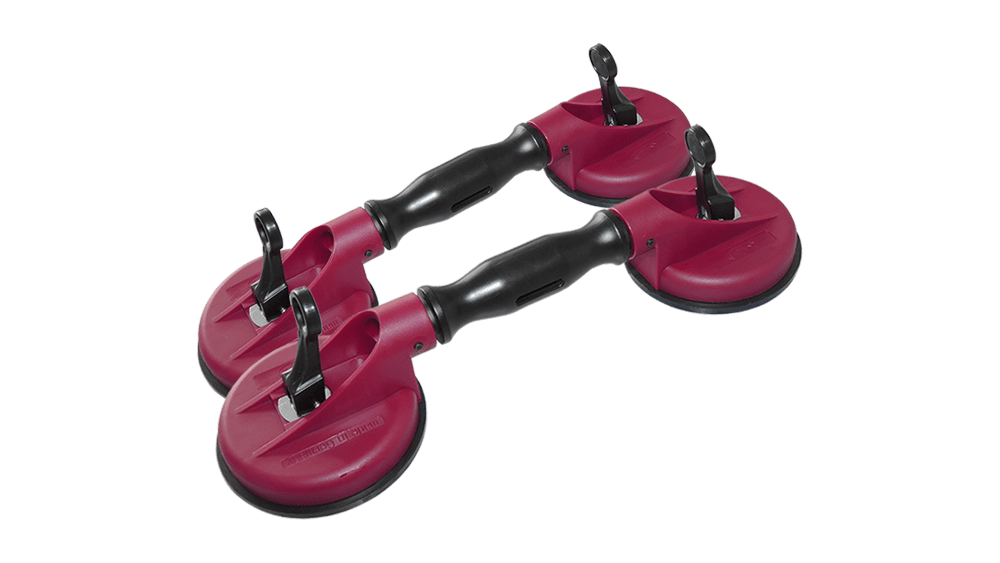

6. Suction lifter | Ø 120 mm | 2-piece set

• Part number: 848021

• Description: Similar to the 150 mm version, this 120 mm set also provides a powerful vacuum with excellent quality rubber cups. Ideal for smaller or less curved surfaces. The extension holes on the handles also allow for strapping the windshields.

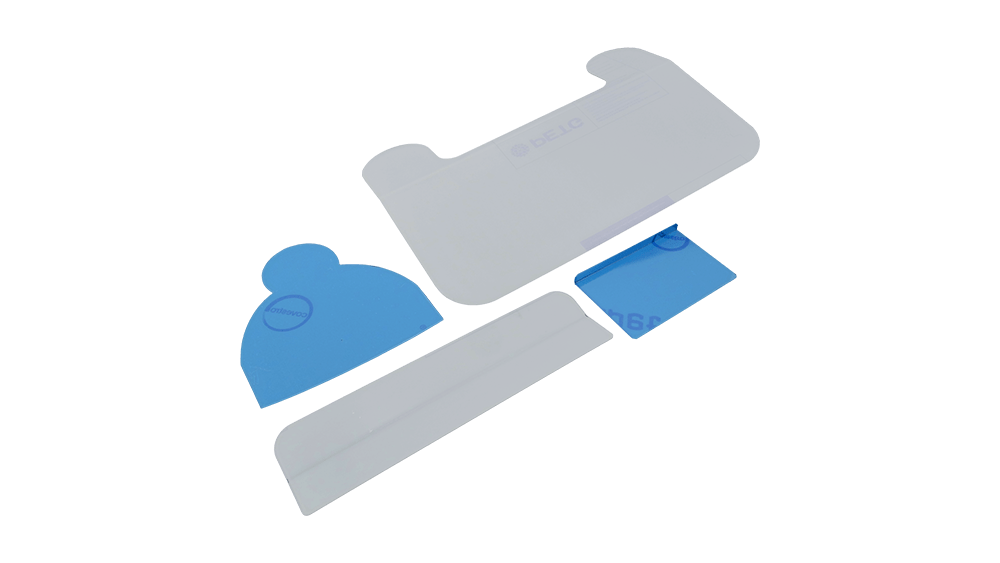

7. Interior protectors | 4-piece set

• Part number: 848003

• Description: A set designed to protect the interior of the vehicle, preventing damage during windshield removal. The set contains:

• 1 pc 848089 Inner Protector | Roll Out 2000

• 1 pc 848035 Inner Protector | A-pillar and Headliner

• 1 pc Interior protector 848067 | at 20° angle | 300 × 80 × 1.5 mm

• 1 pc Interior protector 848068 | at 90° angle | 150 × 90 × 10 mm

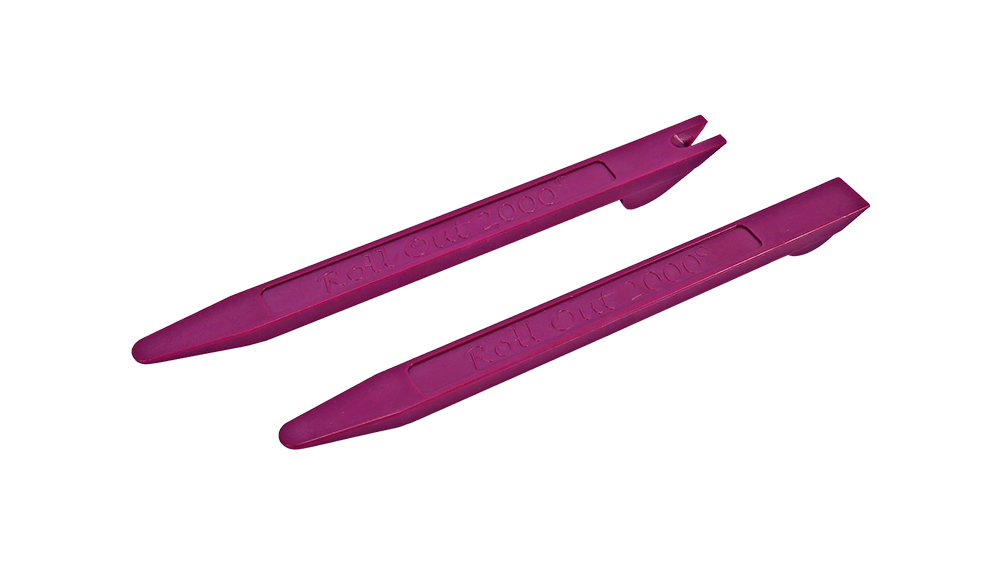

8. Mounting wedges | 2-piece set

• Part number: 848029

• Description: A set of two pieces that aids in the precise positioning and securing of the tools during the work process.
