Part number: 848005

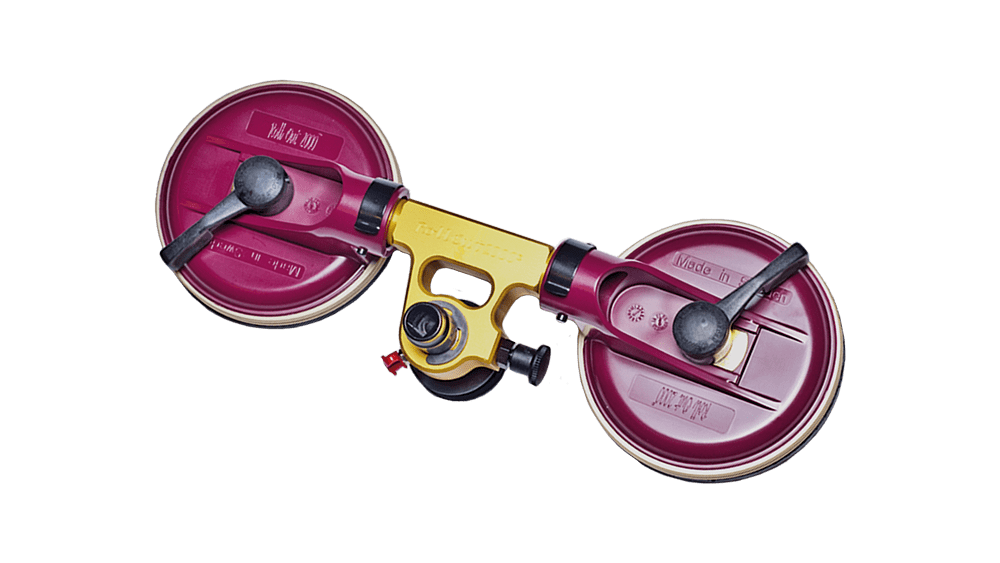

This high-quality, single-drum puller is an essential accessory for Wielander + Schill's professional windshield removal systems, especially the Roll Out 2004 model. It is designed to ensure maximum reliability and efficiency during the precise and safe removal of windshields. Equipped with 120 mm diameter suction cups, this unit is the ideal choice for body repair shops where accuracy and quick operation are crucial.
This product is a robust, single-drum puller specifically designed for the Roll Out 2004 windshield removal system. The main function of the puller is to ensure a gentle and controlled pull-out from the windshield frame, thereby minimizing the risk of damage to both the glass and the vehicle body.
The 120 mm diameter suction cups provide a large contact area, guaranteeing a stable grip even under heavy load or on uneven surfaces. The device design combines the durability of aluminum with the flexibility of plastic and rubber elements, ensuring long service life and ergonomic use.
Precise Movement Control: The puller mechanism allows for the fine, step-by-step movement of the windshield, which is essential for the safe removal of modern, bonded windscreens.
Compatibility: Directly integrable into the Roll Out 2004 system, ensuring a seamless workflow.
Könnyű Kezelhetőség: Weighing only 1.530 kg, it is easily maneuverable in the work area.
Durable Material Use: Aluminum (Alu) frame structure ensures stability, while rubber and plastic elements protect surfaces and increase adhesion.
The table below details the specifications of the puller that guarantee professional performance:
| Property | Value | Note |
|---|---|---|
| Part number | 848005 | Unique Identifier |
| System Compatibility | Roll Out 2004 | Windshield Removal System |
| Number of Suction Cups | 1 Drum | Single Drum Design |
| Suction Cup Diameter (Ø) | 120 mm | Large Contact Area |
| Length × Width × Height | 340 x 120 x 90 mm | Compact dimensions |
| Material composition | Alu, Aluminum, Plastic, Rubber, Kunststoff | Robust and durable materials |
| Weight | 1.530 kg | Light weight for portability |
For maximum efficiency and long-term maintainability, Wielander + Schill offers several accessories and spare parts for this puller, ensuring the system's continuous optimal operation.
| Product | Part number | Description |
|---|---|---|

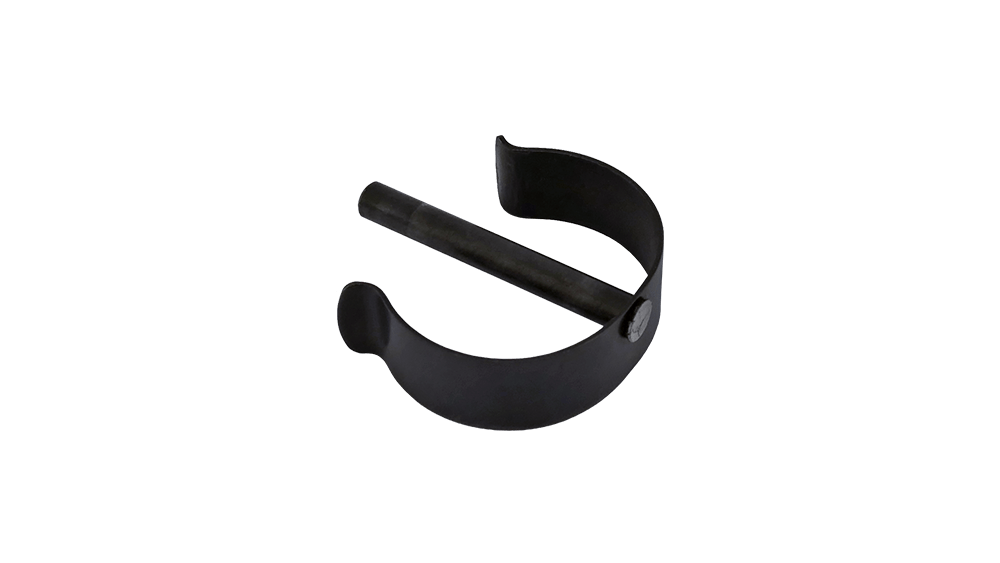

| Quick Clamp | 848052 | Used for quick and secure mounting of the suction cups to the puller. |

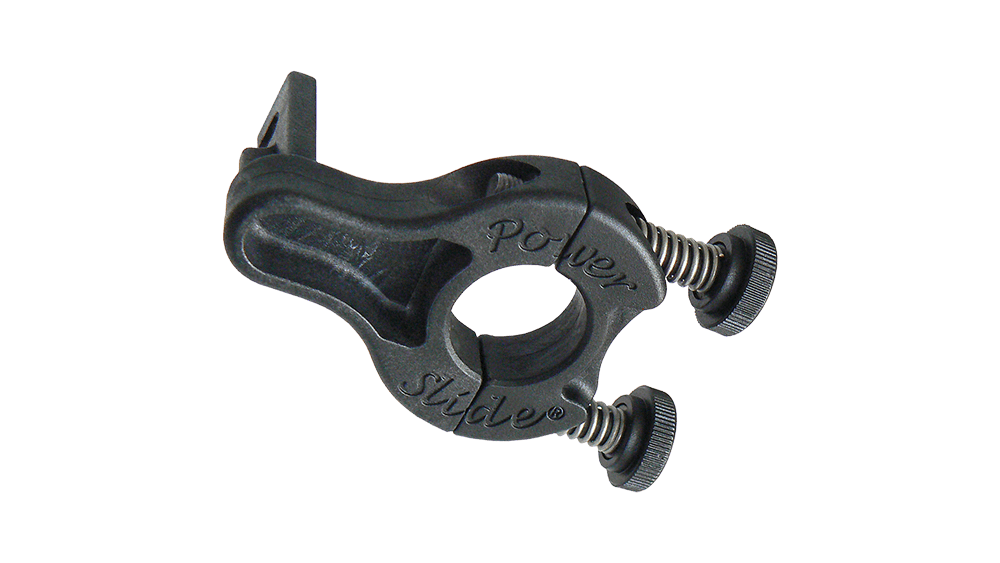

| Power Slide | 848066 | Serves for regulating wire tension, reducing the risk of wire breakage. Also functions as a safety feature if the suction cups need to be moved during operation. |
| Locking pin for winch | 848060 | Locking element usable for both single- and double-spool winches. |
Kits for replacing wear parts of the suction cups ensure the maintenance of suction power:

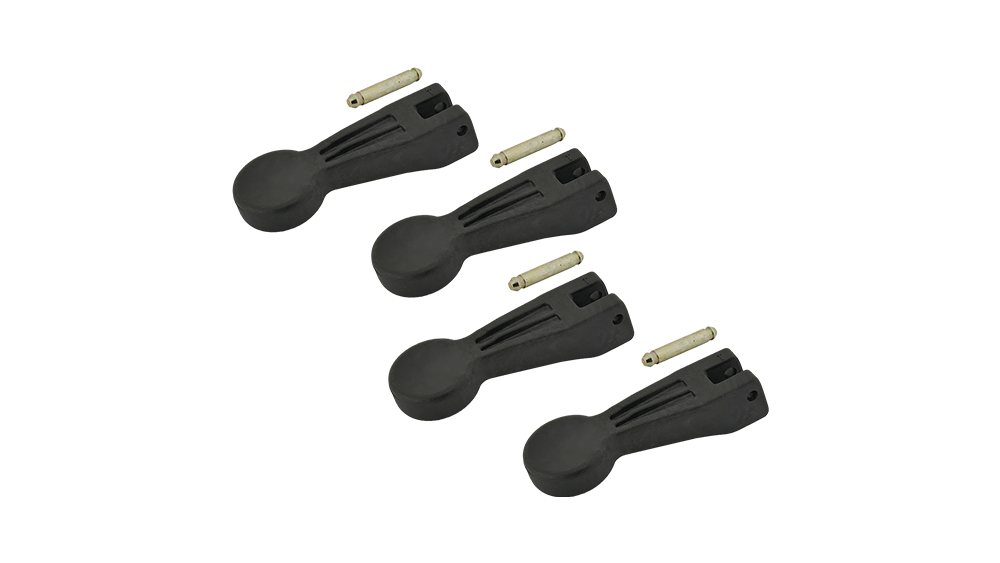

Push Lever Repair Kit (Push lever repair kit | 4-piece set) – Part No.: 848083: For repairing the push lever suction cups for the Roll Out edge protection removal system.

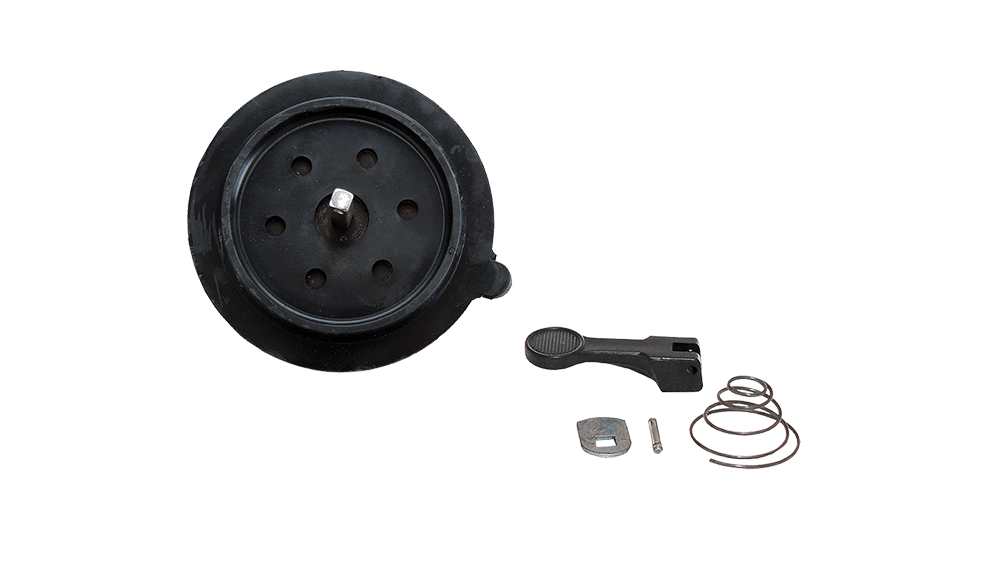

Replacement rubber with tilt lever (Replacement rubber with tilt lever | Ø 120 mm) – Part No.: 848074: Includes the necessary components for replacement: 1 pc. replacement rubber (Ø 120 mm), 1 pc. spring, 1 pc. locking pin, 1 pc. washer, and 1 pc. push lever.

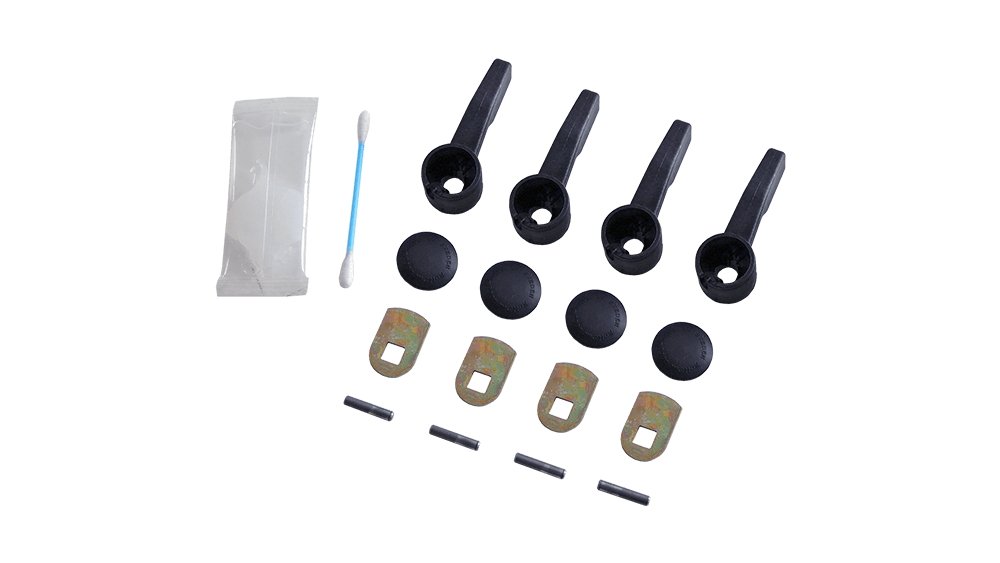

Twist Lever Repair Kit (Twist lever repair kit | 4-piece set) – Part No.: 848070: For repairing the twist lever suction cups. The kit includes: 4 pcs. 848071 twist levers, 1 pc. 848077 plate for pivot lever (1.8 mm, 4-piece pack), 4 pcs. cover caps, 4 pcs. 20 mm end caps, 1 pc. grease, and 1 pc. applicator.
If a different configuration is required to suit the workshop's needs, the following versions without suction cups or double-spool options are also available:

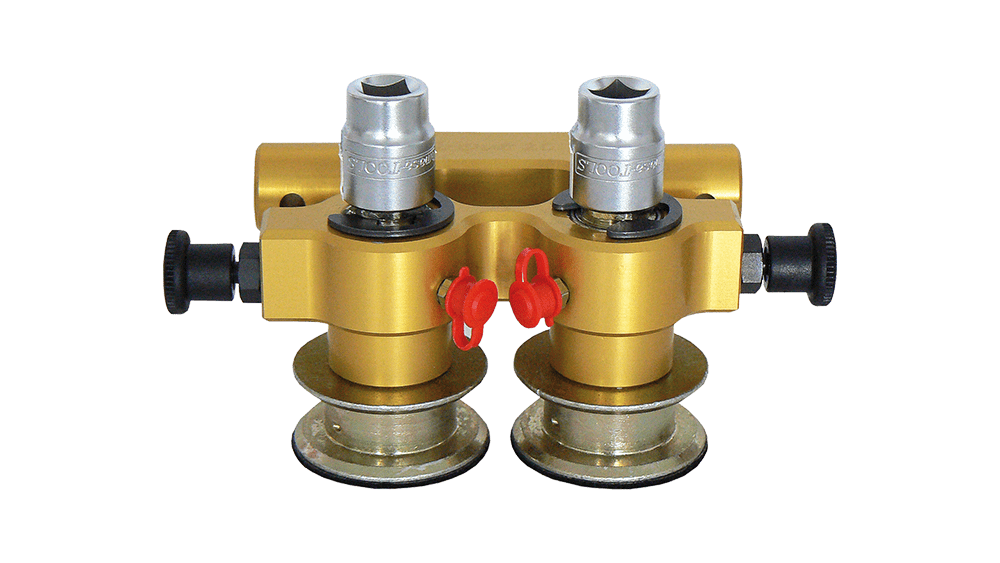

Winch without suction cups | 2 spools (Winch | without suction cups | 2 spools) – Part No.: 848048: Double-spool winch for the Roll Out 2004, without suction cups.
Winch without suction cups | 1 spool (Winch | without suction cups | 1 spool) – Part No.: 848053: Single-spool winch for the Roll Out 2004, without suction cups.
Suction cups can also be purchased separately if only the contact surface needs replacement:

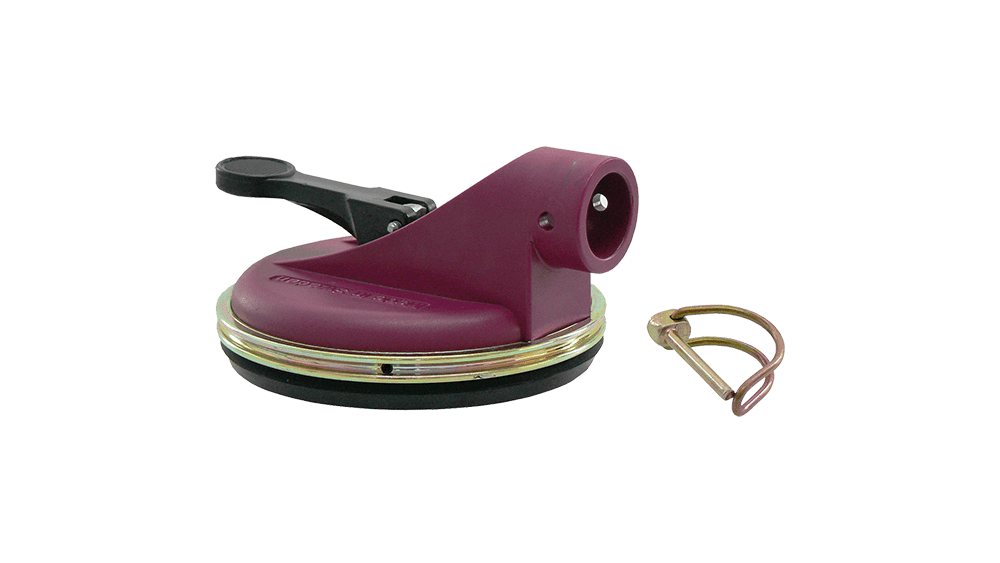

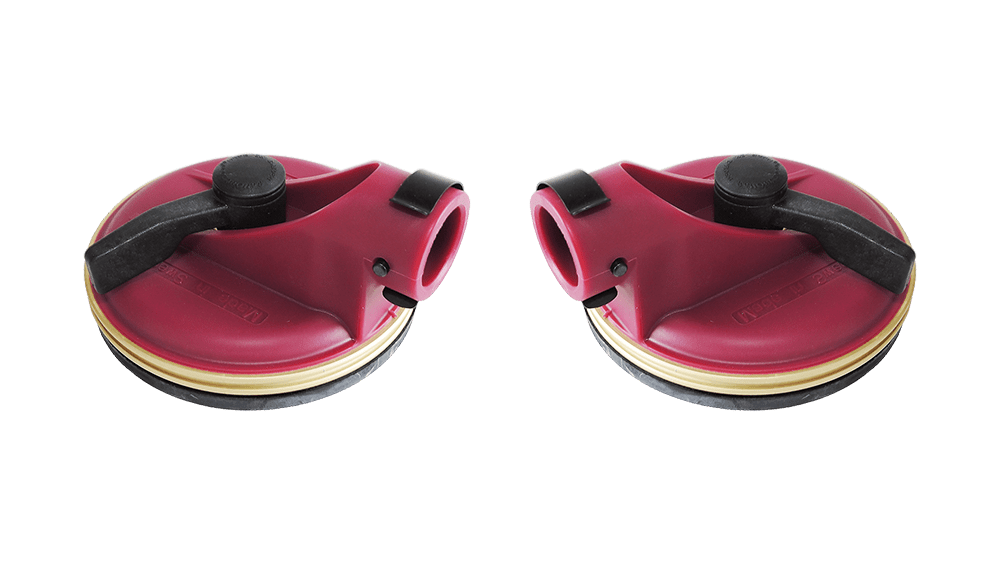

Suction cup with guide ring | Ø 120 mm | Packaging unit: 2 pcs. (Suction cup with guide ring | Ø 120 mm | PU: 2 pc.) – Part No.: 848047
Suction cup with guide ring | Ø 120 mm | Packaging unit: 1 pc. (Suction cup with guide ring | Ø 120 mm | PU: 1 pc.) – Part No.: 848046
This single-spool, 120 mm suction cup winch (848005) represents the quality of Wielander + Schill, ensuring precision and safety during edge protection replacements.
