This detailed product description presents an electrode, part of the Wieländer+Schill professional automotive body repair tool range, specifically designed for Wiggle Wire (flexible wire) systems, featuring a narrow tip design. This component is essential for precise resistance spot welding technologies, ensuring reliable and efficient work during body repair processes.
This special electrode serves as an accessory for Wieländer+Schill's Resistance Spot Welding technology. The narrow tip design allows access even in tighter areas where standard electrodes cannot fit, especially when working with Wiggle Wire systems. The product is made from high-quality materials, guaranteeing a long service life and consistent welding performance.
The product can be classified into the following categories:
Products (PRODUCTS)
Welding Technology
Resistance Spot Welding
Single Sided Spot Welding Gun GT – Although this electrode is an accessory, compatibility in this area is relevant.
The table below summarizes the critical technical parameters of the electrode that ensure compatibility and precise fitment with the appropriate welding equipment.
| Property | Value | Note |
|---|---|---|
| Part number | 507035 | Unique identifier for ordering and identification. |
| Package contents | 1 piece (1 stück) | Package contents. |
| Shank Diameter (Ø) | 6.0 mm | The precise diameter of the electrode shank. |
| Dimensions (Length x Width x Height) | 70 x 10 x 10 mm | The overall physical dimension. |
| Material | Brass | Ensures excellent electrical conductivity and heat resistance. |
| Weight | 0.039 kg | Lightweight for ease of handling. |
The electrode is made of brass (copper-zinc alloy). The choice of brass is intentional:
Excellent Electrical Conductivity: Brass ensures optimal current flow to the welding spot, minimizing energy loss and maximizing weld quality.
Heat Conduction: It conducts heat well, which helps prevent overheating and premature wear of the electrode, especially under intensive use.
Wear Resistance: Although welding electrodes are generally made of copper alloys (often enriched with tungsten or chrome-tungsten to increase hardness), the brass base ensures the necessary flexibility and proper contact with the welding surface.

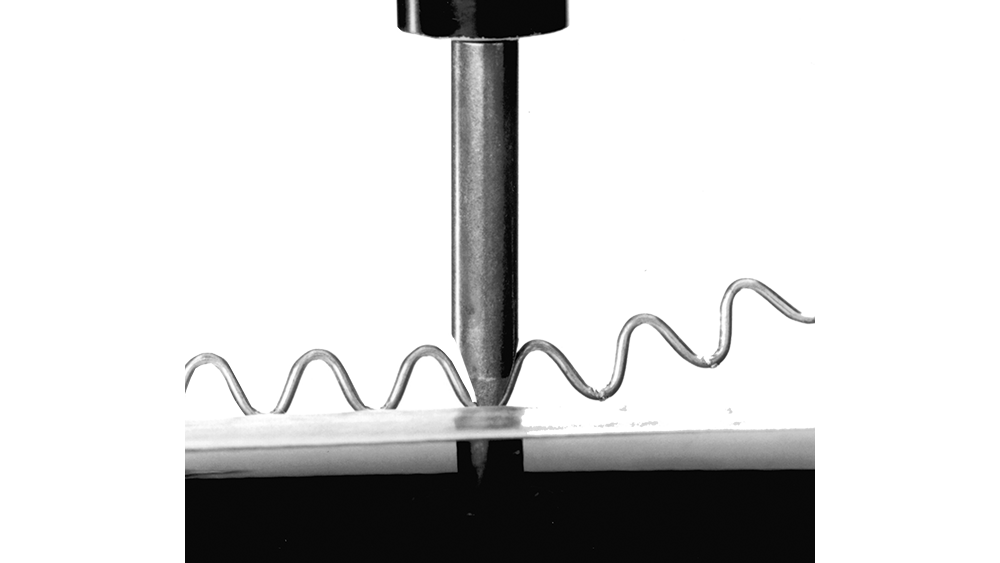

A narrow tip design is crucial in repairing modern body panels where access is often limited. This geometry allows for the precise positioning of welding spots on the Wiggle Wire fixing points, ensuring a strong and reliable bond.
This electrode has been specifically optimized for use with the Wiggle Wire systems offered by Wieländer+Schill. The 6.0 mm shank diameter ensures a tight fit into the appropriate holding systems.
Recommended application areas:
Pulling out and fixing body panels by welding.
Spot welding of hard-to-reach surfaces.
All applications where Wiggle Wire technology is combined with resistance spot welding.
The product is manufactured according to the quality standards of Wieländer+Schill, which guarantees professional use and long-term reliability in the automotive repair industry.
Wieländer+Schill is committed to the highest quality standards, which is supported by its certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These standards ensure that strict quality control processes are applied during electrode manufacturing, guaranteeing compliance with product specifications.
This component belongs to the Service & Workshop As accessories for professional tools belonging to the category, it is an ideal choice for any specialist seeking the highest level of body repair solutions.
