The Wieländer+Schill universal stud welder hammer, part number 501025, is an indispensable tool for modern body repair technologies. This professional tool is specifically designed for working with spot welding equipment, especially for connecting to pulling points, ensuring efficient and precise dent removal.
This versatile pulling tool is excellently suited for restoring damaged metal surfaces of vehicles, where the goal is to restore the original shape of the body parts using pulling elements fixed by spot welding.
This universal stud welder hammer belongs to the Wieländer+Schill pulling equipment category and can be tightly integrated into existing repair processes.
Compatibility: Especially suitable for InvertaSpot GT use with the spot welder and the PSP 60 welding gun. This specific fit guarantees a reliable and safe connection during operation.
Functionality: The mechanism of the stud welder hammer allows for the concentrated application of the applied pulling force onto the welded point, enabling the effective removal of small and medium-sized dents without excessively stressing the body material.
Material quality: The tool is made from durable materials such as aluminum, brass, and steel, ensuring a long service life and reliable performance even in demanding workshop environments.
Versatile Connection: It features a standard M14 thread, allowing for the quick and secure attachment of compatible pulling accessories (e.g., pulling tabs, hooks).
The detailed technical specifications of the universal stud welder hammer (Part Number 501025) ensure the fulfillment of professional user expectations:
| Property | Value | Note |
|---|---|---|
| Part number | 501025 | |
| Design | Universal Stud Welder Hammer | |
| Content | 1 darab | |
| Shank Diameter (Ø) | 9 – 14 mm | Size range of connectable pulling elements. |
| Dimensions (Length x Width x Height) | 330 x 60 x 10 mm | The physical dimensions of the tool. |
| Material composition | Alu, Aluminum, Brass, Steel | For the optimization of durability and weight. |
| Thread size x length | M14 x 23 mm | Standard thread usage for accessories. |
| Weight | 2.300 kg | Optimal weight for exerting effective pulling force. |
For maximum efficiency, Wieländer+Schill offers a range of accessories that can further expand the functions of the stud welder hammer. These accessories are essential parts of the pulling processes based on spot welding technology:

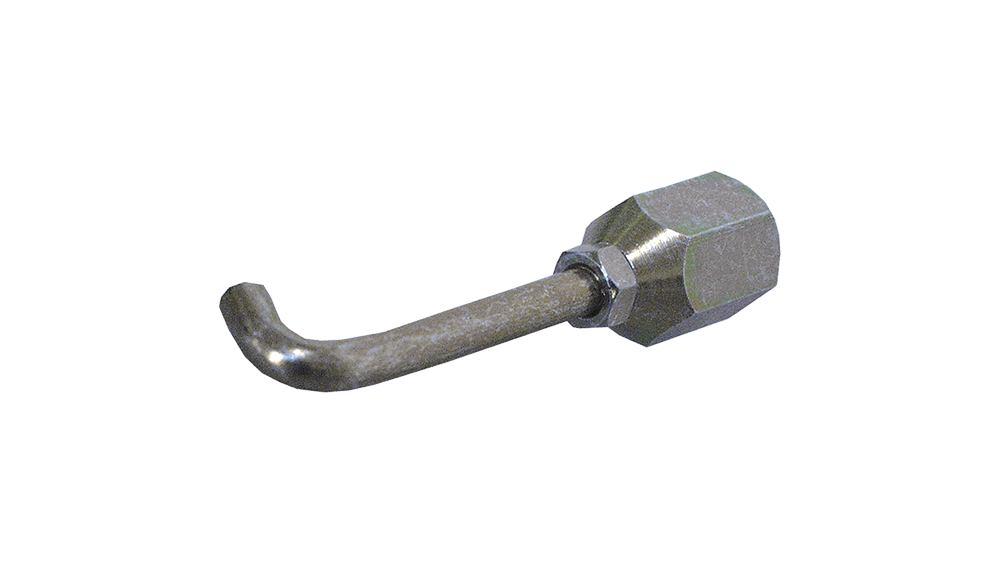

This hook is specifically designed for tabs equipped with an M14 thread, enabling the targeted pulling of damaged parts of vehicle components.

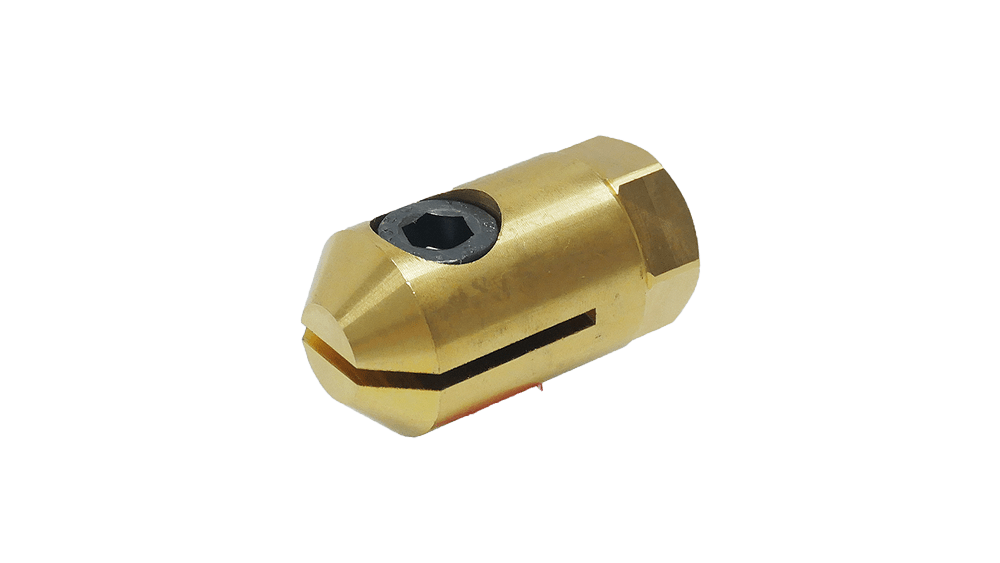

This electrode ensures the proper mounting of the triangular pulling tabs to the body element during the spot welding process.
These standard washers (DIN 125) are essential for welding pulling technology. With the help of welded washers, the slide hammer can precisely exert the pulling force, allowing the sheet metal to be deliberately leveled and returned to its desired shape.
Using triangular pulling tabs and a quick pulling hammer enables fast and economical repairs on body panels. If tips are worn or burnt, they can easily be filed again, increasing the accessory's lifespan.
The Wieländer+Schill universal slide hammer belongs to the body repair branch built upon spot welding technology. This method offers several advantages over traditional pulling techniques:
Accuracy: The welded pulling elements allow for precise targeting of the point of damage, minimizing the deformation of surrounding surfaces.
Efficiency: The slide hammer enables a fast and repetitive motion, significantly shortening the repair time.
Material lifter: Precise pulling reduces the need for extensive subsequent work (e.g., grinding, filling), thereby preserving the original sheet metal thickness and structural integrity.
This tool is the ideal choice for any professional seeking the highest quality and reliability in dent removal technologies.
