Part Number: 848039

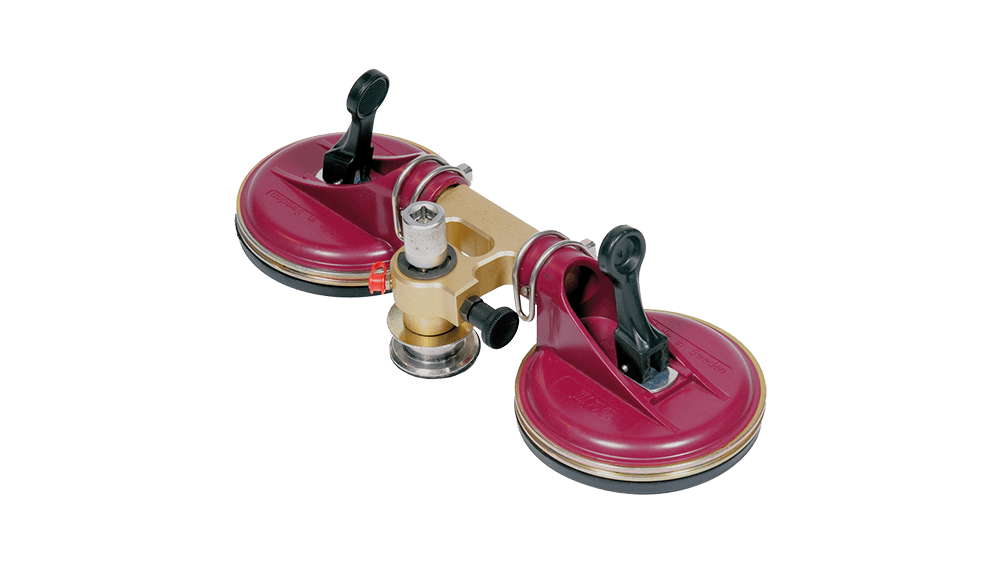

This high-quality, two-drum puller is an essential accessory for the Wielander + Schill Roll Out 2004 trim removal system. It is specifically designed for the high-precision and safe removal of trim, equipped with 120 mm diameter suction cups. The robust construction and precise mechanics guarantee reliable performance even in the most demanding workshop environments.
This component ensures the secure fastening of the trim and the uniform distribution of pulling force between the suction cups, thereby minimizing the risk of damage to the car body or glass surface.
This puller is optimized for full compatibility with the Roll Out 2004 system and offers several features that make the trim removal process easier and safer:
Two-Drum Design: The two drums enable symmetrical distribution of the pulling force, which is particularly advantageous for large or heavy trim pieces, increasing stability and control.
Large Diameter Suction Cups: The 120 mm diameter suction cups provide excellent adhesion on most glass surfaces, even on slightly curved or textured surfaces.
Robust Material Usage: A combination of metal, plastic, rubber, and other durable materials ensures a long service life and high load capacity.
Integrated Compatibility: Designed exclusively for the Roll Out 2004 trim removal system, guaranteeing perfect fit and function.
Ergonomic Design: Despite its compact dimensions (350 x 120 x 95 mm), it enables efficient operation.
The precise technical parameters of the product ensure professional use:
| Property | Value | Note |
|---|---|---|
| Part number | 848039 | |
| System Compatibility | Roll Out 2004 | |
| Number of drums | 2 | Two-drum design |
| Suction Cup Diameter (Ø) | 120 mm | |
| Dimensions (Length x Width x Height) | 350 x 120 x 95 mm | |
| Material composition | Metal, Plastic, Rubber, Plastic (kunststoff) | Durable and resistant materials |
| Weight | 1.860 kg |
This puller is an integral part of the Roll Out 2004 system, which offers modern auto body shops an efficient solution for the safe and fast removal of bonded trims. The system aims to minimize the risk of damage to the car body while providing maximum force to cut through the trim sealant.
The two-drum puller can be particularly useful in situations where the weight of the trim or the strength of the adhesive creates significant resistance. The 120 mm suction cups adhere over a large surface area, allowing for stable fastening during the pulling process.
For maximum efficiency and maintenance, Wielander + Schill offers several accessories for this puller and the entire Roll Out 2004 system:
Puller without suction cups | 1 drum (Part Number: 848053): For simpler tasks or as a spare part.
Puller without suction cups | 2 drums (Part Number: 848048): The basis for the current product if the suction cups need to be replaced separately.

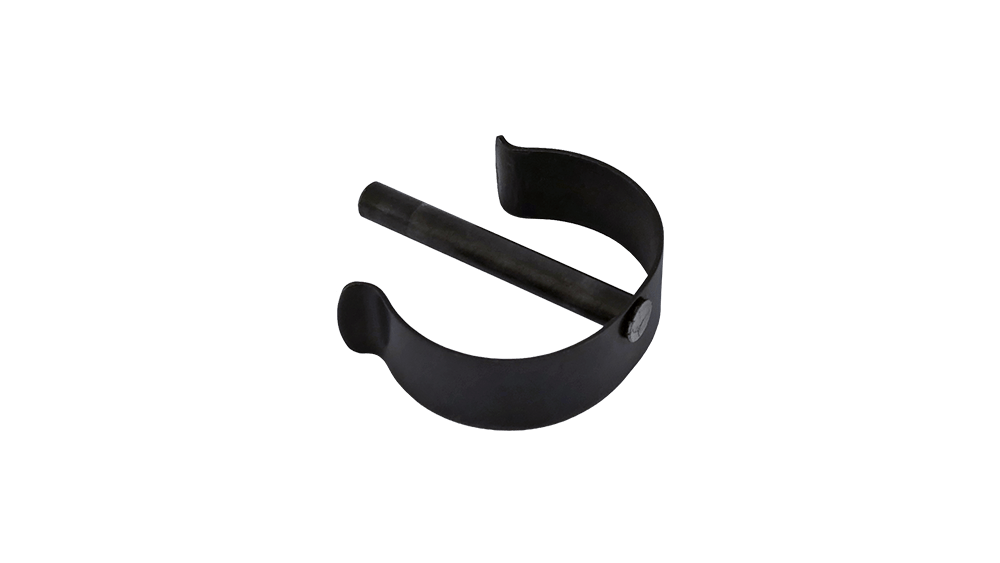

Quick clamp (Cikkszám: 848052): This element is responsible for the solid attachment of the suction cups to the winch, ensuring a reliable mechanical connection.

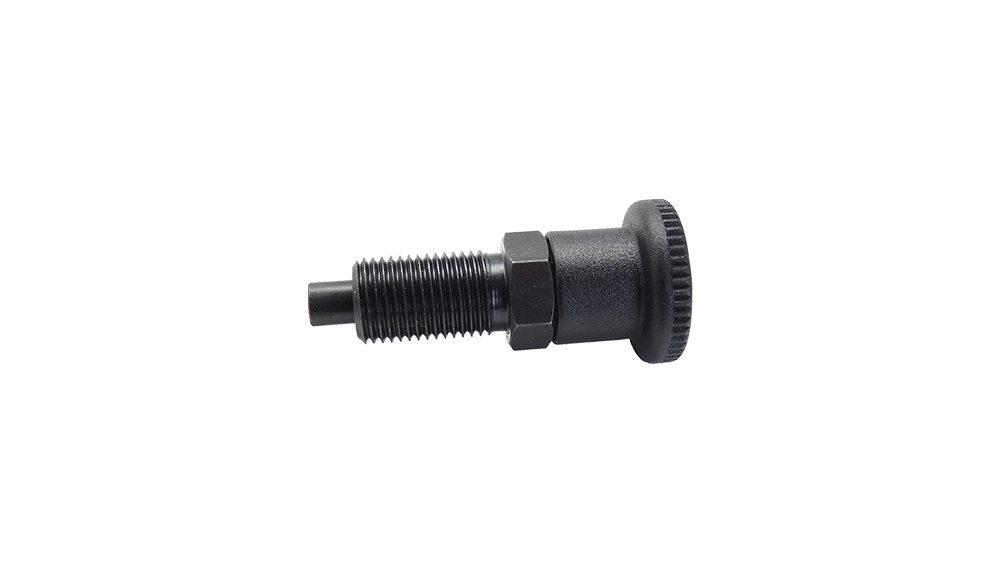

Locking pin for winch (Cikkszám: 848060): Universal locking pin for both single and double drum winches.
Suction cup with guide ring | Ø 120 mm | PU: 2 pcs (Cikkszám: 848047): Spare part for 120 mm suction cups, 2 pieces per package.
Suction cup with guide ring | Ø 120 mm | PU: 1 pc (Cikkszám: 848046): Single piece spare part.

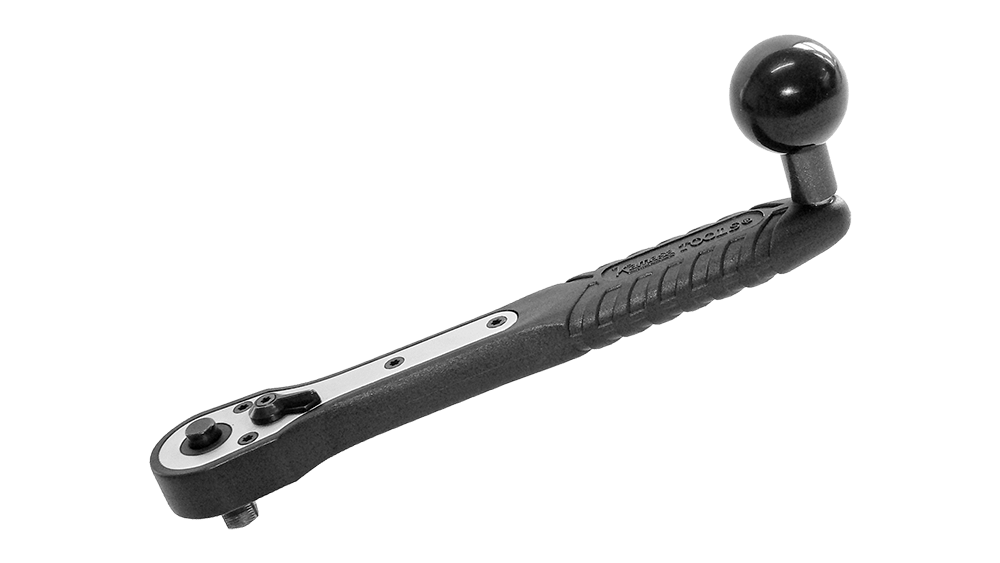

Wrench with ball handle | 3/8″ (Cikkszám: 848027): Ergonomic ratchet wrench for quick and convenient adjustments.
Crank repair kit | 4 pieces (Cikkszám: 848070): This kit is specifically designed for repairing the crank-operated suction cups in the Roll Out edge protector removal system. The set includes:
4 pcs 848071 Crank (individual piece)
1 pc 848077 Plate for swivel arm | 1.8 mm | PU: 4 pcs
4 pcs Locking pin 20 mm
1 pc Grease (for lubrication)
1 pc Applicator

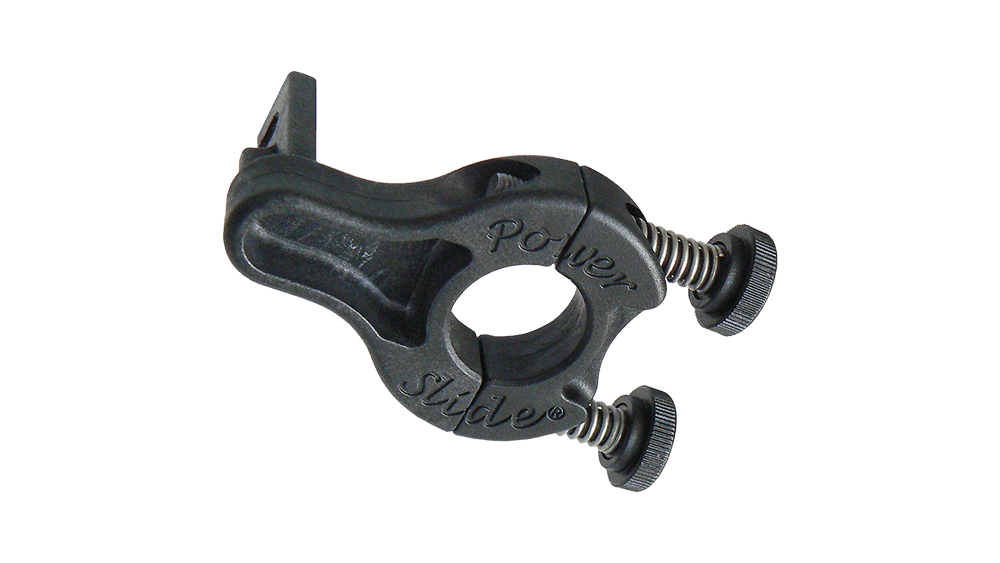

Power Slide (Cikkszám: 848066): This innovative device regulates the tension of the cutting wire, thereby reducing the risk of wire breakage. It also serves as a safety feature if the suction cups need to be moved during operation.
This double-drum winch (848039) equipped with 120 mm suction cups represents the quality of Wielander + Schill, ensuring the efficiency and safety of the edge protector replacement process in workshops.
