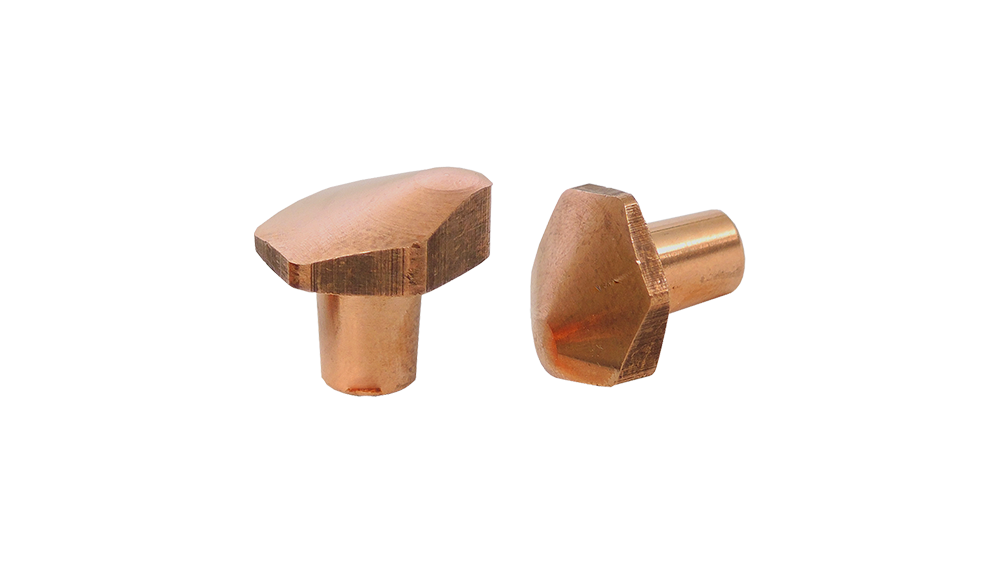

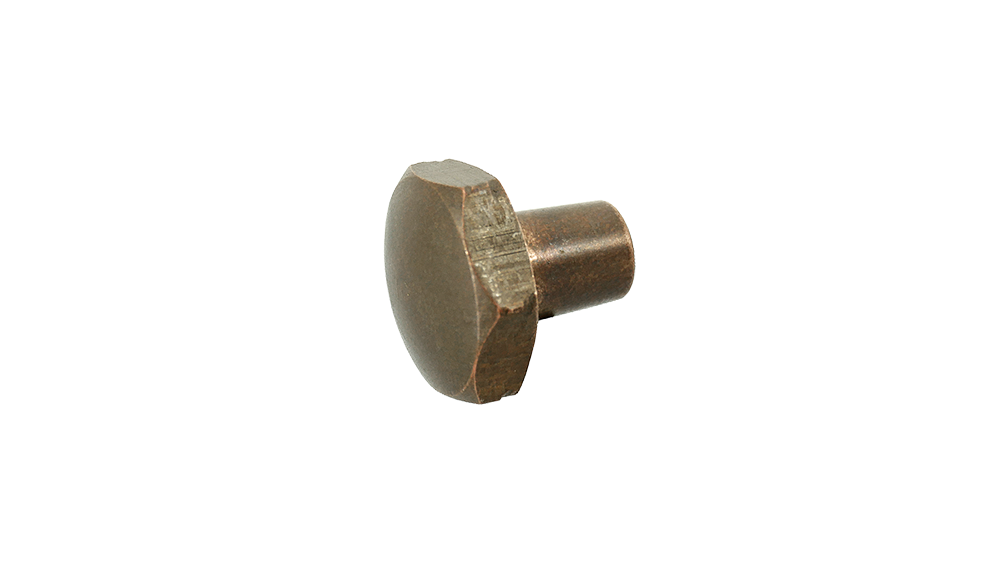

Centric Hexagonal Electrode for C-Arm Electrode Holder with Rocker (Part No: 495669)

This product is part of the Wieländer+Schill professional welding technology range, developed specifically for resistance spot welding applications. The centric hexagonal electrode offers an ideal solution for connection via a rocker to the C-arm electrode holder, ensuring the creation of precise and efficient weld spots.

Product Description and Application Area

The centric hexagonal electrode, part number 495669, is made from the highest quality materials to withstand high load and continuous use in the body repair sector. They are specifically designed for situations where precise positioning and reliable contact are essential to reach the welding spot.

The „centric” design and compatibility with the C-arm holder equipped with a rocker makes it possible for the electrode to ensure optimal pressure and current distribution on the welding surface, even in hard-to-reach areas. This configuration is crucial for the professional and durable welding of body components, meeting strict OEM (Original Equipment Manufacturer) requirements.

Key Features and Advantages

• Centric Design: The weld spot is located in the center of the geometry, maximizing weld quality and electrode lifespan.

• C-Arm Compatibility with Rocker: Optimized specifically for C-arm electrode holders equipped with a rocker, providing flexibility during the welding process.

• Excellent Material Quality: The CuCrZr (Copper-Chromium-Zirconium) alloy guarantees excellent electrical conductivity and high thermal resistance, minimizing softening and wear.

• Conical Mounting: The cup-shaped (conical) shank diameter ensures a solid and precise fit into the holder, preventing loosening and vibration during welding.

• Professional Performance: Ideal choice for professional workshops where reliability and fast work execution are essential.

Technical Data

The following table details the specifications of the centric hexagonal electrode (Part No: 495669):

Accessories (Zubehör)

For efficient work execution, the Wieländer+Schill range offers numerous accessory products that optimize the use and maintenance of electrodes:

1. Hexagonal, Concentric Electrodes (Part No.: 495679)

• Description: Concentric electrodes for C-arm electrode holder with tilting device. These concentric versions allow for further fine-tuning by offsetting the weld spot from the center outwards, ideal for reaching tight corners.

2. C-Arm Electrode Holder with Tilting Device (Part No.: 495688)

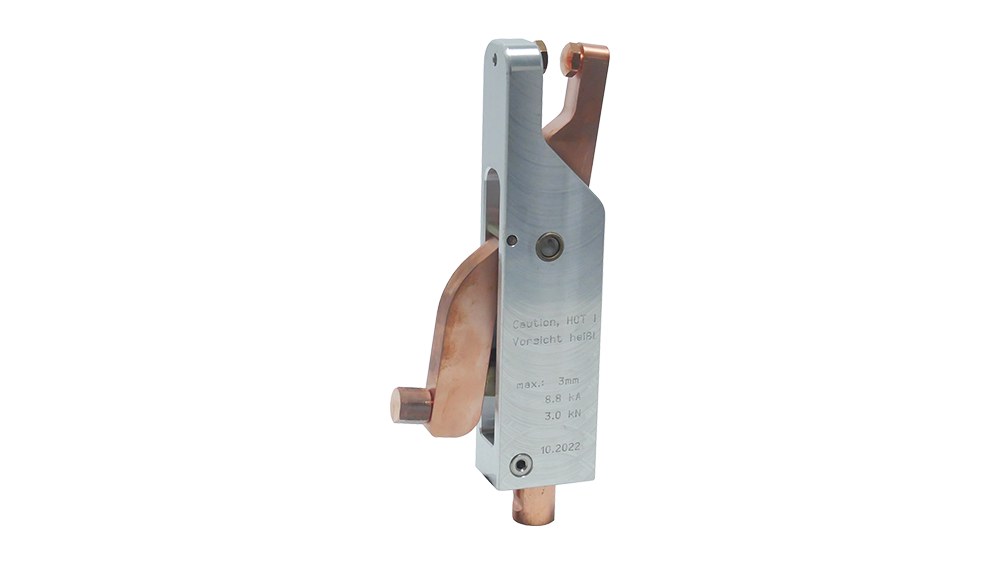

• Description: This holder is specifically designed for welding very narrow metal strips. Thanks to the centric electrodes inside, it penetrates every corner, ensuring the weld spot is offset from the center outwards. This holder provides an ideal platform for electrodes of type 495669.

3. Electrode Dressing Tool / Fixed (Part No.: 298298)

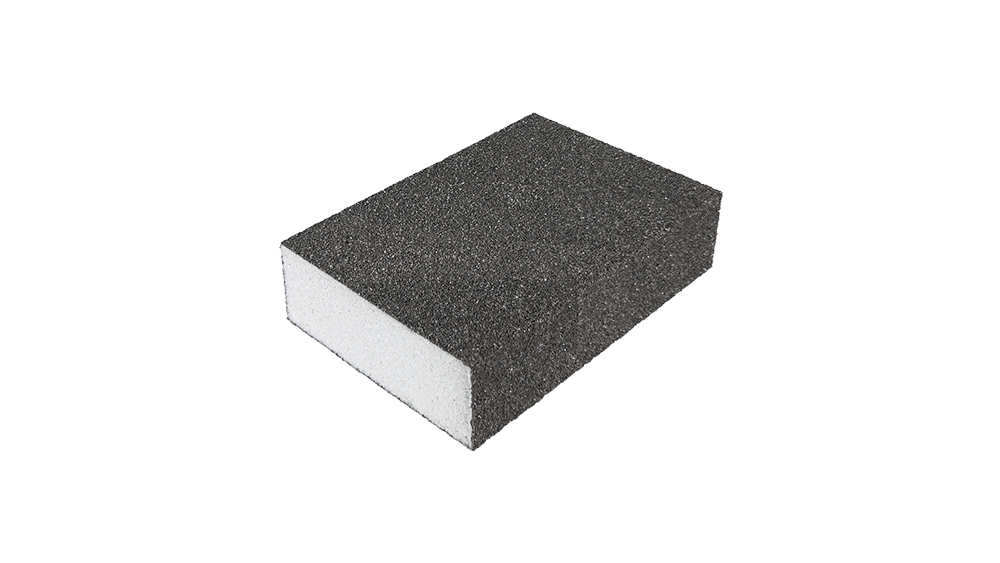

• Description: Fixed electrode | Grit 60 (Grain 60). This critical maintenance tool is used for cleaning spot welding electrode caps when they become worn or contaminated. Only clean electrode caps guarantee correct and repeatable spot welding results. Regular cleaning is essential to maintain optimal welding quality.

Quality Assurance and Standards

Wieländer+Schill is committed to the highest quality, which is also proven by compliance with international standards:

• ISO 9001: Quality Management System Certificate.

• ISO 14001: Environmental Management System Certificate.

These certificates ensure that manufacturing processes, including the production of electrodes, are subject to strict quality control, guaranteeing product reliability and consistency in the automotive repair industry.
