The electromechanical temperature controller manufactured by Leitenberger Mess- und Regeltechnik GmbH is an excellent choice for precise temperature control tasks, especially in industrial environments requiring flush mounting. This device combines reliability and long service life with German quality, without using bimetallic compensation. The robust stainless steel housing and transparent glass front guarantee durable performance in the most diverse applications.
This remote sensing thermostat (part number: 04.14) is the ideal solution for systems where precise temperature monitoring and switching functions are required.
The device is built upon Leitenberger's traditional yet extremely reliable technology, ensuring simple yet effective measurement.
Temperature measurement is performed via a simple Bourdon tube measuring system. This mechanical principle ensures stable operation and long-term accuracy.
Skálahossz: Approximately 240°.
Scale Graduation: Depending on the measuring range, it can be set in selectable increments of 1°, 2°, 5°, or 10°, providing flexibility for different application requirements.
The standard range is extremely wide, allowing for versatile use:
Measurement range: Ranges from -80°C to +380°C.
Customizability: The measuring range can also be configured according to specific customer requirements.
The device complies with strict industrial standards regarding accuracy and switching reliability.
Display Accuracy: Class 2 according to DIN 16203 standard.
Switching capacity: 5A / 3A at 125/250 VAC, at a frequency of 40–60 Hz.
Switching Hysteresis: Approximately ±2% of the measuring range. This set hysteresis ensures stable switching behavior, avoiding frequent on/off cycles.
Contact Type: Single-pole changeover contact, adjustable over the entire range.
A user-friendly design is crucial for quick and accurate readings.
Indicators: The actual value (black) and the setpoint value (red) are displayed clearly and legibly on the scale.
Fixing Clamp: Made of galvanized sheet steel, which ensures stable mounting.
| Parameter | Spezification | Note |
|---|---|---|
| Part number | 04.14 | Remote sensing thermostat |
| Metering System | Bourdon tube | Simple mechanical system |
| Scale length | approx. 240° | High-resolution display |
| Measurement range | -80°C … +380°C | Custom ranges possible |
| Accuracy Class | Class 2 (DIN 16203) | Compliant with industrial standards |
| Switching Capacity | 5A/3A @ 125/250 VAC | 40-60 Hz |
| Hysteresis | ±2% of the measuring range | Stable switching behavior |
| Contact | Single-pole changeover contact | Adjustable over the full range |
| Housing Protection (Basic) | IP 53 | The terminals are IP 00 (DIN EN 60529) |
| Fixation | From the rear, with mounting clamp | Simple and safe installation |
Leitenberger products comply with strict safety regulations and can be expanded with numerous options to meet special requirements.
Protection Class: I.
Housing Protection: IP 53 (according to DIN EN 60529 standard).
Terminal Protection: IP 00.
IP 55 Protection: Achievable with the application of an accessory protective cap for the housing.
Factory Setting: The switching point can be factory pre-set according to the customer's specifications.

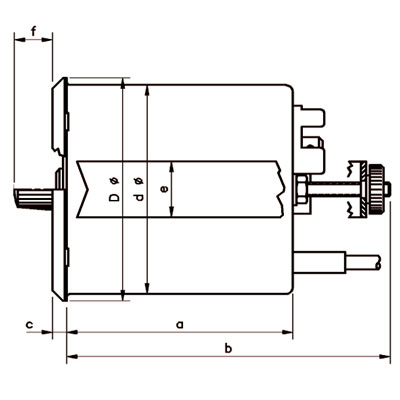

Mounting the device with a rear retaining clip allows for simple and safe installation.
Important Electrical Note: When switching inductive loads to prevent sparking RC element is recommended for use. Inductive loads must always be switched via a suitable contact protection relay to maximize the device's service life.
This electromechanical temperature controller is DIN EN ISO 9001 manufactured in accordance with quality management standards. It undergoes rigorous quality control during production, which guarantees optimal performance and reliability in long-term industrial applications. The „Made in Germany” quality assurance guarantees the product's excellent design.
For precise temperature control, selecting the appropriate sensing element is essential. Leitenberger offers a wide selection of different types of capillaries that can be connected to the thermostat:
Stainless Steel (Naked): Stainless steel capillaries without protective coating.
Copper – With Single Copper Braid: (CU- single cooper braided) Reliable mechanical protection.
Copper – With Double Copper Braid: (Cu- double copper braided) Enhanced mechanical protection.
Copper – PVC Coated: (Cu-PVC coated) Coating optimized for various environmental conditions.
These accessories ensure that the temperature sensing element optimally matches the mechanical and chemical requirements of the installation environment.
