This high-quality bi-metal saw blade is part of the professional tool range from Wieländer+Schill, specifically developed for auto body repair and metalworking tasks. The 14 teeth per inch (TPI) fineness provides an optimal balance between cutting speed and cut quality, making it an ideal choice for versatile applications.
This saw blade is excellently suited for the precise and efficient separation of various materials. The bi-metal construction guarantees a long service life and excellent flexibility, minimizing the risk of breakage under high stress. Thanks to the specially designed serration, the cuts are burr-free, which reduces the need for post-processing.
Key Features and Advantages:
Versatile Application: Specifically recommended for cutting aluminum, wood, composite materials, and GRP (Glass Fiber Reinforced Plastic).
High Cutting Performance: Enables fast and efficient material removal, thereby increasing workshop productivity.
Burr-Free Cutting: The tooth geometry results in a clean, even cutting surface, which is critical during precision repairs.
Excellent Flexibility: The bi-metal structure ensures a high degree of flexibility, making the blade more resistant to fatigue fractures.
Smooth Running: The blade runs extremely smoothly in the saw, contributing to more accurate work and reducing tool vibration.
The detailed technical parameters of the product ensure that the saw blade fits exactly into your pneumatic body saws (Air Body Saws).
| Property | Value | Note |
|---|---|---|
| Part number | 197000 | The unique identifier of the product. |
| Material | Bi-metal | Long-lasting, flexible alloy. |
| Tooth Pitch (TPI) | 14 tpi | Teeth per inch (ideal for general cutting). |

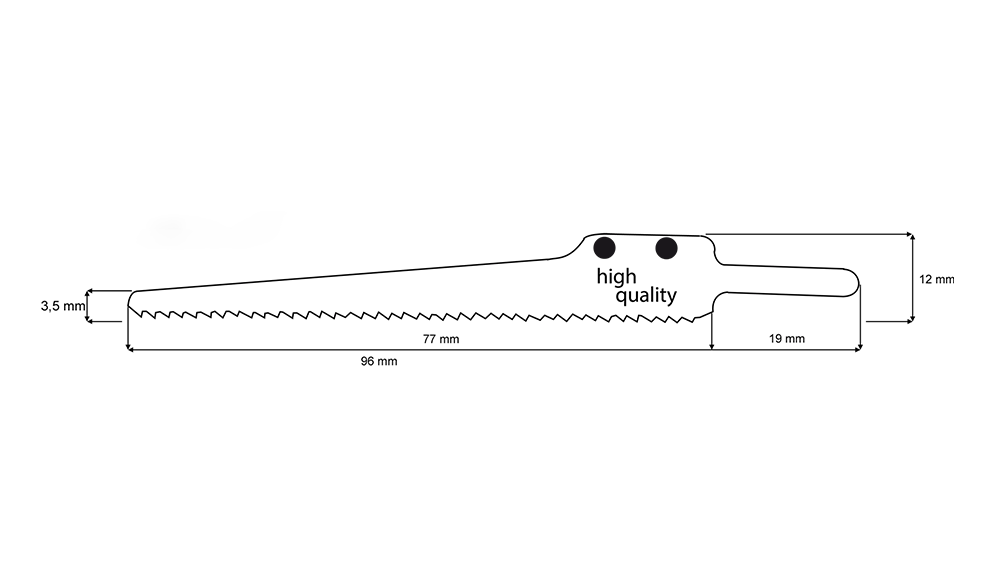

| Length | 77 mm | The total length of the saw blade. |
| Dimensions (Length x Width x Height) | 96 x 13 x 1 mm | Dimensions of the packaging or the entire blade (96 mm is likely the total length, 77 mm is the usable length). |
| Package contents | 10 pcs | The package contains 10 saw blades. |
| Field of application | Aluminum, wood, composite, GRP | Wide range of applications. |
Although this product is the 14 TPI version, the series is also available with other tooth pitches for different material thicknesses and cutting requirements:
14 tpi
18 tpi
24 tpi
28 tpi
32 tpi
This bi-metal saw blade is the ideal accessory for any workshop seeking high-quality separation solutions. Particularly useful for:
Body Repair: Cutting body parts, reinforcements, and sheets where precision and a burr-free finish are essential.
Composite Structures: Cutting or sizing of fiberglass (GRP) and other composite materials.
Wood and Wood-based Materials: Although primarily optimized for metals, it is also suitable for fast cutting of wood and wood-based materials.
The 14 TPI tooth pitch is particularly advantageous when cutting medium-thick metals (e.g., aluminum body parts), where 18 TPI would be too slow and 24 TPI would be too fine. The bi-metal technology guarantees that the blade will withstand the thermal stress and mechanical strain generated during contact with metals.
Wieländer+Schill is committed to the highest quality standards. The product meets stringent industry requirements, supported by the company's ISO 9001 (Quality Management System) and ISO 14001 (Environmental Management System) certifications. This saw blade belongs to the category of professional separation tools, ensuring reliable and durable performance.
