Drilling machine GTC-041B

GTC-041B Pneumatic Drill – Precision Performance for Bodywork Tasks

The Wielander + Schill GTC-041B pneumatic drill is a robust and reliable tool, specifically developed for high-demand automotive repair and metalworking tasks. This high-quality, compressed air-powered drill is the ideal choice for those who want to create precise holes while considering comfort and durability.

The main feature of the GTC-041B drill is its versatility and ease of handling. The built-in forward/reverse rotation function allows for quick and easy changing of the drilling direction, which is essential when removing threads or during screwing tasks. The quick-chuck head ensures quick and safe changing of drill bits, minimizing downtime between work processes.

This pneumatic tool can be excellently integrated into any professional workshop environment where reliable performance and long service life are crucial.

Key Features and Advantages

• Bidirectional Operation: The clockwise and counter-clockwise rotation (forward/reverse) function provides maximum flexibility for various drilling and loosening operations.

• Quick-Change Chuck: Enables fast and tool-free changing of drill bits, thereby increasing efficiency.

• Ergonomic Design: Compact dimensions (220 x 40 x 140 mm) and optimal weight (1.750 kg) ensure fatigue-free operation even over longer periods.

• Robust Material Usage: The combination of aluminum, plastic, and steel guarantees the tool's long-term reliability under workshop conditions.

• Alacsony Zajszint: It operates at only 83 dB(A) sound pressure level, contributing to a more pleasant working environment.

Technical Data

The performance and operating parameters of the GTC-041B drill are detailed in the table below:

Recommended Accessories for Maximum Efficiency

To utilize the full potential of the GTC-041B drilling machine and optimize bodywork tasks, the following accessories and aids are recommended:

1. Drill Bit Sets

Selecting the right drill bit is essential for different materials and diameters.

HSS-Co Cobalt Drill Bit Set (19 pieces)

• Part number: 637004

• Description: Drill bits conforming to DIN 338 standard, with a cylindrical shank. They ensure high wear resistance and durability thanks to their bright or steam-treated surface. Ideal for high-strength steels.

• Features: N type, right-hand cutting direction, 118° point angle for precise centering.

• Diameter Range: 1.0 mm – 10.0 mm (in 0.5 mm increments).

MULTI-STEP Step Drill Bit Set (19 pieces)

• Part number: 637007

• Description: They feature a stepped point geometry (with up to 6 steps) for precise, round holes. Ideal for hand drills.

• Features: 118° point angle, optimized, sharp split point. The 3-flatted shank ensures stable grip in the chuck.

• Diameter Range: 1.0 mm – 10.0 mm (in 0.5 mm increments).

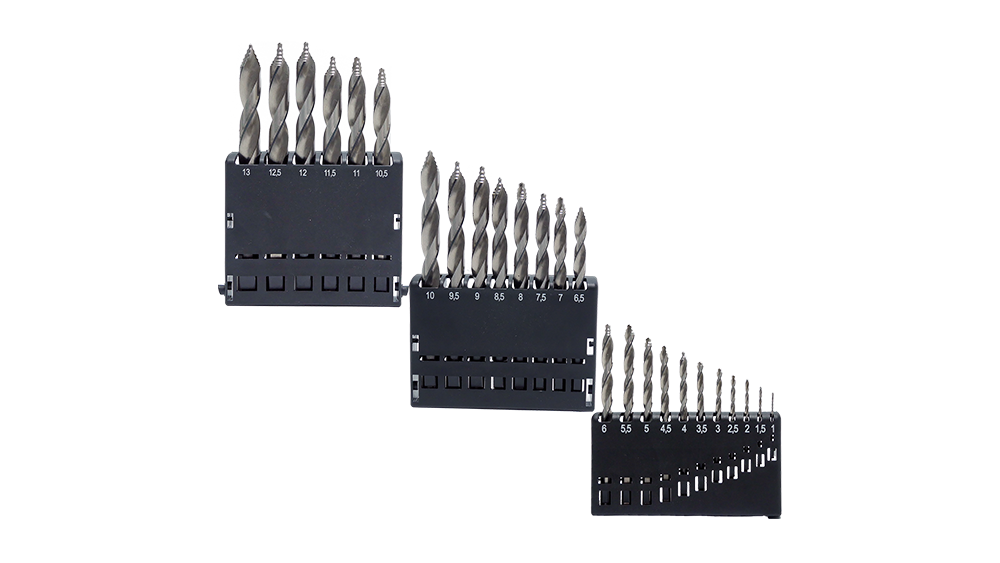

MULTI-STEP Step Drill Bit Set (25 pieces)

• Part number: 637008

• Description: Similar to the 19-piece set, but covers a wider diameter range.

• Diameter Range: 1.0 mm – 13.0 mm (in 0.5 mm increments).

2. Special Drill Bits and Machining Tools

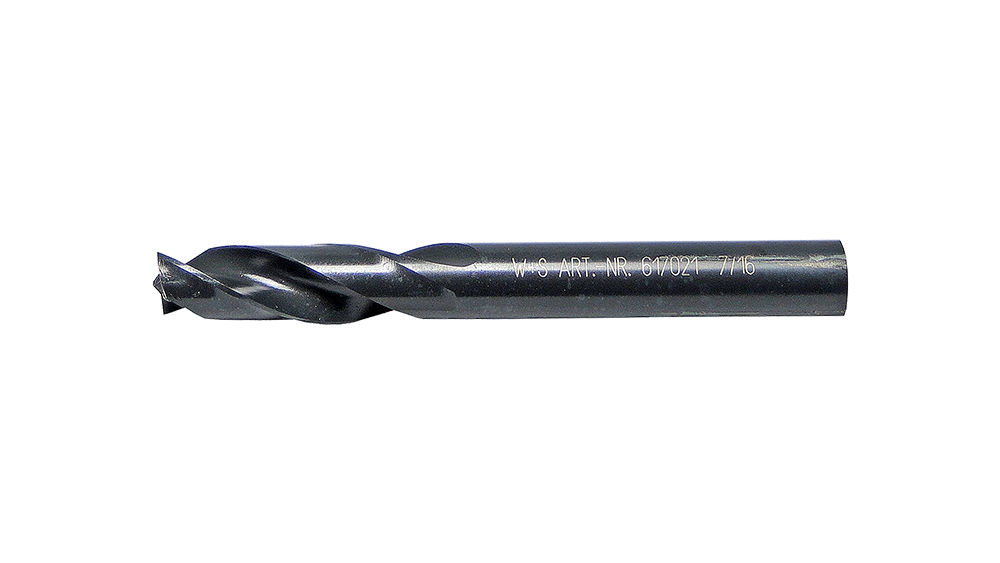

• Spot Weld Drill Bit (with VAPO coating):

• Part number: 617011 (Ø 8 × 80 mm)

• Part number: 617021 (Ø 10 × 85 mm)

• Description: Specially designed for removing spot welds on steel, with VAPO coating for extended service life.

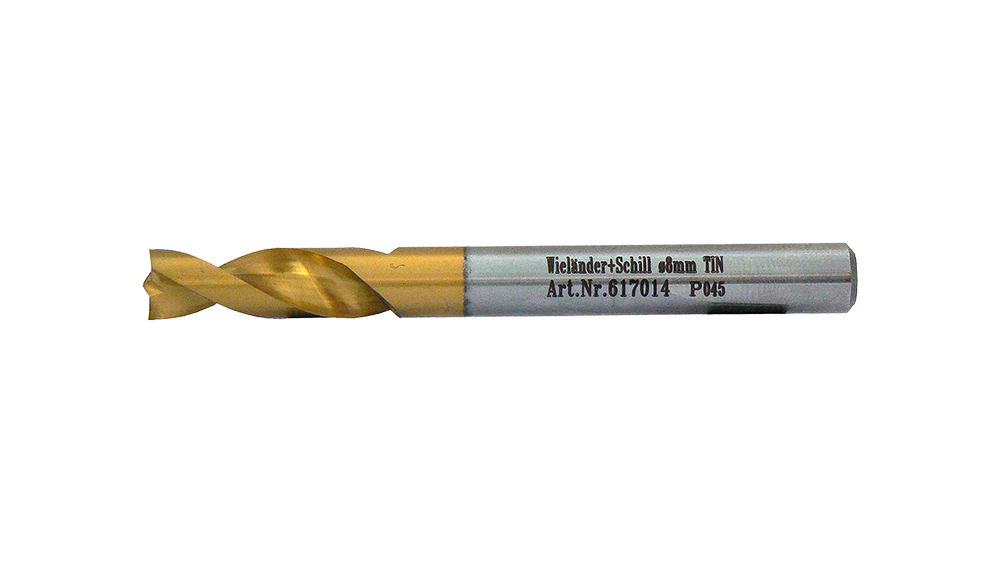

• Spot Weld Drill Bit (with TiN-GOLD coating):

• Part number: 617014 (Ø 8 × 80 mm)

• Description: Titanium Nitride (TiN) with gold coating, which provides excellent hardness and reduced friction.

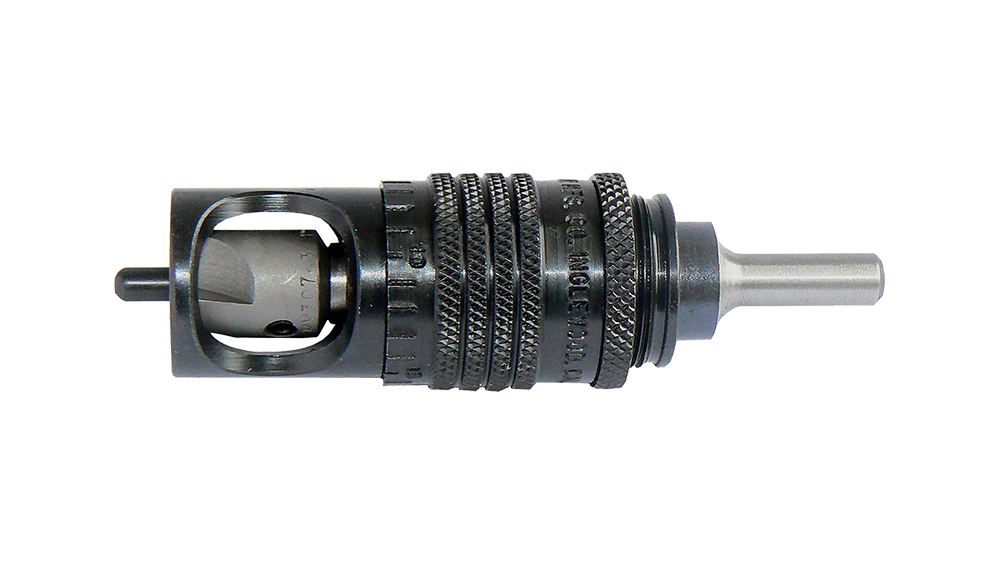

• Countersink (120°):

• Part number: 617240

• Description: 120° countersink with depth stop and guide, for precise countersinking of screws and rivets.

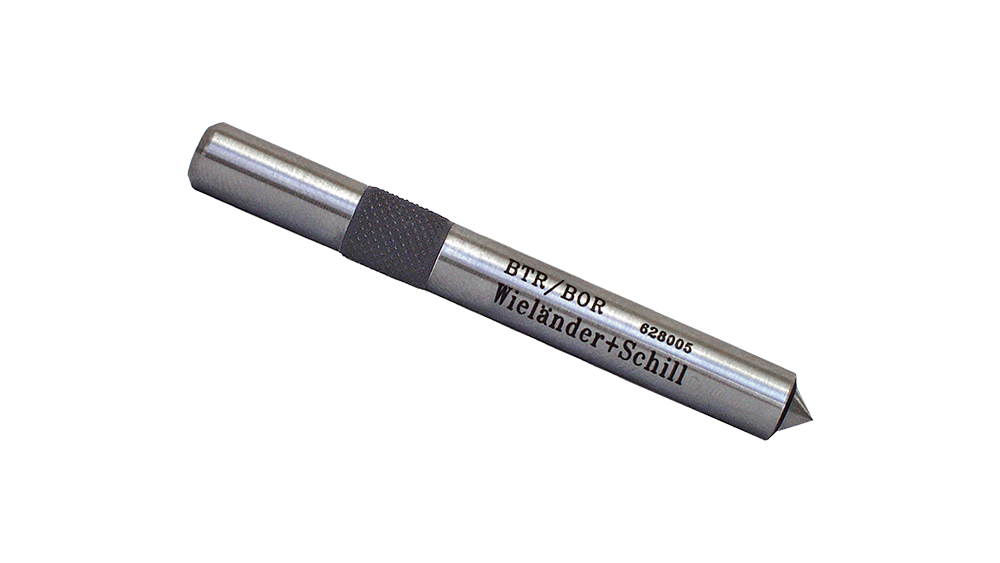

• Center Drill with Pilot Drill Aid:

• Part number: 628005 (Ø 8 × 70 mm)

• Description: Helps precisely locate drilling points, essential for accurate drilling start.

3. Pneumatic System Accessories and Maintenance

Ensuring adequate air quality is essential to maximize the lifespan of pneumatic tools.

• Pressure Reducing Valve (7 bar):

• Part number: 194000

• Description: Prevents excessively high operating pressure, which can cause premature wear of pneumatic tools. Recommended for all body saws.

• BTR/BOR Cutting Fluid (125 ml):

• Part number: 628000

• Description: Silicone-free cutting oil that increases the lifespan of cutting tools (drills, saws) during the machining of high-strength automotive body steel, ensuring optimal cutting performance.

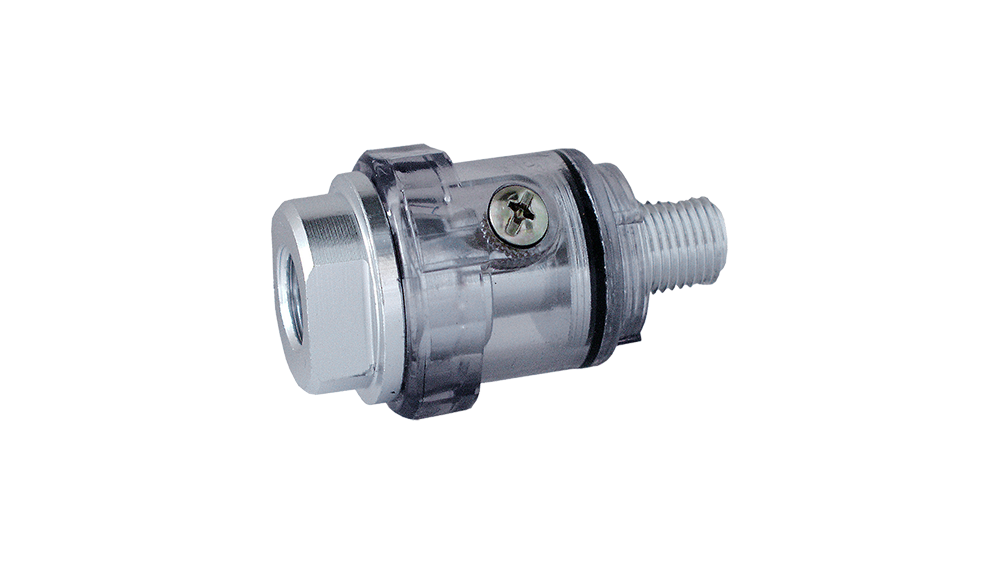

• Compressed Air Mini Oiler (1/4″):

• Part number: 637103

• Description: Reduces wear on pneumatic tools with a 1/4″ connection and improves their operating comfort. Features a transparent window for checking the oil level.

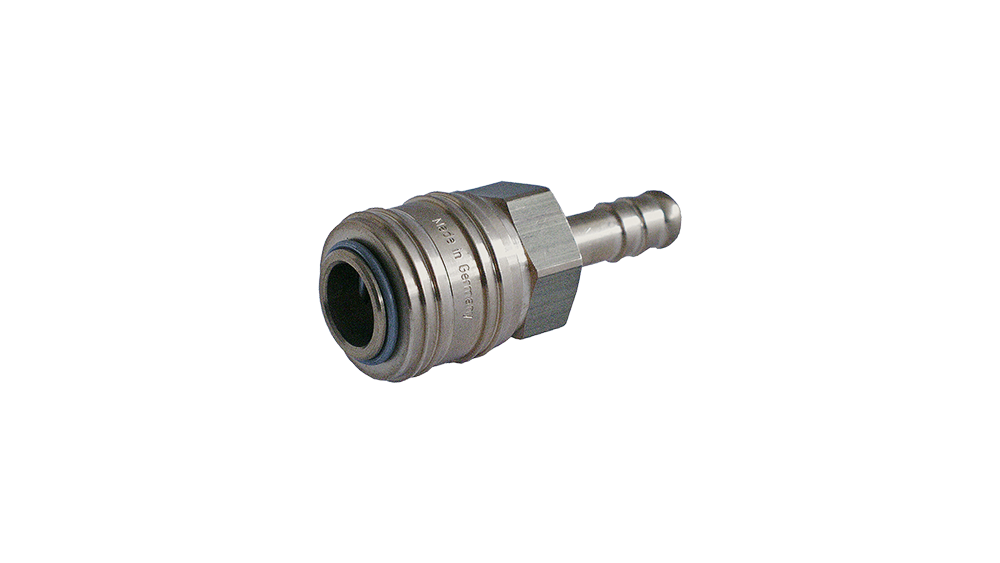

• Quick Connector for Compressed Air (Type 26, 9 mm):

• Part number: 697002

• Description: Enables quick and secure connection to the air supply system.

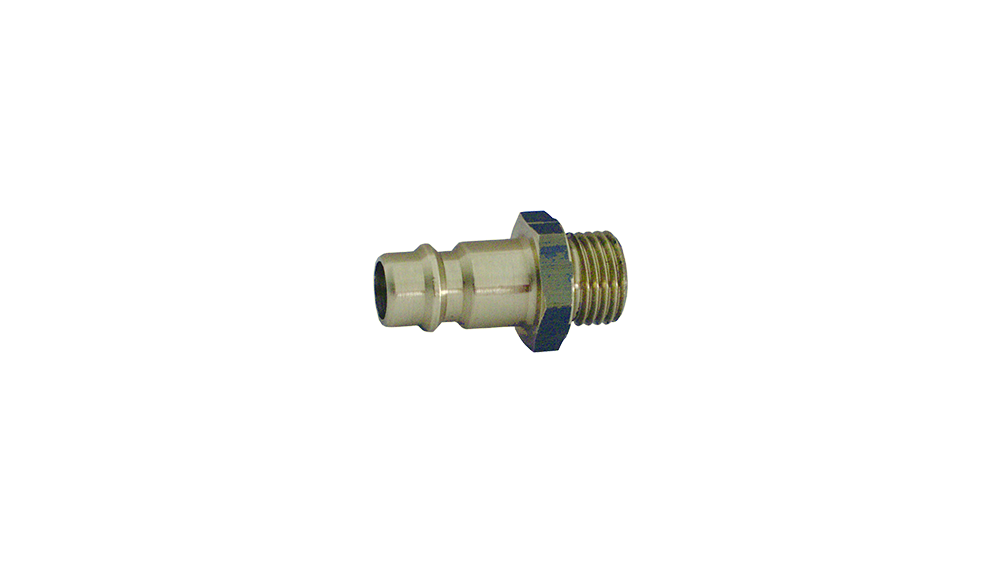

• Air Connector (Nipple) (Type 26, DN 8, G 1/4″):

• Part number: 697003

• Description: Element used to connect the compressed air hose.

The GTC-041B drill machine represents the recognized quality of Wielander + Schill, guaranteeing precise, efficient, and durable performance in all professional applications.
