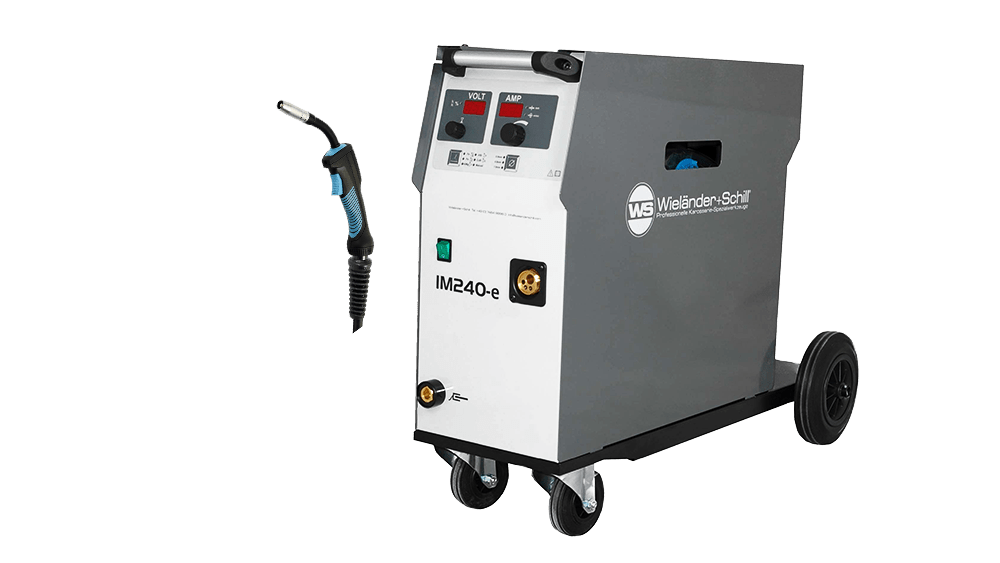

The IM 240-Eco | 230 V a compact MIG/MAG welding inverter, which was specially developed for body repair work in the automotive sector. This device stands out with its MIG brazing capabilities and very good welding characteristics among its competitors.
This inverter is the ideal choice for workshops where precision and reliability are key. The device has an intelligent preset function (synergy mode) for extremely easy operation. The synergy function automatically adjusts wire feed and voltage according to the wire material, diameter, and sheet metal thickness, thereby minimizing user error possibilities and optimizing welding parameters.
The advantage of the IM 240-Eco inverter is that it can operate from any standard 230 V mains socket , even one equipped with a 16 A circuit breaker. It supports wire diameters between 0.6 mm and 1.0 mm, thus being versatile for various repair tasks.
Compact Design: Provides ideal mobility and space saving in the workshop environment.
Intelligent Synergy Mode: Simplifies setup through automatic wire feed and voltage correction.
Excellent Welding Performance: Outstanding MIG brazing properties and stable arc characteristics.
Mains Flexibility: Can be operated from a standard 230 V mains supply (16 A).
Wide Wire Diameter Support: Compatible with wires between 0.6 mm and 1.0 mm.
The detailed technical specifications of the IM 240-Eco inverter are as follows:
| Parameter | Value | Note |
|---|---|---|
| Part number | 341288 | |
| Effectiveness | 85 % | |
| Mains connection (Cu) | 3 × 2,5 mm² | Copper wire cross-section |
| Mains voltage | 1 ~ 230 V | Single-phase network |
| Miniature circuit breaker | 16 A (slow) | Recommended fuse type |
| Current setting range | 20 – 200 A | Welding current range |
| Voltage adjustment range | 10 – 35 V | Welding voltage range |
| Wire feeding speed range | 1.5 – 15 m/min | |
| Operating temperature | between -10 and 40 °C | |
| Protection class | IP 23 | Protection against splashing water |
| Weight | 32 kg | |
| Dimensions (L x W x H) | 880 x 400 x 635 mm | Length x Width x Height |
| Sound pressure level | 67 dB(A) | |
| Mark of conformity | CE |
The welding inverter is supplied with the following essential accessories that allow immediate start of work:
1 pc Wire feeder roller set: Steel, for 0.6 mm and 0.8 mm wire diameter (Part No.: 337219).
1 pc Torch Force 200 Welding Torch: For steel welding, with 3.0 meter cable.
1 pc Earth cable: With 4 meter length.
1 pc Operating instructions.
For maximum efficiency and safety, we recommend using the following accessories with the IM 240-Eco inverter:
| Add-on | Part number | Description |
|---|---|---|
| Welding screen Landskit 2000 | 881220 | Mobile welding protection screen with 1800 mm slat length, for flexible use. |
| Pliers for car body (Farriers pincers) | 561030 | Special tool for car body disassembly work. With hardened cutting edges (approx. 59 HRC), forged from tool steel and oil-hardened. |

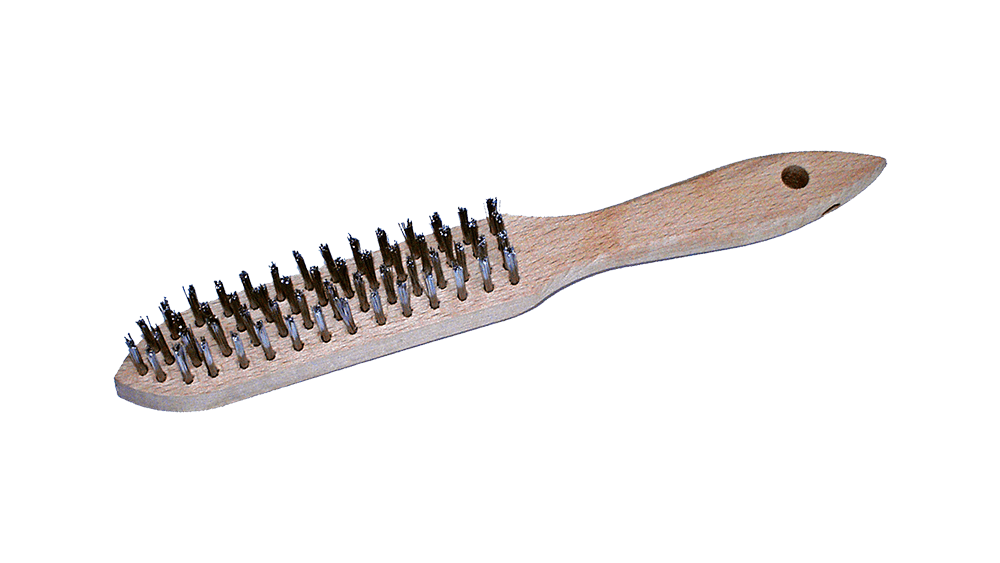

| Hand wire brush 4 row (stainless steel) | 541211 | 4-row hand wire brush made of stainless steel, for general cleaning. |

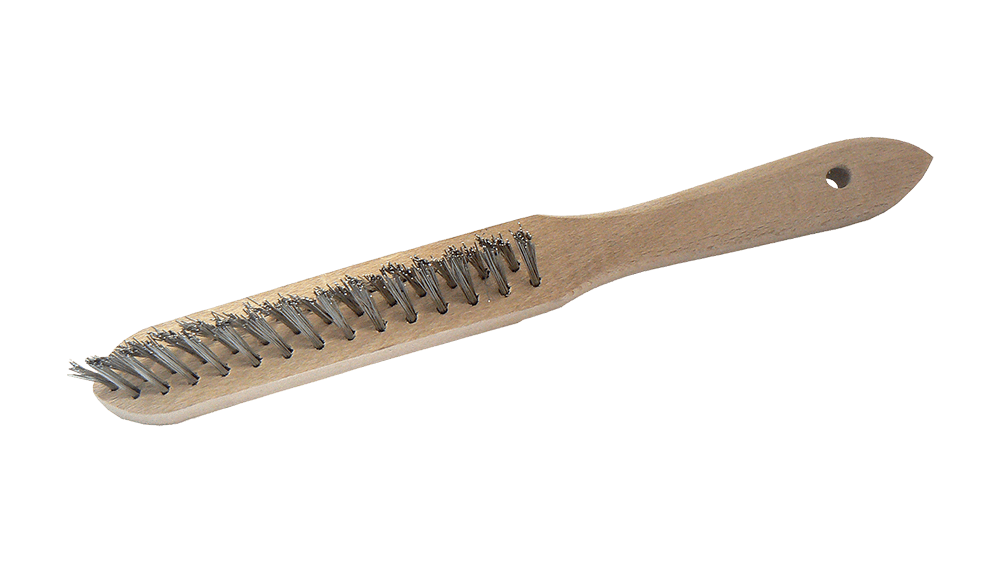

| Hand wire brush for corner welds (INOX) | 541212 | V-shaped wire brush with 0.35 mm wire diameter, ideal for cleaning, brushing, and derusting corner and V-welds. |

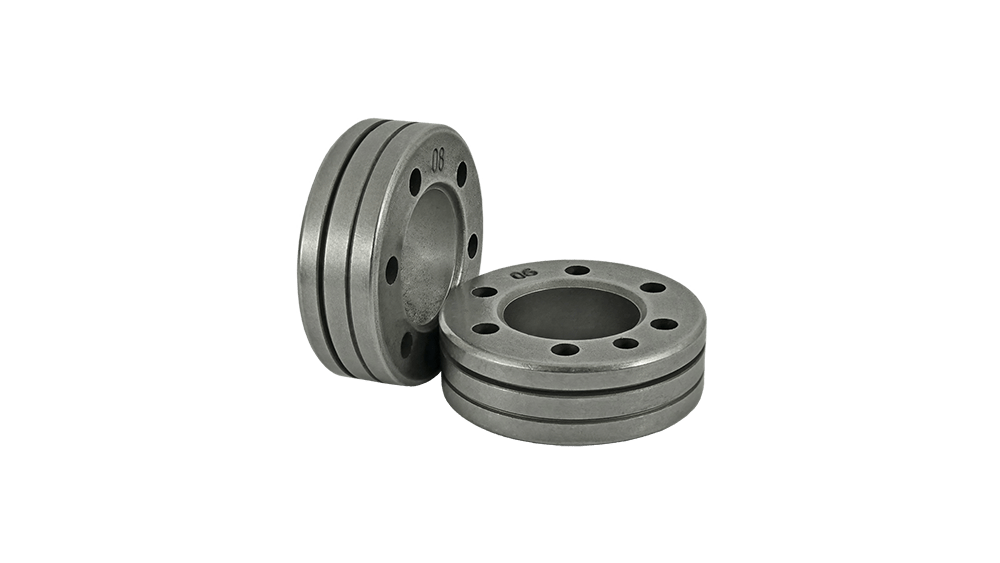

| Wire feeder rollers (steel) | 337219 | 37 mm diameter rollers for 0.6 mm and 0.8 mm wire diameter. |

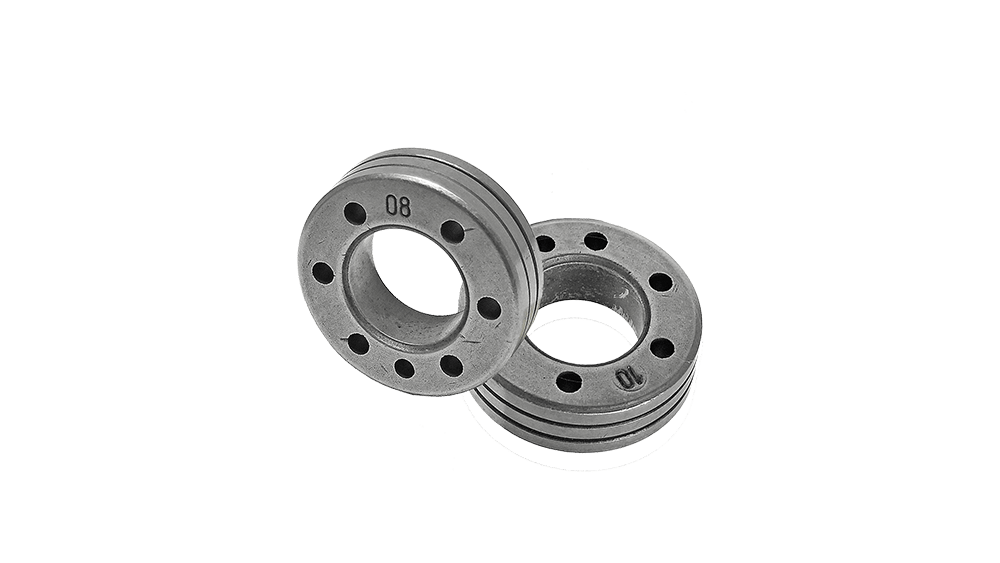

| Wire feeder rollers (steel) | 337220 | 37 mm diameter rollers for 0.8 mm and 1.0 mm wire diameter. |
| Welding and safety glove (cowhide) | 881036 | Durable glove made of thick, oil- and water-resistant cowhide. Textured surface, padded back of hand, unlined interior for better grip, reinforced with 4-fold Kevlar stitching. 36 cm long, XL size. |

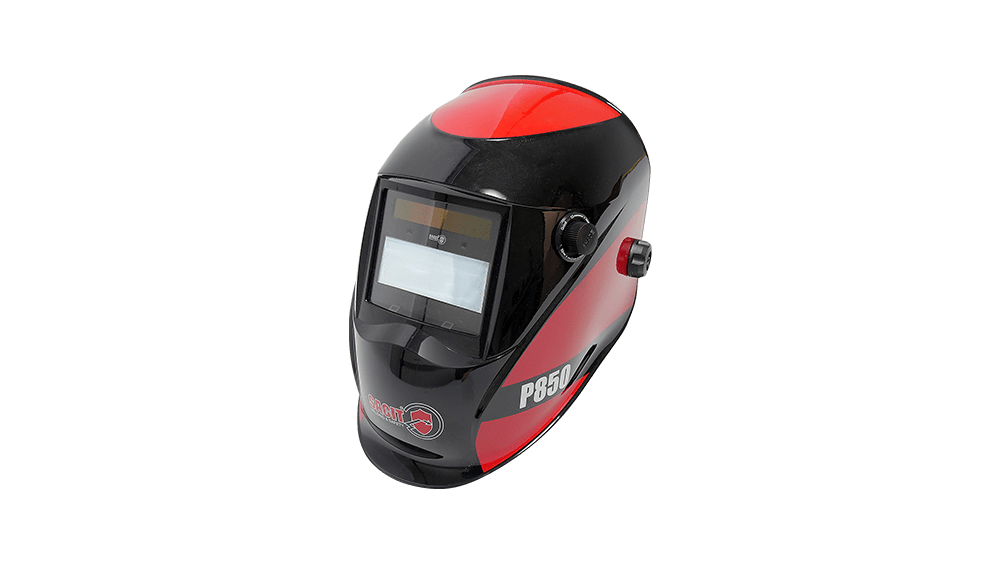

| Automatic welding helmet P850 | 881042 | Automatic darkening mask equipped with two sensors. Externally adjustable DIN protection level. True Color technology for clear and sharp vision, reduces fatigue. External control allows switching to grinding mode (GRIND) without removing the mask. |

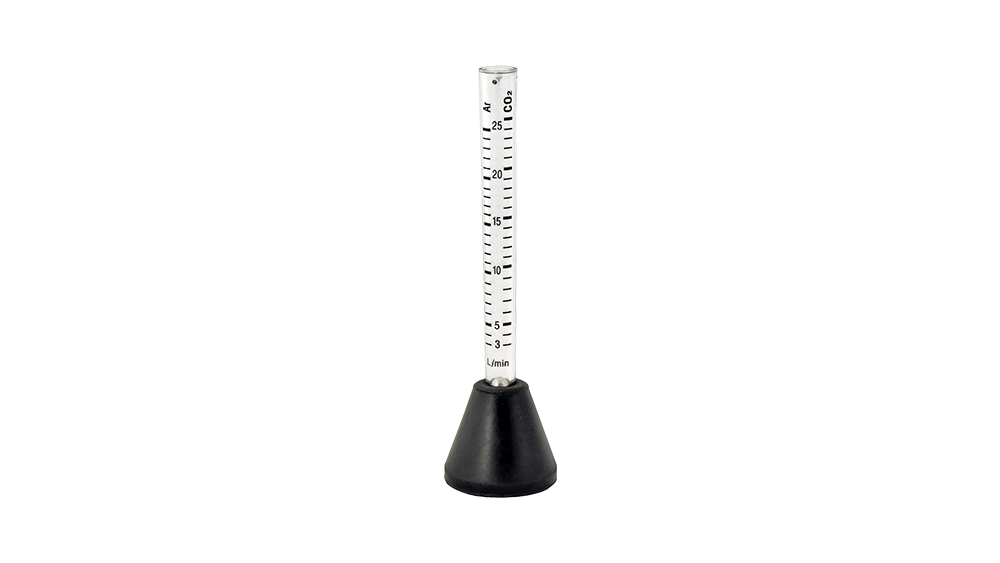

| Gas flow meter (CO2 + Argon) | 311048 | Precise gas flow meter for argon and CO2 volume measurement. |
| Welding protection spray Trennfix (silicone-free) | 311020 | Extremely effective separating and lubricating agent. Prevents rapid clogging of welding torch nozzles due to slag buildup. |
The IM 240-Eco inverter is part of Wielander + Schill's welding technology offering, ensuring professional quality for automotive repairs.
