Product Identifier: BMWA9500706

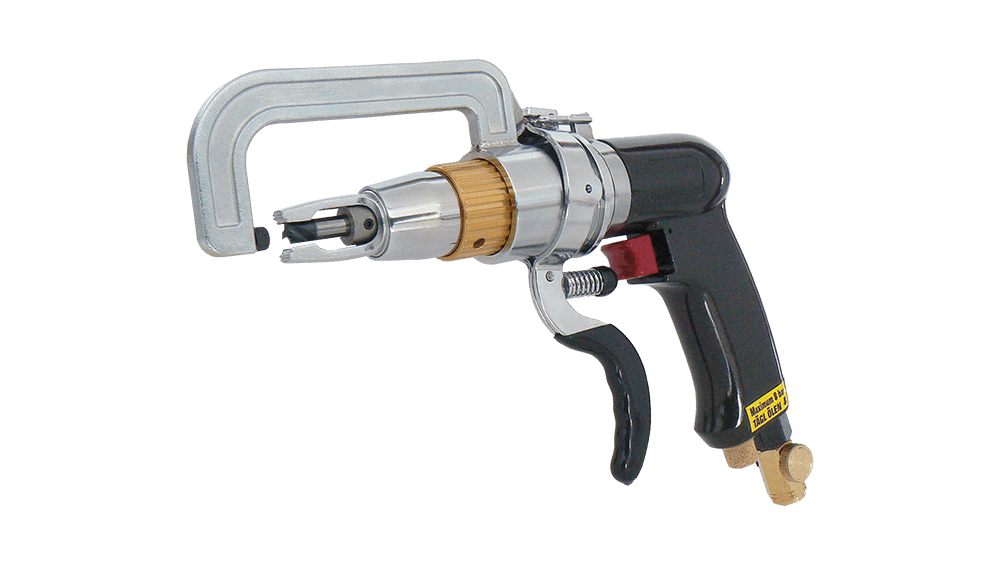

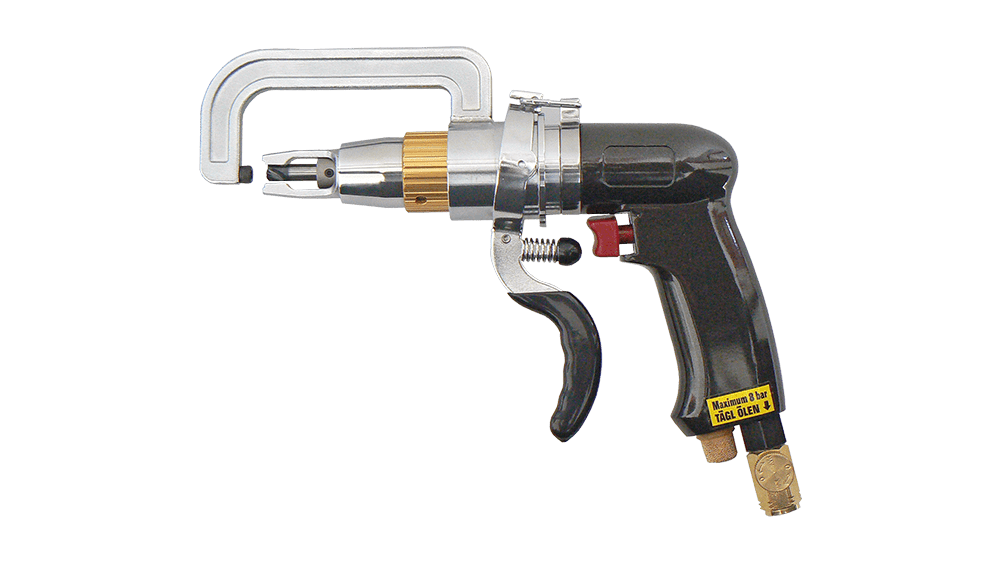

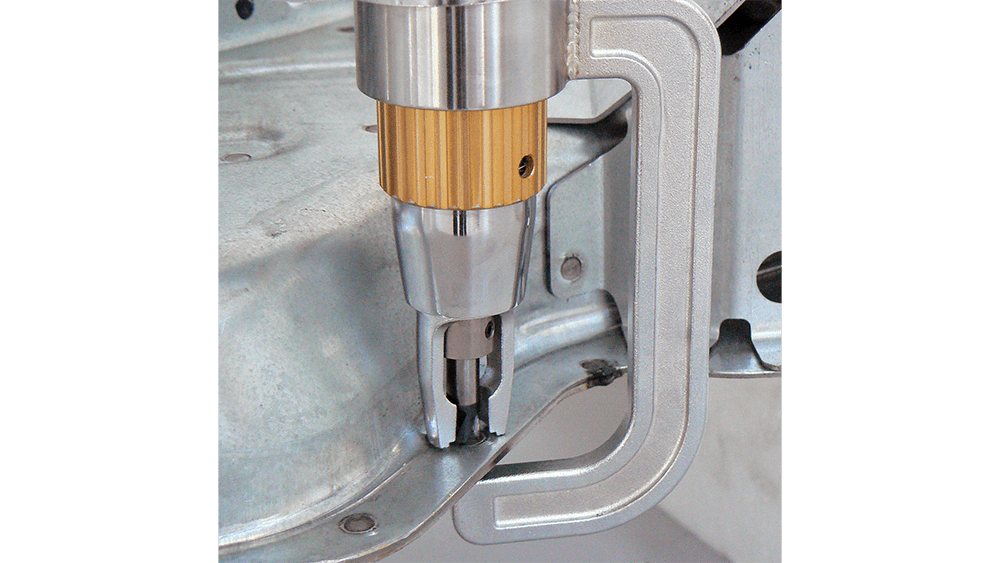

The Wielander + Schill VarioDrill WS 90 pneumatic spot weld remover represents the latest technology in body repair work. This excellent quality tool has been developed for universal use, offering an ideal solution for the efficient and precise removal of spot welds on any type of vehicle. Thanks to the built-in Variomatic system, the device is extremely versatile, allowing work both on flanges and on hard-to-reach internal surfaces.
When designing the VarioDrill WS 90, user comfort and body protection were the focus. The Variomatic handle, which can be rotated 360°, prevents accidental slippage, ensuring stable and safe operation. The critically important depth stop function guarantees that the drill does not scratch the sheet metal surface underneath, thus minimizing the need for secondary repairs. The handle can be removed in seconds without tools, which increases the flexibility and ease of handling of the device in different working environments.
This pneumatic remover is specifically designed for machining the high-strength steel (HSS) and extra-high-strength steel (UHSS) sheets increasingly used in modern vehicles, ensuring long service life and reliable performance.
The VarioDrill WS 90 pneumatic spot weld remover has several features that set it apart from the competition:
Smooth Operation: Thanks to the pneumatic drive, the work can be done with minimal physical effort.
Precise Drilling Depth: The continuously adjustable milling depth allows for the precise removal of the weld without damaging adjacent layers.
Quick Assembly and Disassembly: The tool-free locking and removal of the Variomatic handle saves time in the workshop.
Integrated Depth Stop: Protects the base plate from damage, ensuring the integrity of the body.
High Compatibility: Specifically suitable for machining the latest generation of high- and ultra-high-strength steels (HSS/UHSS).
Long Lifespan: Robust design and quality material usage guarantee durability even under intensive use.
The detailed technical parameters of the VarioDrill WS 90 pneumatic chisel ensure professional use under the strictest requirements.
| Parameter | Value | Note |
|---|---|---|
| Part number | BMWA9500706 | |
| Content | 1 pc VarioDrill WS 90 (without Variomatic) | |
| 1 pc Variomatic WS 90 (900 rpm) | ||
| 1 pc Variantic mill Z3 (44 mm / Ø 8.0 mm) | ||
| 1 pc Carrying case | ||
| 1 pc Allen key | ||
| Operating Pressure | 6 – 8 bar | |
| Power | 370 W | |
| Rotational speed | 900 rpm | |
| Air consumption | 0.071 m³/min | |
| Noise Level (Sound Pressure Level) | 70 dB(A) | |
| Vibration | 1.07 m/s² | |
| Weight | 2.90 kg | |
| Work window (Work window) | 35 x 95 mm | |
| Dimensions (L x W x H) | 340 x 300 x 85 mm | |
| Materials | Aluminum, Steel | |
| Conformity Declaration | According to 2006/42/EC |
To maximize the optimal performance and versatility of the VarioDrill WS 90, Wielander + Schill offers a number of special accessories, which are particularly optimized for machining the hardest materials.
These accessories are specifically designed for removing spot welds on Usibor, Boron, BTR, and other ultra- and mega-high-strength steels.
| Product | Part number | Main Features |
|---|---|---|

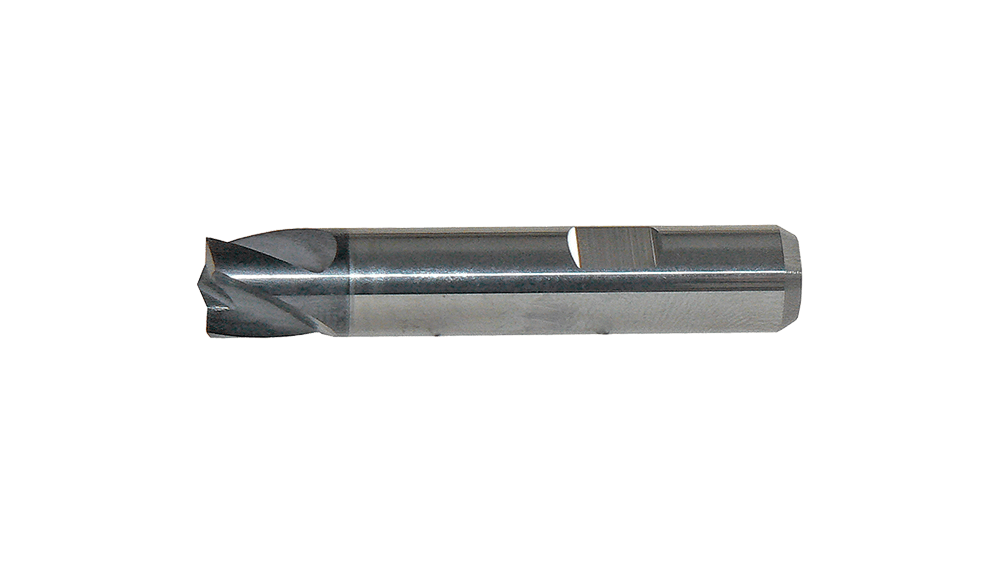

| Solid Carbide Mill Z4 | BMWA9500709 | 4-flute mill with an 8 mm shank diameter. For hard materials. |

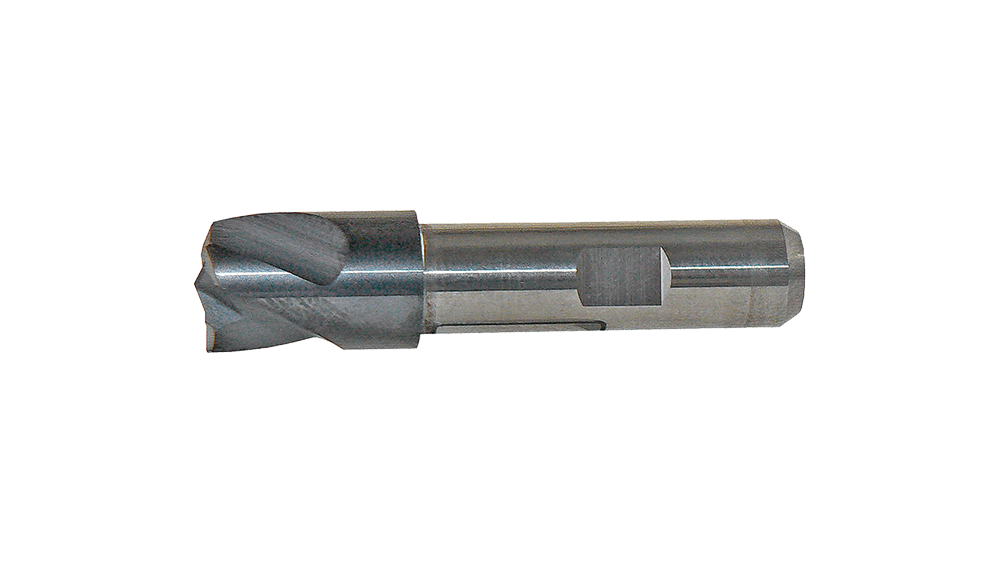

| Solid Carbide Mill Z4 | BMWA9500726 | 4-flute end mill, 9.0 mm diameter, with 8 mm shank. For hard materials. |

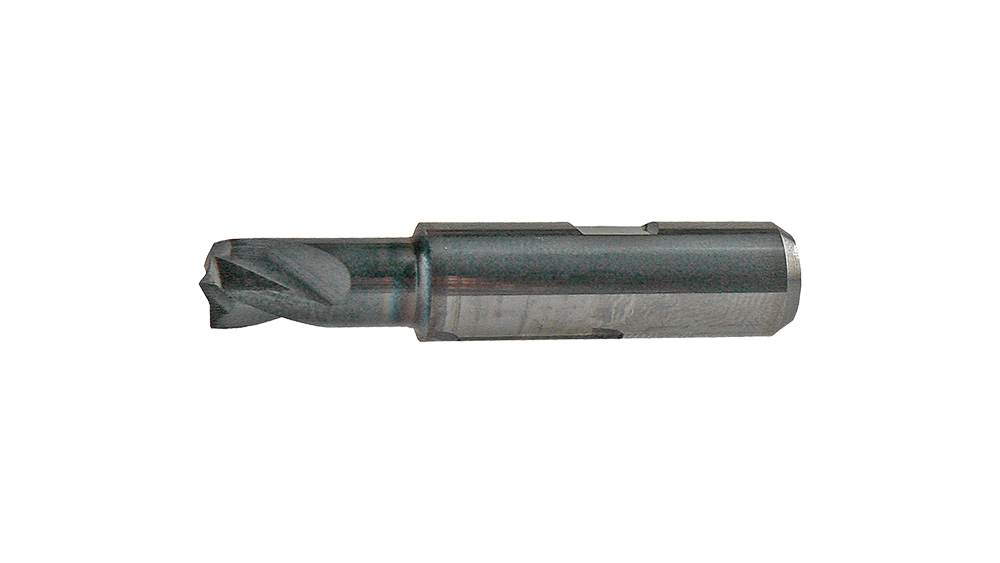

| Spot Welding Drill BTR/BOR Z3 | BMWA9500736 | Ø 8 × 44 mm. For high-strength and ultra-high-strength steels. |

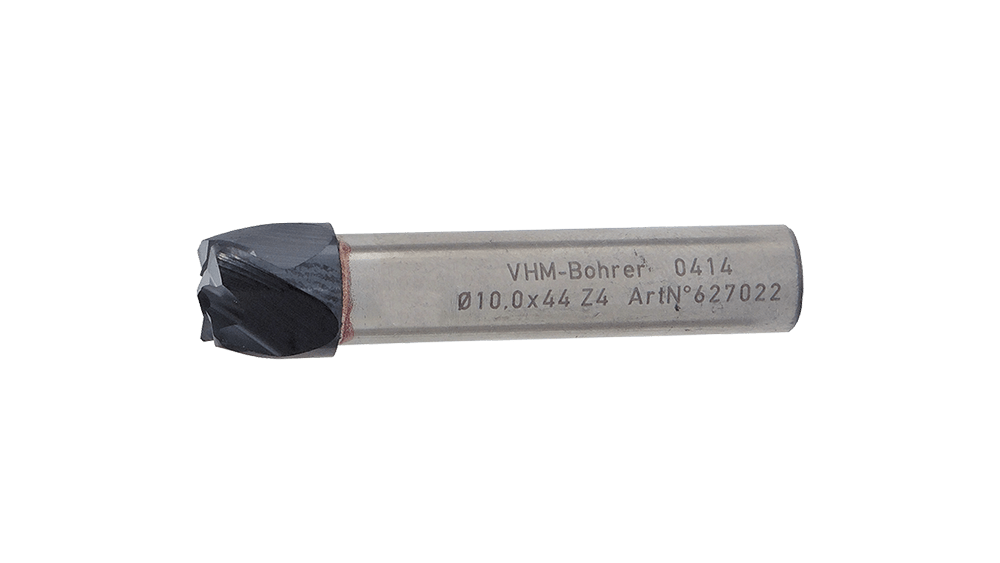

| Spot Welding Drill BTR/BOR Z3 | BMWA9500749 | Ø 10 × 44 mm. For high-strength and ultra-high-strength steels. |

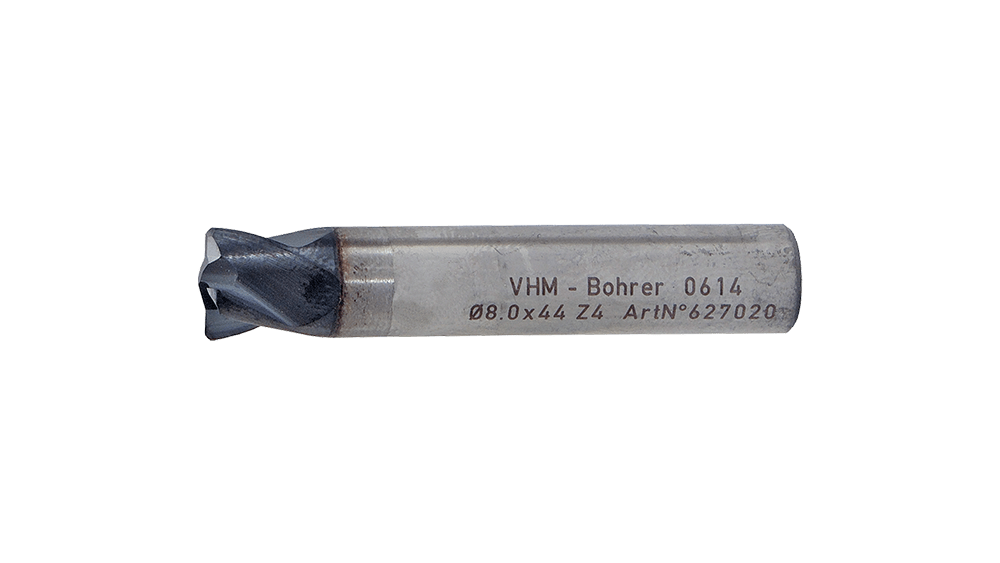

| Solid Carbide Mill Z4 | BMWA9500750 | 4-flute end mill, Ø 8.0 × 44 mm. For hard materials. |

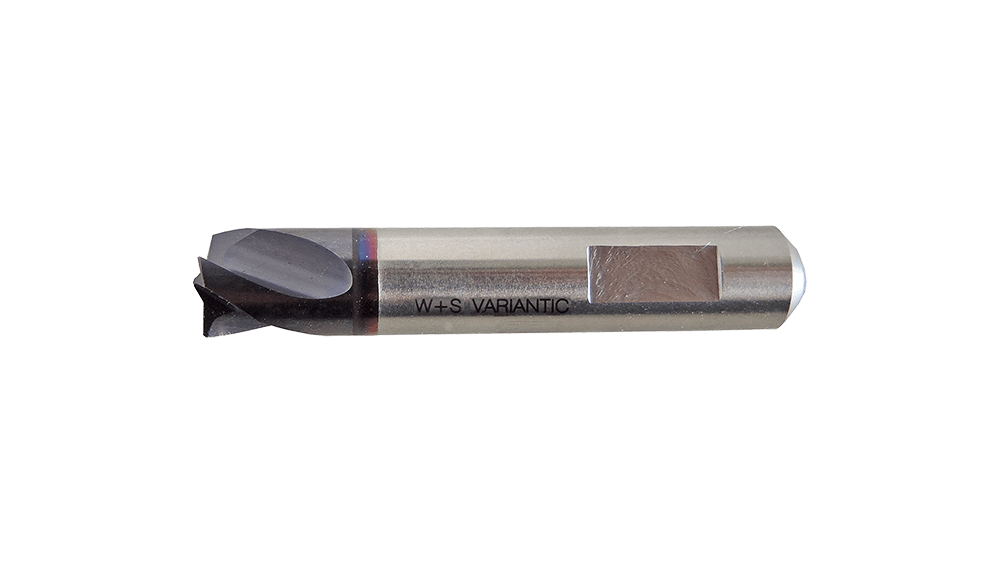

| Spot Welding Drill Variantic Z3 | BMWA9500697 | Ø 8×44 mm. Optimized for VarioDrill WS 90. |
| Spot Welding Drill BTR/BOR Z3 | BMWA9500702 | Ø 6 × 44 mm. For high-strength and ultra-high-strength steels. |
To extend tool life and protect the pneumatic system, the following accessories are recommended:

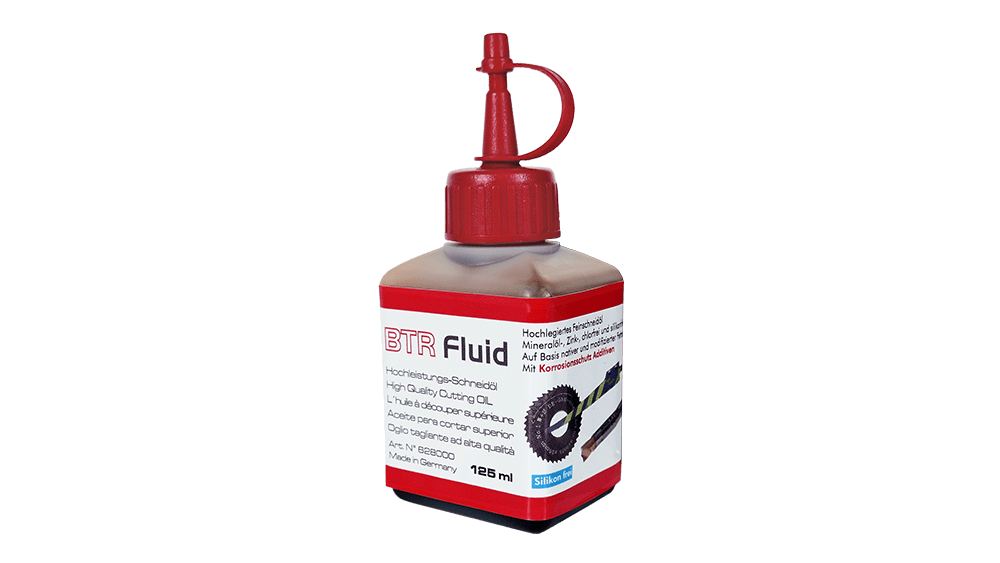

BTR-Fluid 125 ml Cutting Oil (BMWA9500708): Silicone-free cutting oil that significantly extends the life of mills, drills, and shears when machining high-strength body steels, ensuring optimal cutting performance.

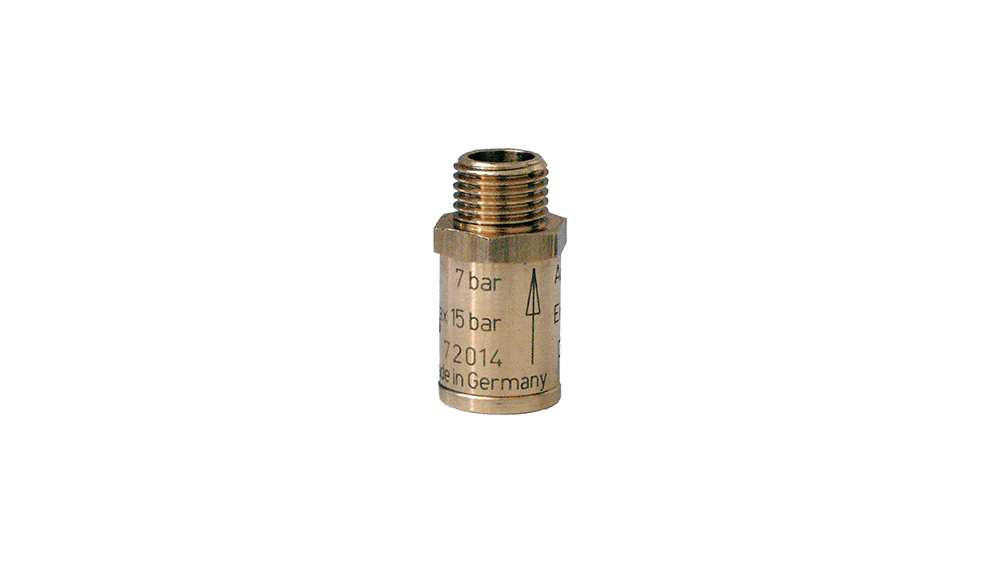

Pressure Reducing Valve | 7 bar (194000): Prevents premature wear and damage to pneumatic tools due to excessive operating pressure. Recommended for all body shears, an cost-effective solution to extend tool life.

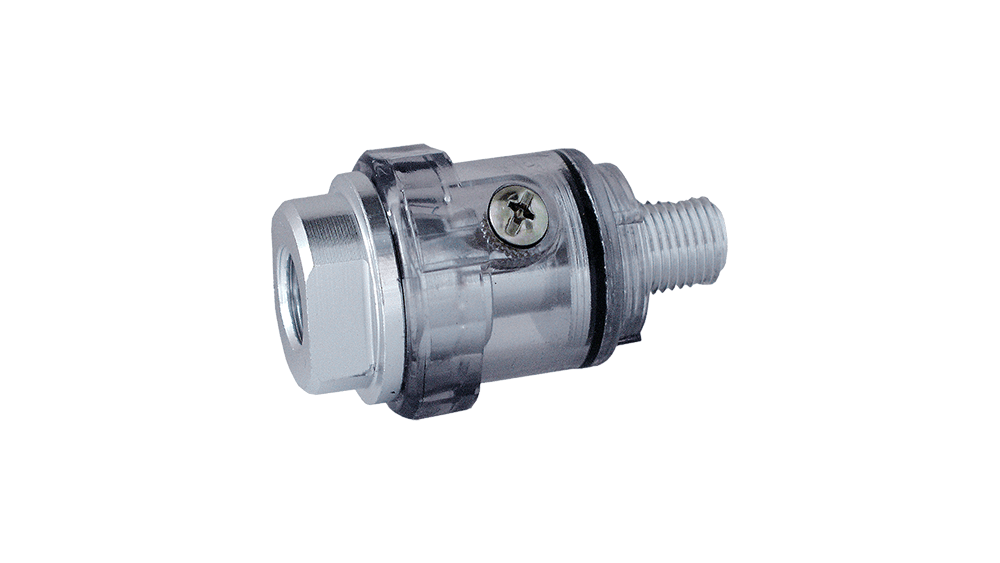

Compressed Air Mini Oiler (1/4″) (637103): Reduces wear on pneumatic tools with 1/4″ connection and improves their handling. Over-oiling can be avoided thanks to the sight glass.
