This product is a professional, two-piece C-arm set specifically designed for resistance spot welding applications, particularly for hard-to-reach areas such as wheel arches. The set ensures optimal flexibility and precision during body repair work.
A C-Arm Set | C-Arm No. 2 + C-Arm No. 3 | GT offers a comprehensive solution for welding tasks where standard electrodes are insufficient. The set includes two essential C-arm components suitable for handling various geometrical challenges.
Scope of Delivery (Contents):
This set contains a total of 3 pieces, forming a complete unit:
1 pc 495602 C-Arm No. 2: Kifejezetten for wheel arches design optimized for real use.
1 pc 495625 C-Arm No. 3: A large C-arm with a working area of 150 × 450 mm.
The material and finishes of the set ensure a long service life and efficient heat dissipation during welding processes.
The C-arms are made of high-quality materials and meet the highest professional requirements. The table below summarizes the main technical characteristics of the set:
| Property | Value | Note |
|---|---|---|
| Part number | 495630 | Set Identifier |
| Content | 3 pieces, 1 set | Two C-arms and accessories |
| Length × Width × Height | 570 x 370 x 40 mm | Refers to the packaging/storage dimension |
| Total Weight | 8.130 kg | Net weight of the set |
| Coating | PU (Polyurethane) | Type of surface protection |
| Working Area (No. 3) | 150 x 450 mm | Maximum opening of C-Arm No. 3 |
| Materials | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Main materials used in the construction |
The elements of the set have the following unique identifiers and functions:

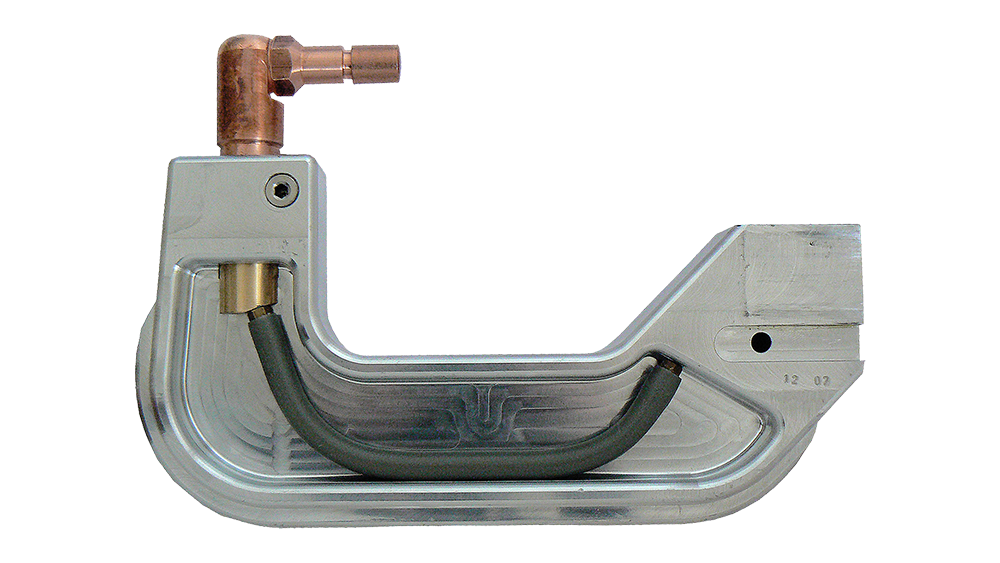

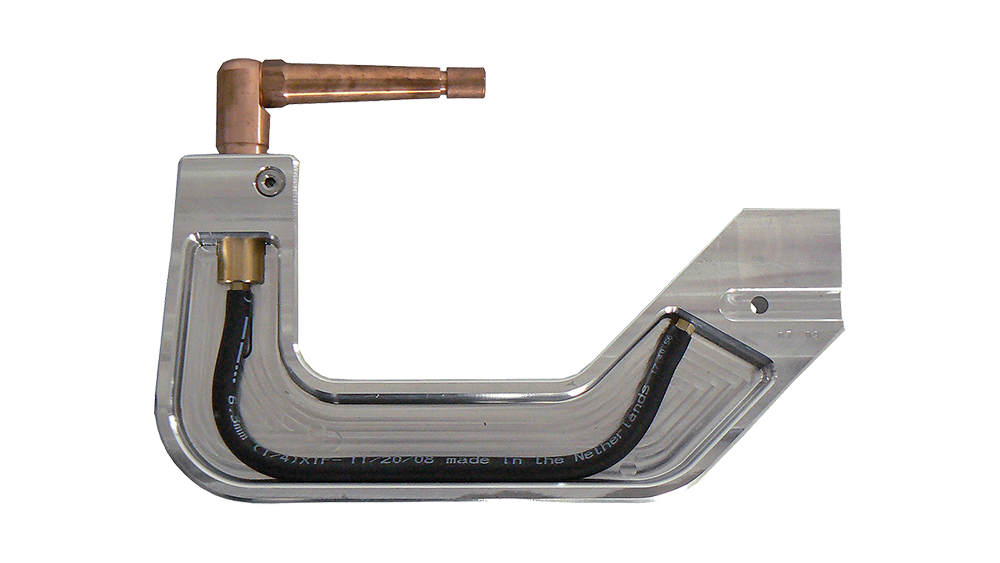

This arm is specifically designed to reach the welding points of vehicle wheel arches, where tight spaces and complex curves present a challenge.

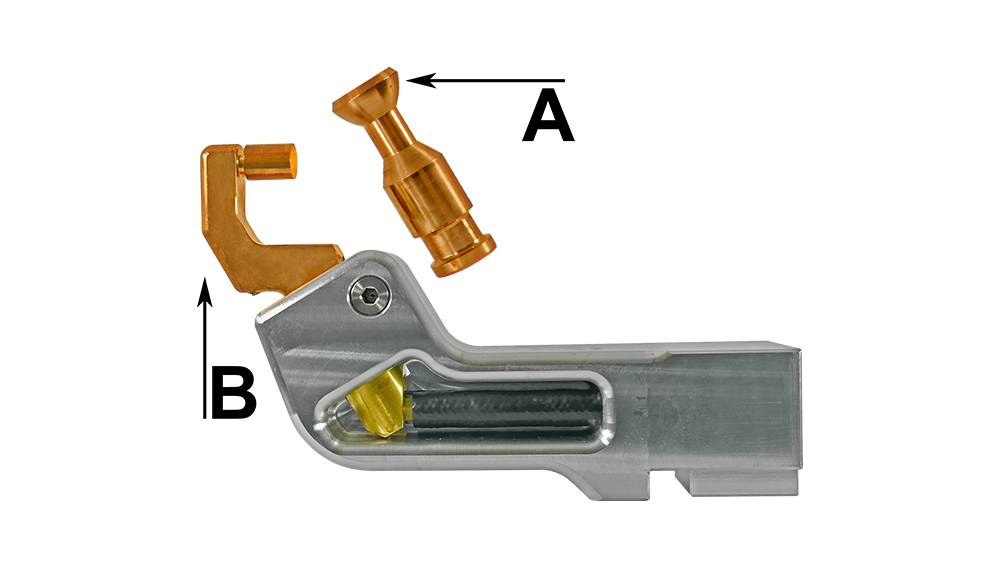

Configuration: With C-arm electrode A and water-cooled electrode B.
Electrode Caps: Supplied with 13 mm electrode tips.
Application: Ideal for resistance spot welding on hard-to-reach areas.

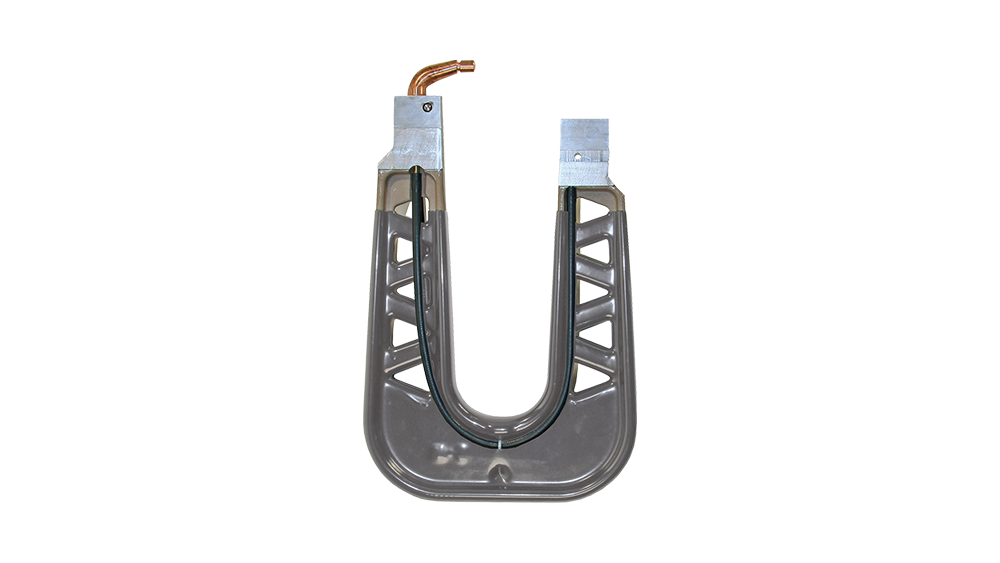

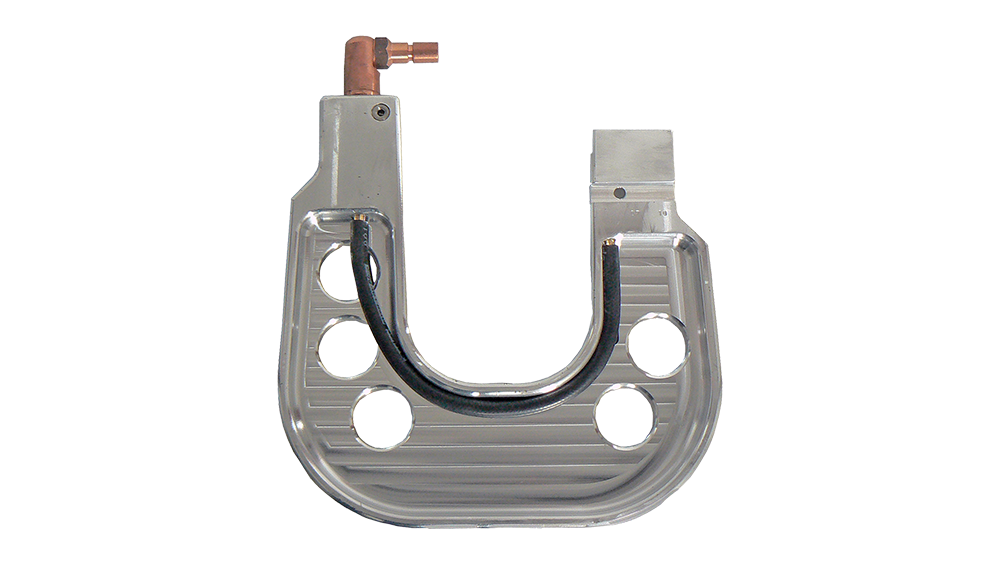

This arm offers a larger working area, making it more versatile for welding tasks of different dimensions.
Dimensions: 150 × 450 mm working area.
Cooling: Water-cooled design.

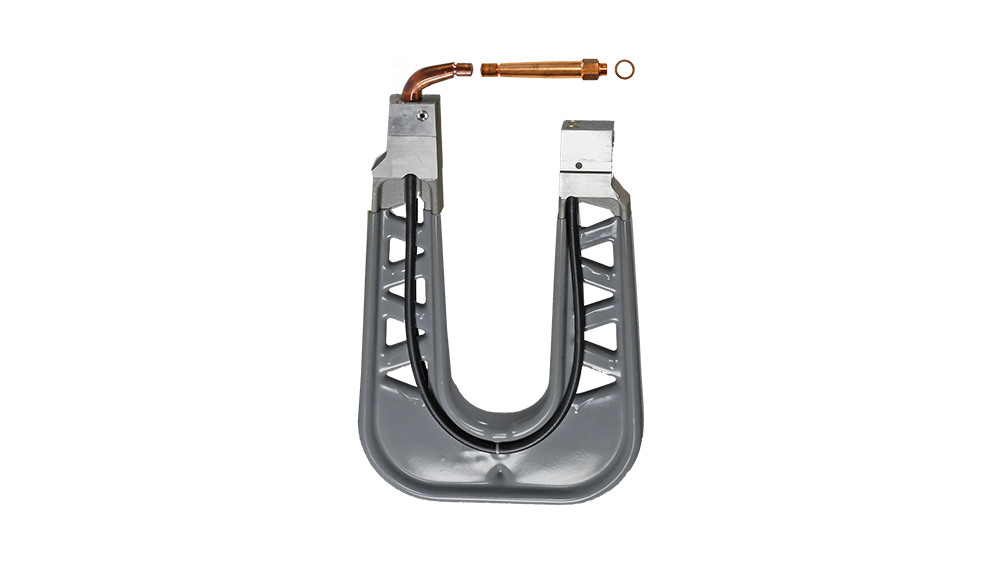

Accessories: Supplied with electrode and 16 mm electrode tips.
The Wielander + Schill C-arm set provides outstanding performance for professional body repair shops:
Optimized Access: The two arms of different sizes and designs enable access to welding points even on the most complex body parts, such as sills, door frames, and the aforementioned wheel arches.
Long-Life Materials: The use of stainless steel, aluminum, and CuCrZr (copper-chromium-zirconium) alloys guarantees excellent electrical conductivity and mechanical stability, minimizing wear.
Effective Cooling: The water-cooled design is critically important during high-load, continuous welding cycles, as it prevents overheating of the electrodes and extends their lifespan.
PU Coating: The polyurethane coating provides additional protection against corrosive and mechanical damage.
The C-arm set can be perfectly integrated into Wielander + Schill resistance spot welding systems. A wide range of other C-arms and accessories available on the market ensures that you will find the right tool for every specific requirement.
Examples of related products (without claim to completeness):
C-Arm No. 1 (495620): Standard, water-cooled C-arm with a 150 × 70 mm opening, ideal for standard welding tasks.

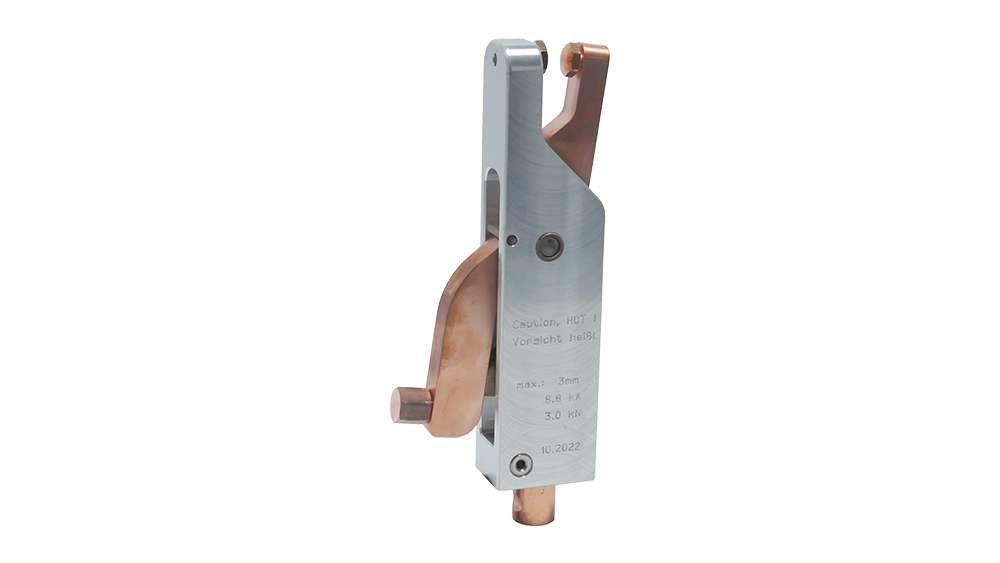

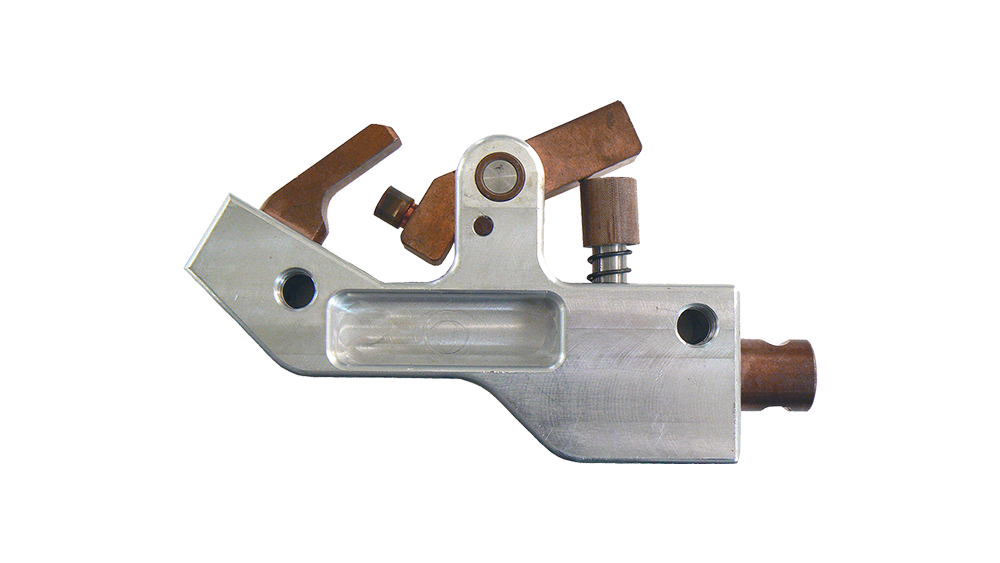

C-Arm Electrode Holder with Tilting Mechanism (495604): An accessory specifically designed for wheel arches, which assists access with finger-shaped and flat electrodes, guaranteeing full functionality of the automatic mode.
C-Arm No. 8 (495614): Large, 290 × 760 mm C-arm, which is also available as a custom-made item.
This two-piece set (No. 2 and No. 3) is a fundamental investment for every specialist seeking the highest level of spot welding quality and accessibility in modern vehicle repair.
