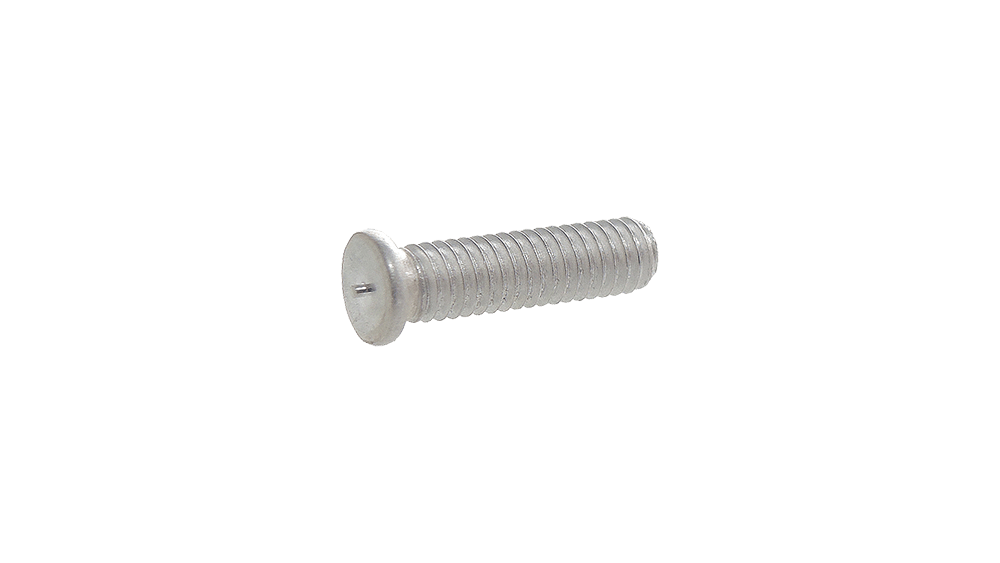

This product is part of the Wieländer+Schill welding technology portfolio, specifically developed for precision body repair and semi-industrial applications. These high-quality weld studs feature a metric thread and a projection (primer), and are made from AlMg3 (Aluminum-Magnesium alloy), ensuring excellent weldability and a reliable connection, especially on aluminum parts.
The product is an ideal choice for fastening tasks requiring a durable, reliable, and aesthetic connection, especially in the automotive industry where aluminum structures play an increasingly important role.
These weld studs have been designed to meet the highest professional requirements. The screws equipped with a metric thread allow for the fastening of standard nuts or other threaded components onto the welded surface. The built-in projection (primer) guarantees quick and stable arc initiation, which is essential for efficient and repeatable spot welding processes.
The AlMg3 The key advantage of this material is its excellent compatibility with aluminum body parts, minimizing corrosion risk and ensuring optimal mechanical properties of the weld seam.
Main Advantages:
Material quality: AlMg3 alloy, ideal for aluminum parts.
Configuration: With a metric thread and integrated projection for easy and fast welding.
Packaging quantity: 100-piece packaging, providing an optimal quantity for medium and high-volume jobs.
Accuracy: The precise dimensioning ensures compatibility with appropriate welding equipment and standard fasteners.
The product's precise technical parameters ensure a perfect fit between tools and consumables for professional welding technologies.
| Property | Value | Note |
|---|---|---|
| Part number | 367017 | The unique identifier of the product |
| Material | AlMg3 | Aluminum-Magnesium Alloy |
| Thread size | M4 | Metric thread |
| Thread length | 15 mm | Length of the threaded part of the screw |
| Package contents | 100 pcs | Packaging Unit |
| Total length (L) | 15.88 mm | Total length of the screw (including the projection) |
| Width (W) | 5.4 mm | Diameter of the screw |
| Height (H) | 5.4 mm | Diameter of the screw (dimensions can also be interpreted based on packaging data, but the physical dimensions of the product are the most important) |
| Construction | With metric thread and projection | For optimizing the welding process |
These welding studs are essential in any repair process where fastening points need to be created subsequently on body parts without the need to create through-holes.
Body Repair: Ideal for replacing damaged or missing fastening points, for example, for the reassembly of internal reinforcements, panels, or accessory elements.
Aluminum Structures: Especially recommended for the repair of modern vehicles, where the use of aluminum dominates for the sake of weight reduction.
Cable Fastening: Can be used for fastening cable harnesses or wires on the car body surface.
Prototype Construction: For quick temporary or permanent fastening solutions in the sheet metal industry.
Wieländer+Schill products comply with strict industry standards. The company holds ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, which guarantee the consistency of manufacturing processes and product reliability.
These welding studs can be used with the appropriate WS welding equipment (e.g., spot welding machines) capable of setting the necessary welding parameters for AlMg3 material. The design of the projection ensures that the welding energy concentrates efficiently on the bonding surface.
In summary: The AlMg3 welding studs with part number 367017 are precision consumables that guarantee fast, strong, and durable fastening on aluminum surfaces, minimizing repair time and maximizing work quality.
