This detailed product description presents the S6 + S8 tool set made for Wieländer+Schill's professional riveting technology, specifically designed for the professional installation of 5.3 mm diameter self-piercing rivets (SPR). This set is essential during body repair operations where precise and durable connections must be established.
The tool set with part number 700237 contains two crucial components that work together to ensure the optimal deformation and setting of self-piercing rivets for various material thicknesses. The set is part of the Wieländer+Schill XSeries professional riveting technology, guaranteeing high quality and reliable performance.
Main Advantages:
Special Application: Optimized specifically for the installation of 5.3 mm diameter self-piercing rivets (SPR).
Complete Set: Includes both the S6 setting die and the S8 closing die to cover the entire process.
Professional Quality: Durable and precise manufacturing in line with the Wieländer+Schill reputation.
System Compatibility: Ideal for use with the appropriate XSeries riveting tools.
The tool set with part number 700237 includes the following components, which are essential for the correct installation of self-piercing rivets:
| Part number | Designation | Function |
|---|---|---|
| 700821 | S6 | Setting die for self-piercing rivets (SPR) |
| 700823 | S8 | Closing die for self-piercing rivets (SPR) |

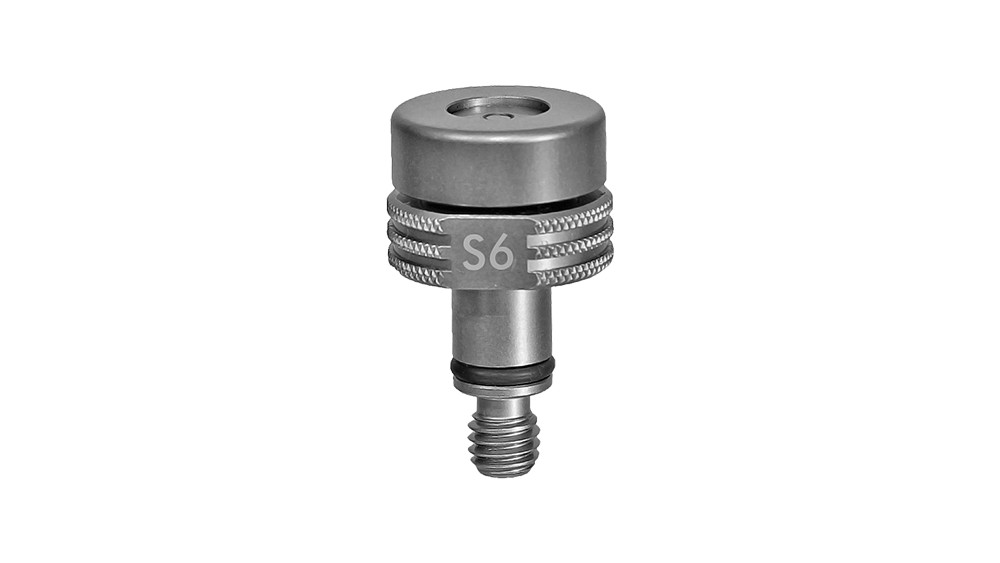

This tool is responsible for the introduction of the rivet and initiating the primary deformation during the rivet placement process.
Part number: 700821
Type: S6 Setting die
Application: Installation of self-piercing rivets (SPR).
Rivet Diameter: 5.3 mm.
Function: Preparation and positioning of the rivet head into the die, and initiating the penetration of the rivet into the material layers.

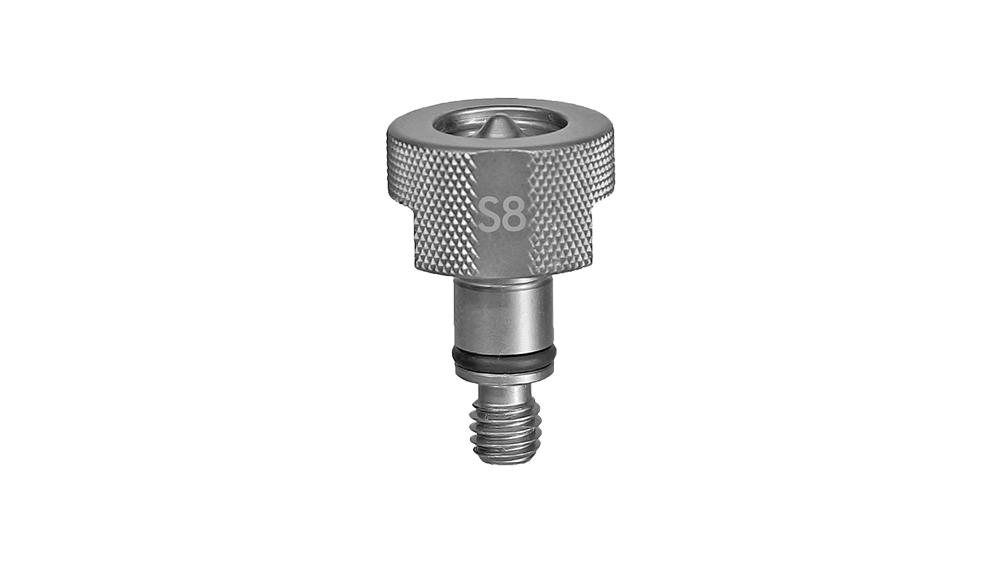

The S8 closing die comes into action in the final phase of the process, ensuring the proper shaping of the rivet's blind side and the creation of a solid, durable connection.
Part number: 700823
Type: S8 Closing die
Application: Completion of self-piercing rivet (SPR) installation.
Rivet Diameter: 5.3 mm.
Rivet Length: 6.5 mm (This specification may indicate that the tool is primarily designed for SPRs with a length of 6.5 mm, but the 5.3 mm diameter is the critical factor).
Function: Controlled deformation of the blind side of the rivet (the tail end of the rivet), which creates the necessary locking force and joint stability.
The technical parameters of the tool set ensure compatibility and efficient work performance in a professional body repair environment.
| Parameter | Value | Note |
|---|---|---|
| Product Part Number | 700237 | Complete Tool Set Identifier |
| Applied Technology | XSeries Professional Riveting Technology | Compatibility with WS systems |
| Rivet Type | Self-Piercing Rivet (SPR) | For special fasteners |
| Rivet Diameter (Ø) | 5.3 mm | Critical dimension for tool design |
| S6 Tool Part Number | 700821 | Staking Tool |
| S8 Tool Part Number | 700823 | Closing Tool |
| S8 Tool Length | 6.5 mm | Specific dimension of the closing tool |
This tool set is essential in modern vehicle manufacturing and repair, where the use of self-piercing rivets (SPR) is increasingly common for joining body components, such as aluminum or high-strength steel sheets.
The advantage of self-piercing rivets is that they do not require a pre-punched hole, but instead penetrate the material layers using the force of the tool, creating a strong mechanical joint by deforming the tail section of the rivet. The precise design of the S6 and S8 tools guarantees that this process occurs with optimal force and geometric accuracy.
Importance of using the correct tool:
The use of the correct staking and closing tools is crucial for the service life and load-bearing capacity of the rivet joint. Using incorrect tools can result in a weak joint, premature rivet failure, or damage to body components. The S6/S8 set ensures that 5.3 mm SPRs are installed in compliance with manufacturer specifications, thereby maximizing the integrity of the repaired structure.
This set is manufactured according to the Wieländer+Schill quality assurance system (ISO 9001 certification), which guarantees long-term reliability even in the most intensive workshop conditions.
