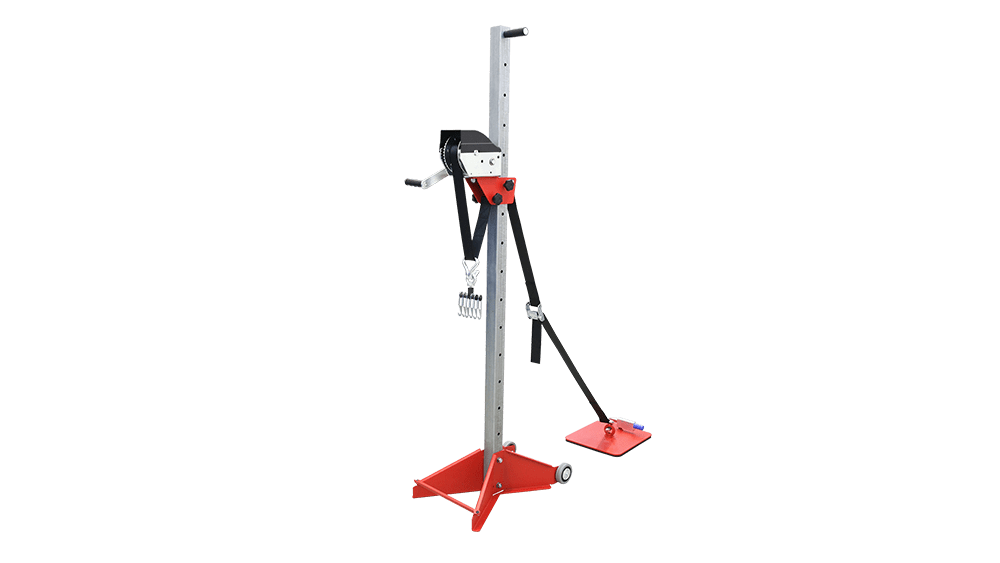

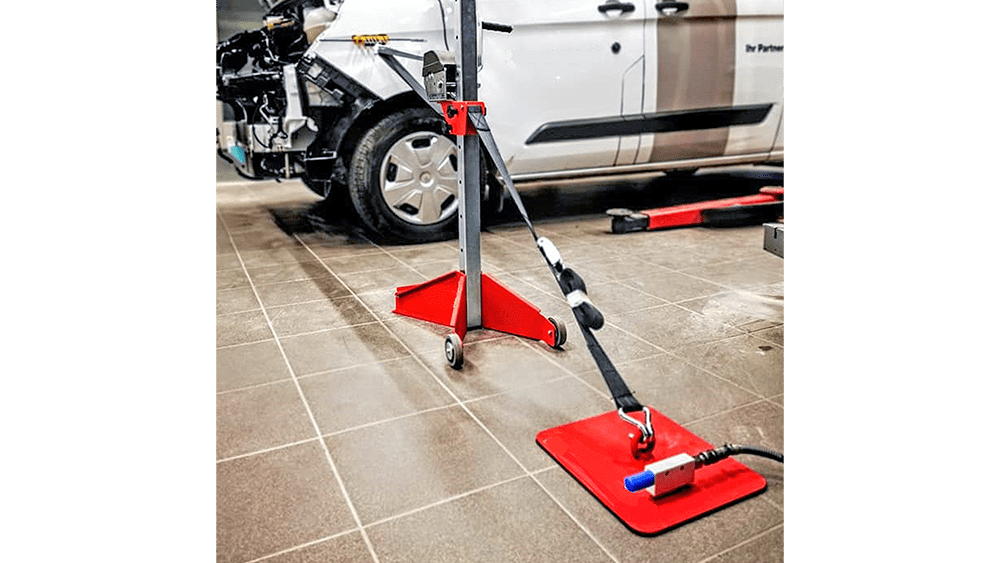

Wielander + Schill presents the Trac Tower 550 a mobile pulling unit specifically designed for secure fixing to workshop floors using a pneumatic suction base. This pulling tower with outstanding traction is an indispensable tool for body repair work, combining mobility, light weight, and precise controllability.

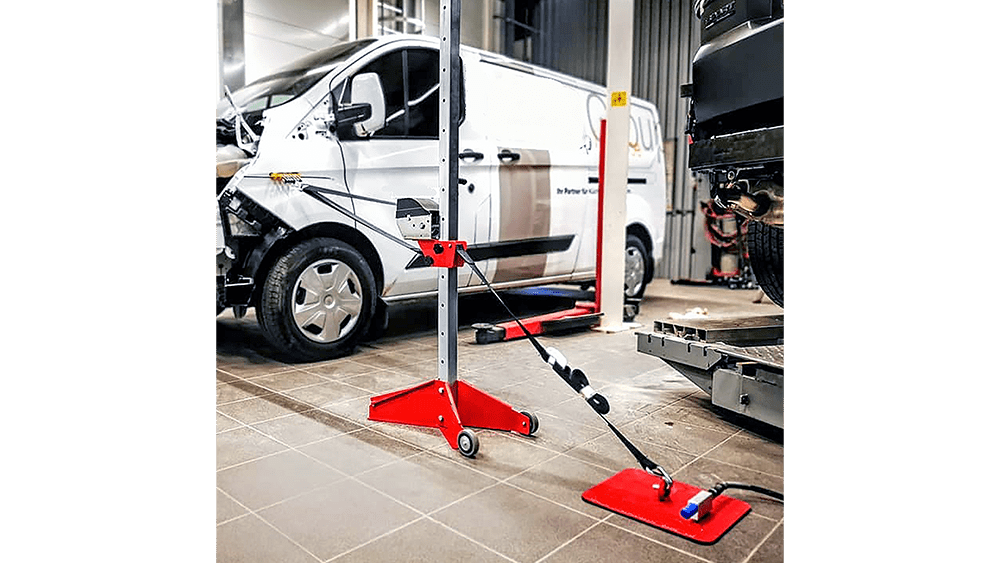

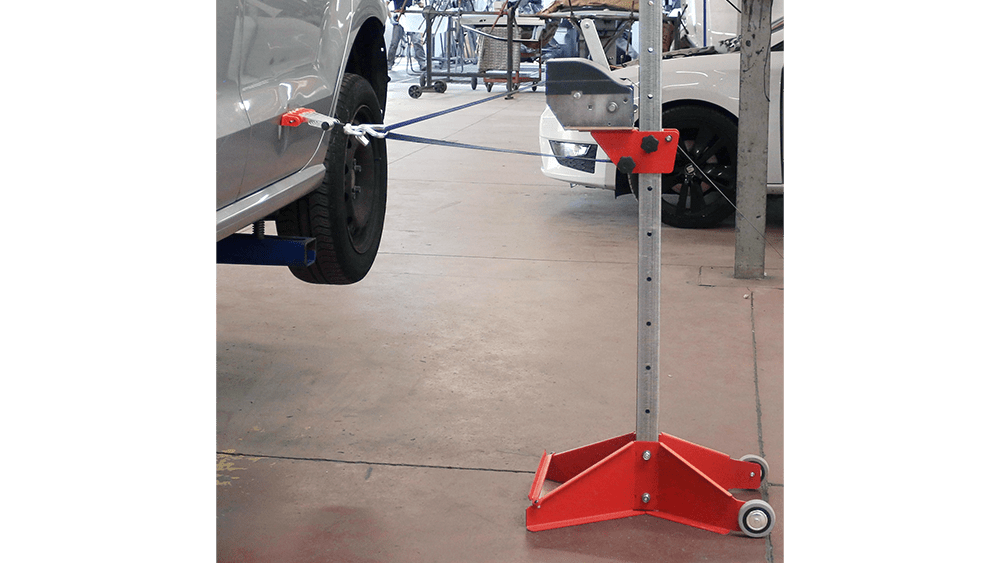

The Trac Tower 550 offers an ideal solution for the quick and efficient restoration of damaged vehicle parts, whether from high points (e.g., roof pillars) or low-lying areas (e.g., sills).
The Trac Tower 550 was designed with maximum flexibility and stability in mind:
Excellent Mobility and Easy Handling: The low weight and compact dimensions of the structure allow for quick and easy positioning directly next to the vehicle.
Pneumatic Suction Base Fixing: The device is solidly fixed to the workshop floor using a pneumatically operated suction base. This mounting method provides an extremely stable base for pulling operations.
Secure Fixing on Uneven Surfaces: The suction base has a soft rubber seal that guarantees a firm and reliable grip on the floor, even in the case of minor unevenness.
Adjustable Pulling Height: The pulling height is extremely flexible, in 15 different positions adjustable, up to 1.65 meters in height. This wide range allows the tower to be used at the most varied points of the vehicle.
Precise Pulling Force Regulation: The fine-tuning and effective application of the pulling force occurs via a belt-driven hand winch which enables precise and controlled work.
The reliability and performance of the Trac Tower 550 are supported by the following specifications:
| Parameter | Value | Note |
|---|---|---|
| Part number | 500001 | |
| Pulling Force | 5.5 kN | |
| Dimensions (Length x Width x Height) | 570 x 520 x 290 mm | Default Position |
| Maximum Pulling Height | 1.65 m | adjustable in 15 steps |
| Operating Pressure | 6 bar | For pneumatic operation |
| Weight | 22,000 kg | |
| Materials | Aluminum (Alu), Foam Rubber, Plastic (Kunststoff), Rubber, Steel | |
| Drive | Belt-driven manual winch |
The Trac Tower 550 arrives ready for full operation and includes the following components:
Trac Tower 550 Pulling Stand: The main unit.
Ratchet Drive with Pulling Screw: For manual generation of the pulling force.
Suction Pad (For Vertical Clamping): For securing to the floor.

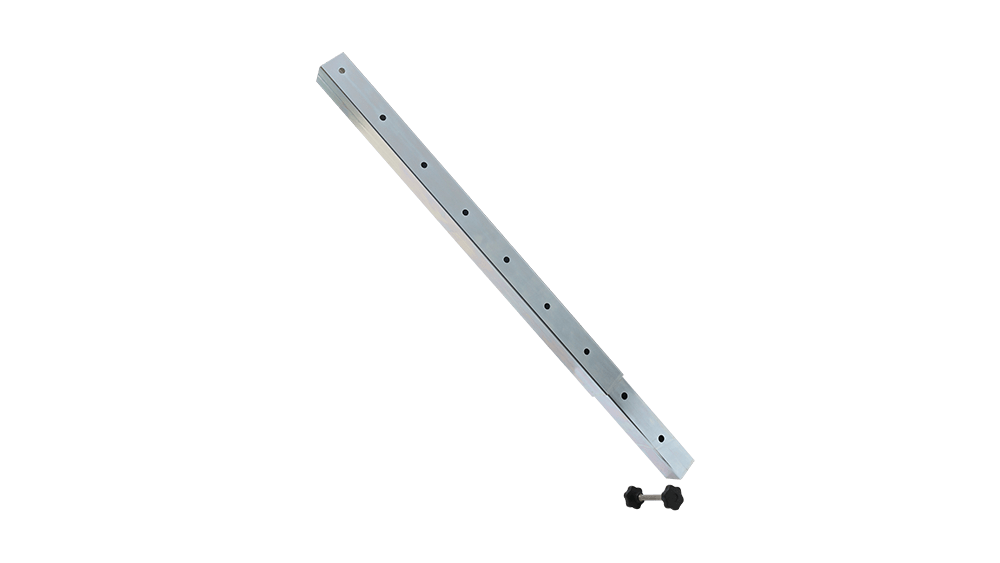

500011 Pulling Arm for Trac Tower: Special fixing element for the pulling points.
Content (quantity): 1 pc unit (1 piece)
The functionality of the Trac Tower 550 system can be further expanded with accessories offered by Wielander + Schill, which optimize the execution of various repair tasks:

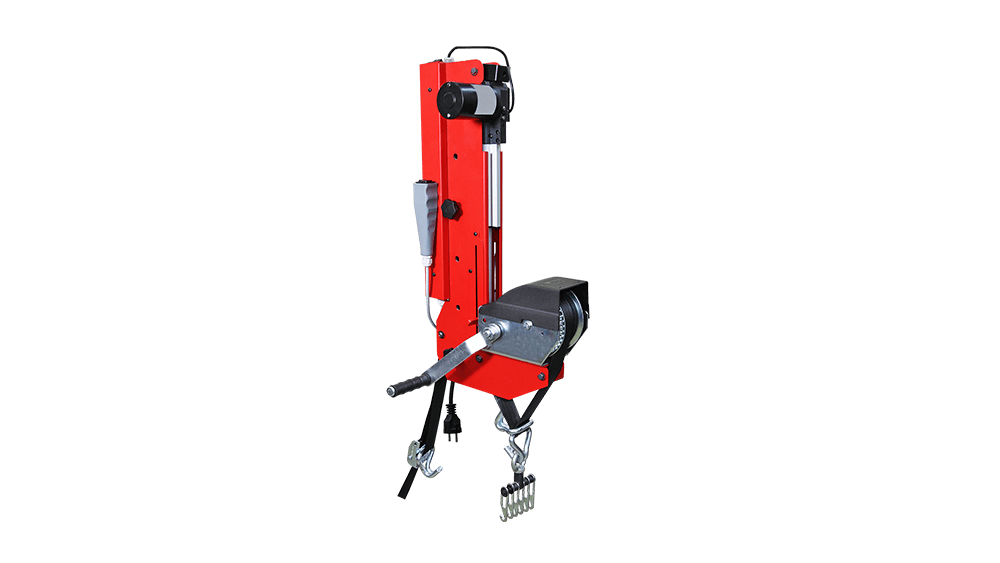

Electric Winch HYBRID (Part No: 500024): Hybrid winch equipped with a high-precision remote control, which automates and facilitates the towing process for the Trac Tower 550.

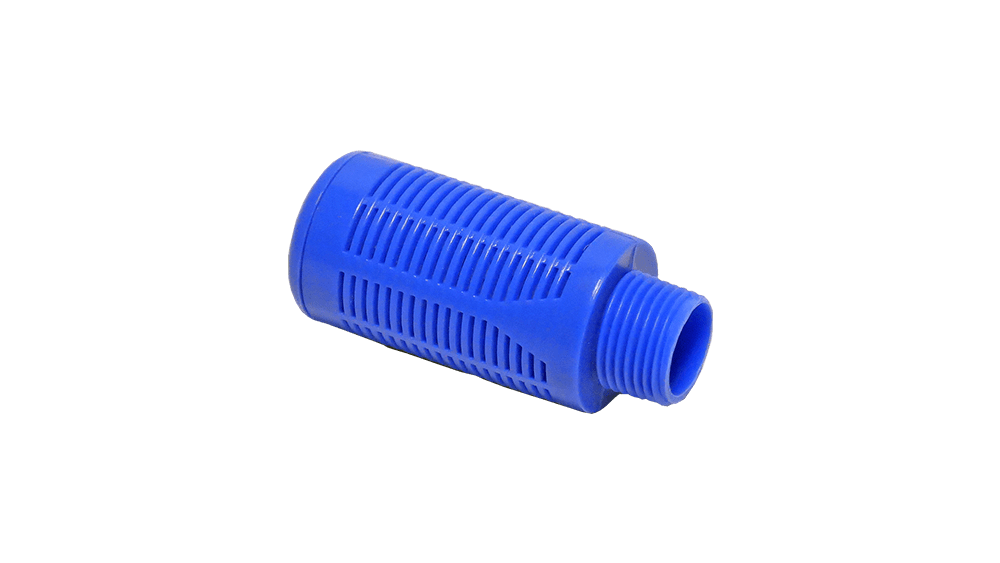

Silencer 3/8″ (Blue) (Part No: 500003): Accessory for reducing the noise level of the pneumatic system.

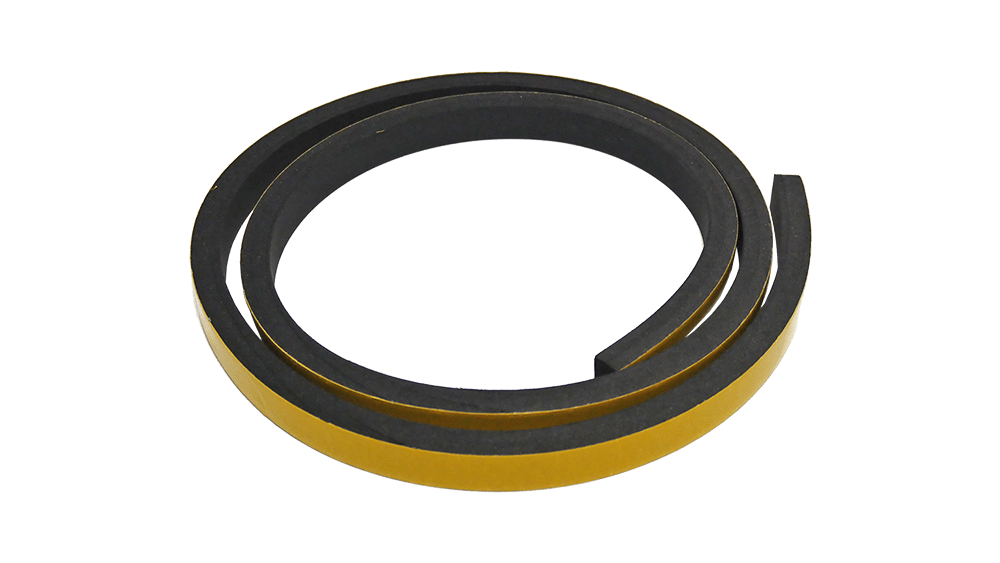

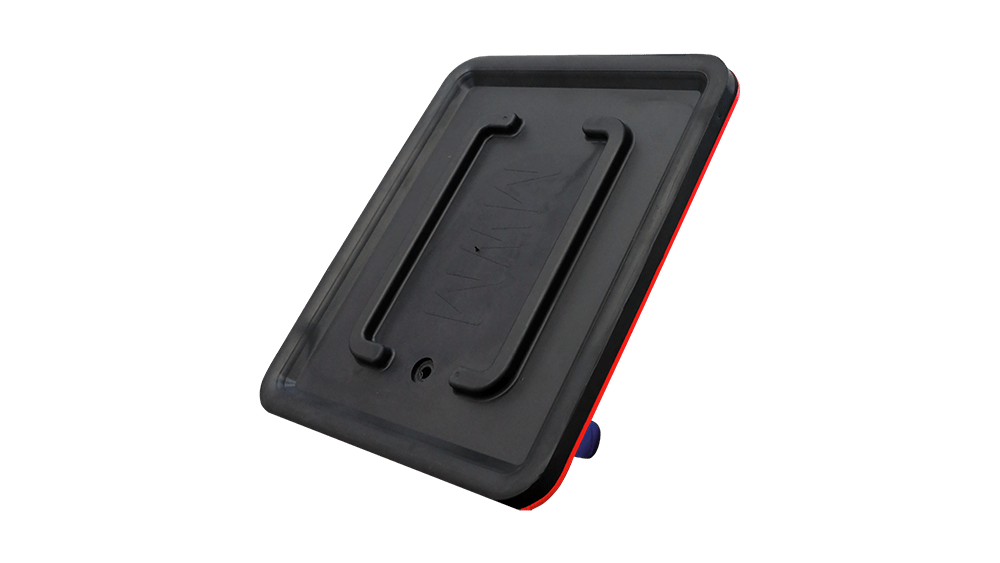

Seal for Suction Pad (Part No: 500004): Spare part or replacement seal for the suction pad.

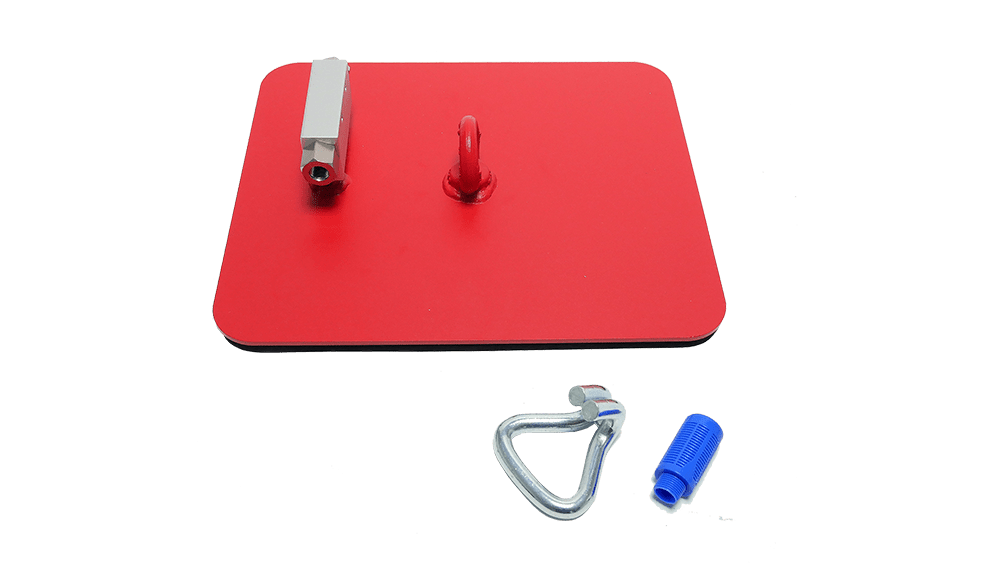

Suction Pad for Vertical Clamping (Part No: 500020): Part of the standard equipment, with soft foam rubber seal.
Suction Cup X-Plate (Part Number: 500018): This special version features a vulcanized rubber coating that increases abrasion resistance and ensures a longer lifespan under intensive use. It is specifically designed to withstand the most extreme pulling loads.
In addition to the pulling system, other precision tools necessary for bodywork are also available:
With Body Puller Grip (Part Number: 512001): Includes the puller and the grip (Composition: 511002 Body Puller without grip + 518001 Grip).

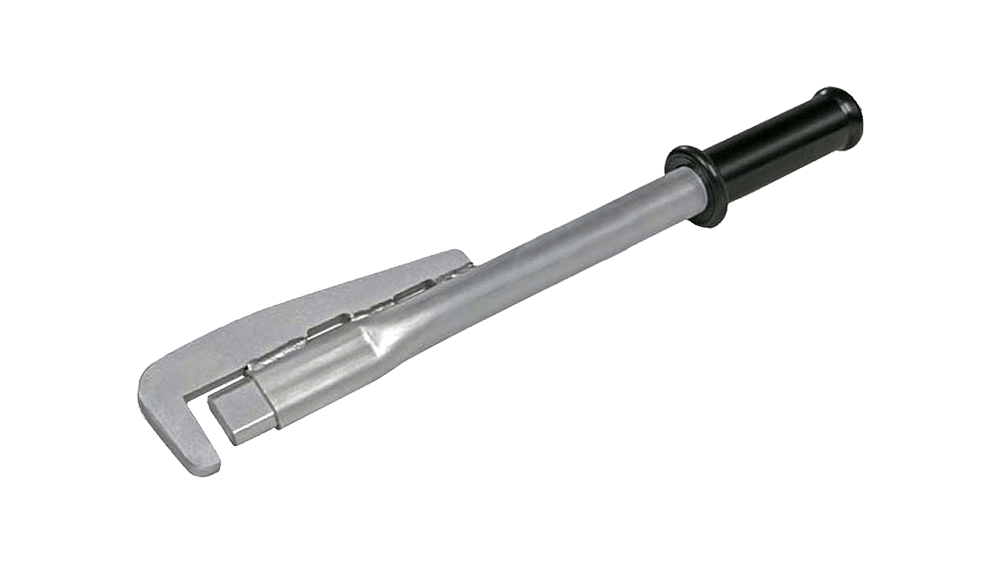

Hinge Adjuster Tool (Universal) (Part Number: 511302): High-quality adjusting tool for welded hinges, which envelops the hinge with a single hand movement, and thanks to the built-in mechanism ensures a precise, backlash-free fit between the hinge and the tool, allowing for adjustment of the door in all directions.

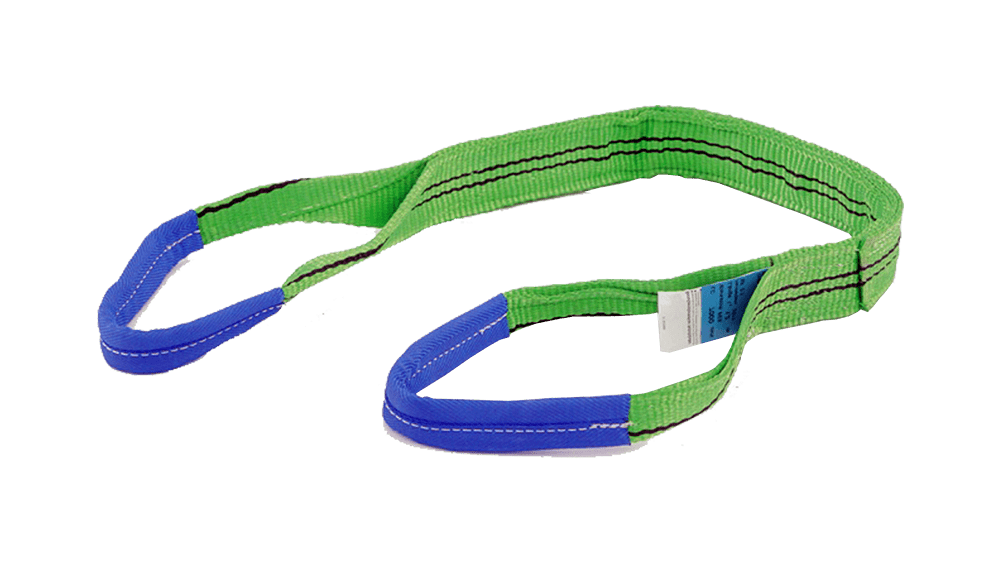

Tensioning Strap (Polyester, 1200 × 80 mm) (Part Number: 501310): Ideal for pulling and straightening damaged body panels. The soft coating prevents damage to the sheet metal profiles, unlike the use of chains.
Puller Set (6 pieces) (Part Number: 541015): For processing cold-formed steel.

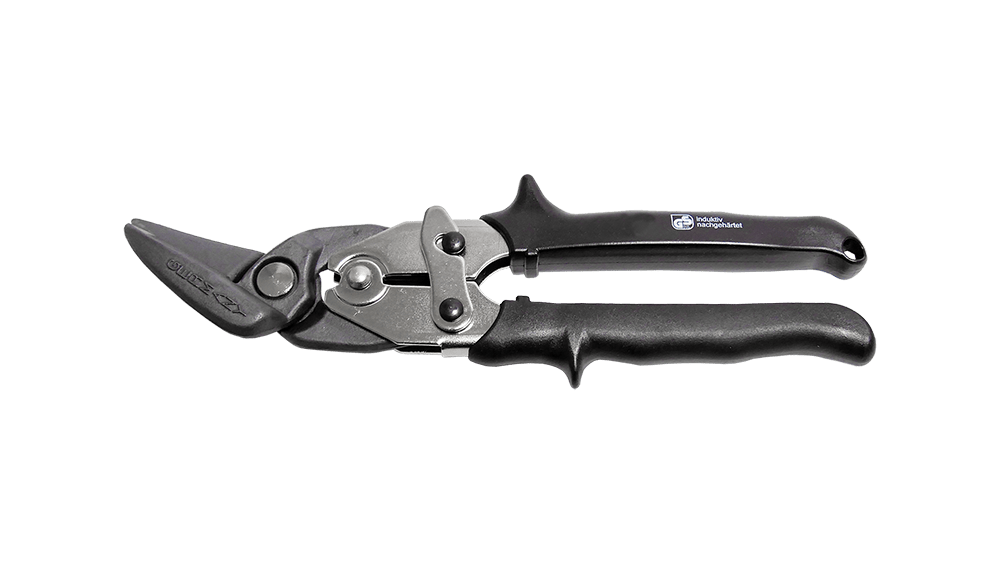

Tin Snips (Left) (Part Number: 531100): Tin snips made of tool steel with a left-cutting function and an adjustable, screw-fastened pivot joint.
Tin Snips (Right) (Part Number: 531101): Tin snips equipped with a right-cutting function.
The Trac Tower 550 reflects Wielander + Schill's commitment to professional, efficient, and safe body repair technologies. Its mobile design and pneumatic fixation provide unparalleled stability even for the most demanding pulling tasks.
