The Wielander + Schill XPress 1000 SC PushPull Standard Kit is a modular riveting system specifically designed for punching the hardest and ultra-hard structural elements, as well as for installing and removing various types of rivets. This professional tool is the ideal choice for high-demand automotive and semi-industrial applications where precision and high force are required.
A key element of the system is the strongly supporting retraction cylinder, which guarantees stable and efficient operation even with the toughest materials.
Due to its versatility, the XPress 1000 SC PushPull system can be used for numerous critical body and structural operations:
Punching Hard and Ultra-Hard Structural Elements: Capable of penetrating even metals with the highest tensile strength.
Removal of Self-Piercing Rivets (SPR): Enables efficient removal of existing fasteners.
Installation of Flow Form Rivets: Application of special technology for the precise installation of Flow Form rivets.
Installation of Solid Self-Piercing Rivets: Professional fastening of solid fasteners.
Backshaping: Shaping the opposite side of the riveting location for a perfect fit.
Calibration: Ensuring dimensional accuracy after the fastening process.
The XPress 1000 SC system is designed to provide maximum performance within the specified operating parameters.
| Parameter | Value | Note |
|---|---|---|
| Part number | 700006SC | Standard Kit |
| Maximum Pressure (PB max) | 1000 bar | Hydraulic system pressure |
| Maximum Force | 10 kN / 126 kN | The actual output force may vary depending on the configuration. |
| Work Window | max. 140 x 240 mm | The maximum achievable work area. |
| Stroke Length (Stroke) | 16 mm | The maximum stroke of the cylinder. |
| Operating Pressure | 8 bar | Pneumatic (compressed air) input pressure. |
| Maximum Oil Volume | 120 cm³ | Capacity of the hydraulic system's oil reservoir. |
| Oil Type | HLP 22 – HLP 36 | Recommended hydraulic oil reservoir. |
| Operating Temperature | 5 – 50 °C | Optimal operating range. |
| Noise level (Sound pressure level) | 75 dB(A) | Noise level during operation. |
| Vibration | < 2.5 m/s² | Measure of vibration acting on the operator. |
| Air Quality | ISO 8573-1 | Standard for compressed air. |
| Processable Materials | Alu, Aluminum, Plastic (Kunststoff), Steel (Steel) | Support for a wide range of materials. |

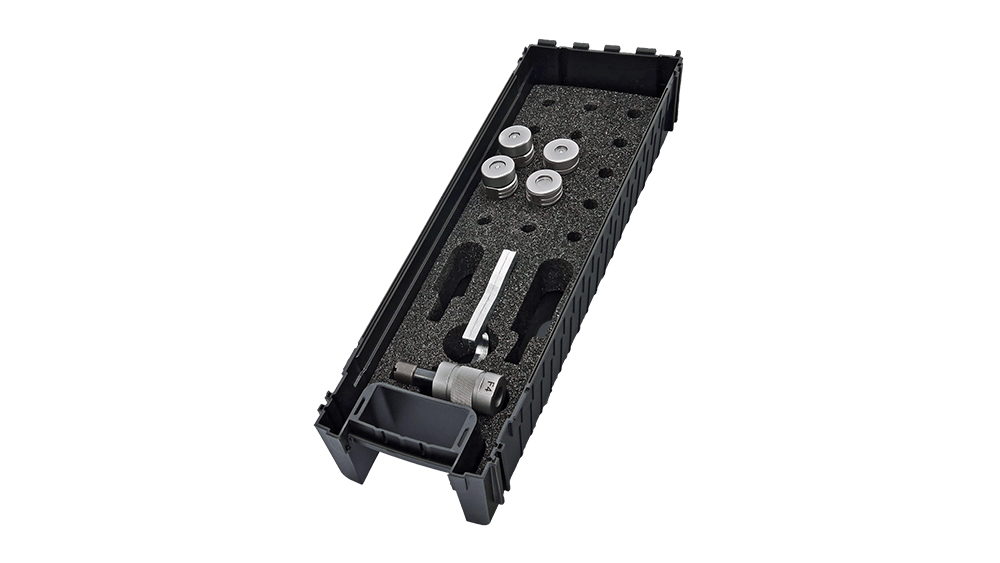

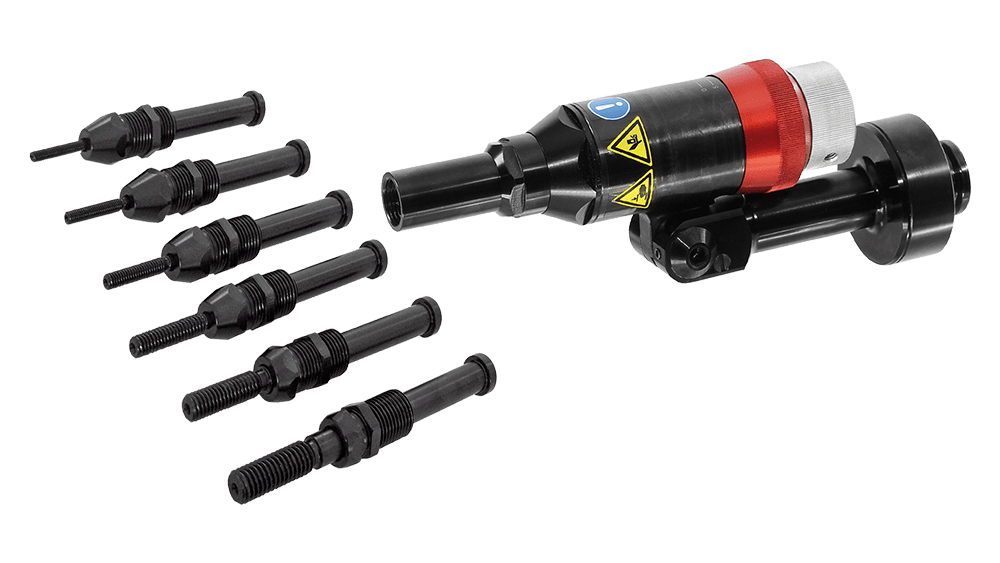

The standard kit with article number 700006SC includes the basic components necessary for full operation, as well as storage and documentation:
The flexibility of the system is further increased by available accessories, which allow the integration of different joining technologies:

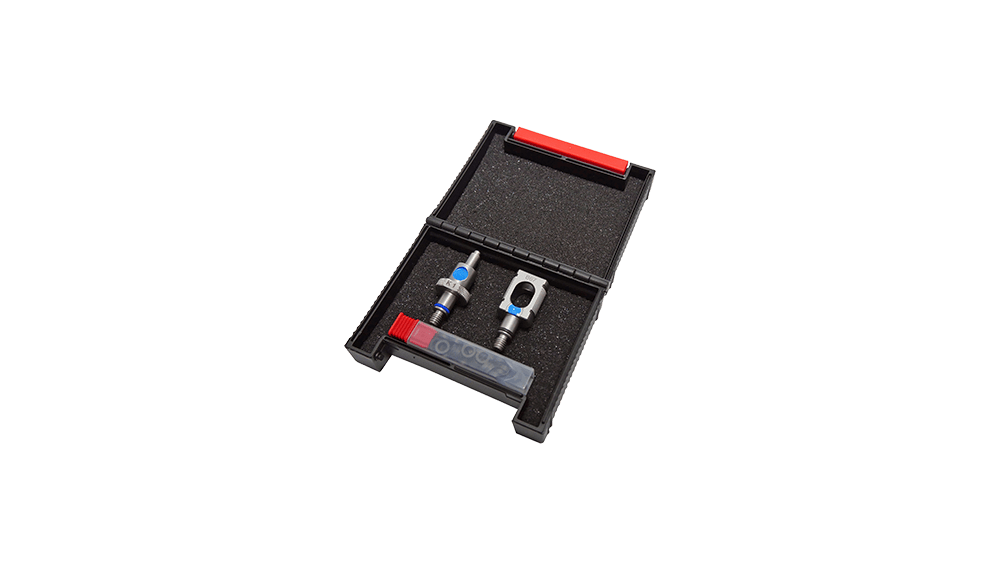

This kit includes the BRN 50 Rivnut adapter and the RS-04 tool box, enabling the installation of rivnuts.

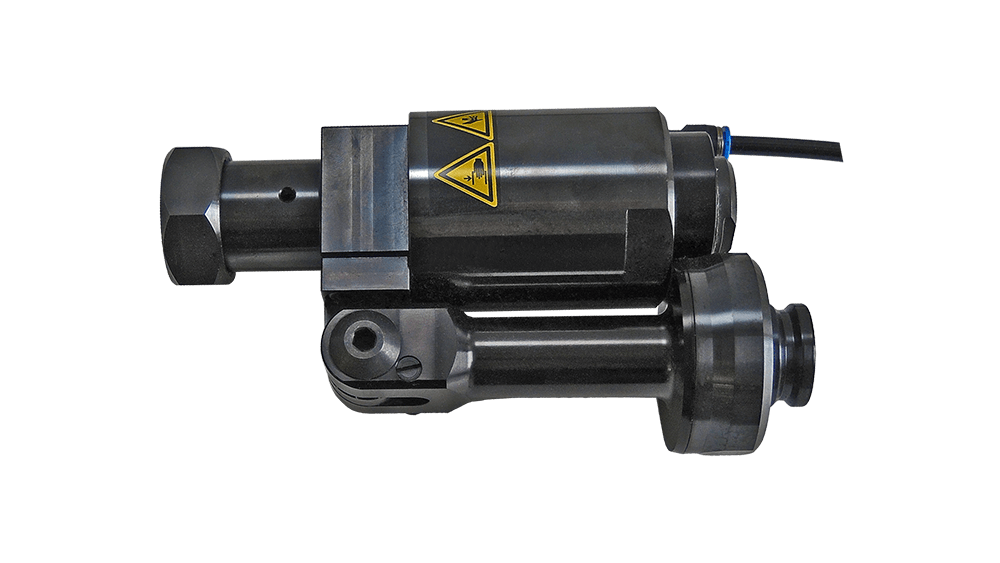

The BR 80 is a basic pulling unit with a 80 kN pulling force and is equipped with a patented universal joint. Suitable for ultra-high-strength solid rivets, pulling pins, and bolts.

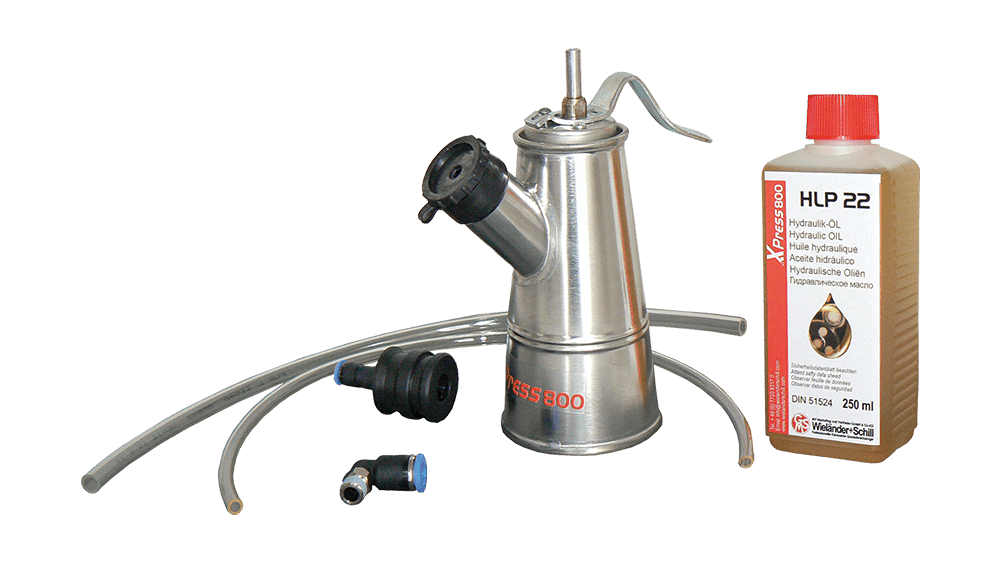

This kit contains the necessary tools for venting the XPress 800 PowerPack and changing the hydraulic oil, ensuring long-term system maintainability. Contents: special oil pump, couplings, adapters, hoses, and HLP 22 hydraulic oil.
This selection offers a wide range of the most frequently used fasteners, including self-drilling rivets (in various sizes and materials), solid rivets (aluminum and steel), and Flow Form rivets. It also includes a WS special center punch (628006).
The „ProtectShield” face shield, compliant with EN166 standard, offers optimal protection. Its polycarbonate visor ensures clear vision and impact resistance. The ventilated head pad increases comfort, and the wide field of view guarantees better visibility. The head harness is quickly adjustable, and the adjustment knobs are easy to operate even with gloves.
This kit is designed for the PushPull PP 90 to prepare and punch holes with a diameter of 6.7 mm for the subsequent processing of high-strength solid rivets. Contents: K1 punch (Ø 6 mm), B67 punching tool (Ø 6.7 mm), and SKR riveting die (Ø 6.7 mm).
This is an optional retrofit kit for the PushPull PP 90, specifically for processing self-piercing rivets (SPR). It includes the necessary tool sets (E1+E2 and D1+D2 tool sets) for setting SPRs with diameters of 3 mm and 5 mm.

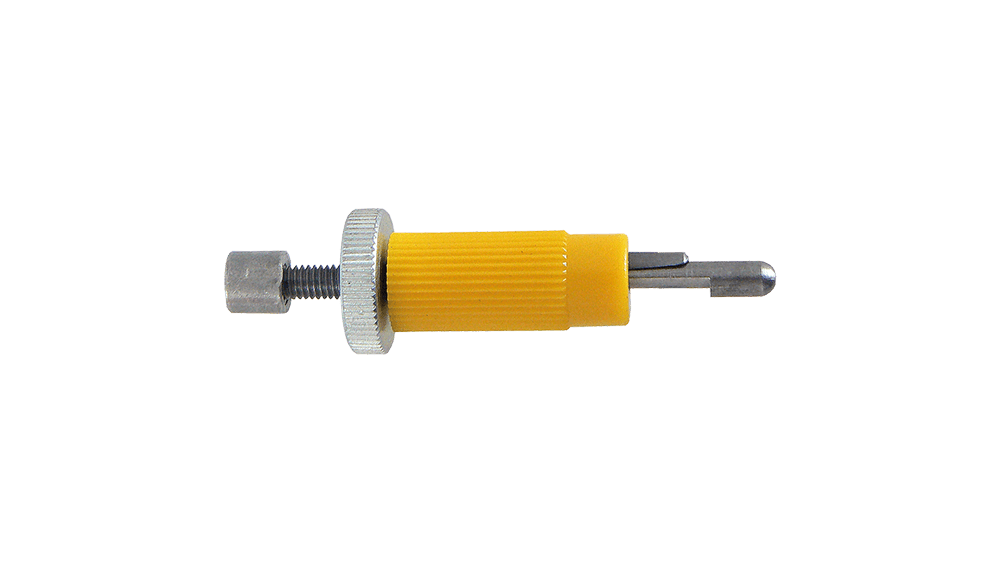

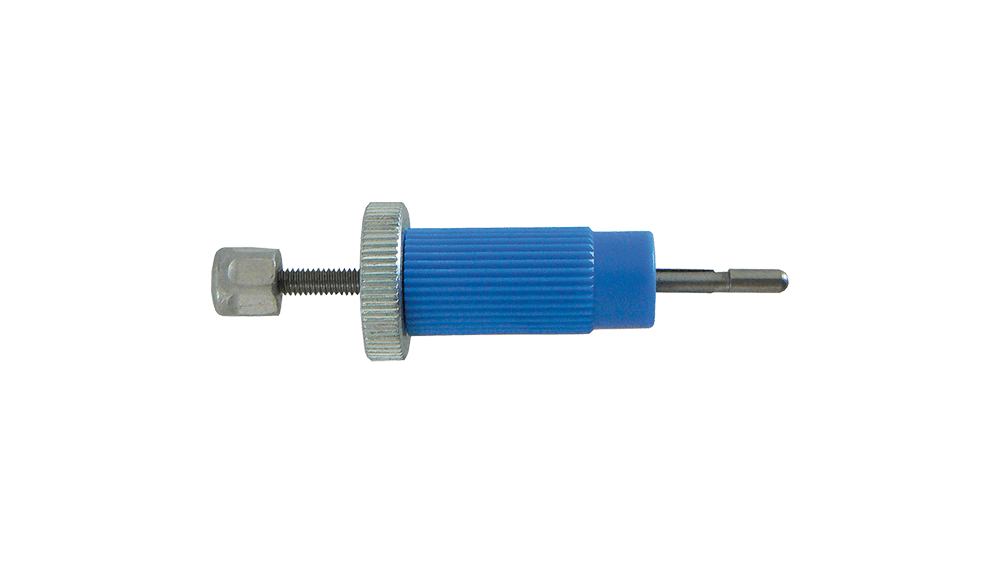

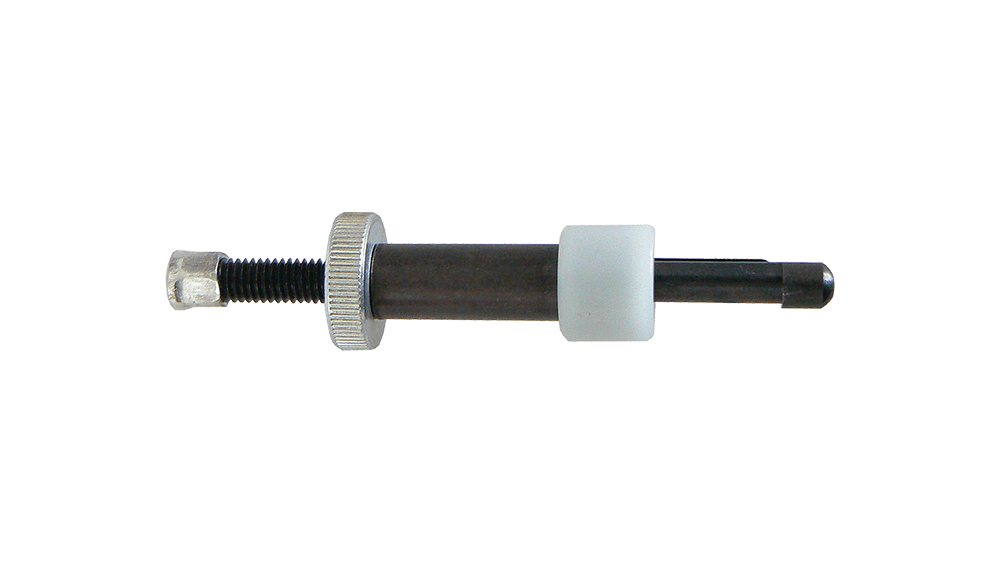

Temporary fasteners of various diameters are available (e.g., Ø 4.1 mm, PU: 20 pcs; Ø 6.0 mm, PU: 30 pcs), which ensure the precise and safe positioning of sheet metal parts during the material joining phase.
Further detailed information and technical specifications are available on the dedicated product page.
