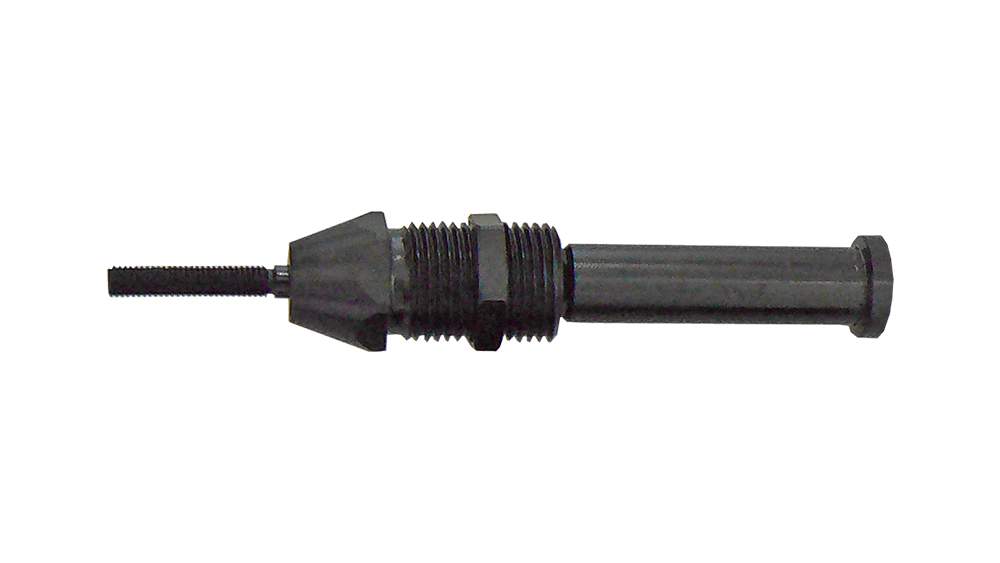

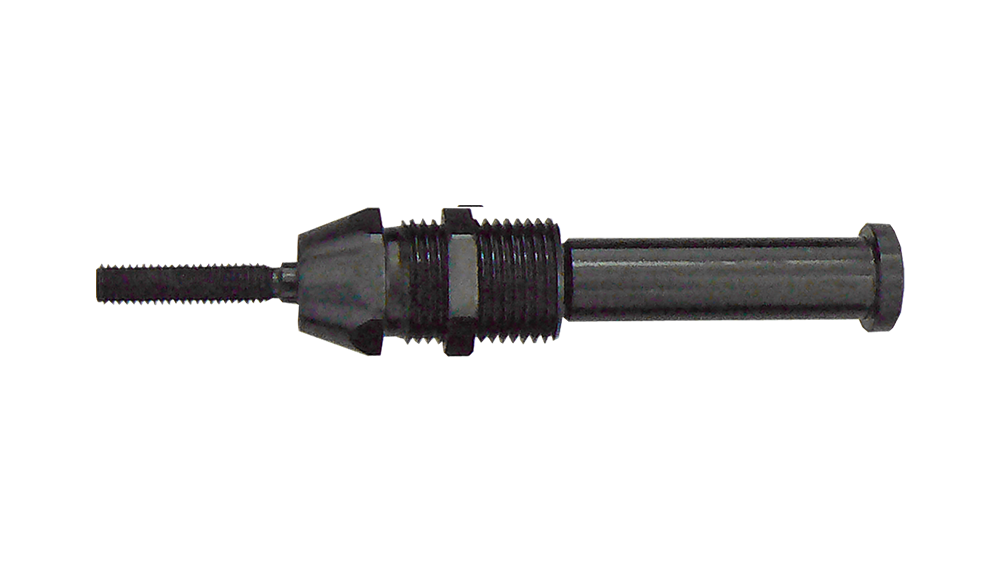

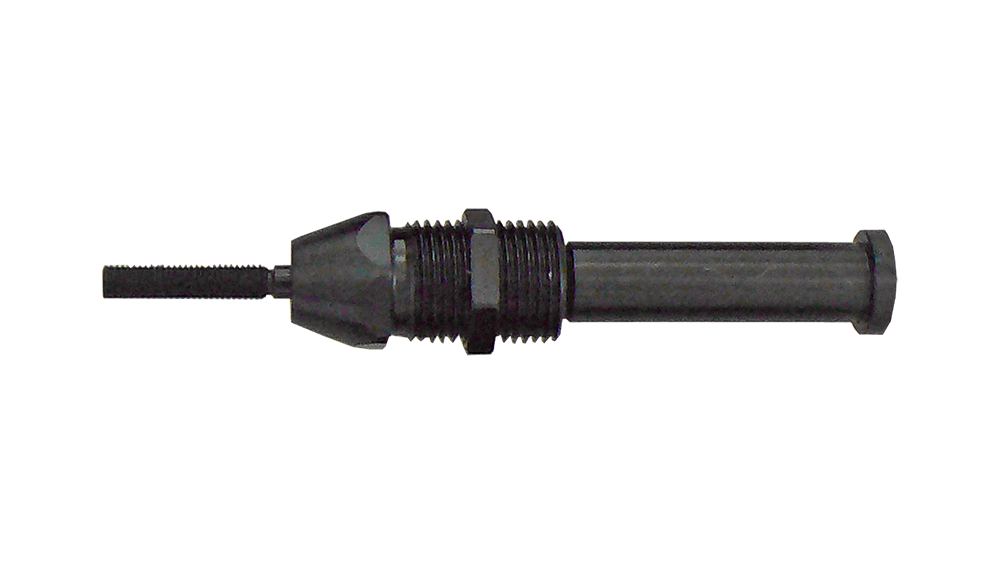

This detailed product description is for the Wielander + Schill XSeries professional riveting technology, specifically relating to the puller adapter optimized for the precise installation of blind rivet nuts. The M10 LHT (Left-Hand Thread) version is designed for the BRN 50 type blind nut adapter, ensuring reliable and durable fastening.
The puller adapter with part number 700124 is a crucial accessory for professional riveting processes, especially where M10 size, left-hand thread blind rivets need to be installed. This component ensures the correct exertion of force and precise seating in the BRN 50 puller head, guaranteeing professional and durable bonding.
The product is XSeries – Professional Riveting Technology belongs to a category that reflects Wielander + Schill's commitment to high-quality fastening solutions designed for industrial applications.
This adapter offers the following advantages to users:
Special Thread Configuration: The M10 left-hand thread (LHT) is designed for specific applications where fasteners require a different thread type compared to the standard right-hand thread.
BRN 50 Compatibility: Designed directly for the BRN 50 blind rivet nut adapter, ensuring a perfect fit and optimal performance.
Robust Material Usage: Made of steel, which guarantees high strength and long service life even under intensive, repetitive use.
Appropriate Length: The 25 mm thread length ensures that the correct type of blind nuts can be securely fastened.
Surface treatment: Features a burnished coating, which increases corrosion resistance and improves the component's durability.
The table below summarizes all important technical parameters of the puller adapter with part number 700124:
| Property | Value | Note |
|---|---|---|
| Part number | 700124 | Unique Identifier |
| Product Name | Blind rivet nut puller adapter | |
| Compatibility | BRN 50 blind rivet nut adapter | |
| Thread type | M10 left-hand thread (LHT) | Special left-hand thread |
| Thread Size | 25 mm | Length of the nut to be fastened |
| Material | Steel | High load-bearing structure |
| Surface Treatment | Burnished | Corrosion Protection |
| Length | 114.0 mm | Total length |
| Dimensions (L x W x H) | 115 x 20 x 10 mm | External dimensions |
| Weight | 0.120 kg | Easy handling |
| Package contents | 1 piece (1 stück) |
The M10 LHT puller adapter (700124) manufactured by Wielander + Schill is a precision-machined component essential when working with the BRN 50 puller adapter. The 25 mm thread length is ideal specifically for blind rivets of the same size equipped with a left-hand thread.
The steel base material ensures that the adapter withstands the high pulling forces generated during installation without deforming or wearing out prematurely. The burnished coating not only provides an aesthetic appearance but also offers fundamental protection against moisture and chemical effects common in the working environment.
This component provides reliable performance during professional automotive repairs, metal construction work, and other assembly tasks requiring high precision. The exact fit minimizes the play between the tool and the fastener, which is critical for creating a perfect bond.

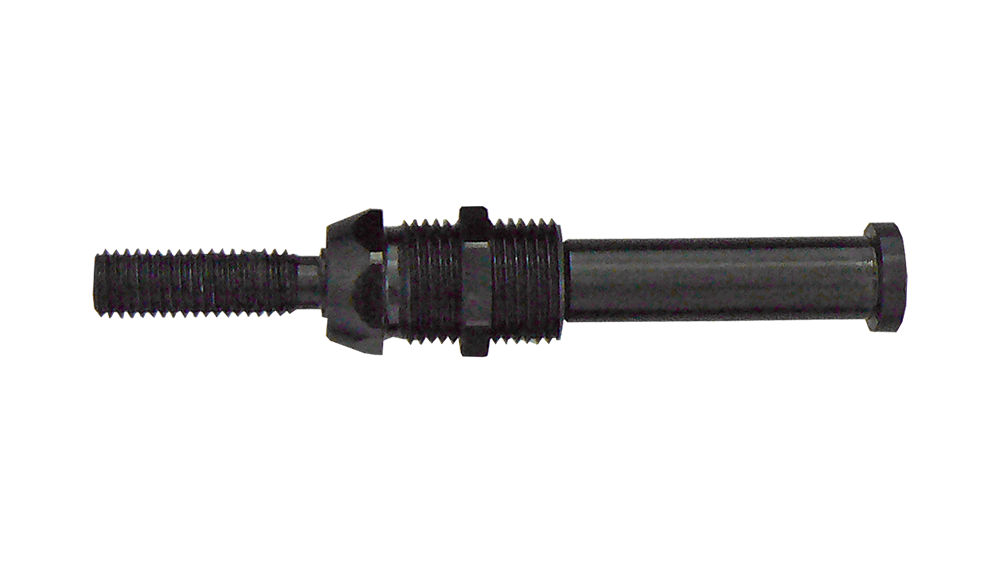

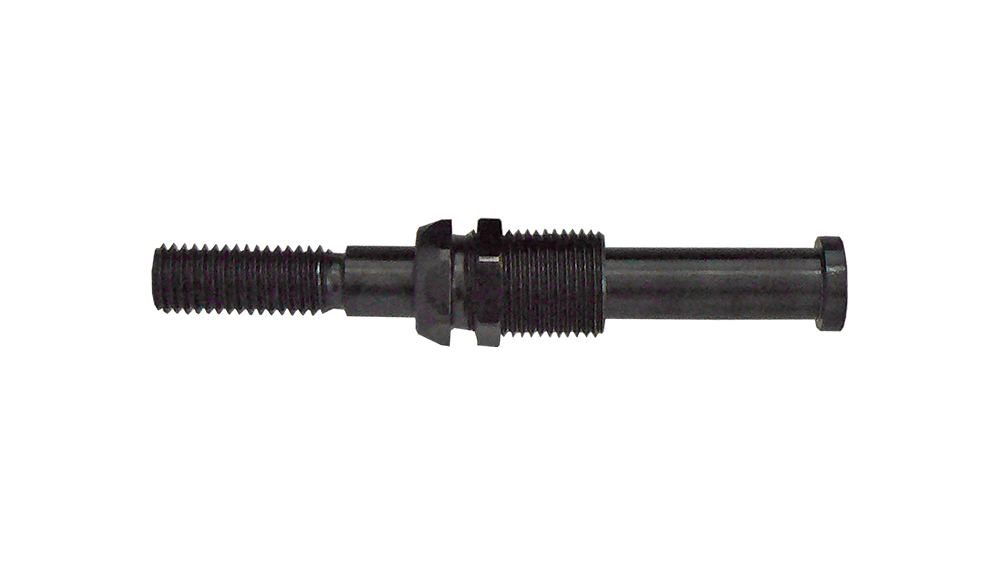

The model 700124 stands out with its M10 left-hand thread specification, but the BRN 50 system also offers adapters for other dimensions and threads that cover a wide scale of user requirements. These accessories can also be used with the BRN 50 adapter:
Blind rivet nut puller adapter | M12 (Part number: 700305): with a 30 mm thread length.
Blind rivet nut puller adapter | M4 (Part number: 700324): with a 25 mm thread length.
Blind rivet nut puller adapter | M5 (Part number: 700325): with a 25 mm thread length.
Blind rivet nut puller adapter | M6 (Part number: 700326): with a 30 mm thread length.
Blind rivet nut puller adapter | M8 (Part number: 700327): with a 25 mm thread length.
Blind rivet nut puller adapter | M10 (Part number: 700328): With 25 mm thread length (standard right-hand thread).

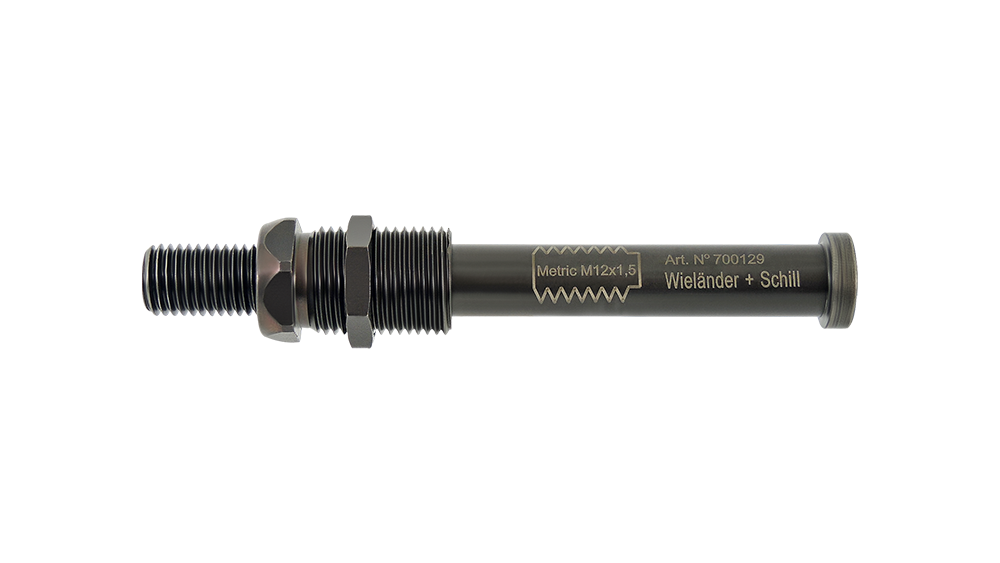

Blind rivet pull-out adapter | M12 × 1.5 (Part No.: 700129): with a 30 mm thread length.

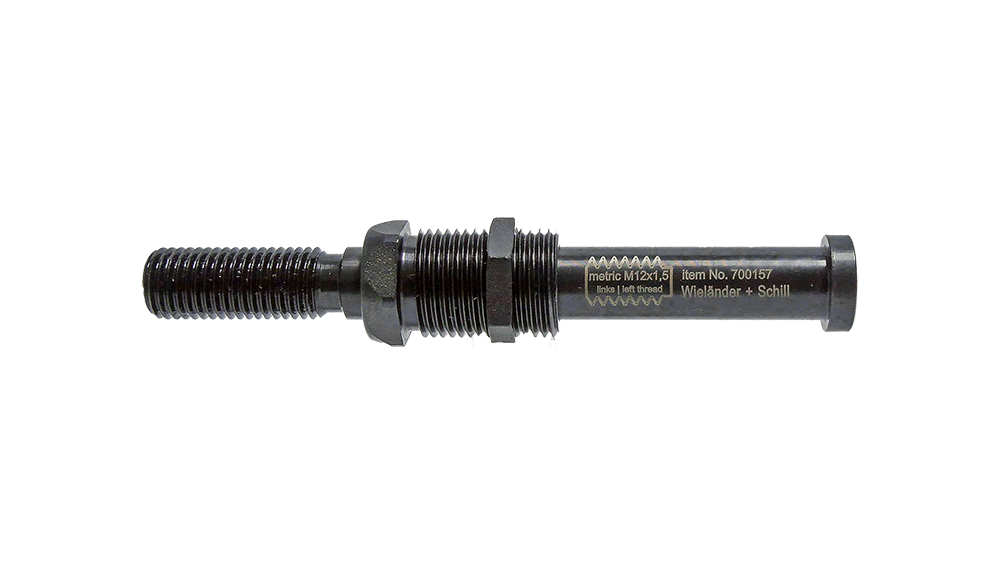

Blind rivet pull-out adapter | M12 × 1.5 LHT (Part No.: 700157): With special metric left-hand thread, 30 mm thread length.
These accessories ensure that the user can find the appropriate, high-precision tool in the Wielander + Schill portfolio for the most diverse fastening tasks.
