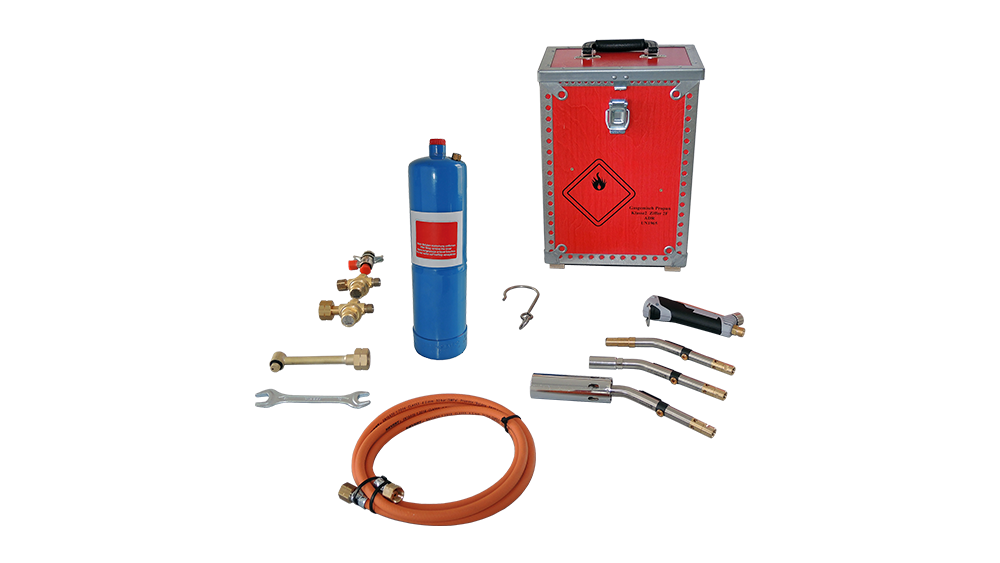

This professional propane torch set (Part No: 802001) offered by Wielander + Schill is a comprehensive solution for metalworking, auto body construction, and soldering tasks. The set includes all necessary, high-quality components, including pressure regulators for both small and large gas cylinders, all packaged in a durable, practical wooden storage box. This set is the ideal choice for professionals seeking a reliable, flexible, and ready-to-use solution for precise heat treatment jobs.
The propane torch set with part number 802001 is assembled according to Wielander + Schill's quality standards, ensuring long service life and safe operation. A key element of the set's versatility is the inclusion of necessary adapters and pressure regulators for different types of gas cylinders (for DIN-Combi connections).
Main Features:
Comprehensive Solution: The set includes the most important accessories, including various torch heads, pressure regulators, and safety elements.
Durable Storage: The accessories are supplied in a robust, custom-sized wooden storage box, which provides optimal protection and organization in the workshop and during transport.
Flexible Connection: It features two types of pressure regulators, allowing connection to both standard DIN-Combi cylinders and systems with other types featuring an R3/8″ internal thread.
Safety: Part of the set is an overflow shut-off valve (808028), which increases safety in regulating the gas supply.
Temperature-Resistant Hose: The included high-pressure hose is made from a special rubber compound, frost-resistant down to -30°C, ensuring reliable use even in extreme conditions.
The comprehensive components of the 802001 set ensure that the user can start working immediately without having to procure additional basic parts.

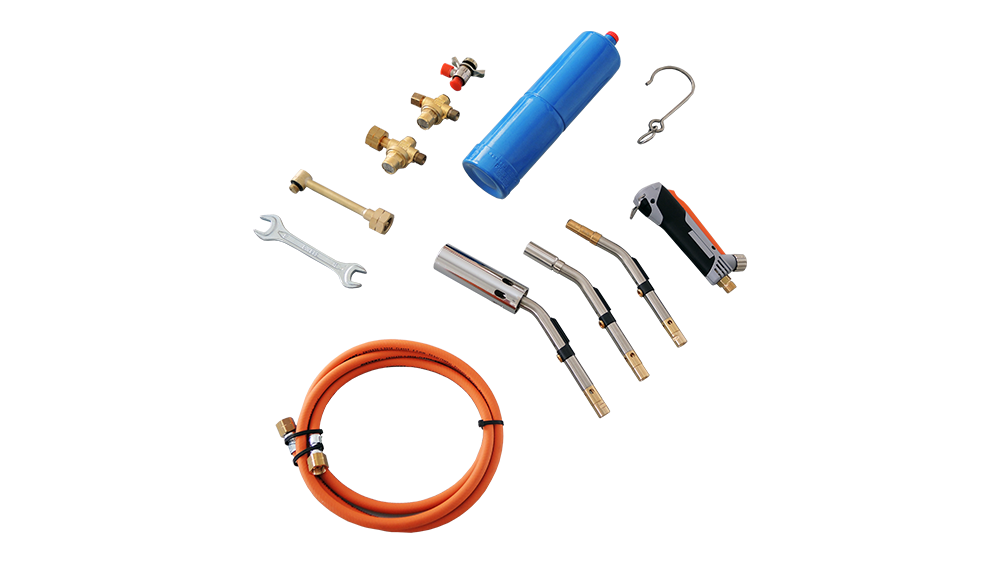

| Part number | Designation | Quantity | Description/Function |
|---|---|---|---|
| N/A | Hook | 1 stück | For general fastening. |
| N/A | Wooden Storage Box | 1 stück | Durable and organized storage. |
| N/A | Spanner Wrench SW 17/19 | 1 stück | For tightening/loosening fittings. |
| 808001 | Handle (torch stem) | 1 stück | The base body for receiving the torch heads. |
| 808003 | Pointed Torch Head (angled) | 1 stück | For achieving a precise, concentrated flame. |
| 808005 | Cyclone Torch Head (angled) | 1 stück | For a wider, more intense heat distribution flame. |
| 808004 | Hot air burner head (curved) | 1 stück | For heating applications. |
| 808020 | Propane gas cylinder 2000 | 1 stück | Refillable, quality steel cylinder. |
| 808021 | Quick connect valve for gas bottle | 1 stück | Fast and safe connection to the cylinder. |
| 808027 | Refilling adapter | 1 stück | For DIN-Combi connection. |
| 808028 | Overcurrent shut-off valve | 1 stück | For 2 bar pressure limit, safety function. |
| 808023 | Pressure regulator | 1 stück | DIN-Combi × R3/8″ internal thread. |
| 808022 | Pressure regulator | 1 stück | R3/8″ internal thread. |
| 808025 | High-pressure hose | 1 stück | According to DIN 4812 standard, with textile reinforcement. |
The individual elements of the set represent outstanding quality on their own, which guarantees the reliability of the system.

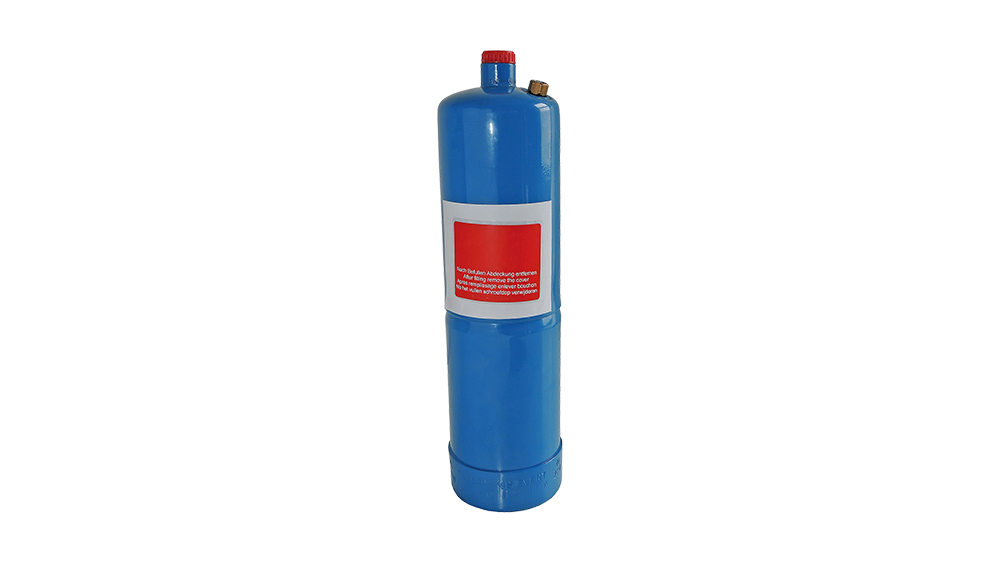

808020 Propane Gas Cylinder 2000:
These refillable propane gas cylinders are made of top-quality steel. Their interior surface is protected against corrosion, and their exterior surface has a protective coating. The cylinders are equipped with type-approved valves and also feature an overpressure safety valve.

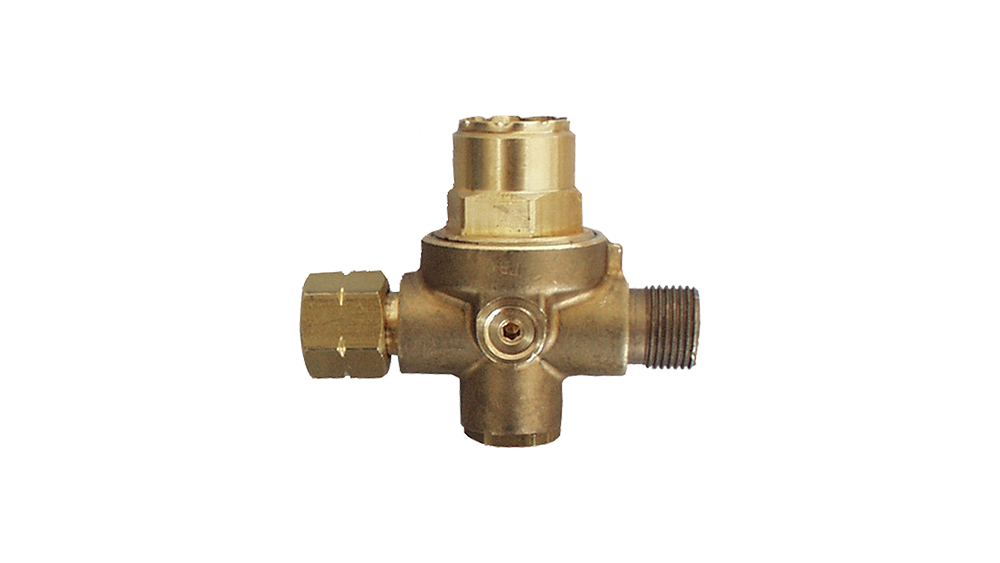

808022 Pressure regulator (R3/8″ internal):
Fixed operating pressure: 2 bar (ideal for soldering work).
Maximum flow rate: 6 kg/h.
Hose connection: R3/8″ internal thread.
808023 Pressure regulator (DIN-Combi × R3/8″ internal):
Fixed operating pressure: 2 bar.
Maximum flow rate: 6 kg/h.
Cylinder connection: DIN-Combi.
Hose connection: R3/8″ internal thread.
808025 High-Pressure Hose (DIN 4812):
Szabvány: DIN 4812.
Material: Special rubber compound with textile reinforcement.
Frost Resistance: Suitable for operation down to -30°C.
Maximum operating pressure: 2 bar (suitable for all soldering work).
Pre-installed connectors: R3/8" with left-hand thread.
808028 Overcurrent Shut-off Valve:
Connections: R3/8" × R3/8" internal thread.
Function: Safety device that shuts off the gas supply in case of excessive gas flow.
The set includes three different angled burner tips that allow for fine-tuning the heat input for the task:
Pointed Burner Tip (808003): Ideal for the most precise, most intensive heat input, for example for small spot welds or precision soldering.
Cyclone Burner Tip (808005): Provides a more even, wider flame pattern, which is useful for preheating larger surfaces or for faster work.
Hot Air Burner Tip (808004): For hot air applications where direct flame is not desired.
808001 Handle: Ergonomically designed base body that ensures a secure grip and comfortable handling during the exchange of different burner tips.
| Property | Value |
|---|---|
| Part number | 802001 |
| Content | 1 set |
| Total Weight | 6.02 kg |
| Field of application | Body repair, semi-industrial work, soldering |
| Gas type | Propane |
| Storage | Wooden Storage Box |
This professional propane torch set combines the reliability of Wielander + Schill and the full functionality required for metalworking in a single, easy-to-handle package.
