Hydraulic diagnostic kit, flow 7.5 … 75 l/min, 400 bar

Hydraulic Diagnostic Kit – Flow Meter, 75 l/min, up to 400 bar pressure

This professional hydraulic diagnostic kit has been developed for the most demanding workshops and service centers, providing precise measurement and reliable performance during the inspection of hydraulic systems. The kit is ideal for simultaneously measuring the flow rate and pressure of high-pressure systems, ensuring fast and accurate fault detection.

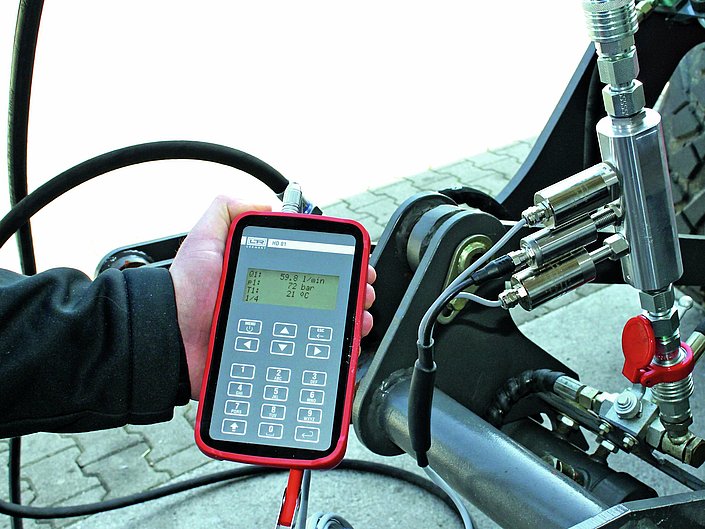

The device is perfectly suited for assessing the performance of hydraulic systems, whether they are construction machinery, commercial vehicles, or industrial equipment. The digital measuring unit provides extremely user-friendly operation and easily readable data.

Key Features and Advantages

• High Flow Capacity: Capable of handling flow rates up to 75 liters/minute, enabling a wide range of applications.

• Robust Pressure Resistance: The measuring unit can be calibrated and used for maximum operating pressures up to 400 bar (approx. 5800 PSI), ideal for high-performance hydraulic systems.

• Digital Accuracy: The digital display guarantees high-resolution and precise measurements, minimizing the possibility of human error.

• Integrated Functions: Allows for simultaneous monitoring of flow (l/min) and pressure (bar) during system operation.

• Durability and Reliability: The robust design and high-quality materials ensure a long service life even under the toughest workshop conditions.

• Könnyű Kezelhetőség: The user-friendly interface allows for quick setup and data acquisition.

Technical Data

The following table details the critical technical parameters of the hydraulic diagnostic kit:

Application Areas

This diagnostic tool is essential for the following areas:

1. Agricultural Machinery: Checking the performance of hydraulic lifting, steering, and working equipment on tractors, combines, and other work machines.
2. Construction Machinery: Maintenance and troubleshooting of hydraulic systems in loaders, excavators, and cranes.
3. Industrial Hydraulics: Measuring the efficiency of production lines, presses, and other equipment with hydraulic drives.
4. Commercial vehicles: Inspection of tail lifts, cranes, and power steering systems.

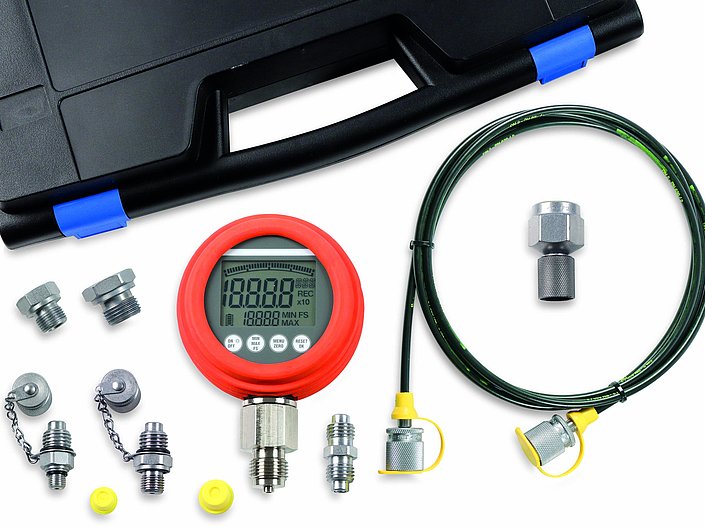

Kit Contents and Accessories

The kit is configured to be immediately usable for the most common diagnostic tasks. The package typically includes the main measuring unit, the necessary high-pressure hoses, and various connecting adapters.

Basic Accessories (Typical Configuration):

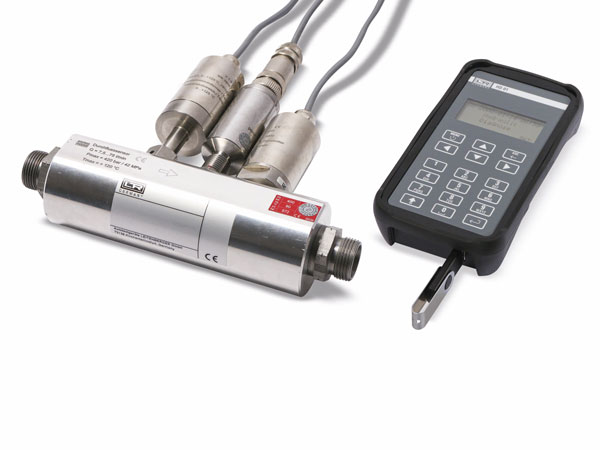

• Digital Flow and Pressure Measuring Unit: The central display and data processing module.
• High Flow Rate Flow Meter Insert: The component responsible for the 75 l/min capacity.
• Pressure Sensor: For measuring pressure up to 400 bar.
• Hydraulic Hoses: High-pressure, flexible hoses for connecting to the system.
• Connection Adapter Set: Quick couplings of various sizes and types (e.g., for BSP, NPT standards).
• Carrying case: Robust, shock-resistant case for the safe transport and storage of the device and accessories.

Advantages of Digital Measurement

Compared to traditional analog instruments, the digital diagnostic tool offers several advantages:

• Dynamic Data Logging: The ability to record and replay measurements, which is critical when examining transients (temporary phenomena).
• Easy Calibration: Digital systems often enable simpler, software-based calibration procedures.
• Data Handling: Although the raw text did not mention it, modern digital units often feature a data logging function that aids in documenting repair performance.
• Easy Reading: The large, backlit display ensures that readings are accurate even in poor lighting conditions, increasing workplace safety and efficiency.

This hydraulic diagnostic kit is the perfect combination of precision, reliability, and wide applicability, making it an indispensable tool for every professional service.
