This product is a robust and reliable analog hydraulic measuring kit, specifically designed for pressure measurement in the most demanding workshop environments. The kit is ideal for fast and accurate diagnostics of hydraulic systems, ensuring inspection of system integrity and optimal operation. High-quality components guarantee long service life and consistent measurement accuracy.
This analog measuring kit combines traditional, reliable technology with modern service requirements. The large, easily readable analog manometers allow for immediate visual inspection of pressure values, which is critically important during the testing of dynamic systems.
Robust Construction: The kit components are made of durable materials, withstanding the physical stress caused by workshop environments.
Analog Accuracy: The three analog pressure gauges are ideally suited for quick detection of pressure changes, minimizing potential delays from digital displays.
Versatile Application: Ideal for measuring the pressure of hydraulic systems ranging from passenger cars to commercial vehicles, as well as for testing industrial hydraulic equipment.
Simple Operation: The intuitive design of the kit allows for quick setup and measurement, reducing diagnostic time.
The technical parameters of the kit ensure wide applicability and reliable performance. The exact specifications are as follows:
| Component | Spezification | Note |
|---|---|---|
| Measuring Range (Manometers) | 0 – 250 bar (0 – 3600 PSI) | Three separate measuring units |
| Accuracy Class | 1.6 % | Complies with standard industrial requirements |
| Connections | Quick couplings of various standards | To maximize compatibility |
| Temperature Range | Between -20°C and +60°C | Operating temperature |
| Display Type | Analog, scaled | Easy-to-read, high-contrast dial |
| Housing Material | High-strength metal alloy and impact-resistant plastic | For durability |
| Hose length | Custom lengths in the kit | Ensuring flexible placement |
This analog hydraulic test kit provides a comprehensive solution for checking the pressure conditions of hydraulic systems. The package includes the necessary measuring units and a wide selection of connection elements.
Basic Measuring Units:

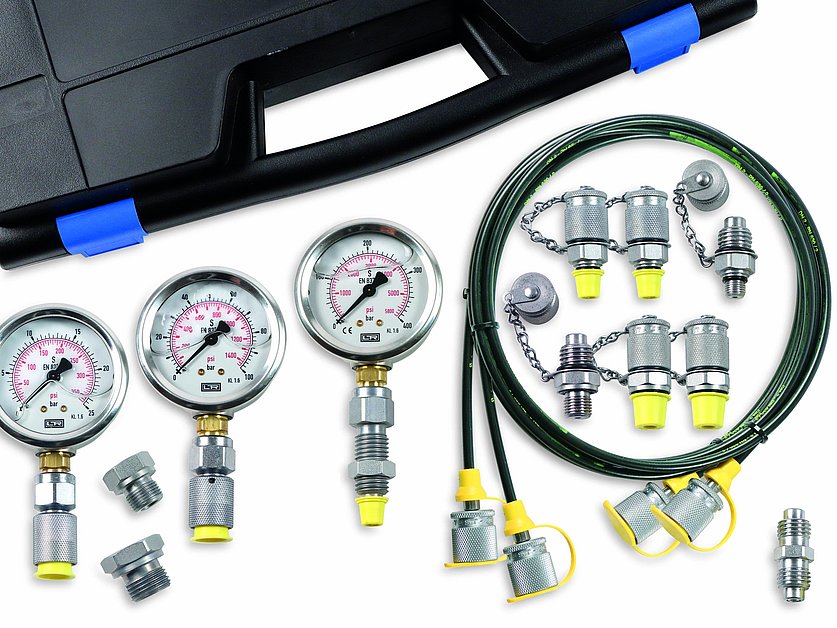

3 pc Analog Pressure Gauge: Each gauge covers the full 0-250 bar range but may have different scaling or targeted ranges for finer measurements (precise graduation according to the accompanying documentation).
High Capacity Pressure Switching Unit: The measuring gauges connect to a central distribution block, enabling quick switching between systems.
Fittings and Adapters:
The kit includes a wide-ranging adapter set that ensures compatibility with most hydraulic systems, including standard BSP, NPT, and metric connections.
Fittings of Various Sizes and Types: Quick-change systems for fast and safe connection.
Seals and O-rings: Spare sealing elements to guarantee leak-free operation.
Optional Accessories:
Robust Carrying Case: An impact-resistant case for secure storage and transport of all components.
Operating Instructions: Detailed description for safe operation and performing measurements.
This hydraulic measuring kit is an indispensable tool in the following areas:
Vehicle Workshops: Checking the pressure of hydraulic brake systems, steering gears, traversing mechanisms, and other hydraulically operated systems.
Agricultural Machinery: Diagnostics of high-performance hydraulics, lifting systems, and work machines.
Construction Machinery (OHW): Measuring the load and operating pressure of hydraulic systems in grabs, cranes, and other heavy equipment.
Industrial Hydraulics: Maintenance and troubleshooting of assembly line machinery, presses, and hydraulic drives.
Hydraulic system failures often result from pressure loss or incorrect pressure readings. This measuring kit enables professionals to:
Leak Detection: Monitoring the pressure drop over time helps locate internal or external leaks.
Pump Performance Measurement: Checking the maximum pressure generated by the pumps against the nominal values.
Valve Inspection: Confirming the correct operation of control valves by investigating pressure fluctuations observed in the system.
Thanks to reliable analog displays, the user can immediately see if the system is overloaded or if it is not reaching the required operating pressure, allowing for quick intervention and preventing costly component damage.
To maintain the long-term accuracy of the measuring kit, regular calibration is recommended (according to manufacturer's recommendations). When storing, always use the included carrying case to protect the manometers from physical damage and environmental effects. Keep the connection surfaces clean from contamination.
This analog hydraulic measuring kit prioritizes reliability and precision, making it the ideal choice for any professional who wants to check the performance of hydraulic systems without compromise.
