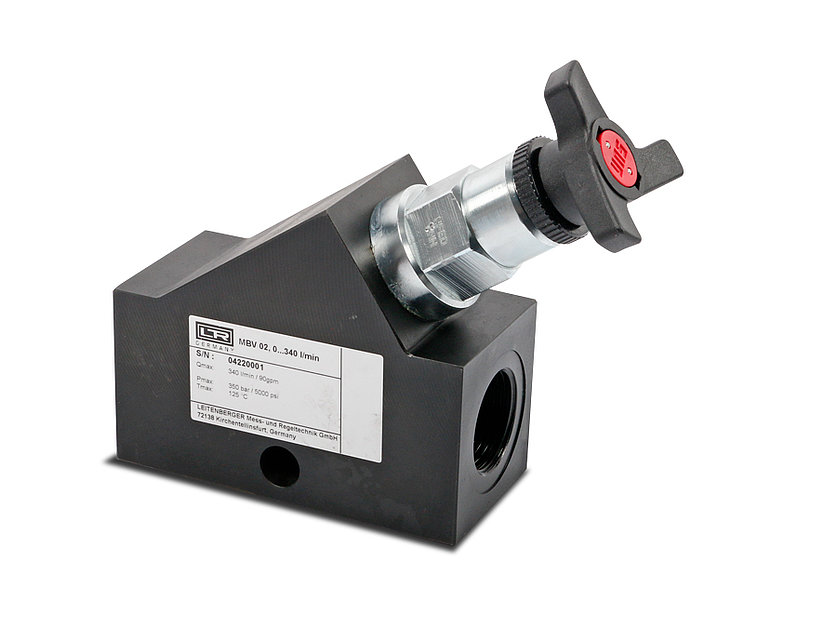

This document provides a detailed presentation of the high-quality flow limiting valve (also known as a flow controller) designed for high-precision hydraulic measurements and systems, which is an ideal accessory for version 02 of the HD-01 Kit. This component is crucial for the precise regulation and testing of hydraulic systems, ensuring accurate setting and maintenance of the desired flow rate.
The product is part of a wide portfolio of professional instruments specifically developed to meet the demands of the automotive, hydraulic, and special engineering applications. Manufactured from high-quality materials, the valve guarantees long service life and reliable operation even under the most intensive operating conditions.
This flow limiting valve (flow controller) offers the following advantages to users:
Precise Flow Control: It allows for extremely fine adjustment of the amount of fluid passing through hydraulic systems, which is essential during calibration and testing procedures.
HD-01 Kit Compatibility: An accessory specifically optimized for version 02 of the HD-01 type measuring systems, ensuring seamless integration and maximum performance.
Robust Design: Made from high-quality, durable materials that resist hydraulic fluids and mechanical stress.
Versatile Application: Although primarily recommended for hydraulic systems, it is excellently usable in all areas where precise volumetric flow control is required.
Simple Integration: Thanks to standard connections, it can be installed quickly and easily onto existing measuring equipment.
The table below summarizes the critical technical parameters of the flow limiting valve (flow controller):
| Parameter | Spezification | Note |
|---|---|---|
| Product Type | Flow Restrictor Valve / Flow Control | |
| Compatibility | HD-01 Kit, Version 02 | |
| Application Area | Testing and Regulation of Hydraulic Systems | |
| Operating Principle | Flow Restriction | |
| Pontosság | High (according to system specifications) | Critical for the reliability of measurements |
| Connections | Standard industrial connections | Exact dimensions must be checked based on the product drawings |
| Material Quality | High-load-bearing, corrosion-resistant materials | Long lifespan guaranteed |
| Ambient Temperature | Operating range according to manufacturer specifications |
This flow control device is indispensable in the following areas:
1. Hydraulic Diagnostics and Testing:
The valve enables the simulation of load on hydraulic systems (e.g., pressure pumps, hydraulic motors) by accurately setting the desired flow rate. This is essential for testing performance, efficiency, and leaks. When used with digital pressure measurement systems (e.g., Digital Pressure Measurement, Digital Hydraulic Diagnostic Kit), it provides extremely precise data.
2. Control Engineering Calibration:
In industrial processes where fluid flow requires strict regulation, this unit ensures that the test environment precisely replicates real operating conditions. This is particularly important when calibrating hydraulic actuators and valves.
3. Maintenance and Troubleshooting:
When identifying faulty components, the valve helps isolate the problematic parts by restricting or modifying the amount of fluid circulating in the system, allowing precise observation of system behavior under various flow conditions.
This accessory belongs to the broader range of Hydraulics devices, which includes analog and digital diagnostic kits (Hydraulik-Test Case, Digital/Analogue), as well as hydraulic test benches. The HD-01 Kit (Version 02) offers comprehensive solutions for modern workshops, and this flow control element ensures the fineness of measurements.
The product line extends to full-scope hydraulic measurements, including digital pressure measurement, which requires the highest level of precision for evaluating the performance of hydraulic systems.
The manufacturer is committed to adhering to the highest quality standards. Every component, including this flow-limiting valve, undergoes rigorous quality control processes. This professional tool guarantees that users receive reliable and repeatable measurement results, minimizing the chances of error during the testing of critical hydraulic systems.
This component is the ideal choice for any professional who prioritizes accuracy and reliability in the testing and maintenance of hydraulic systems.
