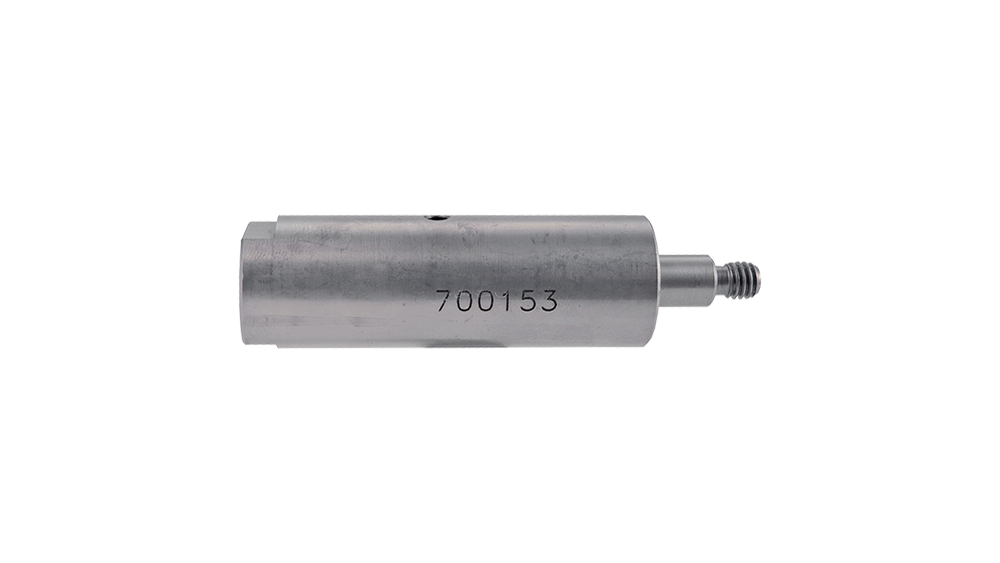

Product Identifier: 700153
This product is a precisely machined extension element, specifically designed for the PushPull PP 90 system, and which, when used in combination with GC 140/240 C-arms, ensures optimal operating conditions. This component, part of the professional riveting technology from Wieländer+Schill XSeries, plays a critical role in body repair processes where increased reach and precise positioning are essential.
This extension element allows users to effectively apply the existing PushPull PP 90 unit even in areas that would be difficult to reach with conventional setups. The robust design, made of steel, guarantees a long service life and high stability even under the most intensive workshop conditions.
The extension element with part number 700153 is an essential accessory in the body construction and repair sector. The PushPull PP 90 is a high-performance, short-stroke cylinder used for the precise and powerful insertion or removal of body elements (e.g., rivets or screws). When used in conjunction with GC 140 and GC 240 type C-arms, this 60 mm extension element significantly increases the working range.
Main Advantages:
Increased Reach: The 60 mm extension enables access to hard-to-reach spots on the vehicle structure, minimizing the need for unnecessary disassembly.
Stability and Precision: The high-quality steel material ensures that the precision of the riveting process and the transfer of necessary forces are maintained, even with the extension.
System Compatibility: Seamlessly integrates into existing Wieländer+Schill XSeries PushPull PP 90 and C-arm systems.
The component is manufactured according to strict quality specifications, guaranteeing reliable performance. The table below details the critical dimensions and material characteristics:
| Property | Value | Note |
|---|---|---|
| Part number | 700153 | Unique Identifier |
| Application | Extension Piece | For PushPull PP 90, with GC 140/240 C-arms |
| Length (L) | 60 mm | Measure of extension |
| Diameter (Ø) | 20 mm | Diameter of the cylinder connection point |
| Overall dimensions (Length x Width x Height) | 20 x 20 x 82.2 mm | Overall dimension |
| Material | Steel | High-strength structural material |
| Weight | 0.135 kg | Lightweight yet massive design |
| Package contents | 1 piece (1 stück, 1 piece) | Contents of the package |
Wieländer+Schill is committed to the highest quality standards. This product also complies with strict industrial requirements, supported by the company's ISO certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These certifications ensure that manufacturing processes, material selection, and final product quality control are carried out at the highest level, thus ensuring that the 700153 extension element provides reliable performance in professional body repair over the long term.
The PushPull PP 90 is a short-stroke hydraulic cylinder ideally suited for the precise pressing, riveting, or even removal of existing fasteners on body elements. The power and speed of the system are ideal for working on modern, high-strength steel and aluminum structures.
When installing the 60 mm extension element (700153), the user must consider that the increased length may slightly affect the system's resonance or the final force transmission point; therefore, always follow all assembly instructions specified by the manufacturer during installation, especially regarding pairing with GC 140/240 C-arms. The 20 mm diameter ensures a solid fit on the connection surfaces between the cylinder and the C-arm.
This accessory is not just a simple extension, but a strategic component that maximizes the flexibility and efficiency of existing high-performance tools during complex repair tasks.
