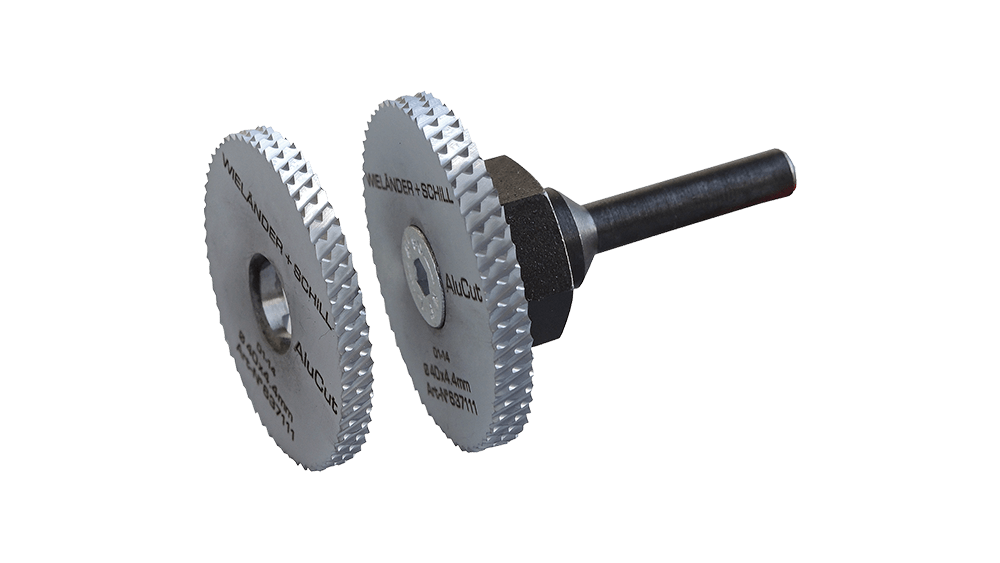

This professional UHSS/AluCut side cutter set is specifically optimized for machining the hardest and ultra-light high-strength steel materials (UHSS), such as Usibor®. It is excellently suited for the extremely precise removal of weld seams, ensuring efficient and clean work in modern vehicle repair.
The set includes a specially designed mounting element (drive) which guarantees the safe and stable suspension of the tool during operation. Compatible with all standard straight and angle grinders equipped with a 6 mm diameter spindle.
Special Application: Ideal for machining hard and ultra-light high-strength steels (UHSS), especially for removing weld seams.
Precise Removal: Thanks to the special toothing, extremely accurate and controlled material removal is possible.
Secure Fixing: Includes a special mounting element (‘drive’) that ensures the stable positioning of the tool on the grinding head.
Wide Compatibility: Can be used with all general straight and angle grinders equipped with a 6 mm diameter spindle.
Long Lifespan: The AluCut milling inserts deliver outstanding performance when processing both steel and aluminum body panels, ensuring a long service life.
The UHSS/AluCut side cutter set with item number 637117 contains the following elements:
| Part number | Designation | Quantity | Technical Data |
|---|---|---|---|
| 637115 | UHSS/AluCut side cutter | 2 pcs | Ø 40 × 4.4 mm |
| 637116 | Spindle (Mandrel) for AluCut | 1 stück | Ø 6 mm |
| Total | Set | 1 set |
| Property | Value |
|---|---|
| Part number | 637117 |
| Diameter (Ø) | 40 mm (milling insert) |
| Width | 4.4 mm (milling insert) |
| Spindle Diameter | 6 mm (mandrel) |
| Material composition | HSS (High-Speed Steel), Steel |
| Weight | 0.109 kg |
| Field of application | Machining of UHSS and aluminum body panels |
The elements of the set are also available separately as accessories if replacement or further use is required:

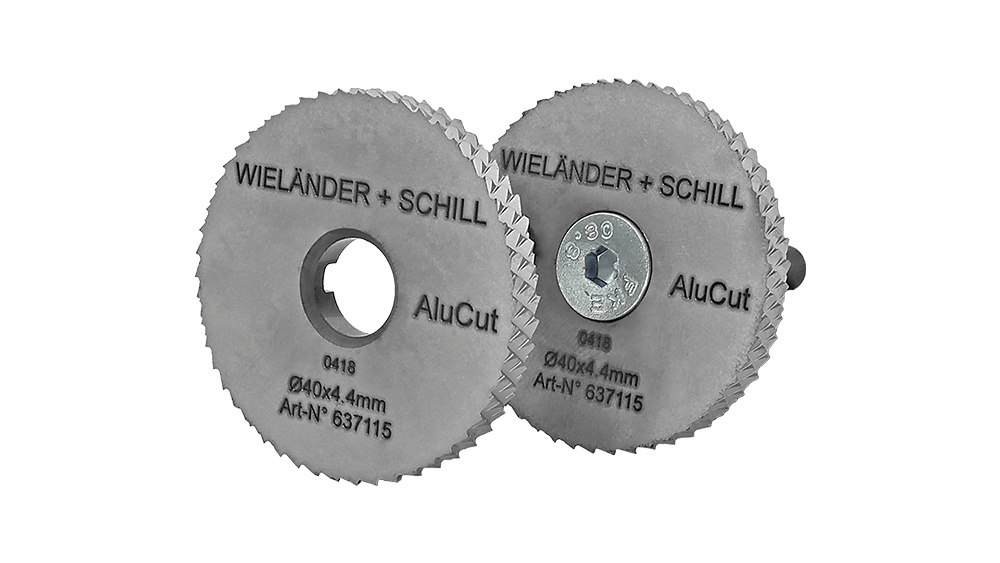

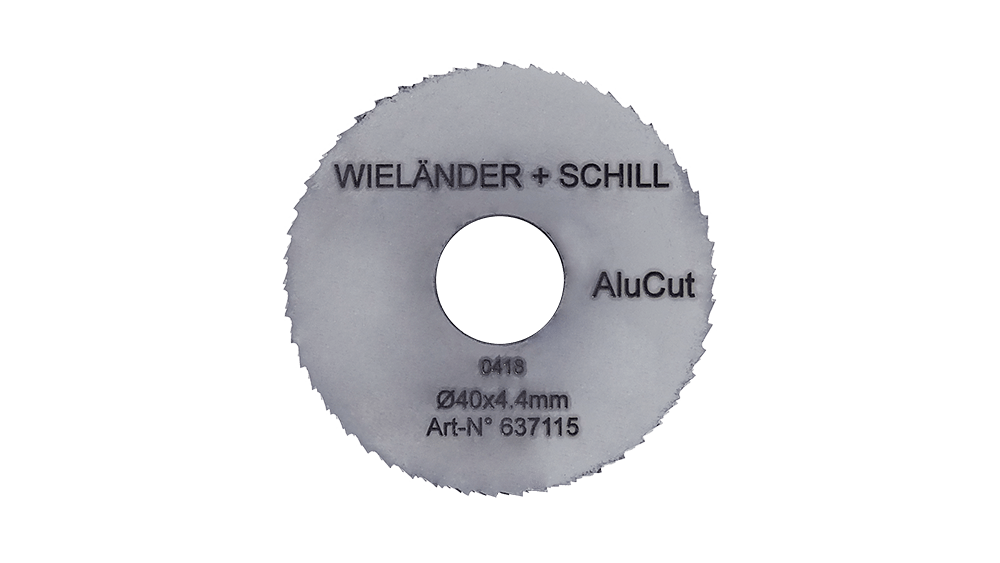

This milling insert is a key component of the set, performing excellently during the processing of both steel and aluminum body panels. It guarantees outstanding tool life and efficiency even with the hardest materials.
Part number: 637115
Dimensions: Ø 40 mm diameter, 4.4 mm width.

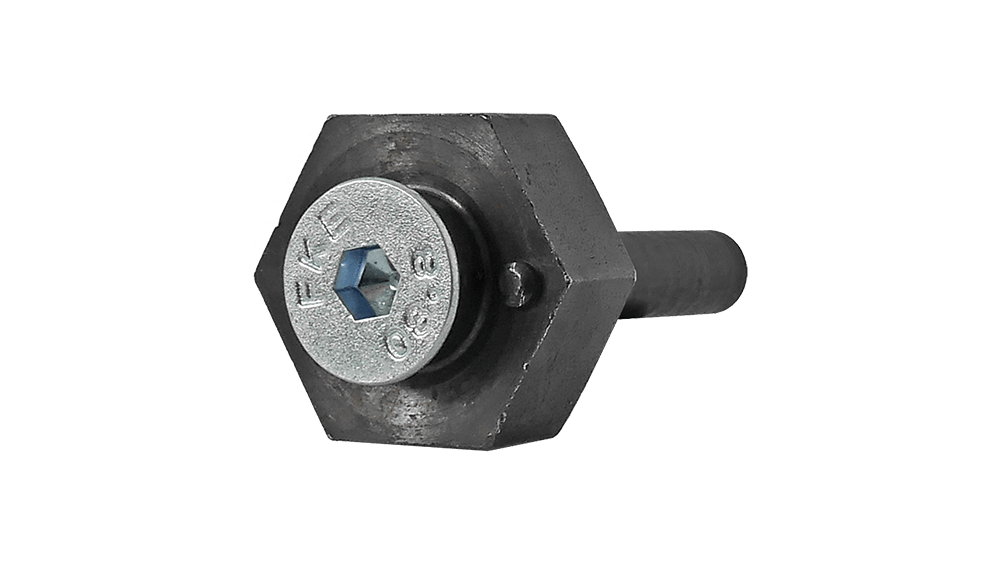

This special arbor ensures the precise and secure mounting of the AluCut milling inserts onto the drive tool. The 6 mm diameter shank fits standard grinding spindles.
Part number: 637116
Dimensions: Ø 6 mm diameter.
More detailed information about the product, including user guides and product brochures, can be found in the following documents:
Product Information (German): Downloadable brochure for details in German.
Product Information (English): Downloadable brochure for details in English.
This UHSS/AluCut side milling set is part of the professional tool range from Wieländer+Schill, offering reliable and durable solutions for body repair specialists when machining the latest high-strength materials.
