Part number: 700349
This professional tool set, belonging to the Wieländer+Schill XSeries product line, has been specifically developed for Flow Form Rivet (FFR) Developed for the preparation phase of rivet installation. The set supports the punching, material forming, and calibration process, ensuring a perfect fit and optimal quality of the rivet connection.
The tool set consists of durable components meeting the highest quality requirements, which guarantee precise and repeatable results during body repair work.
The combined use of K3 and K4 tools is essential for the proper installation of FFR rivets with a diameter of 8.0 mm. The process consists of two main steps, which are realized by the two separate elements of the set:
Punching (K3): The K3 punch precisely prepares the hole with the desired diameter.
Forming and Calibration (K4): The K4 forming head then gently shapes the material around the hole and calibrates the hole edge, allowing the Flow Form Rivet to optimally adhere and fasten to the body panels.
This two-step process ensures that the mechanical strength and durability of the rivet joint comply with strict OEM (Original Equipment Manufacturer) specifications.

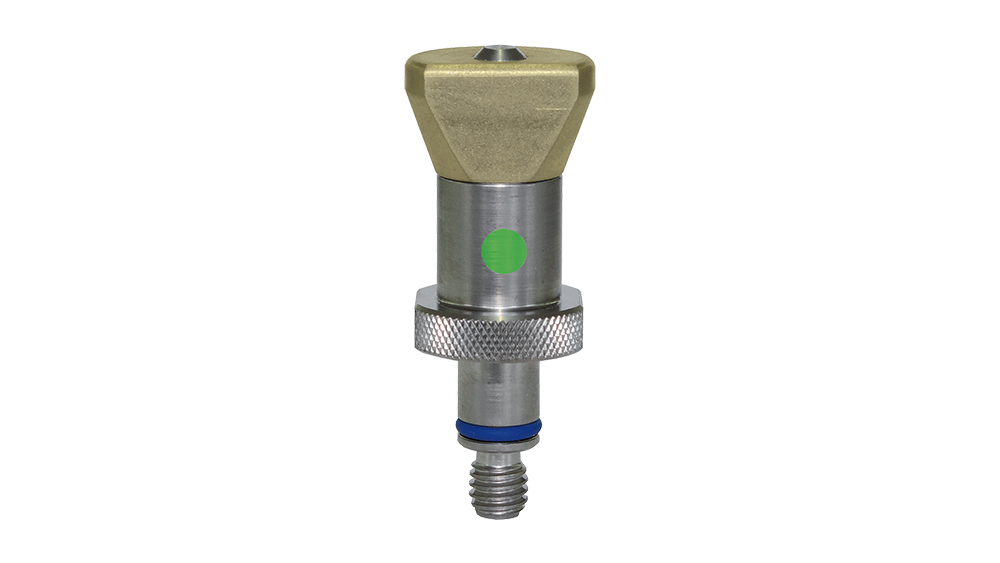

The set with part number 700349 contains the following, perfectly coordinated components:
| Component | Part number | Description | Function |
|---|---|---|---|

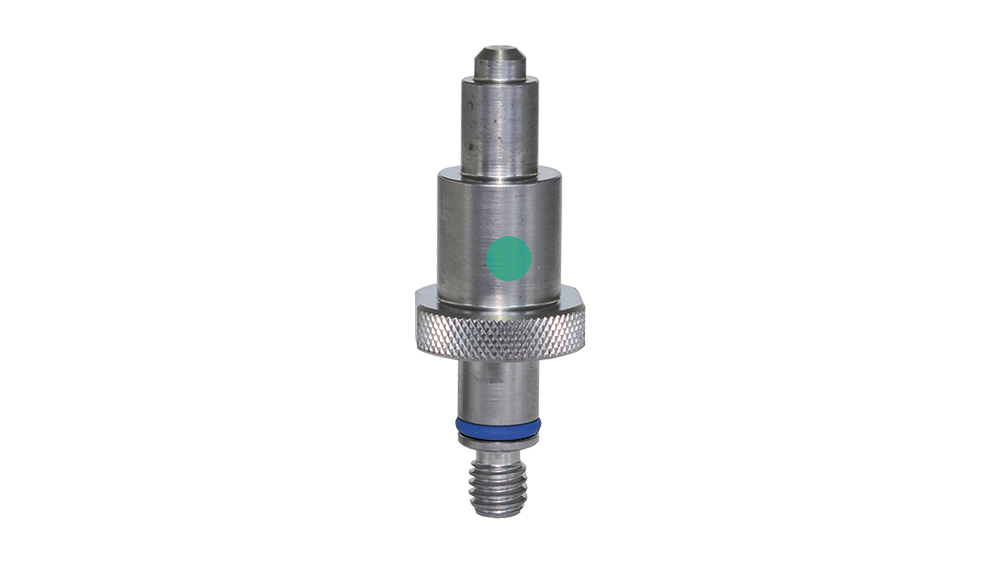

| K3 Punch | 700318 | Ø 8 mm diameter punch tool | Precise creation of the rivet hole. |

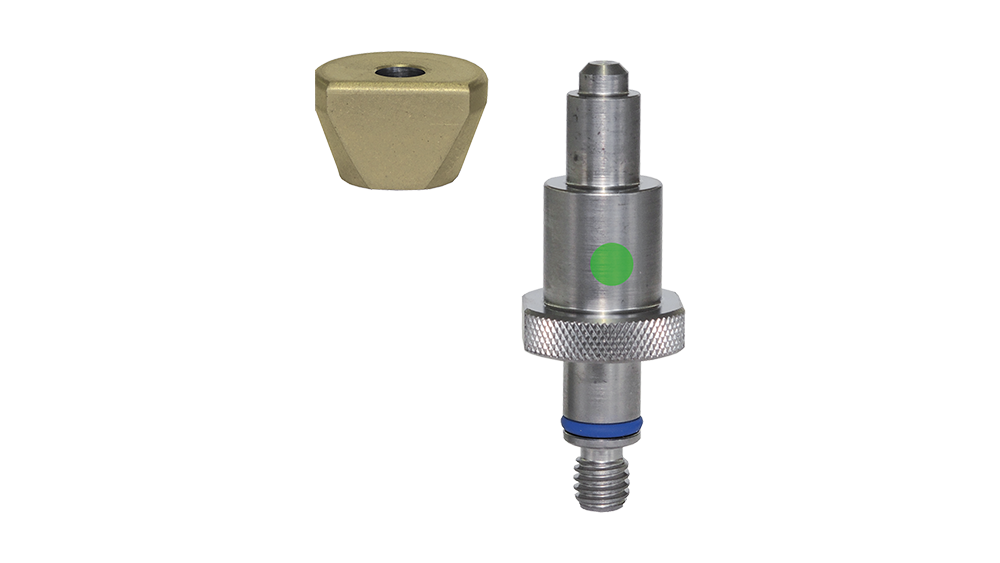

| K4 Forming Head | 700298 | Ø 8 mm diameter forming head | Forming the material around the hole and preparing for rivet insertion. |
This tool set was developed as part of the professional riveting technology (XSeries) from Wieländer+Schill. The tools are made from high-quality steel, which guarantees a long service life and continuous, reliable performance even under heavy use.
Main Technical Parameters:
Area of application: Installation of Flow Form Rivet (FFR) rivets.
Rivet Diameter (Nominal): 8.0 mm
K3 Punch Diameter: Ø 8 mm
K4 Forming Head Diameter: Ø 8 mm
Compatible System: XSeries Professional Riveting Technology
To maximize efficiency and extend the service life of the tools, the use of the following separately available accessories is recommended:
Part number: 700318
Detailed Description: This precision punch ensures clean and accurate hole starting, minimizing the risk of damaging the sheets during punching. The tool design is optimized for automotive body materials.
Part number: 700298
Detailed Description: The forming die is responsible for the fine machining of the material around the hole, which is critical for the optimal fastening of the FFR rivet. The calibration function ensures a perfect fit to the rivet neck.
By using the Wieländer+Schill K3/K4 tool set, users can enjoy the following benefits:
OEM Compliance: The tools are designed to meet the highest quality and safety standards required by modern vehicle manufacturers.
Long Lifespan: Thanks to the high-quality, wear-resistant materials, the tools maintain their accuracy over long distances.
Efficiency: The two-step, dedicated process makes FFR riveting operations faster and more reliable.
Precision: The tools are manufactured with tight tolerances, which guarantees the unimpaired integrity of the rivet connection.
This set is an essential tool for professional body repair shops, ensuring the quality and durability of the repairs.
