The AC 06 pneumatic disc cutter is part of the Wielander + Schill selection, belonging to the category of severing tools. This high-performance, air-operated device is ideally suited for precise cutting tasks, especially in the automotive and sub-industry sectors. For safe operation, it is equipped with a built-in protective cover that minimizes the risk of accidents during high-speed operations.
This tool was designed with the needs of professional users in mind, combining reliability, durability, and ease of handling. The use of high-quality materials guarantees a long service life, even under intensive workshop conditions.
The AC 06 disc cutter is an ideal choice for applications where fast, clean, and controlled material removal is required.
Safe Operation: The integrated safety guard provides essential protection against contact with the rotating cutting disc, increasing user safety.
High-Speed Performance: The maximum speed of 20,000 revolutions/minute enables extremely efficient material removal.
Ergonomic Design: Weighing only 0.800 kg, it is easy to maneuver, reducing user fatigue during longer work sessions.
Pneumatic Drive: Operation with compressed air ensures continuous, consistent performance and the compact size of the tool.
Quality Material Use: The combination of aluminum (Alu), steel, and plastic (Kunststoff) creates an optimal balance between the tool's weight and robustness.
The table below details the specifications of the Wielander + Schill AC 06 disc cutter:
| Property | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | 631020 | – | Product Identifier |
| Drive type | Pneumatic | – | Pneumatically operated |
| Operating pressure | 6 – 8 | bar | Optimal Operating Range |
| Air consumption | 0,170 | m³/min | Average consumption under load |
| Speed (Max.) | 20000 | RPM (revolutions/min) | No-load speed |
| Weight | 0,800 | kg | Low weight for comfortable use |
| Length | 187 | mm | Total length of the tool |
| Dimensions (L x W x H) | 200 x 90 x 70 | mm | External dimensions |
| Materials | Alu, Aluminium, Plastic, Steel, Kunststoff | – | Main materials used |
| Air quality | ISO 8573-1 | – | Appropriate air quality standard |
| Mark of conformity | CE/RoHS | – | Compliance with European standards |
| Package Contents | 1 darab | piece / piece | Basic packaging |
To maximize the lifespan of pneumatic tools, ensuring proper air supply and regular maintenance are essential. To achieve optimal performance of the AC 06 disc cutter, it is advisable to consider the following aspects:
The tool operates at a working pressure between 6 and 8 bar. Excessive pressure can lead to premature wear and damage of the tool. Therefore, the use of a pressure reducing valve in the air line is strongly recommended.
The air used in pneumatic systems must comply with the ISO 8573-1 standard. Proper lubrication is essential to protect the internal mechanisms of the tools.
To utilize the full potential of the disc cutter and ensure efficient system operation, we recommend the following accessories that provide stable pressure, proper lubrication, and quick connection:
Avoiding excessive operating pressure is crucial for extending the service life of pneumatic tools.

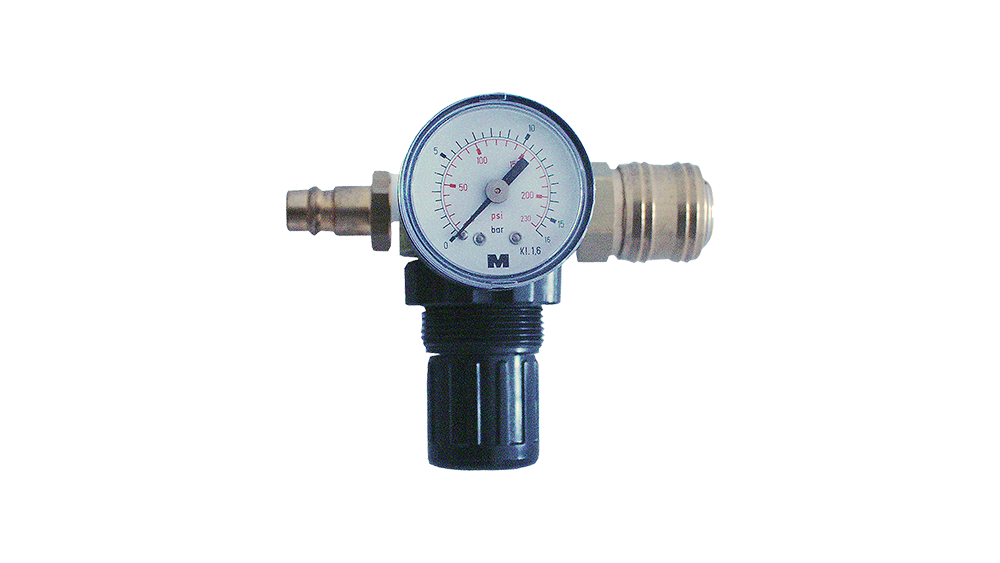

Universal Pressure Reducer (Part No.: 698007): A general-purpose solution for pressure regulation.

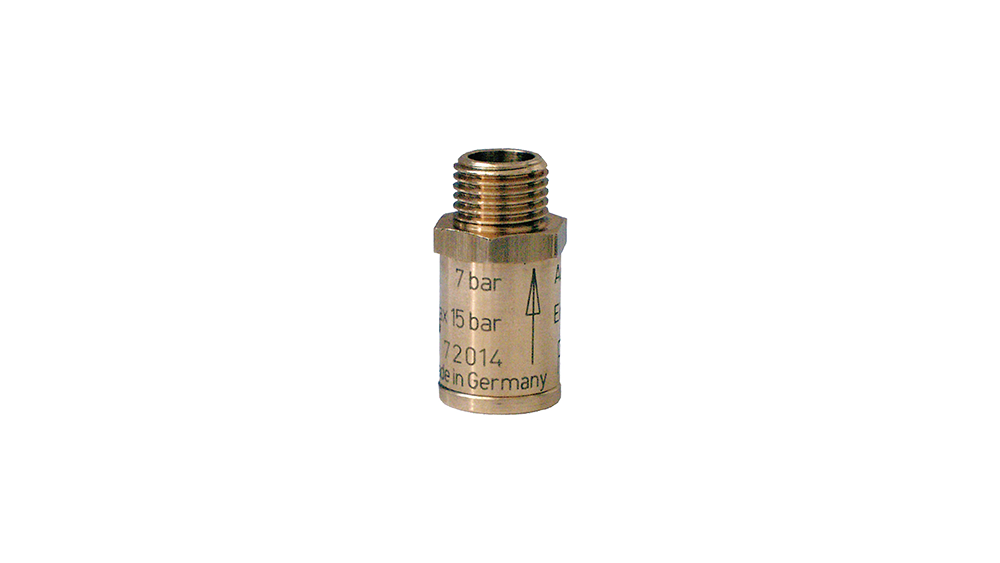

Pressure Reducing Valve (7 bar) (Part No.: 194000): Specifically recommended for body grinders, but also excellently applicable to the disc cutter, guaranteeing a precise 7 bar pressure. This valve cost-effectively protects the tool from damage.
Regular oiling is essential to reduce internal friction in pneumatic tools and prevent corrosion.
The special oil ensures the best protection and performance.

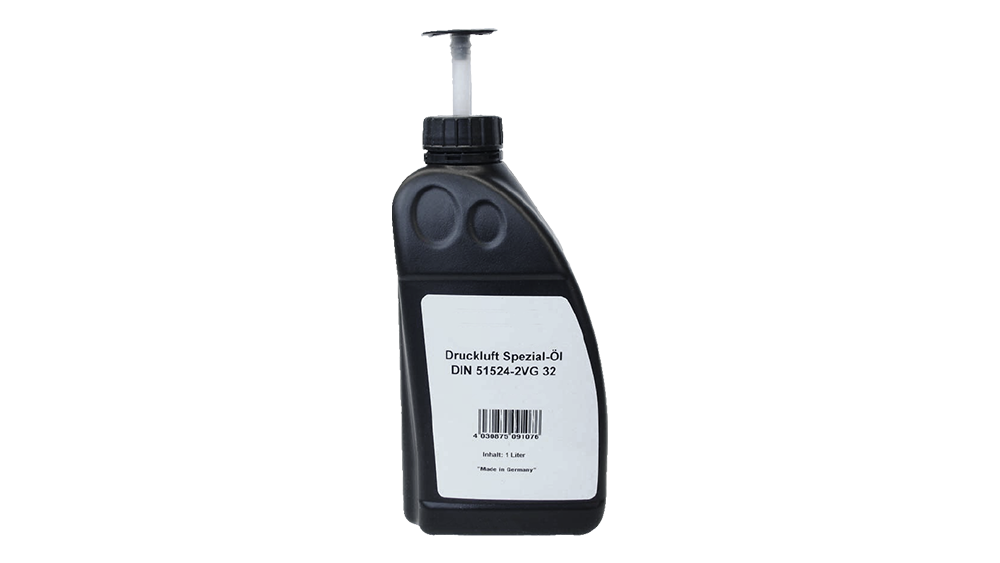

Pneumatic Special Oil (1000 ml) (Part No.: 698001):
Quality: Developed specifically for air lubrication devices and maintenance units, it complies with the DIN 51524-2 standard.
Viscosity: Viscosity of 32 mm²/s at 40 °C, which corresponds to the viscosity class VG 32 according to ISO 3448.
Power: It exceeds the basic requirements for HLP type hydraulic oils, ensuring reliable and high-performance operation.
Protection: It has high aging resistance and active protection against corrosion and wear, guaranteeing long-term, trouble-free operation. Excellent viscosity-temperature behavior is maintained even at low temperatures, and it possesses outstanding water separation properties.
The following elements are necessary for quick and secure connection:

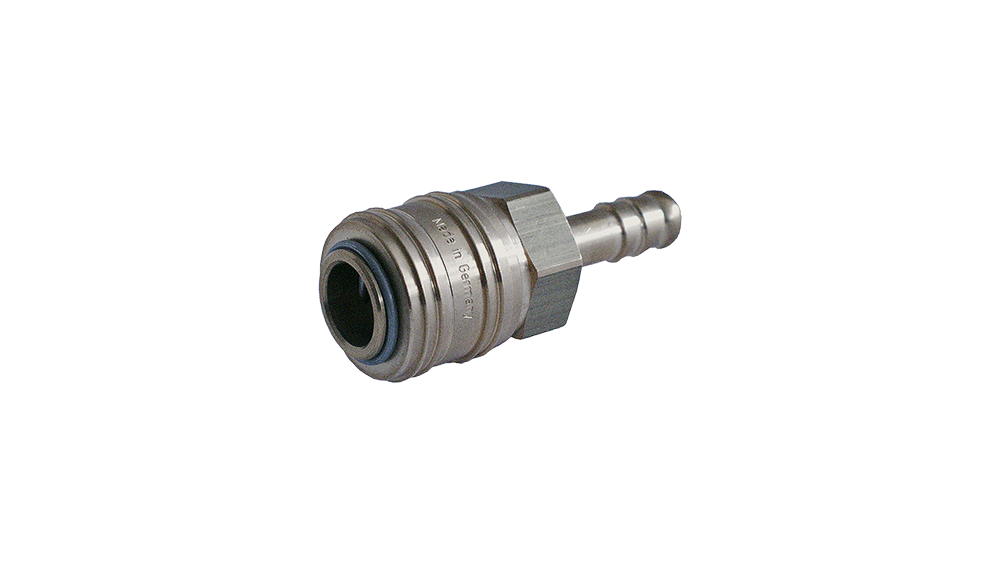

Quick Connector for Compressed Air (Type 26, 9 mm) (Part No.: 697002): The standard, quick connection solution.

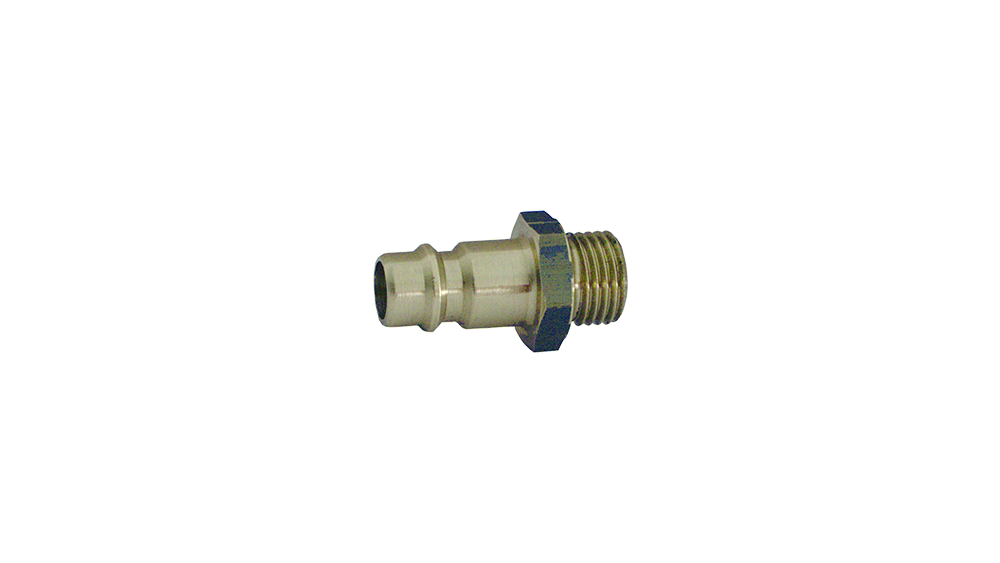

Air fitting Nipple (Type 26, DN 8, G 1/4″) (Part Number: 697003): Nipple suitable for the quick connector, ensuring a leak-free connection between the tool and the air hose.
The AC 06 pneumatic disc cutter, complemented by the appropriate maintenance and safety devices, offers a professional solution for the most demanding separation tasks.
