Product Identifier: 700337
This detailed description presents the specific data and characteristics of the F3 extension pin (Extension) designed for the Wieländer+Schill XSeries professional riveting technology. This component is a crucial accessory for precise and efficient body repair work, especially during riveting and pressing processes where standard tools have limited reach.

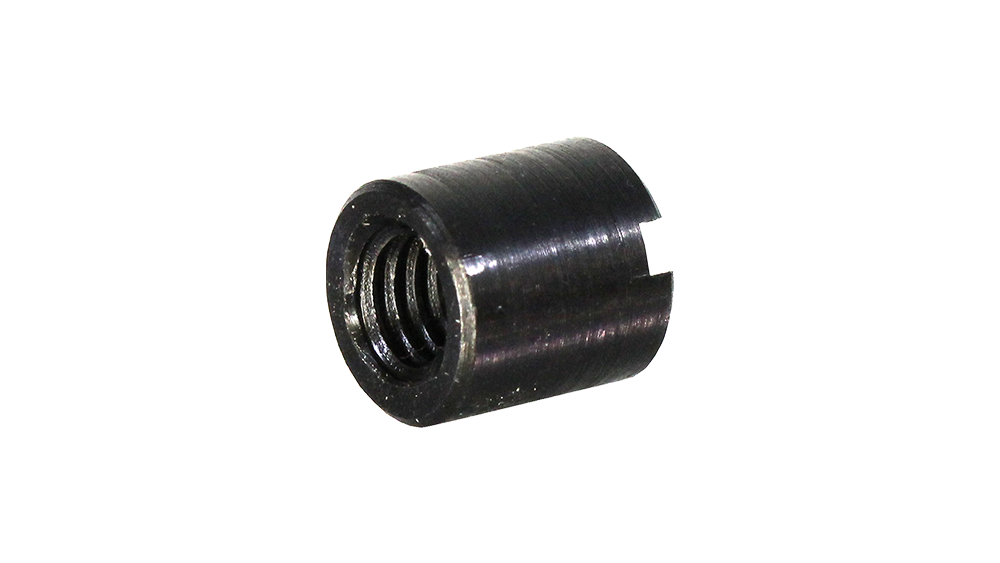

The F3 extension pin (part number 700337) is designed for the XSeries professional riveting technology systems. Its main function is to increase the reach of the tools, enabling users to perform precise riveting or pressing operations even in hard-to-reach areas. The 26 mm length offers an optimal compromise between increased reach and stability.
This accessory is essential for modern auto repair shops where vehicle structural elements are increasingly complex and require specialized tools for the professional fastening of body components.
The product is made from high-quality materials, ensuring long service life and reliable performance even in high-demand workshop environments.
| Property | Value | Note |
|---|---|---|
| Product Family | XSeries – Professional Riveting Technology | Compatible with F3 systems. |
| Product Type | Extension Pin (Extension) | Used to increase the working distance. |
| Part number | 700337 | Unique identifier for ordering and identification. |
| Length | 26 mm | The extension of the accessory. |
| Dimensions (Length x Width x Height) | 18 x 16 x 36.5 mm | The physical extent of the pin. |
| Compatibility | F3 systems | Optimized specifically for the F3 series. |
The dimensions of 18 x 16 x 36.5 mm reflect careful design, ensuring that the extension pin fits into the tool body with minimal backlash, guaranteeing precise force transmission and stable operation. The 26 mm length provides sufficient reach for access to most internal body elements without drastically reducing tool manageability.
Although the exact material composition is not listed among the provided data, Wieländer+Schill products are typically characterized by the use of high-strength, wear-resistant steel alloys that withstand high compressive forces and continuous mechanical stress, which is essential in riveting technology.
This extension pin is an integral part of the XSeries offering, which includes various tool heads, dies, punches, and extrusion mandrels. Compatibility is ensured with the appropriate F3 tools.
For maximum flexibility and full repair capability, the following accessory is recommended alongside the 700337 extension pin:
| Add-on | Part number | Description |
|---|---|---|
| Threaded Sleeve M6 | 700786 | This Threaded Sleeve M6 is likely a fundamental element required for securing the extension pin or for changing the tool head, ensuring a stable connection to the main tool base. |
Note: Login to the webshop is required to view prices and exact availability.
Wieländer+Schill is committed to the highest quality standards, which are also verified by the following certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These standards guarantee that stringent quality control processes are applied during the manufacture of the F3 extension pin, ensuring the product's consistent and reliable performance during professional use.
This 26 mm extension pin is a small but critical component that significantly increases the versatility and efficiency of the XSeries riveting systems in body repair work.
