This detailed product description presents the high-quality electrode kit offered by Wieländer+Schill, specifically designed for body repair work, manufactured according to OEM (Original Equipment Manufacturer) specifications recommended for BMW vehicles. This kit is essential for precise and durable spot welding tasks, especially when working with C-arm welding guns.

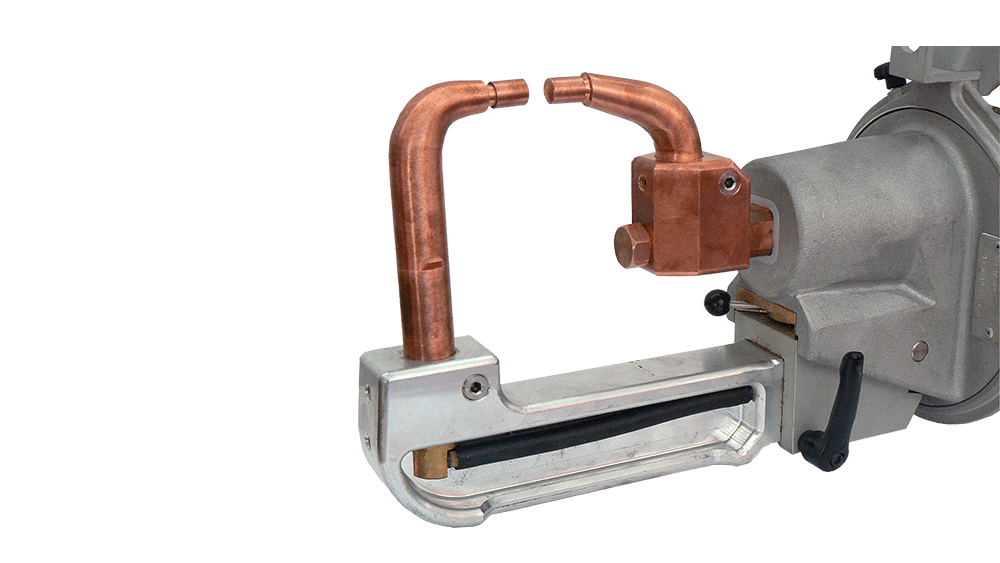

The Electrode Kit No. 9, 38° Angle (Item No.: BMWA9500743) is a special assembly developed to ensure efficient and reliable body panel connections. The kit includes the necessary electrodes, holders, and fasteners for Unit No. 1 of the C-arm welding system. The 38° angle design optimizes access to hard-to-reach areas, while the 16 mm electrode caps ensure proper contact surface and welding quality.
This product belongs to the accessories category for Wieländer+Schill professional riveting technologies and closely aligns with the repair procedures specified by BMW.
OEM Compatibility: Specifically developed to meet the repair requirements of BMW vehicles, guaranteeing a factory-quality welding result.
Optimized Geometry: The 38° angled design allows access to weld spots in locations where right-angle or straight electrodes cannot be used.
Durable Material Use: The electrodes are made of Brass, which ensures excellent electrical conductivity and a long service life, minimizing wear and the frequency of replacement.
Komplett Készlet: The package includes all necessary components for quick and professional installation and execution of work.
The precise specifications of the product ensure compatibility and reliable performance in a professional workshop environment.
| Property | Spezification | Note |
|---|---|---|
| Part number | BMWA9500743 | Factory Identifier |
| Product Name | Electrode Kit No. 9, 38° | |
| Application | C-Arm Welding Gun (Unit No. 1) | BMW Specification |
| Electrode Angle | 38° | Special Access |
| Electrode Cap Size | 16 mm | |
| Content | 1 set | Full Set |
| Material | Brass | Excellent Conductivity |
The kit contains the following items, ensuring a complete replacement or installation option:
495646 Electrode Kit No. 12: This is the main component, containing the electrodes designed at a 38° angle.
495627 Electrode Holder: The holder component ensuring stable fastening.
495694 O-rings and Studs: Set of three pieces (PU: 3 pcs) for sealing and fastening.
495693 Stud: Fastening element specifically for electrode sets number 7 and 9.
This electrode set is an indispensable tool in modern automotive repair, especially for body parts where spot welding is essential to maintain structural integrity. The choice of brass material is not accidental: this alloy possesses optimal thermal conductivity, which results in uniform weld seams while resisting high temperatures and mechanical stress.
The quality of Wieländer+Schill products is also supported by the ISO 9001 (Quality Management System) and ISO 14001 (Environmental Management System) certificates, which guarantee continuously high-level production processes. The product also meets the strictest professional requirements.
Important Note: The product is designed for professional body repair shops, and for the best result, its use is recommended with the appropriate C-gun welder and the parameters specified by the manufacturer. The set contents are sufficient to replace one complete unit (1 set).
