The Wielander + Schill WS 60 Workstation (Work Station WS 60) a professional, mobile workstation specifically designed for body repair tasks, especially for dent repair. This 400 V system combines versatility, precise control, and efficiency, ensuring excellent quality repair results without damaging the vehicle's material or paint.
The WS 60 is not just a welding machine; it is a complete, flexibly usable system that integrates numerous functions into a single, easily movable unit.
The design of the WS 60 Workstation is tailored to the needs of modern workshops, maximizing productivity and user comfort:
Versatile Functionality: The basic functions of the device include annealing (annealing) and spot welding (welding), which allow for handling various repair scenarios.
Intuitive Operation: The user-friendly display clearly shows all settings, simplifying the control of complex welding processes.
Custom Control and Programming: One of the key advantages of the WS 60 is that each welding task can be programmed and controlled separately. This feature guarantees maximum flexibility and precision even during the most sensitive repairs.
Autonomous Modes: The device supports both automatic and manual welding modes, which can be controlled independently of each other. This allows the user to choose the most suitable mode for the task.
Optimized Welding Parameters: The welding time and amperage can be adjusted individually, which is essential for achieving optimal bonding results.
Perfect Welding: The specially designed, soft welding process prevents damage to alloys and internal plating, thus significantly increasing the quality and durability of the repair.
Simultaneous Use of Two Devices: A two Dinse connectors enables the simultaneous connection and use of two different devices without needing to constantly reconnect them. This significantly increases efficiency and saves time in the workshop.
The reliable performance of the WS 60 Workstation is guaranteed by carefully selected technical parameters:
| Parameter | Value |
|---|---|
| Part number | 352060NV |
| Mains Voltage | 400 V |
| Frequency | 50 Hz |
| Fuse | 16 A (slow blow) |
| Dimensions (Length x Width x Height) | 240 x 465 x 295 mm |
| Material | Steel |
| Operating Temperature | Between -10 °C and 40 °C |
| Weight | 24 kg |
For complete execution of work, the WS 60 Workstation is shipped with the following essential accessories:
1 pc WS 60 Transformer (the basic unit)
1 pc 352062 Trolley for the WS 60 Workbench
1 pc 351070 Welding Gun PSP 60 (with control cable, 2 m)
1 pc 358037 Stud Welder (1100 g)
1 pc 358000 Sorting Box (for Workstation WS 20/60 accessories)
1 pc 507030 Wiggle wire – 10 pcs
The flexibility of the WS 60 system is further enhanced by a wide range of compatible accessories that meet the special requirements of dent repair and semi-industrial work.

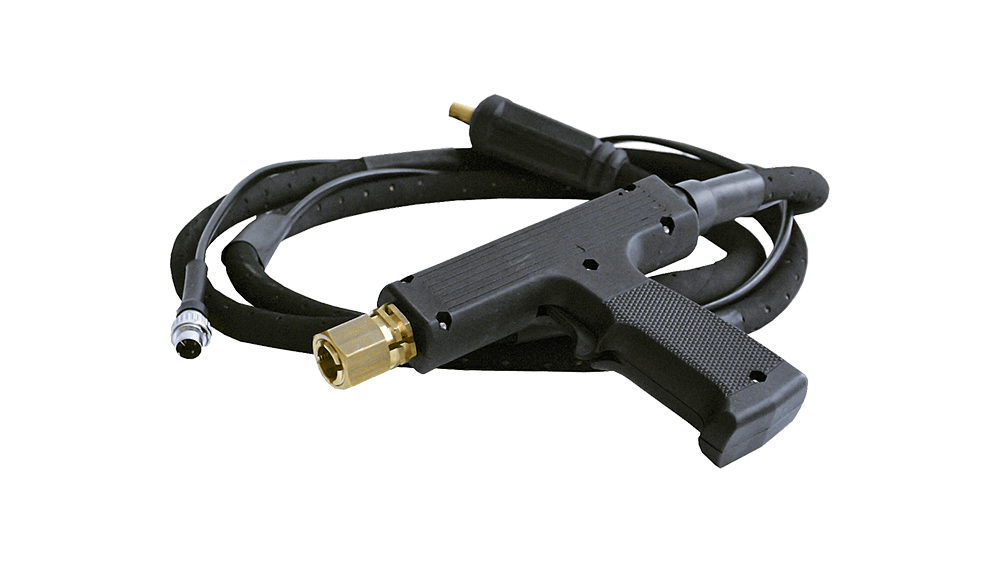

A 351070 Welding Gun PSP 60 (with 2 m control cable) ideal for the following operations:
Welding studs, screws, washers, and wiggle wires.
Sheet metal embossing.
Work with carbon electrodes.
The nozzle is compatible with the WS 20, WS 60 workstations, as well as the AP 95 Transformer.
A number of special tools are available for efficient work, which increase the spectrum of repair possibilities:

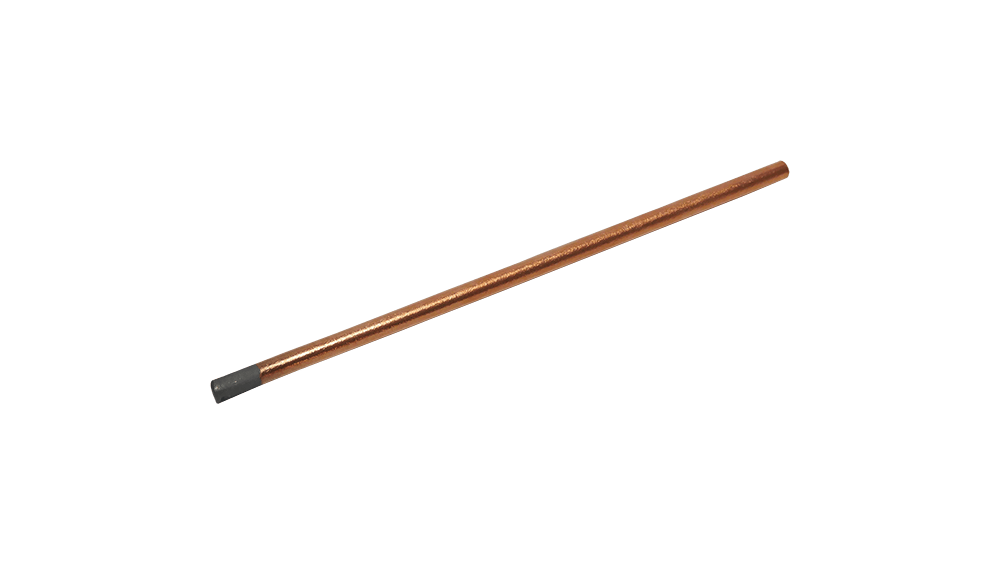

Carbon electrode (Ø 10.0 mm, Part No: 297108): Used for pulling up and pulling down sheet metal, compatible with single-sided spot welding guns. Length 300 mm.

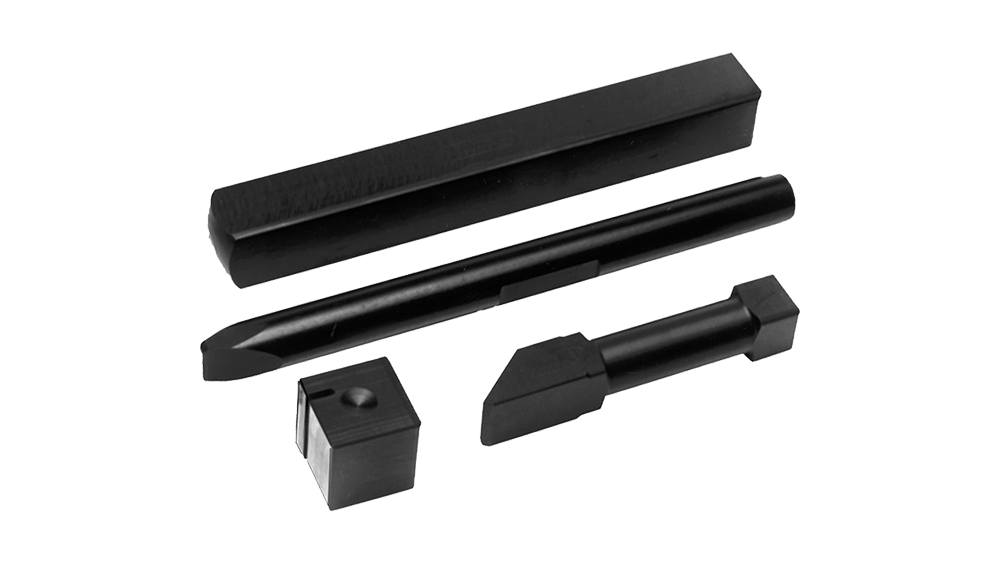

Dolly WS 93 Dent Repair Kit (Item No.: 582001): Ideal for dent repair on hard-to-reach surfaces and heavy-duty sheets. Contents: Powerful dent pulling block, lightweight cup rod, universal cube, and special profiles.
Multifunctional Stud Welder (Item No.: 351080): Enables fast dent repair on triple-layer sheets and is also suitable for welding weld wire. Can be extended with additional contacts for welding U-attachments and T-bolts.

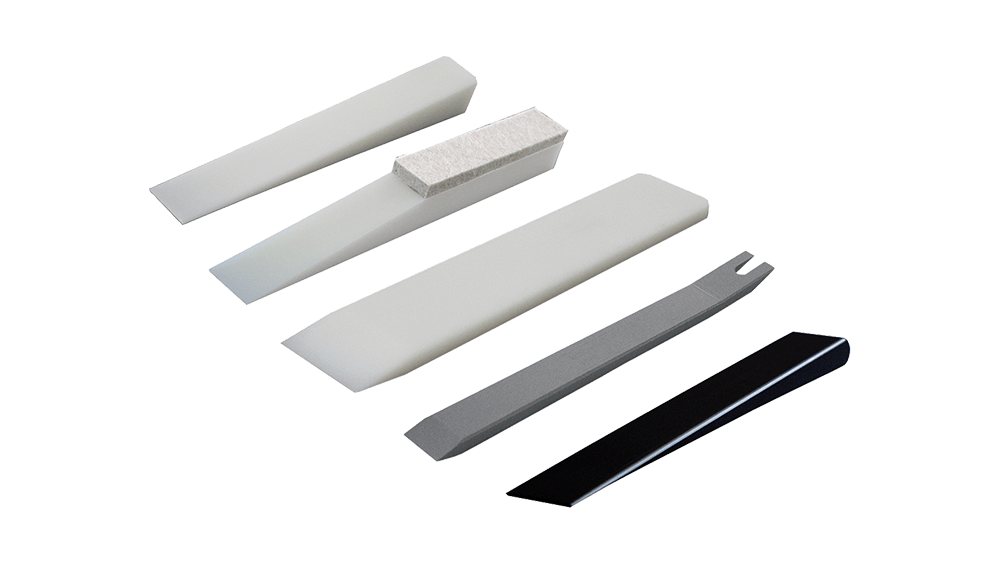

Trim and Fastening Wedges (5-piece set, Item No.: 581100): Heat-resistant wedges made of special plastic that allow for fast and damage-free removal of decorative strips, window, and door trims. They protect paint, plastic, and metal parts.

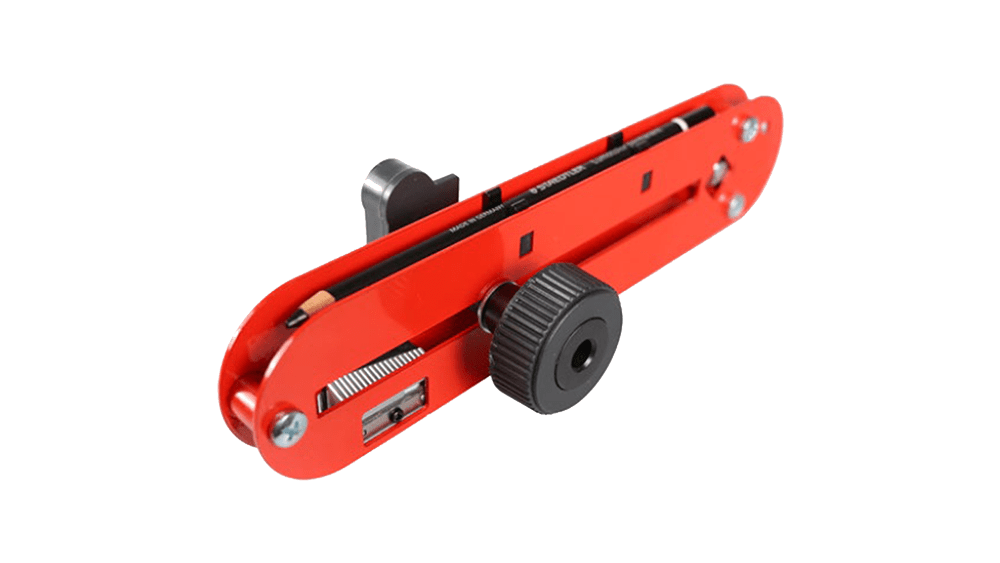

Line Marker with Graphite Pencil (Item No.: 871015): For precisely restoring the original body lines of the vehicle.
The Wielander + Schill WS 60 Workbench offers a reliable, comprehensive solution for body repair specialists, guaranteeing precise, fast, and material-saving work.
