The wide range of PIUSI AdBlue® connectors offers an ideal solution for every application context, manufactured exclusively from materials compliant with the ISO 22241 standard. These connectors ensure the safe and reliable transfer of AdBlue® (DEF – Diesel Exhaust Fluid) in various industrial, logistics, and agricultural environments.
PIUSI is committed to quality and compliance with standards, which is why AF2 or SEC type materials are used during the manufacture of AdBlue® connectors, guaranteeing compatibility with the fluid and long service life.
PIUSI AdBlue® connectors offer users the following key advantages:
Standards Compliant Construction: Every connector complies with ISO 22241 requirements, which is essential for ensuring AdBlue® quality and damage-free operation of vehicles.
Versatile Designs: Connectors of various shapes and sizes are available to perfectly fit any existing equipment or system.
Perfect Compatibility: Specifically designed to work flawlessly with all types of AdBlue® transfer equipment (pumps, hoses, tanks).
Wide Range of Applications: Ideal solution for garages, agricultural sites, logistics centers, mining and construction areas, as well as general industrial use.
These connectors are exceptionally suitable for fluid handling in the following areas:
| Product Category | Fluid | Application Environments |
|---|---|---|
| AdBlue®/Other Fluids | AdBlue®, Water | Garage Equipment, Agriculture, Logistics, Mining and Construction, Industrial Use |
The PIUSI connector offering is divided into two main material groups: AF2 and SEC. The table below details the specifications and connection types belonging to the different product codes.
The AF2 series offers robust solutions, often for larger diameter connections.
| Product code | Description | Connection Type |
|---|---|---|
| F20189000 | AF2 56X4 BUTTRESS / M 1" | Threaded (Buttress) / Metric 1" |
| F20190000 | AF2 2" BUTTRESS / M 1" | Threaded (Buttress) 2" / Metric 1" |
| F20257000 | AF2 2" BSP / M 1" | BSP 2" / Metric 1" |
| F20258000 | AF2 2" 70X6 / M 1" | 70X6 2" / Metric 1" |

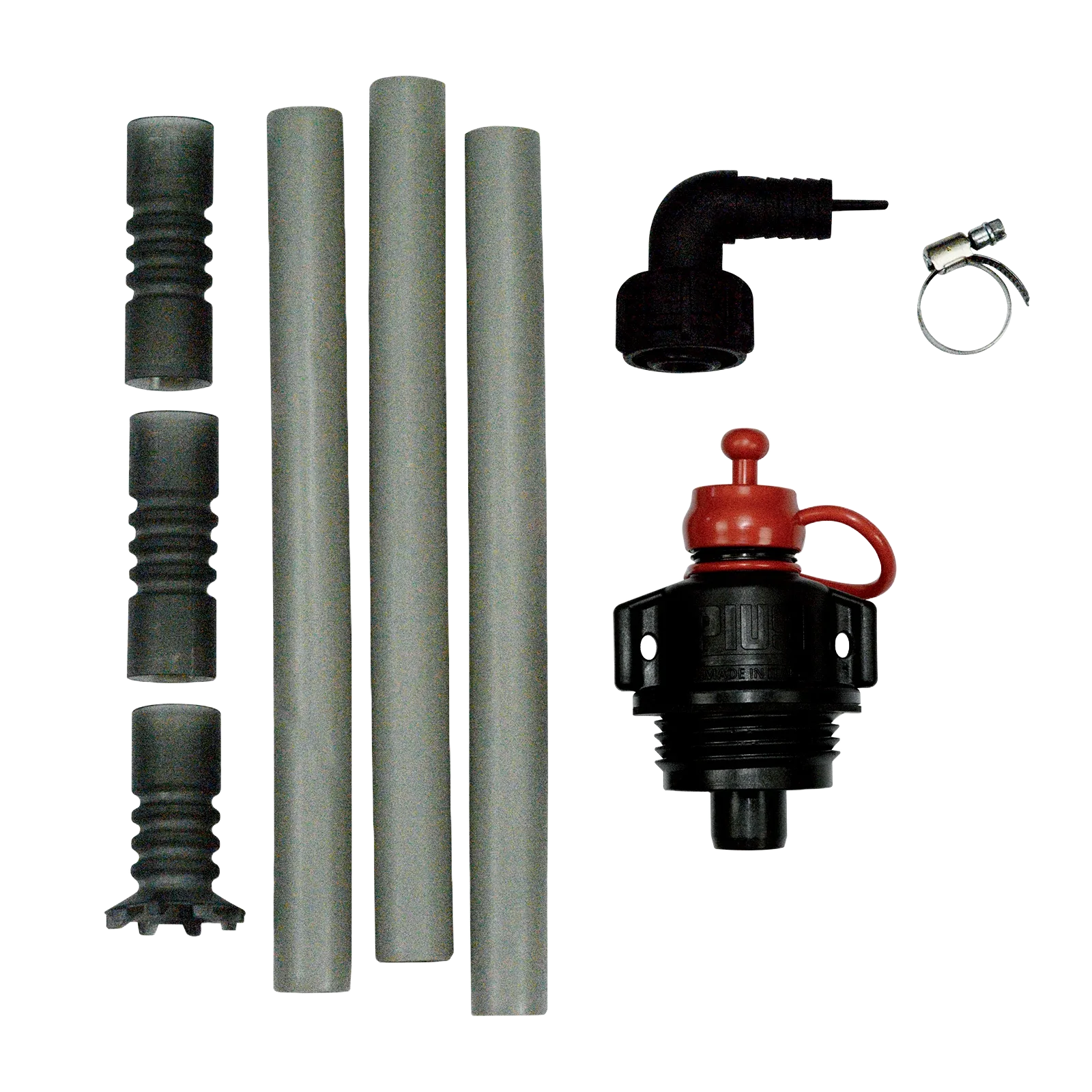

SEC couplings are often used in more standard, smaller diameter systems, including 90-degree hose connectors.
| Product code | Description | Connection Type |
|---|---|---|
| F15339000 | SEC COUPLING / M ¾” | General SEC coupling / Metric ¾” |
| F15452000 | SEC COUPLING + HOSE CONNECTOR 90° M ¾” | 90 degree elbow connector for hose end / Metric ¾” |
The ISO 22241 standard is critically important for handling AdBlue® (carbamide solution). This standard ensures that the fluid does not become contaminated or corrode the connectors or the vehicle's SCR (Selective Catalytic Reduction) system. The AF2 and SEC materials used by PIUSI are chemically resistant to AdBlue®, preventing crystallization and damage to seals.
Buttress (Threaded) Couplings: These couplings allow for quick and secure fastening, especially for large diameter pipes or tanks where fast disassembly and reassembly is advantageous.
BSP (British Standard Pipe) Couplings: Elements equipped with threads according to the BSP standard ensure internationally recognized, reliable sealing when using appropriate thread sealing materials.

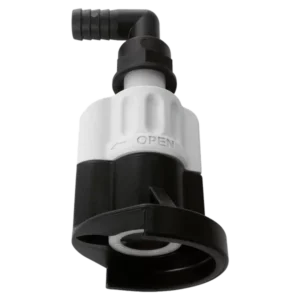

90° Hose Tail Connector: The 90-degree SEC connector is particularly useful in tight spaces or in systems where the hose needs to branch off at an angle, minimizing hose stress and the formation of bending points.
To provide comprehensive support for the products, PIUSI provides detailed data sheets and manuals.
Datasheet Document:
Spare Part and Manual Search:
Based on product codes, necessary spare parts and installation/maintenance manuals can be easily queried, ensuring the continuous operability of the system.
| Product code | Description | Spare parts | Manuals |
|---|---|---|---|
| AF2 F20189000 | AF2 56X4 BUTTRESS / M 1" | Available | Available |
| AF2 F20190000 | AF2 2" BUTTRESS / M 1" | Available | Available |
| AF2 F20257000 | AF2 2" BSP / M 1" | Available | Available |
| AF2 F20258000 | AF2 2" 70X6 / M 1" | Available | Available |
| SEC F15339000 | SEC COUPLING / M ¾” | Available | Available |
| SEC F15452000 | SEC COUPLING + HOSE CONNECTOR 90° M ¾” | Available | Available |
By choosing PIUSI AdBlue® couplings, users guarantee that the AdBlue® conveyance complies with the strictest international quality and safety regulations, thereby minimizing maintenance costs and system downtimes.
