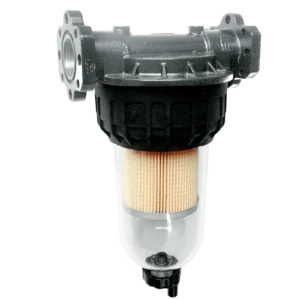

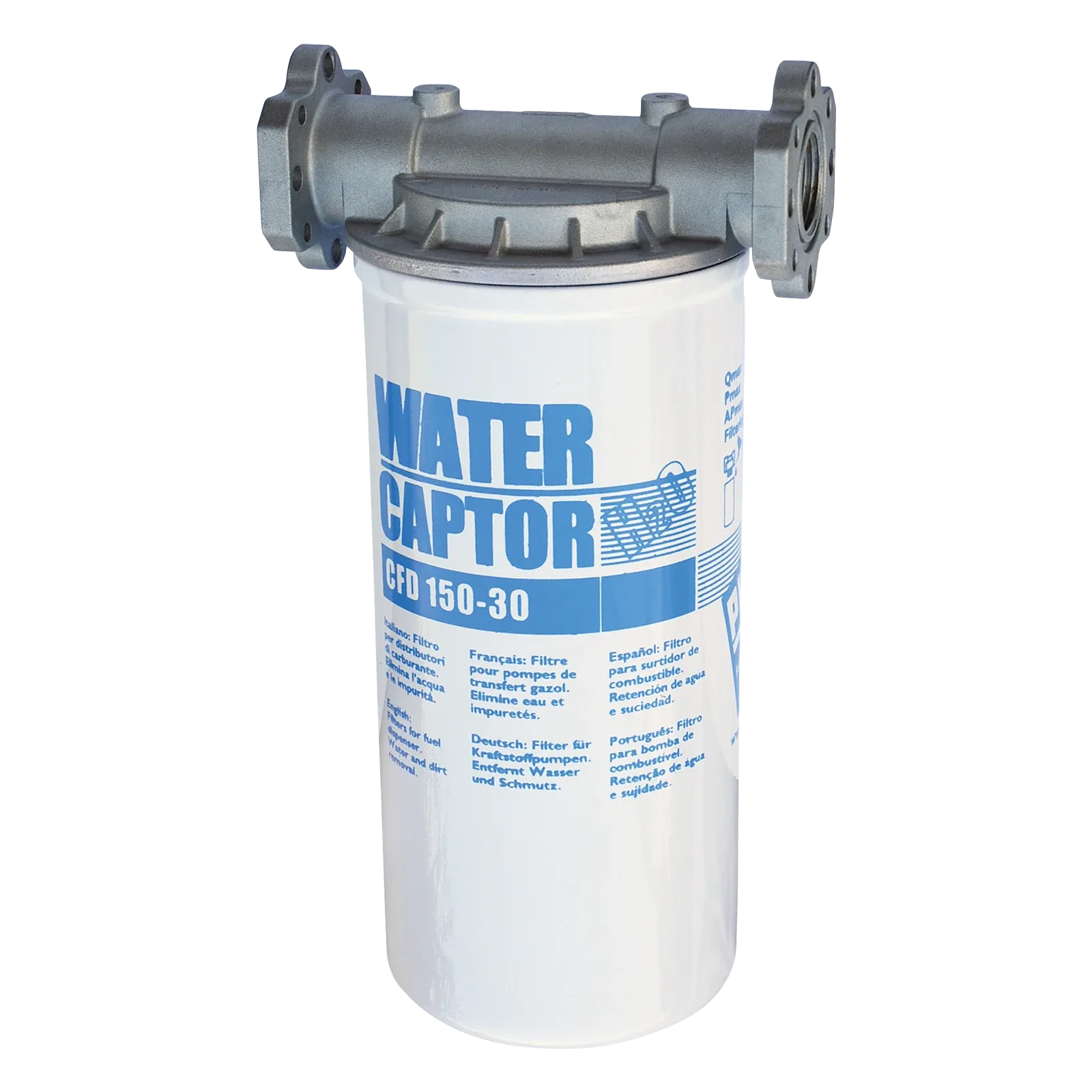

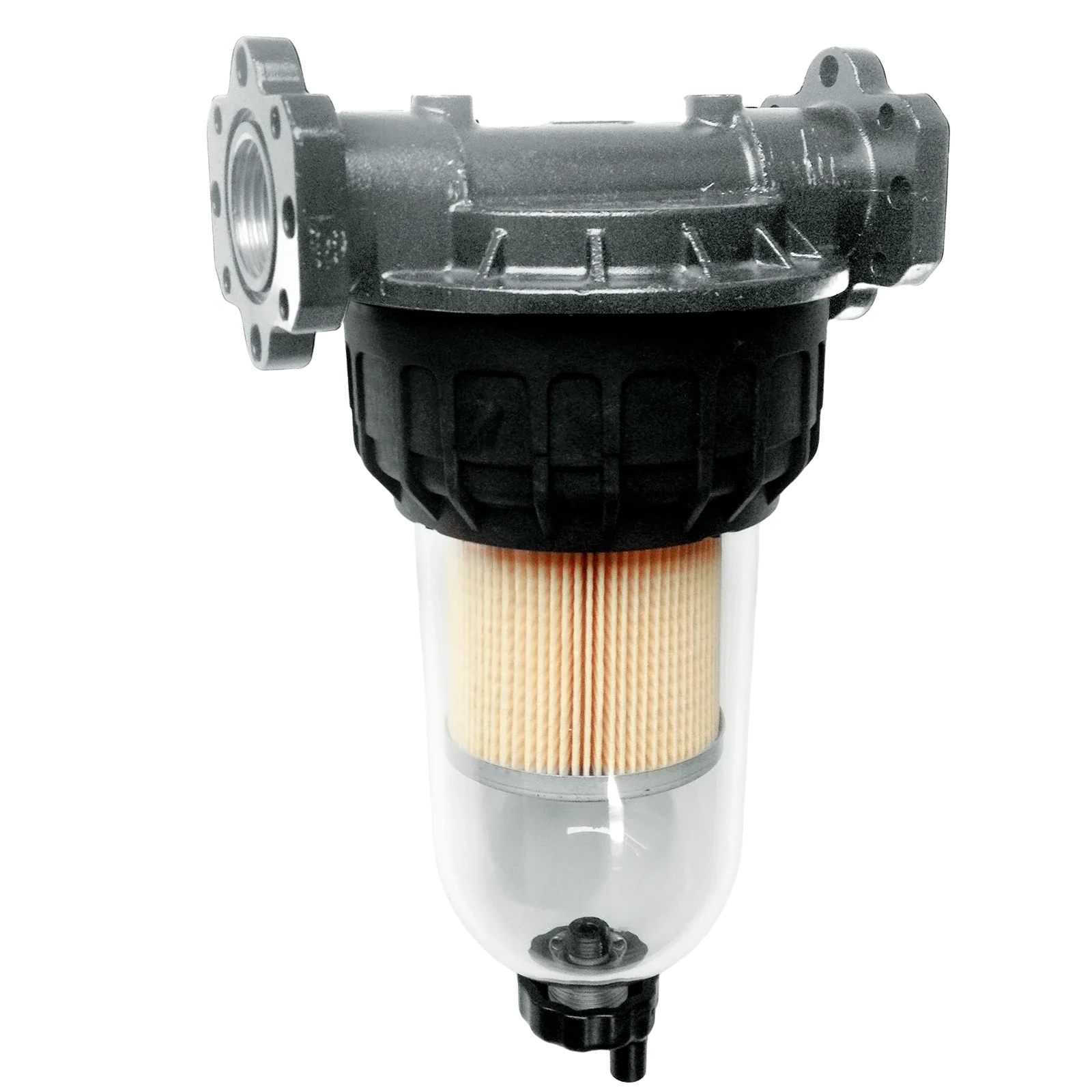

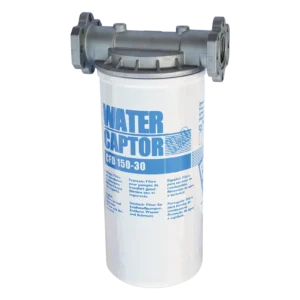

Optimize the protection of your engines with the PIUSI Water Captor diesel water separator filter. This high-quality filter guarantees that the fuel coming from the dispensing stations remains clean, thereby protecting critical engines from damage caused by water contamination. The Water Captor filter is an essential tool for the effective purification of diesel (including HVO/XTL fuels) used in agricultural, logistics, mining, construction, industrial, and marine applications.
The Water Captor filter is a filter equipped with a water-coalescing element, providing basic protection for engines when dispensing diesel fuel at a station. This type of filter characteristically separates and absorbs any water present in the pumped diesel.
Engine Protection and Fuel Cleanliness:
The main function of the filter is to remove water from the fuel, which is essential for ensuring the long service life and reliability of modern diesel engines. The presence of water can cause serious damage to the fuel system and the engine.
Water-Absorbing Element:
The filter uses water-coalescing (water-absorbing) cartridges. As the filter absorbs water, its filtration capacity gradually decreases, resulting in an increase in the pressure drop across the filter. This phenomenon is a clear warning signal that the filter needs to be replaced. Fully saturated (water-filled) filters must be replaced immediately for maximum performance and protection.
Compact and Efficient Design:
Despite its small size, the device ensures high efficiency, allowing it to be easily integrated into existing fuel dispensing systems.
Replaceable Components:
The filter element is replaceable, offering an economical and sustainable solution for long-term maintenance.
The PIUSI Water Captor filter meets even the highest industrial requirements. The table below details the most important technical parameters:
| Parameter | Value | Note |
|---|---|---|
| Filtration Fineness | 30 µm | The size of the particles that the filter is able to capture. |
| Flow Rate | 70 – 150 l/min | The throughput capacity of the available models. |
| Operating Pressure | 3.5 bar | The maximum pressure sustained during normal operation. |
| Bursting Pressure | 10 bar | The pressure on the filter housing at which no rupture occurs. |
| Element Type | Replaceable, water-absorbing cartridge | Element responsible for absorbing water. |
| Application Areas | Agriculture, Logistics, Mining & Construction, Industrial, Marine | Wide range of applications. |
| Compatible Fuels | Diesel, HVO, XTL | Also suitable for modern fuels. |
High-efficiency filtration: 30-micron filtration capability for engine protection.
Replaceable cartridge: Simple and fast maintenance after water saturation.
Compact size: Easy installation.
Robusztus kialakítás: 10 bar working pressure ensures safe operation.
The PIUSI Water Captor filter is the ideal choice in all sectors where the assurance of clean diesel fuel is critical:
Agriculture: Protection of tractors, combines, and other agricultural machinery.
Logistics & Transport: Fuel supply for truck fleets and vehicle parks.
Mining & Construction: Protection for high-power, heavy construction machinery and mining equipment.
Industrial Plants: Fuel supply for generators and industrial equipment.
Marine Applications: Ensuring fuel cleanliness for boats and marine installations.
PIUSI offers Water Captor filters and their spare parts in various configurations to suit different needs.
| Product Code | Description |
|---|---|
| F00611A0A | WATER CAPTOR FILTER 70 L/MIN – 2 CARTRIDGES (IT version) |
| F00611A1A | WATER CAPTOR FILTER 150 L/MIN – 1 CARTRIDGE (IT version) |
Replacement cartridges:
| Product Code | Description |
|---|---|
| F0061101B | WATER CAPTOR CARTRIDGE 70 L/MIN (pack of 12) |
| F0061102A | WATER CAPTOR CARTRIDGE 150 L/MIN (pack of 6) |
Filter heads:
| Product Code | Description |
|---|---|
| F14640000 | FILTER HEAD UNF 70 L/MIN |
| F15743000 | FILTER HEAD 70/100 LT |
PIUSI is committed to continuous quality assurance, which is supported by the datasheets and manuals belonging to the product, ensuring professional installation and maintenance. The Water Captor filter is the foundation for reliable and clean fuel supply.
