The PIUSI SELF SERVICE K44 is a robust, high-performance, non-commercial diesel dispensing unit specifically designed for private operators requiring fast and reliable refueling while strictly monitoring dispensed quantities. This model combines reliability, durability, and precise measurement, offering an ideal solution for logistics, mining, construction, industrial, and agricultural applications.
The SELF SERVICE K44 prioritizes user-friendly design and high-quality components, ensuring a long service life and trouble-free operation.

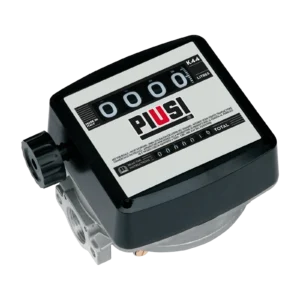

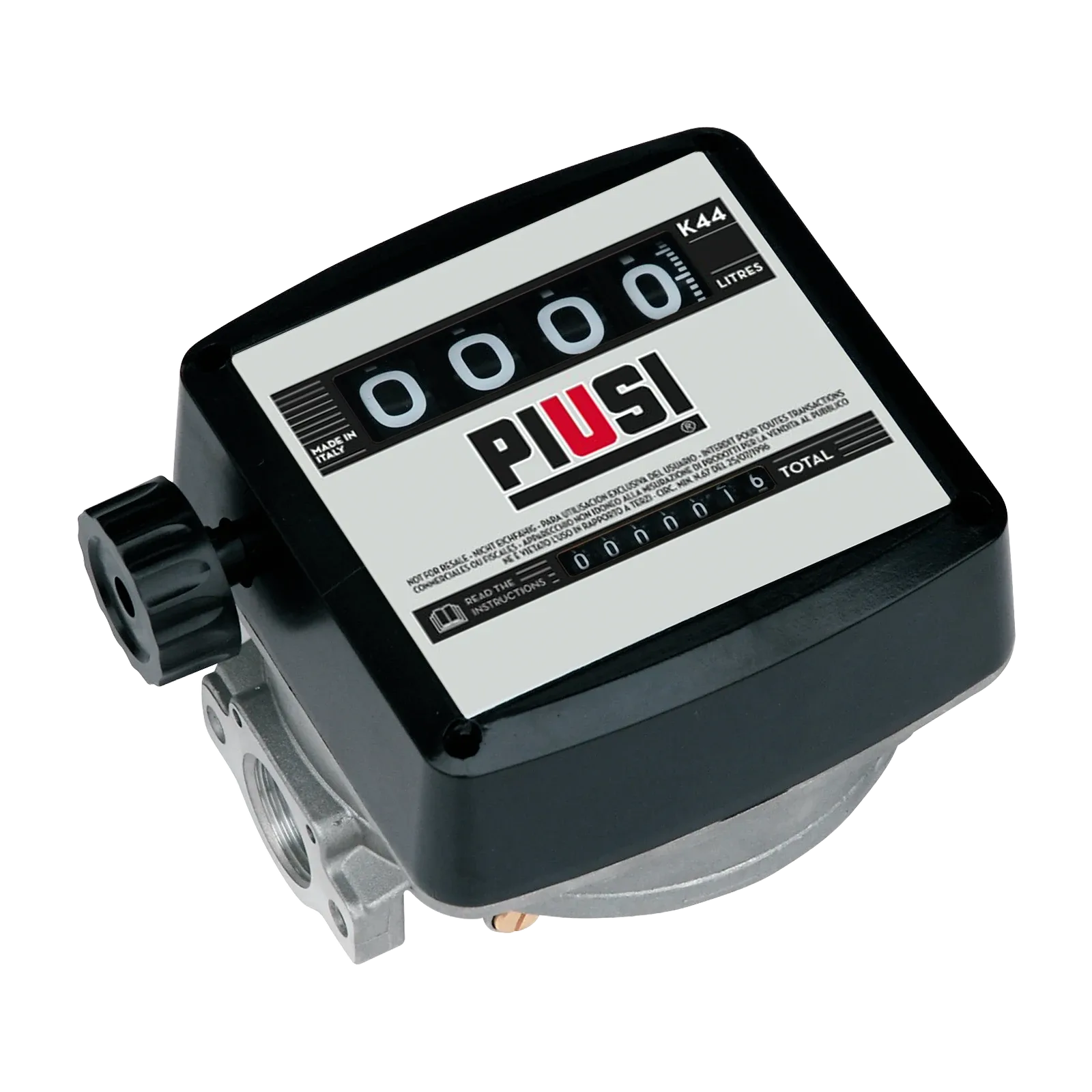

The heart of the device is a high-precision mechanical flow meter, which uses oscillating disc technology to measure the amount of dispensed fuel.
Mechanical Readout: The reading takes place directly on the measuring unit, ensuring independent and immediate quantity verification.
User Calibrability: The meter is easily calibrated by the user, guaranteeing measurement accuracy even over time.
PULSER Optional Model: SELF SERVICE K44 PULSER versions are equipped with an electronic pulse emitter (10-liter pulses, single channel), making them ideal for connection to external fuel management systems.
The K44 structure withstands harsh operating conditions while remaining ergonomic and functional.
Robust Construction: The strong structure guarantees long life and reliable operation.
Easy Maintenance: The hinged front panel provides easy access to the internal components, simplifying any necessary maintenance tasks.
Ergonomic Handle: The start/stop switch integrated into the hose holder allows for convenient and fast operation.
To protect modern diesel engines, the K44 pays special attention to fuel cleanliness.
The K44 model provides a high flow rate for fast refueling, with minimal noise emission.
High Flow Rate: It ranges between 70 and 90 liters/minute, significantly reducing waiting time.
Measurement Accuracy: The volumetric measurement accuracy is excellent, +/- 1% remaining within tolerance.
Continuous Operation: The equipment is designed for continuous operation.
Alacsony Zajszint: The operating noise level is less than 70 dB, ensuring a safer and more pleasant working environment.
The SELF SERVICE K44 complies with several industrial standards and, despite its compact design, offers a comprehensive solution.
| Characteristic | Spezification |
|---|---|
| Product Category | Fuel |
| Application Area | Logistics, Mining & Construction, Industrial, Agriculture |
| Fuel Type | Diesel / HVO / XTL |
| Flow Rate | 70 – 90 l/min |
| Measurement Accuracy | +/- 1% |
| Measurement Unit Type | Mechanical (Oscillating disc) |
| Pulse Output (PULSER option) | Electronic pulse transmitter (10 l/pulse, single channel) |

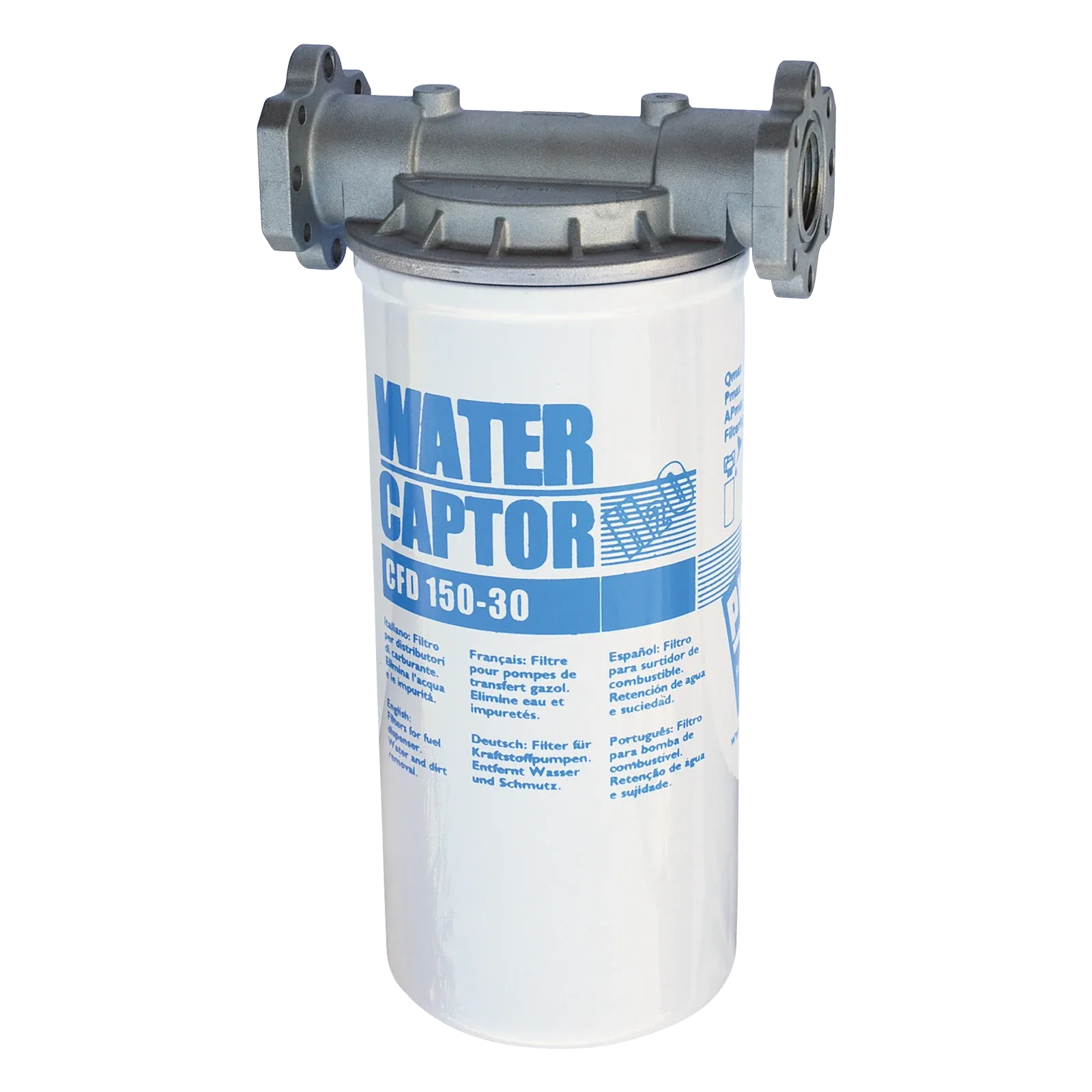

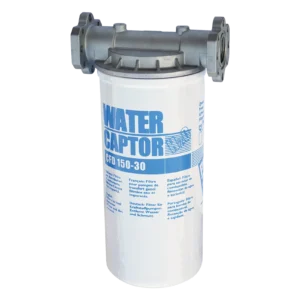

| Filtration | Water Captor Filter |
| Duty Cycle | Continuous operation |
| Noise Level | < 70 dB |
| Protection Class | IP55 |
| Construction | Compact, All-in-one equipment |
The SELF SERVICE K44 series is available with different voltage and connection options, including the standard and PULSER versions (with electronic output).
| Product code | Description |
|---|---|
| F0074001B | SELF SERVICE 100 K44 F 230/50 (Standard) |
| F0074002A | SELF SERVICE 100 K44 PULS 230V/50Hz (Pulsed) |
| F00740090 | SELF SERVICE 100 K44 GAL F NPT 120V 60Hz (120V, NPT connection) |
| F0073701B | SELF SERVICE 70 K44 F 230/50 (Standard) |
| F00737B0B | SELF SERVICE TANK 70 K44 230V/50Hz |
| F00737B2B | SELF SERVICE TANK 70 K44PUL 230V/50Hz (Pulse) |
The SELF SERVICE K44 is the ideal choice for businesses seeking a reliable, high-performance, and precisely measuring dispenser for the efficient management of their fleet or machinery park's fuel supply. The built-in filtration technology ensures that only the cleanest fuel reaches the vehicles.
