PIUSI, the guarantee of Italian quality in the field of handling flowing fluids, presents the DATA TRANSFER SSM2.0 solution package, which is a key component of the SSM 2.0 (Self Service Management 2.0) fuel management system. This technological solution ensures seamless and efficient data communication between electronic/mechanical devices and the central fluid management software.

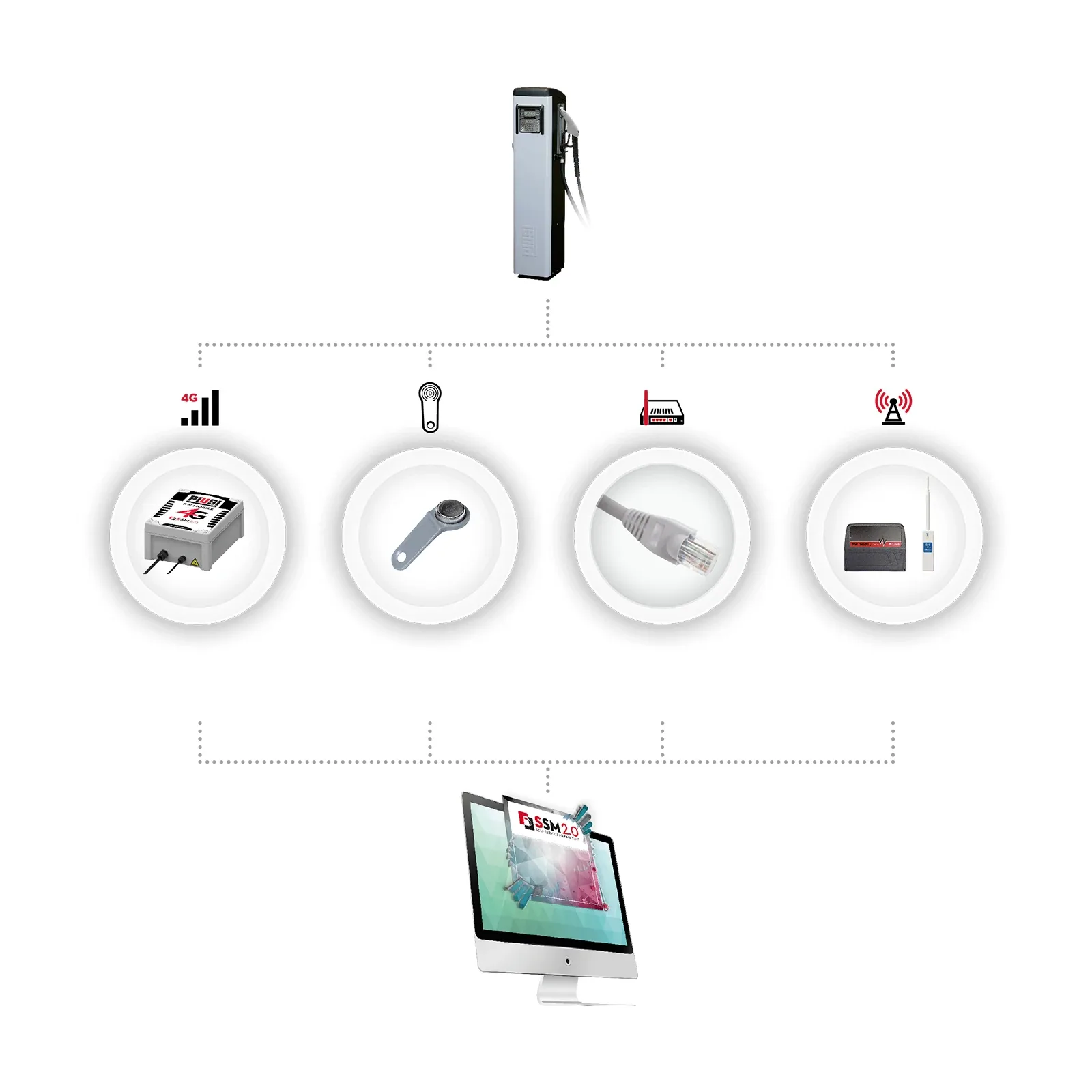

The method of data transfer with the SSM 2.0 system depends on the chosen technology, which provides flexibility and scalability for various site requirements.
In line with user needs, PIUSI offers several data transfer methods, each optimized for integration with the SSM 2.0 software:
This method is ideal for those who prefer flexible, local data collection without network infrastructure.
Device: Manager Key 2.0 (Product Code: F20552010)

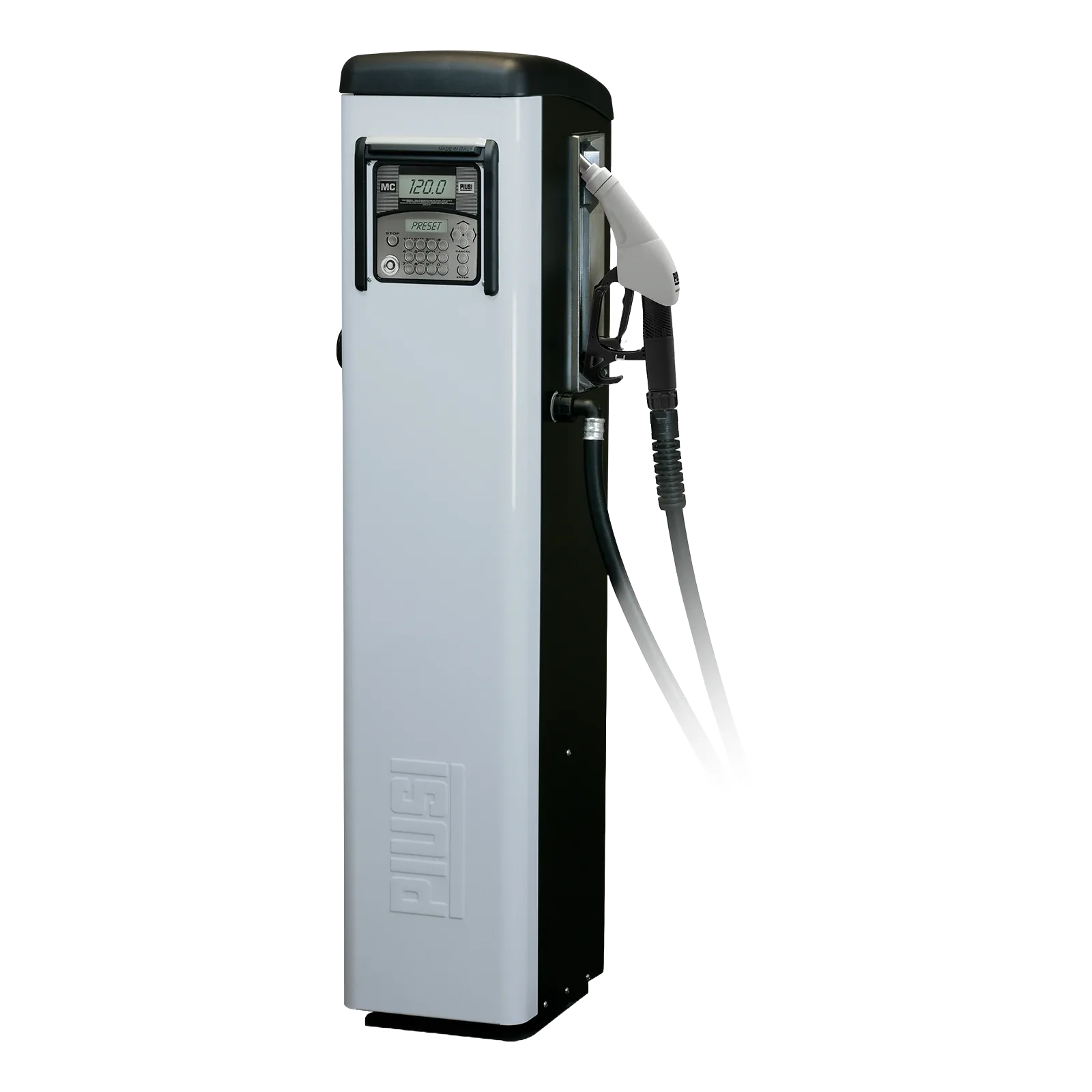

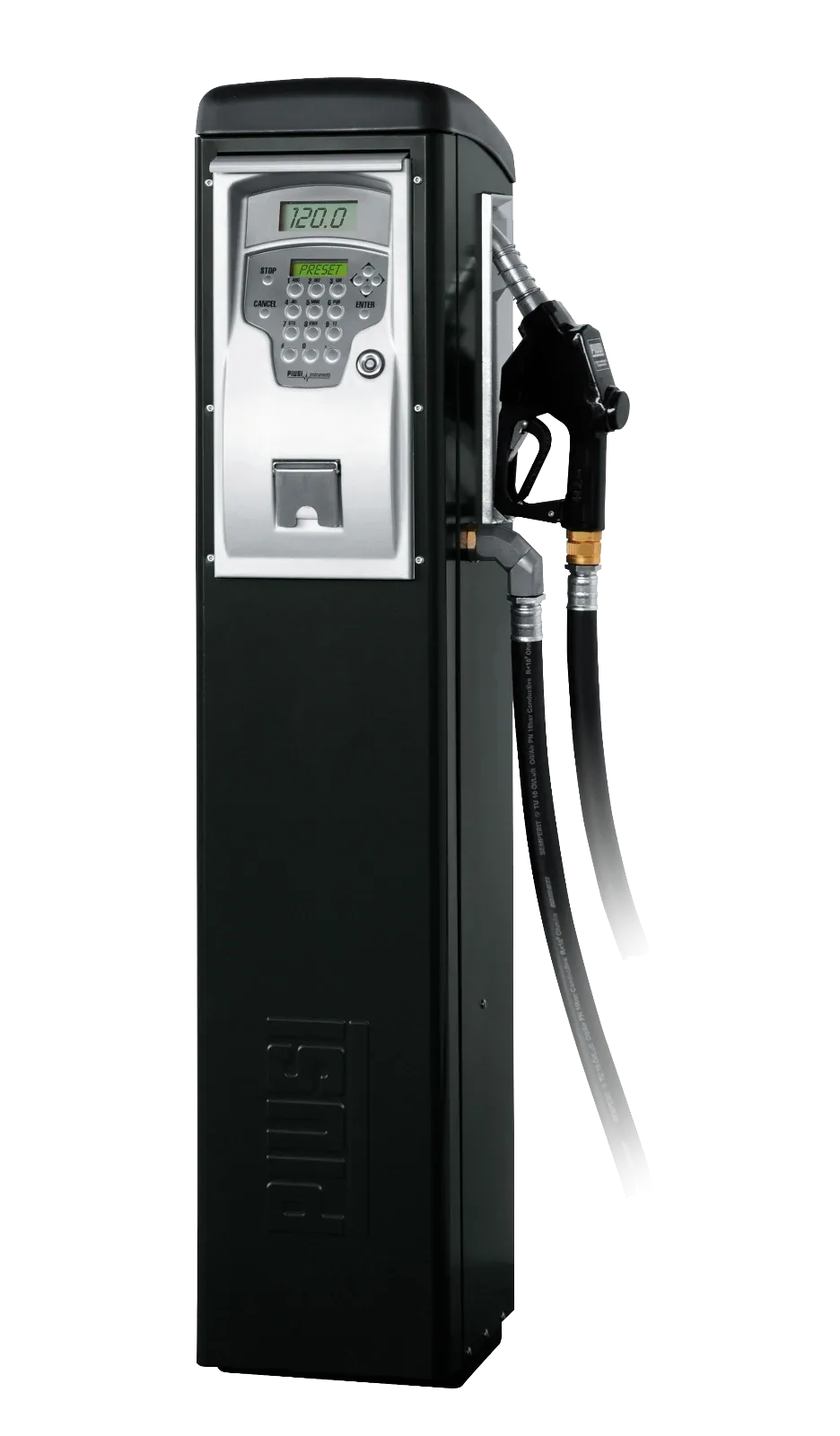

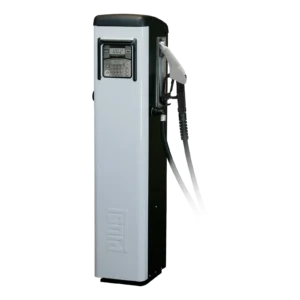

Operation: Data can be collected directly from the fuel dispenser with the help of the Manager Key. Simply touch the key to the dispenser, and then by connecting the key to the corresponding Key Reader, you can transfer the collected transaction data to the PC. This method ensures immediate access to local data.
This solution enables real-time data transfer, ideal for sites connected to the network and under central control.
Tools required: PW WIFI 2.0 (Product Code: F1271012A)
Operation: With the help of PW WIFI or PWWiFi devices, the system receives all transaction-related information in real time. The software automatically recognizes the fuel dispensers and immediately forwards the data to the central Self Service Management 2.0 software. This ensures continuous monitoring and quick reaction capability.
The most modern solution, enabling data transfer even in the most remote locations where no established local network exists.
Tools required: PW MOBILE 4G 2.0 (Product Code: F12710130) and PW MOBILE 4G AGILIS (Product Code: F1271015A)
Operation: The PW MOBILE 4G 2.0 device uses mobile 4G technology for communication and data transfer. The device comes with a SIM card, so the dispenser can be installed anywhere mobile network coverage is available. This solution offers maximum flexibility in site placement while ensuring a real-time data connection to the SSM 2.0 system.
The integration of the DATA TRANSFER SSM2.0 solution package into the fuel management infrastructure provides several critical functions for the efficient operation of fleets and sites:
TANK WATCHDOG: Comprehensive tank monitoring functions that help optimize inventory and prevent losses.
DRIVERS/VEHICLES MANAGEMENT: Enables precise assignment of refueling events to identified vehicles and drivers, increasing accountability.
REPORT (Detailed Reports): Generation of comprehensive, customizable reports on refueling activities, consumption, and costs.
SSM 2.0 CLOUD READY: The system ensures cloud readiness, allowing for remote access and simultaneous management of multiple sites via the SSM 2.0 platform.
FLUID INVENTORY VALUE: Accurate data on the current financial value of fluids in stock, assisting with asset management.
PIUSI data transmission solutions ensure broad compatibility with different fluid types and the SSM 2.0 ecosystem.
| Parameter | Value |
|---|---|
| Product Category | Fuel, AdBlue®/Other fluids |
| Compatible Fluids | AdBlue®, Diesel/HVO/XTL, Gasoline, Kerosene |
| Field of application | Integration of Fuel Management Systems |
| Central Software | Self Service Management 2.0 (SSM 2.0) |
| Communication Protocols | Manager Key (Offline), LAN/Wi-Fi (Real-time), 4G Mobile Network (Real-time) |
The hardware components and their identifiers required for the data transmission solutions are as follows:
| Product code | Designation | Fluid Category | Application |
|---|---|---|---|
| F1271012A | PW WIFI 2.0 | Fuel, AdBlue® | Network Data Transfer |
| F12710130 | PW MOBILE 4G 2.0 | Fuel, AdBlue® | Mobile Network Data Transfer |
| F1271015A | PW MOBILE 4G AGILIS | Fuel, AdBlue® | Mobile Network Data Transfer (Agilis Version) |
| F20552010 | MANAGER KEY 2.0 | Fuel, AdBlue® | Offline data collection |
| F1226201A | KIT KEY READER | Fuel, AdBlue® | Transferring Manager Key data to PC |

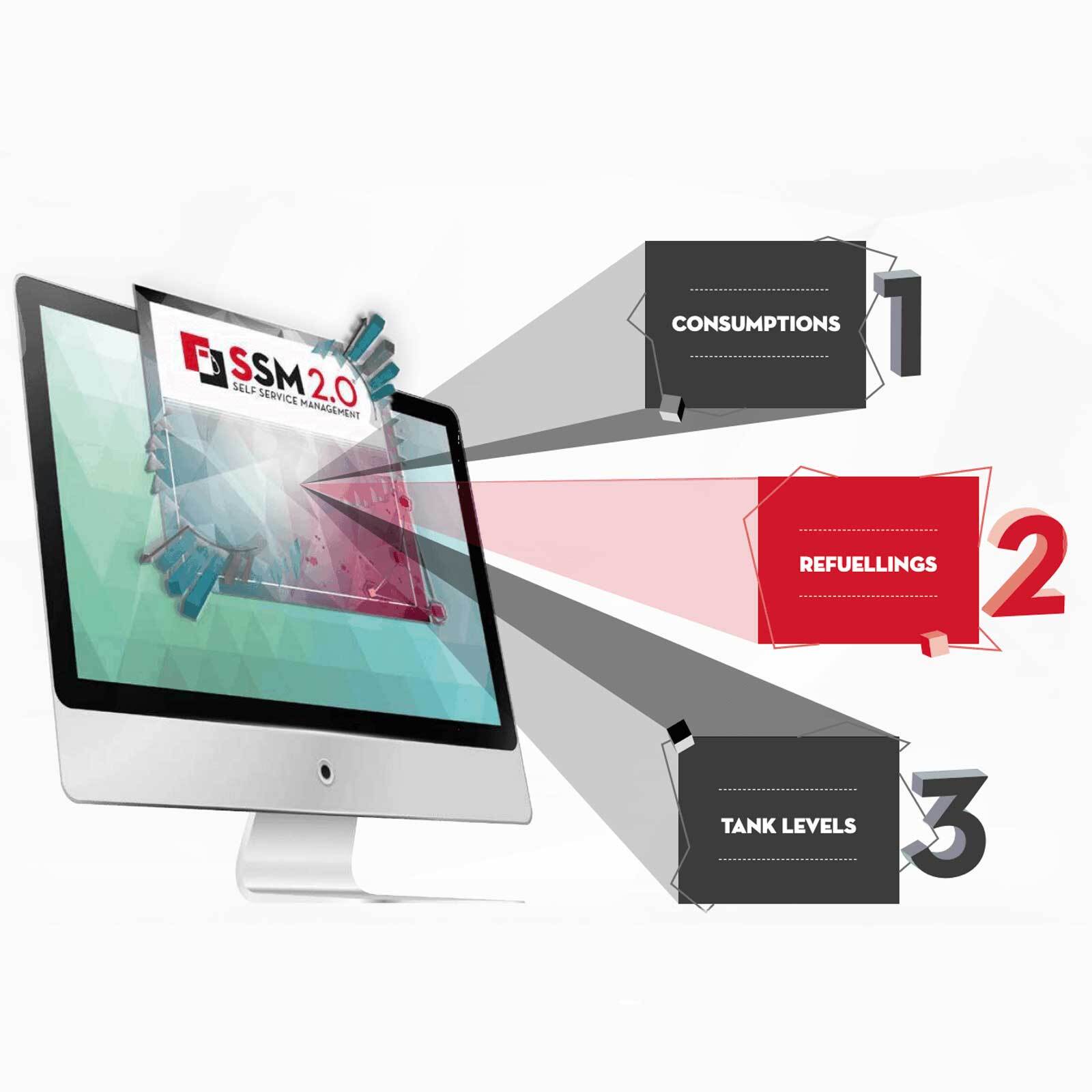

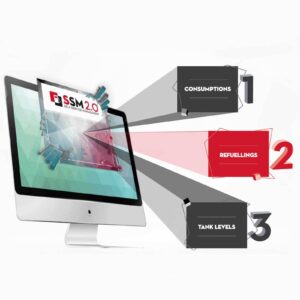

DATA TRANSFER SSM2.0 is not just an accessory, but is built for complete synergy with the SSM 2.0 (Self Service Management 2.0) fuel management software. SSM 2.0 allows users to remotely monitor their refueling stations and manage multiple sites simultaneously. The data transfer modules ensure that local data (refueling events, stock levels) appears immediately on the central interface, whether for diesel or AdBlue®.
The solutions offered by PIUSI guarantee Italian precision and reliability during critical fluid management processes, ensuring full auditability and operational efficiency.
