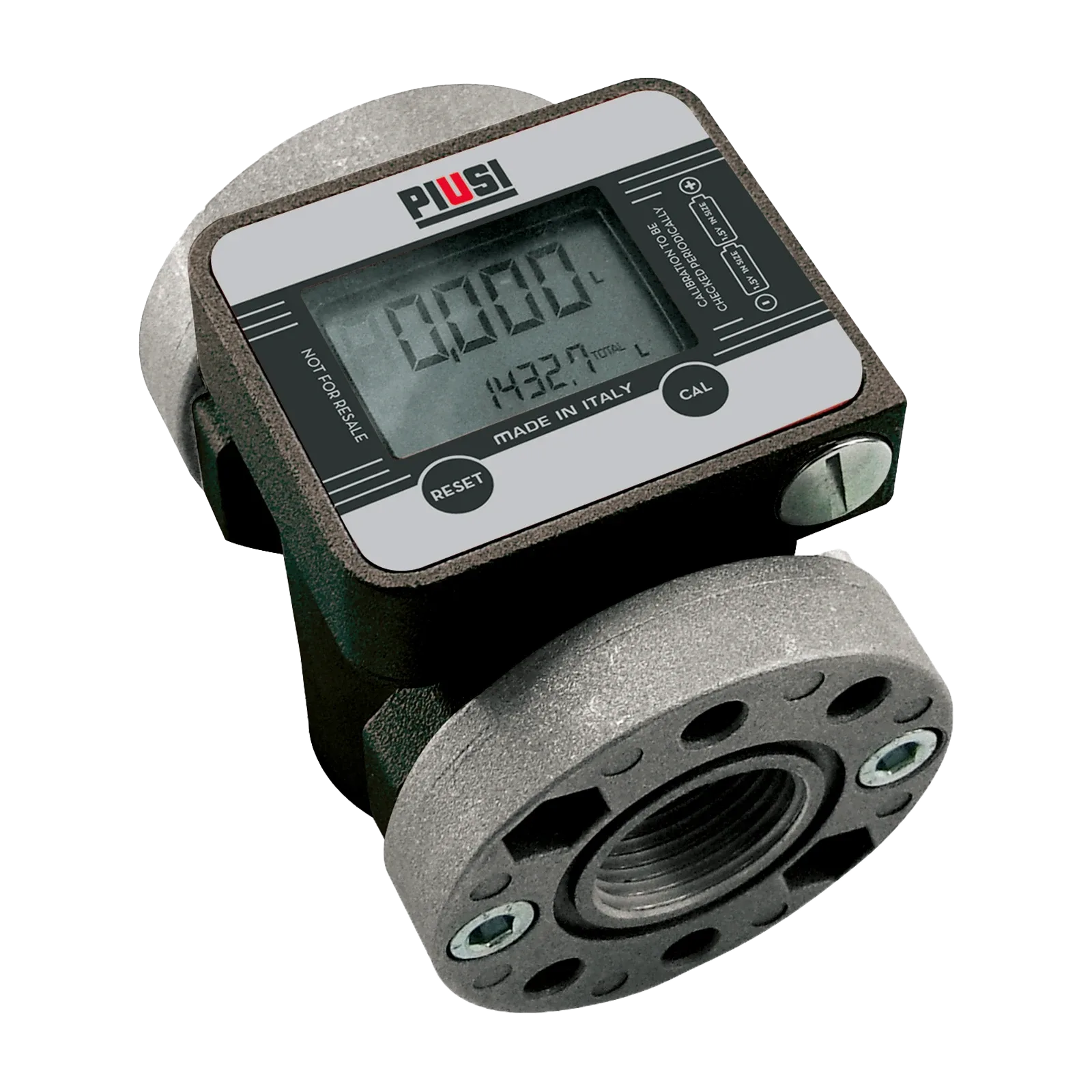

PIUSI K600/3 Electronic Flow Meter for Diesel – Precise Fuel and Antifreeze Fluid Dispensing

The PIUSI K600/3 is an excellent quality, electronically controlled gear flow meter specifically designed for the extremely accurate dispensing control of diesel, HVO (hydrotreated vegetable oil), and antifreeze fluids outside of commercial trade. This instrument guarantees efficiency and reliability in critical industrial, agricultural, and logistical environments where precise quantity measurement is essential.

The K600/3 model embodies the reliability of PIUSI, ensuring long-term, trouble-free operation even in the most demanding conditions.

Key Features and Advantages

The K600/3 flow meter has several features that set it apart from competitors, particularly in terms of accuracy and durability:

• Outstanding Accuracy: The instrument provides extremely high, +/- 0.5%-level measurement accuracy across the entire operating range.

• High Flow Rate: Its maximum flow rate reaches 100 liters/minute value, making it ideal for rapid pumping of large volumes of fluid.

• Low Pressure Drop: Only < 0.5 bar pressure drop at the maximum flow rate, minimizing pump load.

• Excellent Repeatability: The repeatability value 0,2%, which guarantees consistent measurements for every single dispensing action.

• Durable Design: It features Acetyl resin (POM) oval gears that resist the effects of diesel and other compatible specialty fluids. The body of the measuring chamber is made of aluminum, which enhances mechanical stability.

• Integrated Filter: It is equipped with a built-in suction strainer that prevents foreign particles from entering the measuring unit, thereby avoiding blockages and ensuring smooth operation.

• Adjustable Flanges: The adjustability of the flanges allows for flexible installation.

• Low Energy Consumption: Characterized by energy-saving operation.

• Application Flexibility: Ideal for both industrial facilities, agricultural machinery, and mobile installations.

Display and Data Storage

The K600/3 electronic flow meter features an advanced display that shows two types of accumulated data:

1. Partial Total (Resettable Total):

• 5-digit display.
• The height of the characters 11.5 mm.
• Floating point display, which From 0.001 to 999.99 Covers a range up to liters.
• This value is resettable (can be reset).

2. Total Total (Non-Resettable Total):

• Display of 8 digits.
• The height of the characters 5 mm.
• The measurable range From 1 to 99,999,999 up to liters.
• This value cannot be reset, thus ensuring the total, authenticated fuel consumption record.

Two Versions: K600/3 DISPLAY UNIT and K600/3 PULSE

The K600/3 product family is available in two main versions, serving different installation and monitoring needs:

1. K600/3 DISPLAY UNIT (Display Version)

This standard version has a built-in display and can be installed directly onto the fluid transfer system (pump or piping). The user can read the measured quantities directly on-site.

2. K600/3 PULSE (Pulse Transmitter Version)

The PULSE version does not have a built-in display. Instead, it can be connected to a remote data acquisition or management system.

• Remote Connection: With Includes a 10 meter long connection cable.
• Ideal for Remote Monitoring: Specifically recommended for situations where measured quantities need to be monitored from a distance away from the fluid dispensing location (e.g., in an office or central control room). The transmitter (pulser) sends the measured data in the form of digital pulses.

Application Areas

The K600/3 flow meter is an ideal choice in the following sectors:

• Agriculture: Precise tracking of fuel supply for tractors, combine harvesters, and other agricultural machinery.
• Logistics: Monitoring fuel consumption of fleets on company sites.
• Mining & Construction: Strict control of fuel consumption for heavy-duty construction machinery (excavators, bulldozers).
• Industrial Plants: Any industrial process where the transfer of diesel, HVO, or antifreeze liquids needs to be measured reliably.

Technical Data Summary

Ordering Information

The K600/3 is available in two main configurations, with different product codes:

The PIUSI K600/3 flow meter is the cornerstone of reliable, accurate, and efficient fluid management in industrial and agricultural fuel handling.
