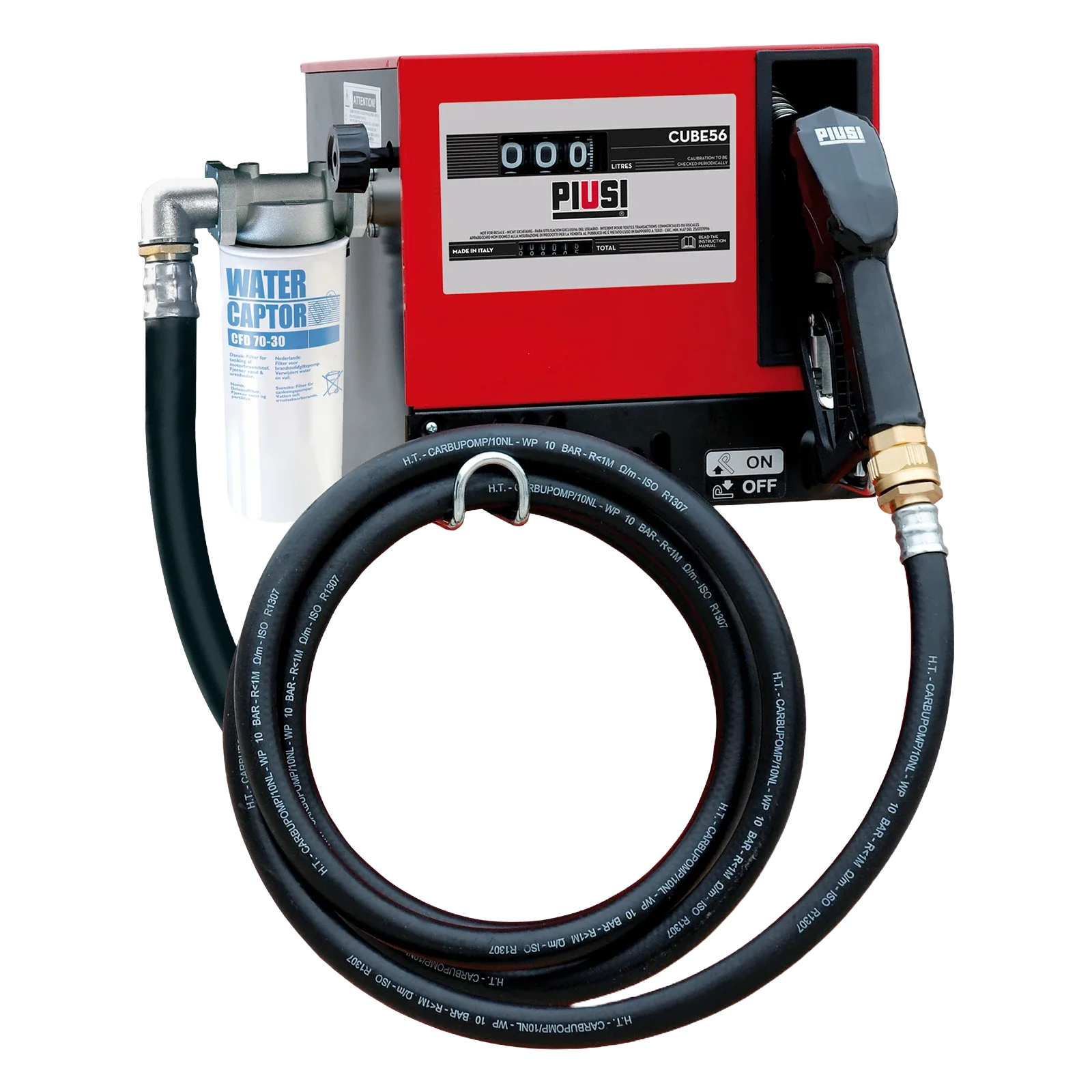

The PIUSI CUBE is a robust and versatile dispensing system specifically designed for the transfer, dispensing, and precise monitoring of non-commercial diesel, HVO (Hydrotreated Vegetable Oil), and XTL fuels. This equipment offers an ideal solution for agricultural, logistics, mining, construction, and general industrial applications where reliable and controlled refueling is required.
The flexibility of the CUBE series (CUBE 56-70-90) is outstanding, as it can be adapted to numerous installation configurations. It can be mounted directly onto fuel tanks, walls, road tankers (cisterns), drums, or even on the supplied special stand (pedestal).
The CUBE dispensing unit combines efficiency, durability, and user-friendly operation.
The CUBE 56-70-90 fuel dispenser has been developed in the interest of performance and reliability:
Self-priming Gear Pump: The built-in rotary vane pump, equipped with a bypass valve, guarantees high flow rates and reliable fuel delivery.
Vibration Damping: The pump is mounted on anti-vibration elements, which increases comfort and service life.
Engine Protection: The induction motor is equipped with thermal protection against overheating and features a mechanical seal for enhanced safety and reliability.
Suction Strainer: The fine mesh filter located on the suction side prevents foreign particles from entering the pump rotor, thus avoiding blockages and mechanical failure, significantly extending the pump's lifespan.
Automatic Dispensing Nozzle: The supplied dispensing nozzle is automatic and equipped with a swivel connector. The nozzle holder also functions as the pump's start/stop switch, simplifying the dispensing process.
A key element of the CUBE system is precise quantity tracking:
Volumetric Flow Meter: The device is equipped with an oscillating disc (volumetric) flow meter, which allows for the precise management and documentation of dispensing operations.
Easy Reading: The mechanical counter allows for simple visual verification, so the user can immediately track the amount of fuel dispensed.
The CUBE unit features a durable construction designed for industrial environments:
Durable Structure: The sturdy construction ensures long-term, trouble-free operation even in harsh conditions.
Overload Protection: The motor is protected against overload for safe operation.
IP55 Protection: The unit has an IP55 protection rating, which guarantees protection against dust ingress and resistance to splashing water.
Due to the versatility of the CUBE dispensing station, it is indispensable in many sectors:
Agriculture: Ensuring fuel supply for a large quantity of machinery and equipment.
Logistics & Transport: Internal management of fleet refueling.
Mining & Construction: On-site refueling of high-power construction machinery and heavy vehicles.
Industrial Plants: Design of proprietary fuel storage systems.
The CUBE product family is available in various power and voltage versions to meet every specific requirement.
| Product code | Description | Flow Rate / Characteristics |
|---|---|---|
| CUBE 56 | CUBE 56/33 | AC (230V/50Hz or DC options) |
| CUBE 70 | CUBE 70/33 | AC (230V/50Hz) or DC (12V/24V) |
| CUBE 90 | CUBE 90/44 | AC (230V/50Hz) |
| CUBE DC | CUBE 56/K33 DC | 12V DC |
| CUBE DC | CUBE 70/33 DC | 24V DC |
General Technical Specifications (for the CUBE series):
| Parameter | Details |
|---|---|
| Product Category | Fuel transfer products |
| Fluids Handled | Diesel, HVO, XTL |
| Application Areas | Agriculture, Logistics, Mining, Construction Industry, Industrial applications |
| Pump Type | Self-priming rotary vane pump with bypass valve |
| Motor Type | Induction motor, equipped with thermal protection |
| Flow Meter | Volumetric, oscillating vane mechanical meter |
| Protection Level | IP55 |
| Safety Features | Overload protection, mechanical seal |
| Filter | Built-in suction side mesh filter |
| Dispensing gun | Automatic, with rotatable connector |
| Installation Options | For tank, wall, cistern, drum, stand |
The wide range of accessories increases the system's flexibility:
Wall Mounting Kit (WALL KIT CUBE): Enables secure wall mounting of the dispenser.
Lockable Kit (KIT PADLOCK CUBE MC): Security solution to prevent unauthorized access.
Damper Kit (DAMPER KIT MC BOX): Provides additional vibration damping for maximum comfort.

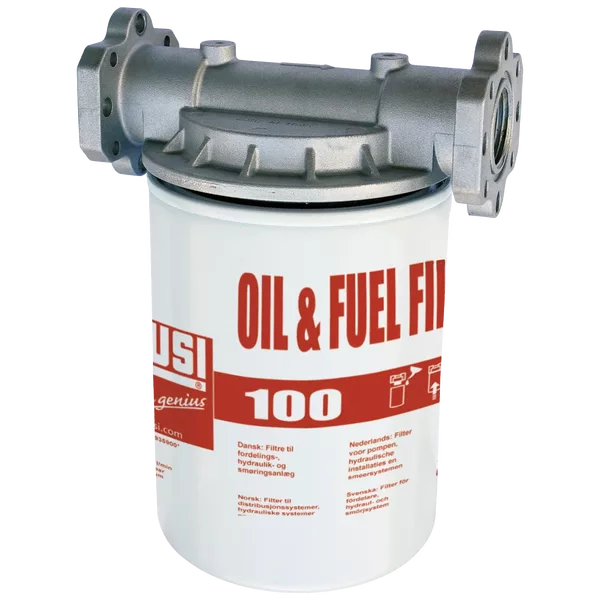

Hose packages: Hoses of different lengths (e.g., 6 meters) are available with a filter.
The PIUSI CUBE is a reliable, long-lasting, and precise solution for the professional management of fleet and site fuel management.
