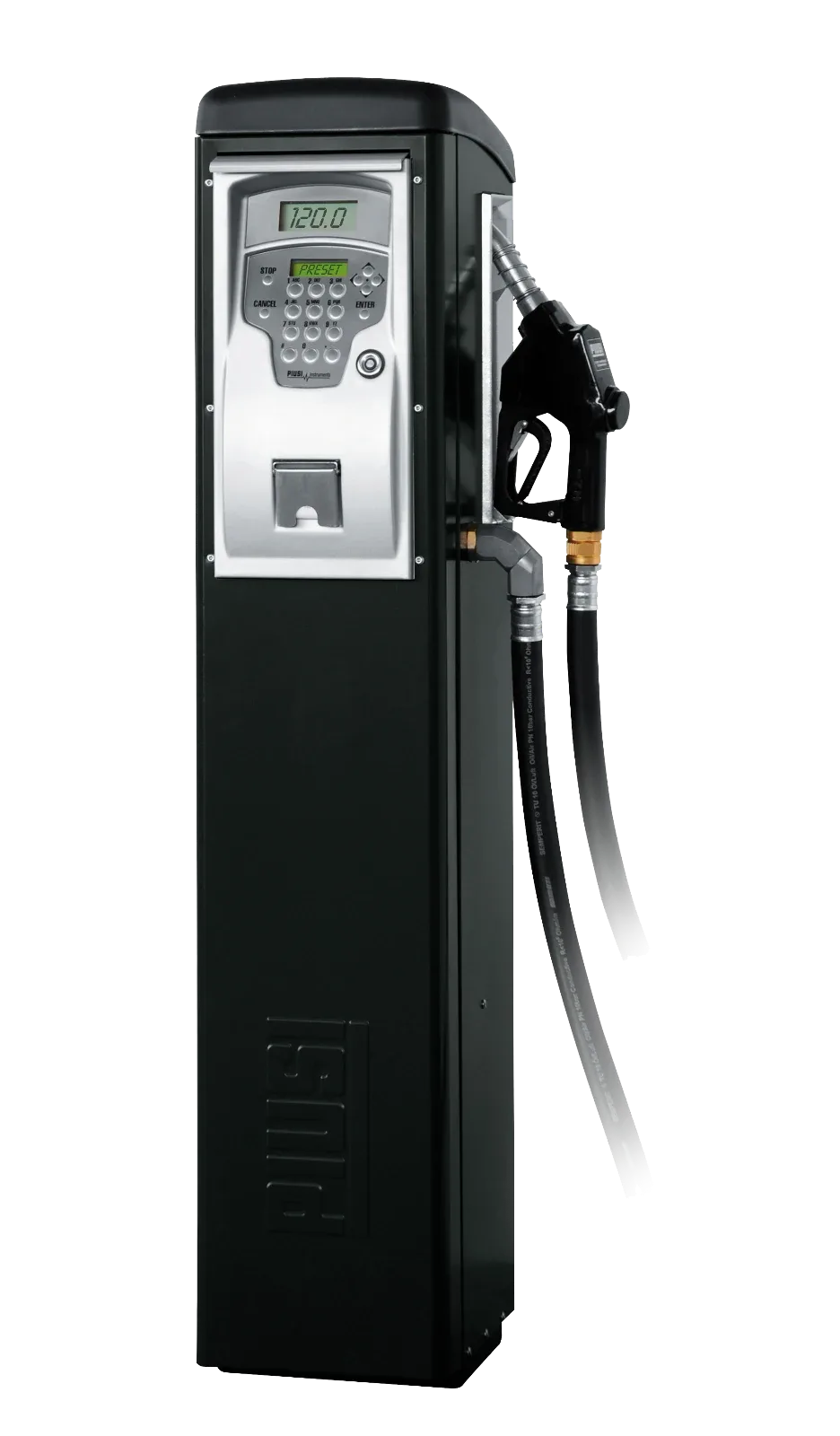

The PIUSI SELF SERVICE FM 2.0 is a premium category, non-commercial diesel fuel dispensing equipment, developed specifically for users seeking the highest quality and uncompromising solutions to optimize their fleet management. This system is ideal for logistics, mining, construction, and industrial applications where strict accountability and user identification are required.
The SELF SERVICE FM 2.0 ensures regulation of fuel access through the intelligent use of user keys and vehicle keys, while keeping a detailed record of which user refueled which vehicle. It logs every transaction and summarizes the data in the form of detailed reports.
The SELF SERVICE FM 2.0 system is a combination of efficiency, reliability, and advanced data management:
Strict Access Control: Fuel access is exclusively possible by using a valid user key (e.g., i-Button) and a vehicle key (e.g., blue i-Button), guaranteeing that only authorized persons can refuel.
Full Accountability: Every refueling event is logged, including the user and vehicle ID, resulting in transparent and auditable fuel consumption statistics.

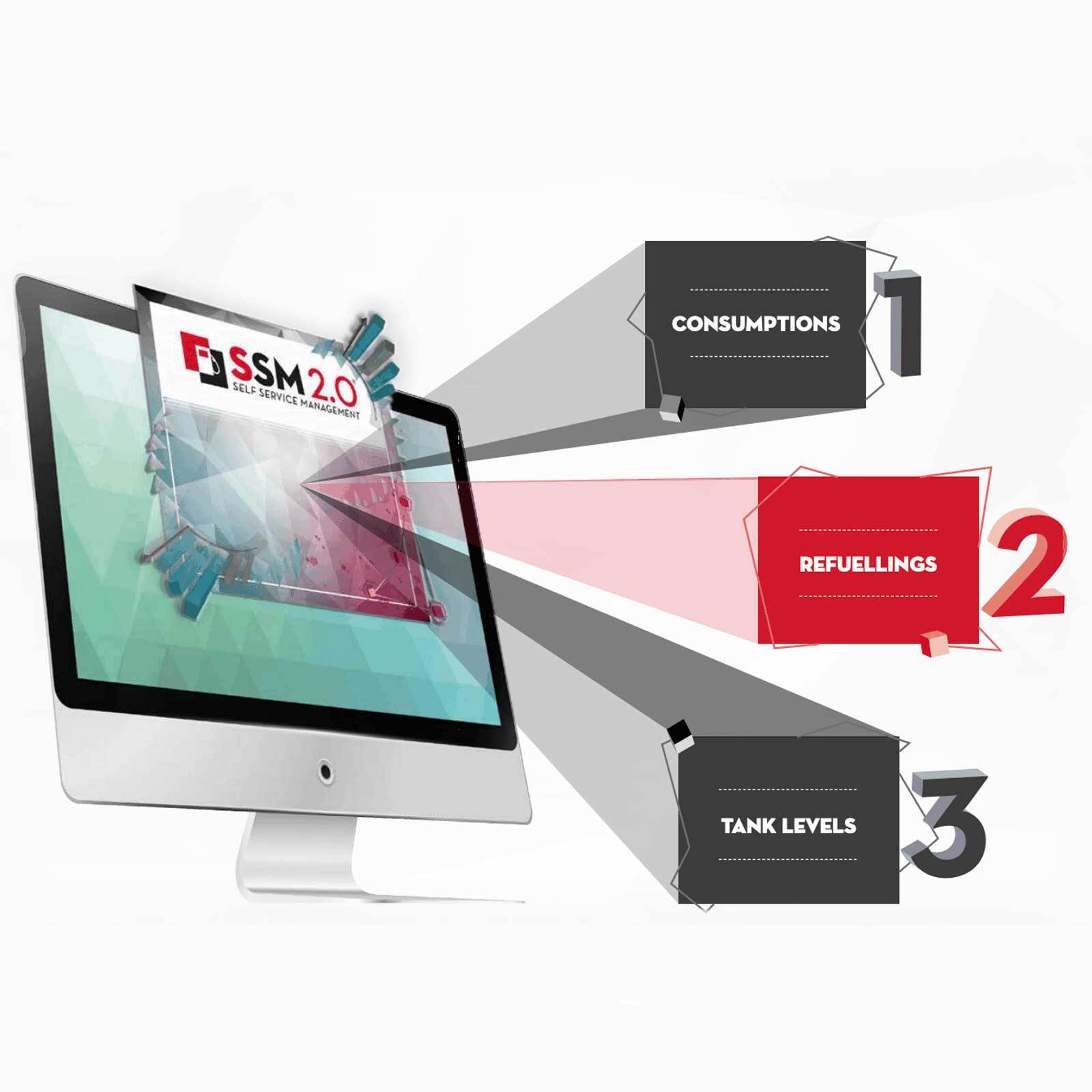

PC-based Configuration: The system can be fully configured from the computer using the dedicated Self Service Management 2.0 (SSM 2.0) software software. This eliminates the need for physical presence to perform settings, enabling convenient office control of processes.
Network Connection: The built-in LAN data transfer ensures constant communication between the dispenser and the central PC, guaranteeing immediate data synchronization.
Tank Monitoring: The OCIO 2.0 level sensor continuously monitors the fill level of the tanks, providing a proactive alert regarding the need for refueling.
Local Data Storage: The built-in local memory is capable of storing the last 500 events, ensuring data security even in the event of a network connection loss.
Standard Printer: The device includes a printer as standard equipment, which provides an immediate receipt for transactions.
Robust Construction: The massive metal structure and IP55 protection guarantee a long service life and reliable operation even in harsh industrial environments.
The SELF SERVICE FM 2.0 integrates components of excellent quality for durability and precise measurement:
| Characteristic | Description |
|---|---|
| Structure | Robust metal structure |
| Maintenance | Front door for easy access |
| Pump | High flow rate vane pump |
| Fuel Types | Diesel, HVO, XTL |
| Dispensing Nozzle | Automatic dispensing nozzle with swivel connector |
| Filtration | Built-in water separator and dirt filter |
| Flow Meter | Oval gear electronic flow meter (high accuracy) |
| Communication | Built-in LAN data transmission |
| Memory | Local memory for storing the last 500 events |
| Software Requirement | Use of SSM 2.0 software is mandatory |
| Protection | IP55 |

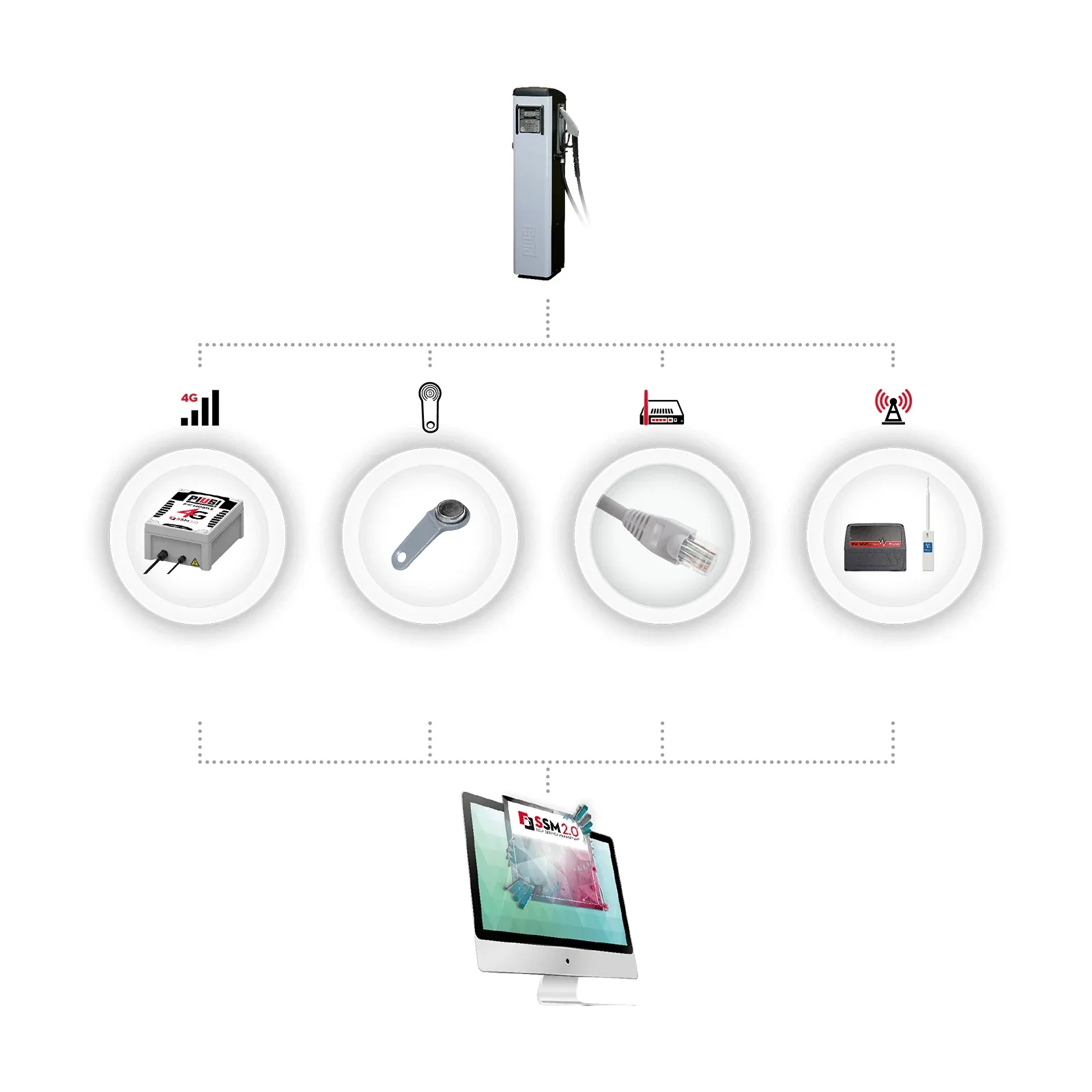

The system can be flexibly expanded to meet specific needs:
Wireless Connection: PW-WiFi switch for wireless network connection.
User Identification: Yellow i-Button magnetic keys for user recognition.
Vehicle Identification: Blue i-Button magnetic keys for the identification of refueled vehicles.
The SELF SERVICE FM 2.0 dispenser exclusively compatibility with the revolutionary Self Service Management 2.0 (SSM 2.0) software, operates in conjunction. This software enables remote control, simultaneous management of multiple fueling stations, and generation of detailed reports on overall fuel management.
The PIUSI SELF SERVICE FM 2.0 is the ideal choice for the following sectors:
Logistics: Precise tracking of fleet fuel consumption.
Mining & Construction: Strict accounting for the operation of heavy machinery on sites.
Industrial Plants: Secure and controlled management of corporate vehicle fleets and internal fuel supply.
The PIUSI SELF SERVICE FM 2.0 is not just a fuel dispenser, but an integrated management tool that maximizes transparency and minimizes fuel loss, even in the most demanding industrial environments.
