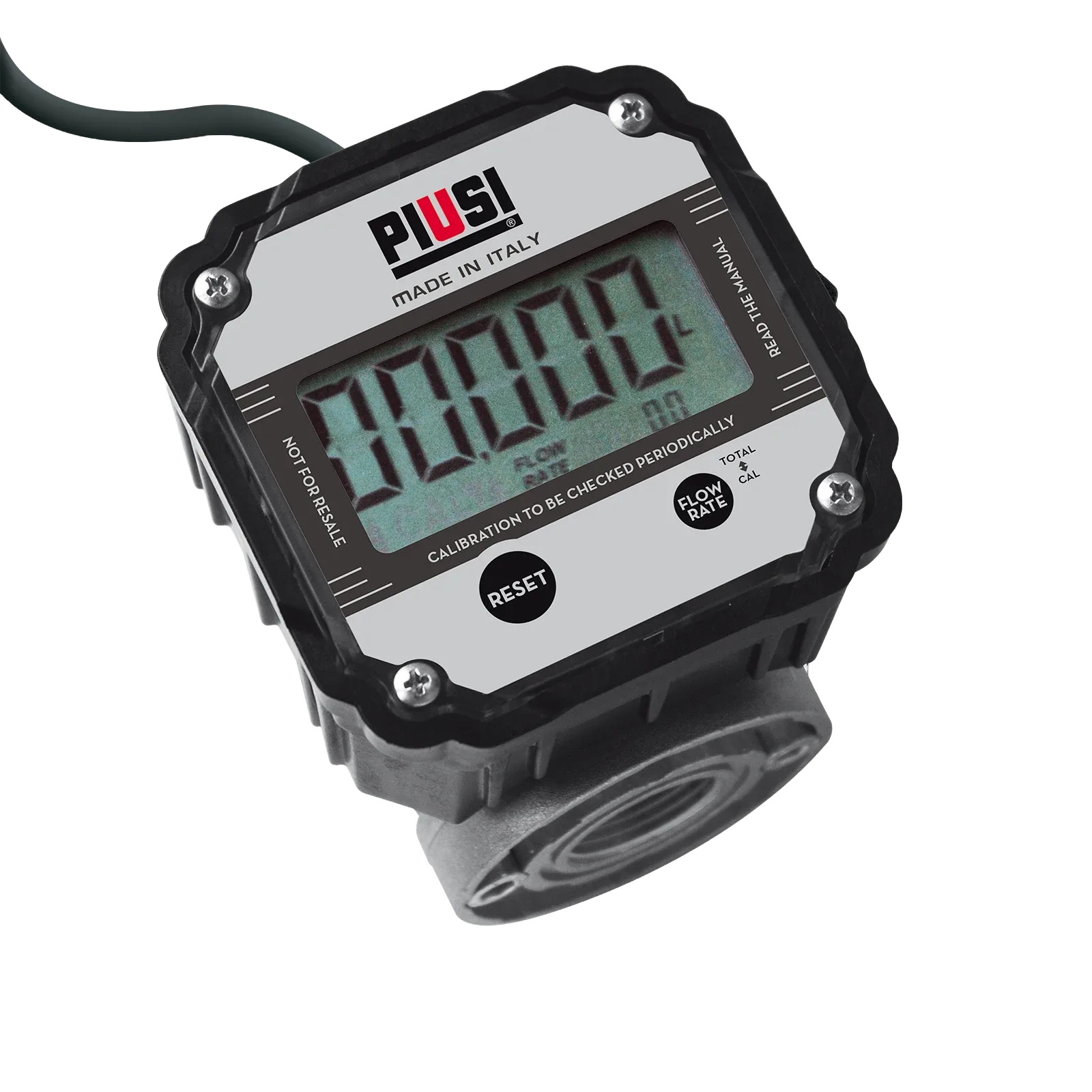

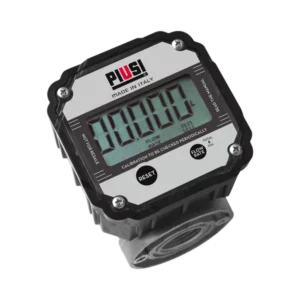

The PIUSI K600 B/3 is an extremely precise, electronic flow meter specifically designed for the accurate monitoring of diesel and lubricating oil quantities for non-commercial use. This robust and reliable device is the ideal choice for logistics, mining, construction, and general industrial applications where precise dosing control is essential.
The outstanding feature of the K600 B/3 model is the large, easily readable digital display, which guarantees convenient and error-free operation.
The K600 B/3 flow meter embodies PIUSI's engineering precision, combining durability with a high level of measurement accuracy.
The central element of the device is the large 80 mm display, which significantly simplifies reading the dispensed quantity, even in poor lighting conditions.
Partial Totalizer (Counter): 5-digit, 24 mm high display (floating point display from 0.001 to 999.99). This counter is resettable, ideal for daily or shift accounting.
Totalizer (Accumulator): 8-digit, 5 mm high display (from 1 to 99999999). This records the total quantity, is non-resettable, ensuring tracking of all measured quantities ever dispensed.
Rotatable Display: The display is rotatable, ensuring optimal readability regardless of the installation position.
The internal structure and external casing of the K600 B/3 flow meter are optimized for a long service life and performance in harsh industrial environments.
Measuring Elements: Measurement is carried out using oval gears made of acetal resin, which measure the amount of diesel or lubricating oil dispensed with extreme accuracy.
Construction: The flow meter features a solid and massive construction with an aluminum measuring chamber.
Integrated Filter: The built-in suction strainer protects the measuring mechanism from contamination and foreign particles, thus preventing blockages and degradation of measurement accuracy during fluid transfer.
The excellent technical parameters of the K600 B/3 guarantee reliable performance.
Accuracy: +/- 0.5% at maximum flow rate.
Maximum Flow: 100 liters/minute (l/min).
Repeatability: 0.2%.
Pressure Drop: Less than 0.5 bar at maximum flow rate, ensuring minimal resistance in the system.
Protection: IP66 protection rating, providing complete protection against dust ingress and resistance to strong water jets.
The device can be flexibly integrated into existing systems.
Adjustable Flanges: The design of the connections allows for easy installation into the fluid transfer system.
Standard Configuration Available: The K600 B/3 basic model comes with a display and can be installed directly into the system.
Pulse-Out Version (Optional): The Pulse-OUT variant, which does not have a built-in display, is available upon special request. This version can be connected to a remote display via a 10-meter cable. This is an ideal solution if you wish to monitor the measured quantity not directly at the installation point, but in an office or central control room.
| Parameter | Value | Note |
|---|---|---|
| Product Category | Fuel | |
| Field of application | Logistics, Mining & Construction, Industrial | |
| Measured Media | Diesel, HVO, XTL | |
| Measurement principle | Oval gear wheel (Acetal resin) | |
| Maximum flow rate | 100 l/min | |
| Measurement Accuracy | +/- 0.5% | |
| Repeatability | 0.2% | |
| Pressure Loss | < 0.5 bar (at max. flow) | |
| Protection class | IP66 | Dust and water resistant |
| Display (Partial) | 5 digits (24 mm high), floating point | Resettable |
| Display (Total) | 8 digits (5 mm high) | Non-resettable |
| Connection | Adjustable flanges | |
| Optional output | Pulse-OUT (for remote display) | Available on special order |
The PIUSI K600 B/3 flow meter is the cornerstone of reliable, high-precision fluid volume control in the industrial and logistics sectors.
