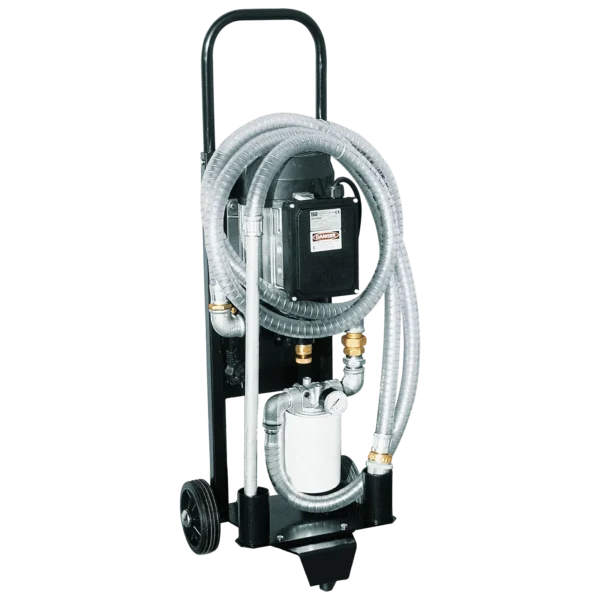

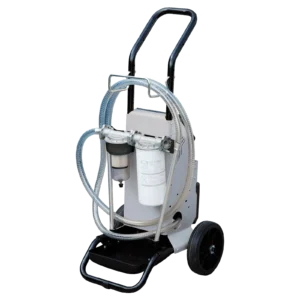

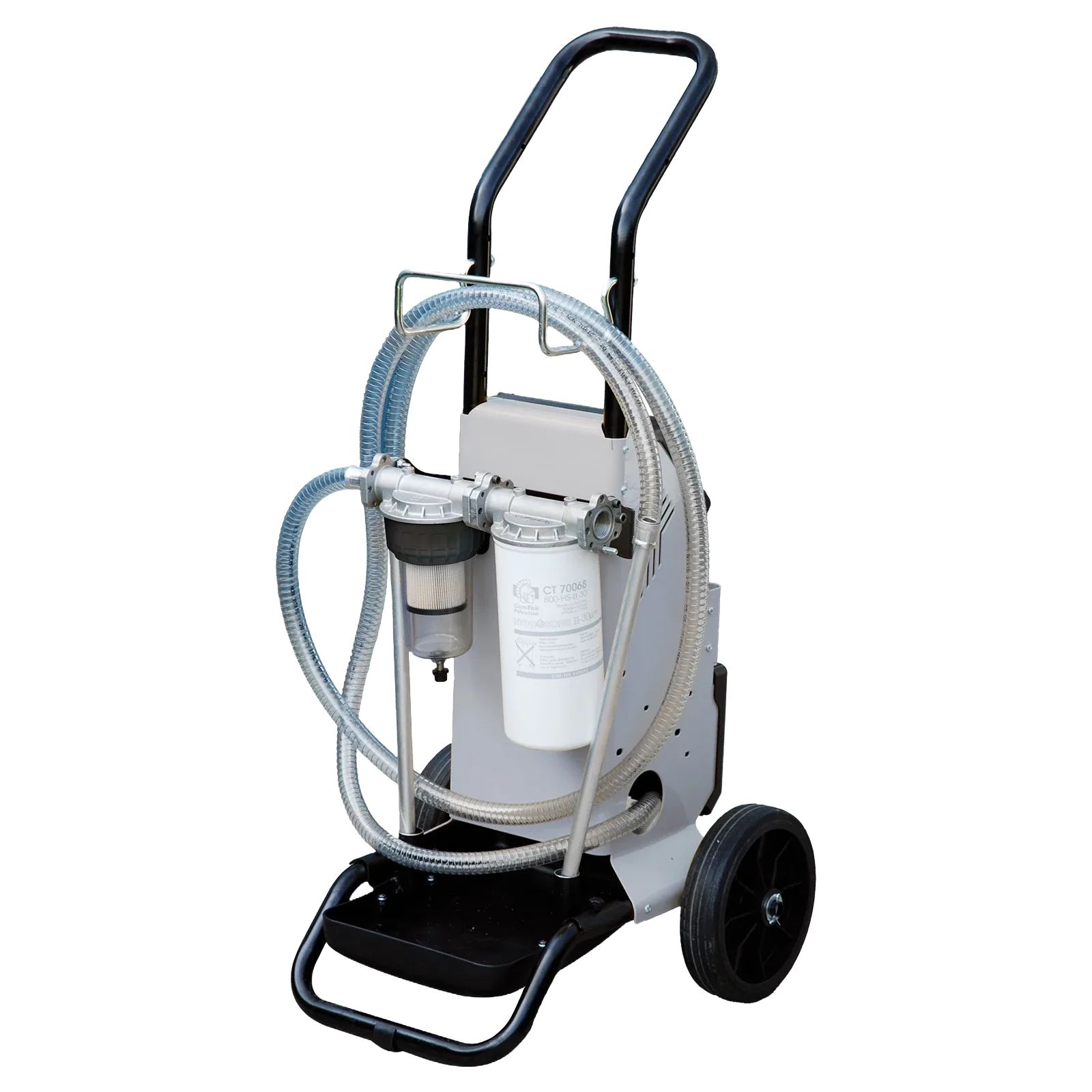

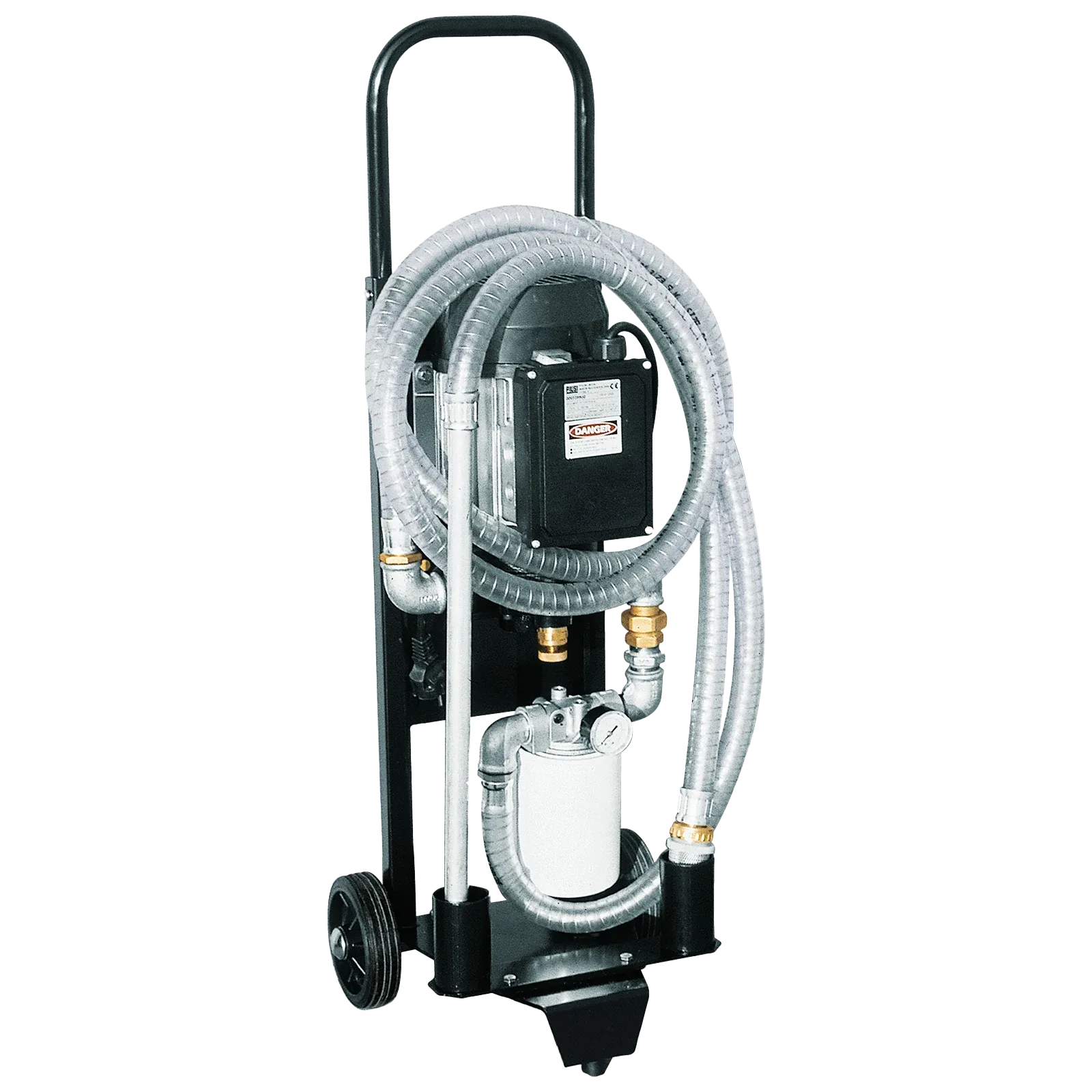

A DEPUROIL A high-quality, mobile oil filter and flow unit specifically designed for industrial, agricultural, mining, and construction applications. Its main function is the efficient demineralization of oils, i.e., the removal of suspended particles from lubricants, thereby ensuring optimal machine operation and extending oil life.
This equipment is the ideal solution for the „dialysis” (cleaning) of oils on-site, minimizing downtime and maintenance costs.
The DEPUROIL unit features several functions that make it stand out in the market:
Effective Filtration: Capable of removing suspended contaminants from the oil, thus improving the quality of the fluid.
Continuous Operation: Equipped with a continuously operating, volumetric pump that continuously circulates and filters the oil.
Compact and Portable: Easily movable between different workstations thanks to the wheeled support.
Silent Operation: Its noise level remains significantly below 70 dB, contributing to a more pleasant working environment.
Easy Maintenance: It features a replaceable cartridge filter, the replacement of which is indicated by the pressure gauge (manometer) when the filter becomes clogged.
Ready State: The device comes with a set of spare filter cartridges, so it is ready for immediate operation.
Long Cable Length: It is supplied with a 5-meter cable for flexible positioning.
Spiral Hose Design: The flexible spiral hoses facilitate fluid handling and connection.
The DEPUROIL can be widely applied in the following sectors:
Industrial: Maintenance of production lines and hydraulic systems.
Agriculture: Cleaning of lubricating oils for high-performance agricultural machinery.
Mining & Construction: Filtering hydraulic and lubricating oils for heavy machinery and construction equipment.
The specifications of the DEPUROIL filter and flow unit are as follows:
| Parameter | Value | Note |
|---|---|---|
| Product Category | Lubricating Fluids | |
| Application | Industrial, Agricultural, Mining, Construction | |
| Pump Type | Volumetric Pump | Continuous operation |
| Filter System | High-capacity cartridge filter | With replaceable head |
| Noise Level | < 70 dB | Quiet Operation |
| Indicator | Pressure gauge (for clogging indication) | |
| Power supply (code 00050300A) | 230 V / 50-60 Hz | |
| Flow rate (code F00503100) | 60 L/min | 230V/50Hz version |
| Cable length | 5 meter | |
| Construction | Wheeled support | Mobile version |
| Accessories | Series of spare filter cartridges |
The DEPUROIL unit is available in various configurations and comes with full spare part and manual support.
| Product code | Description | Spare Parts | Manuals |
|---|---|---|---|
| 00050300A | DEPUROIL M 230V/50-60 Hz | Available | Available |
| F00503100 | DEPUROIL 60 L/M 230V/50Hz | Available | Available |
The device can be excellently integrated into existing lubricant management processes, ensuring that critical systems always operate with clean, contaminant-free oil. Changing the filter cartridges is simple, and the pressure gauge provides visual feedback on the filter status, thereby minimizing unnecessary changes and loss of filtration efficiency. DEPUROIL reflects PIUSI's commitment to reliable and efficient fluid management solutions.
